3.7v 18650 30P High-Drain Rechargable Lithium ion battery

Parameter	Specification
ITEMS	SPECIFICATION
Nominal Capacity	3000mAh @0.2C
Minimum Capacity	2900mAh @0.2C
Nominal Voltage	3.6V
Standard Charging Method	CC-CV(0.5C,4.2V,0.02C cut-off)
Max Charging Voltage	4.20±0.05V
Discharge Cut-off Voltage	2.5V
Max Charge Current (continuous)	6A
Standard Discharge Current	0.2C
Max Discharge Current(continuous)	10A(Without 80°C temperature cut)
Operating temperature (surface)	-20 to 80°C
Weight	≤47g

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

18650 30P Battery 3.7 v for energy storage systems, industrial and medical equipment | Battery Manufacturers in China & Battery Supply Factory

The VTCBATT 18650 30P Battery 3.7V is a high-performance lithium cylindrical battery designed for energy storage systems, industrial equipment, and medical devices requiring stable and reliable power. With advanced cell selection and precise manufacturing, it delivers consistent performance, high energy density, and long cycle life.

VTCBATT provides OEM/ODM customized solutions, including voltage, capacity, BMS configuration, and pack design to meet specific project needs. Each battery undergoes strict quality control and testing to ensure safety, durability, and dependable performance in demanding applications.

01

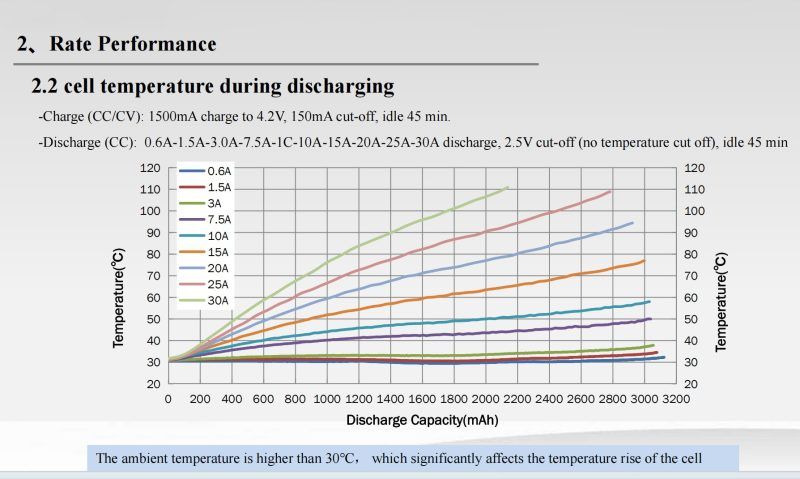

18650-30P Cell Temperature Profile During High-Drain Discharge

This graph illustrates the thermal performance and temperature rise of the 18650-30P battery cell during continuous discharge at various current rates. The cell was tested across multiple discharge currents ranging from 0.6A up to a high drain of 30A, with a standard cut-off voltage of 2.5V and no temperature cut-off intervention. As the discharge rate increases, the rate of temperature rise accelerates significantly; at the maximum 30A continuous discharge, the cell temperature exceeds 110°C. Note: The baseline ambient temperature during this test was higher than 30°C, which heavily influences the overall heat accumulation.

02

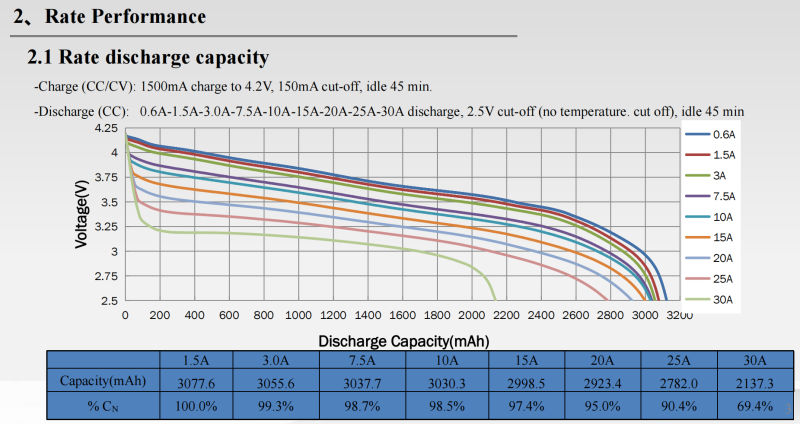

18650-30P High Drain Rate Discharge Capacity Comparison

This performance chart illustrates the discharge voltage profiles and total deliverable capacity of the 18650-30P battery cell under varying constant current (CC) loads. Tested from a baseline of 0.6A up to a high drain of 30A, the curves demonstrate typical lithium-ion behavior: higher discharge currents result in increased voltage sag and a reduction in total usable capacity. The cell shows excellent stability, maintaining over 95% of its capacity at a 20A continuous discharge, and over 90% at 25A. At the extreme 30A continuous discharge rate, it delivers 2137.3 mAh (69.4% of its baseline capacity) before hitting the 2.5V cut-off.

03

Customization

VTCBATT can support full customization of the 18650 batteries in different capacities, connectors, discharge rates, and cases. Just inform us of your specific requirement, and our professional engineers can provide you with the customized lithium ion battery proposal.

Technical insight

Product and application details

battery packs for energy storage systems

The 3000mAh nominal capacity ensures sustained energy delivery for long-duration stationary storage requirements.

electric bicycles (e-bikes)

A 10A continuous discharge rate supports the motor's peak power demands during steep inclines.

electric scooters

High-drain capability handles rapid acceleration cycles while maintaining stable voltage under heavy loads.

high-power flashlights

10A max discharge current enables intense beam output for emergency signaling and tactical use.

industrial and medical equipment

Wide operating temperature range from -20 to 80°C ensures reliable performance in harsh environments.

laptops and consumer electronics

Compact weight under 47g allows for lightweight device designs without compromising battery life.

portable power stations

Standard 3.6V nominal voltage integrates seamlessly into multi-cell series configurations for higher output.

Power tools

Continuous 10A discharge supports high-torque motor operation during demanding construction and DIY tasks.
