Technical insight
Product and application details
Smart water meters

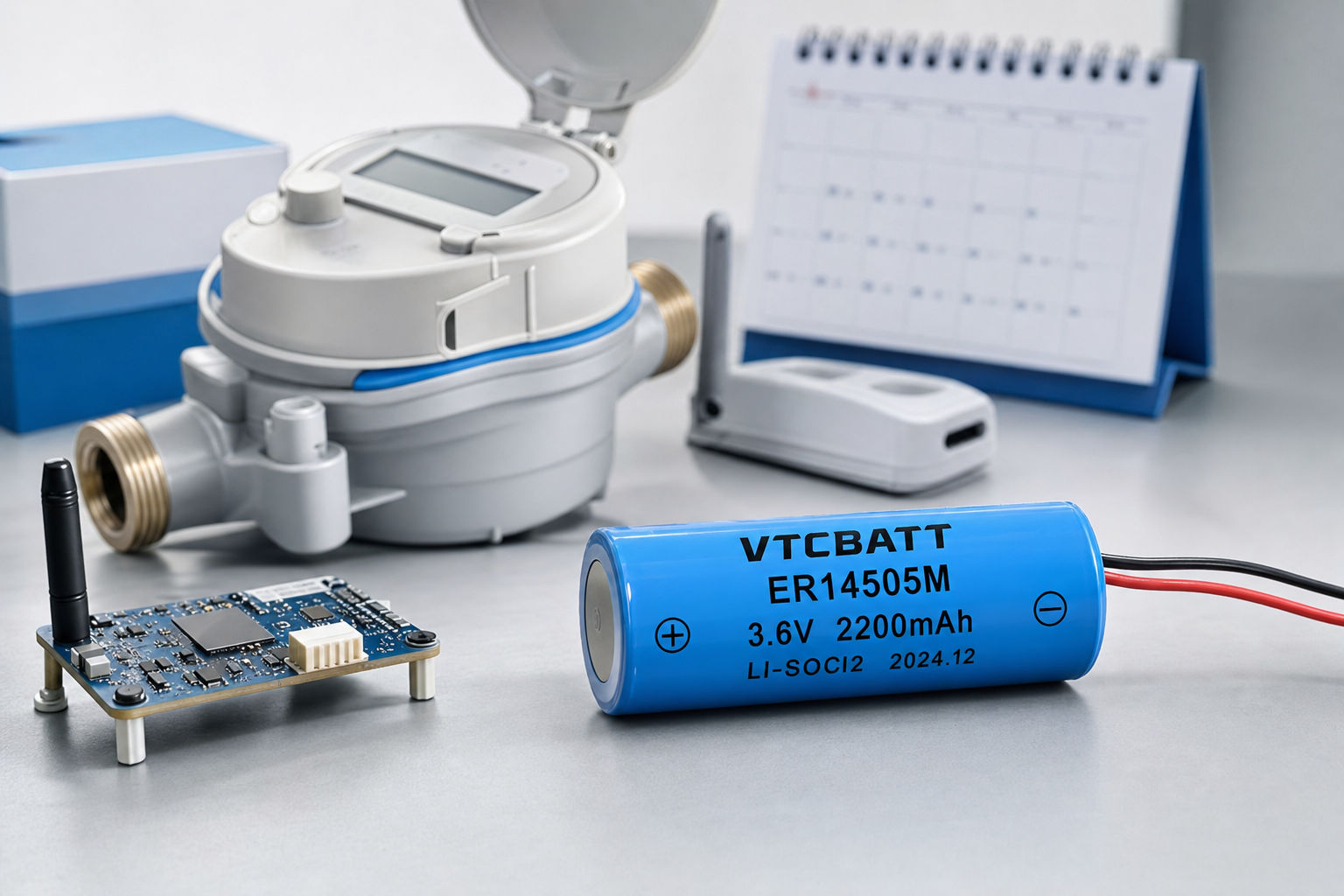

The 10-year storage life ensures long-term readiness for infrequent read cycles in buried utility infrastructure.
Street lighting control systems
The compact 14.5mm diameter fits into tight control box spaces while supplying steady 3.6V logic power.
Smart agriculture sensor nodes
Wide temperature tolerance allows reliable sensing in unheated rural fields during extreme seasonal weather shifts.
Security alarm systems
High capacity supports periodic wake-ups for motion detection without frequent battery replacement in remote sites.
PLC memory backup
Non-volatile retention over a decade prevents data loss during extended primary power outages in industrial settings.
Oil and gas field instruments

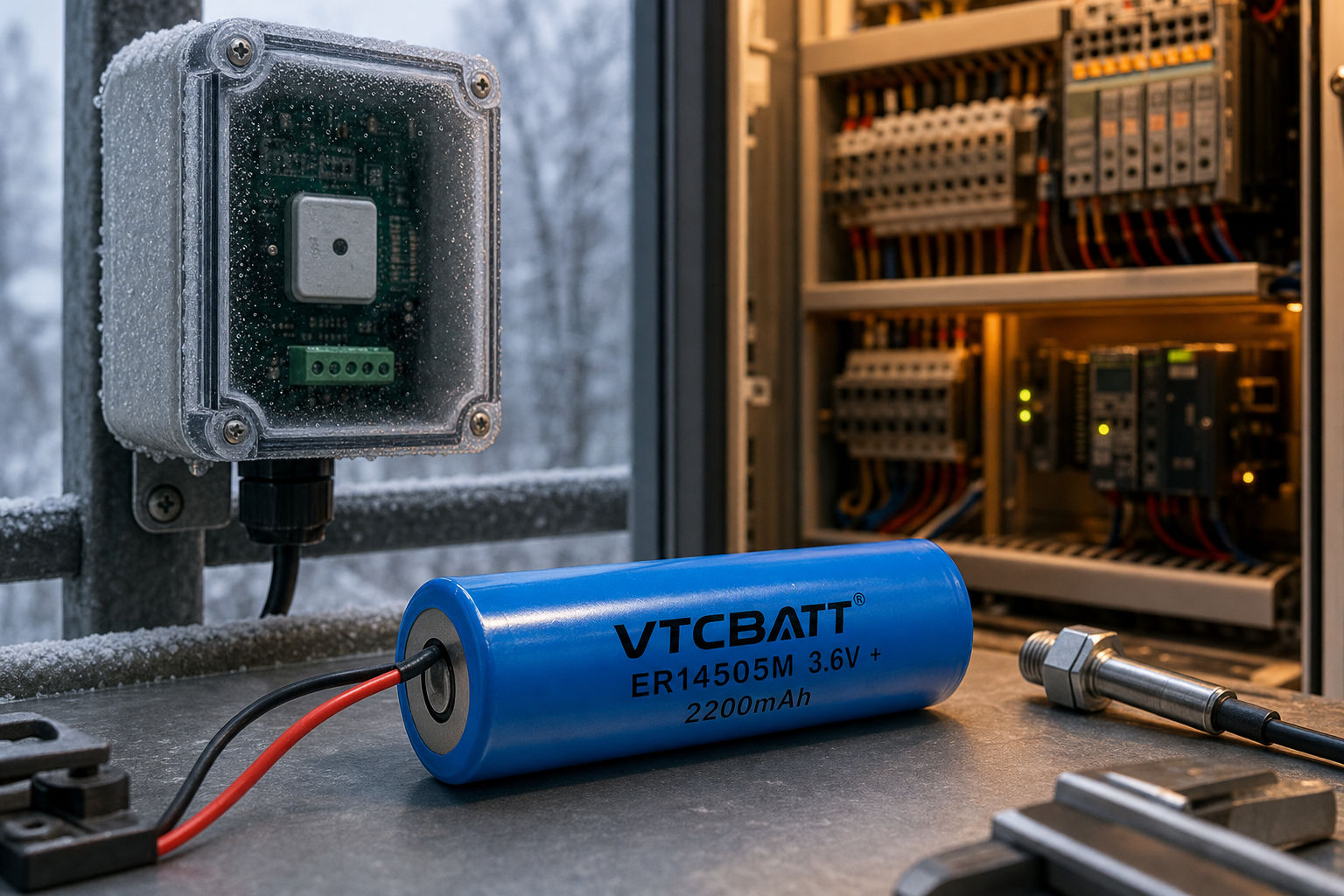

Resistance to extreme ambient heat up to 85°C ensures stable performance in exposed field instrumentation.
Industrial IoT data loggers
Consistent 3.6V output maintains accurate sensor readings during continuous logging operations in factory environments.
GPS asset trackers

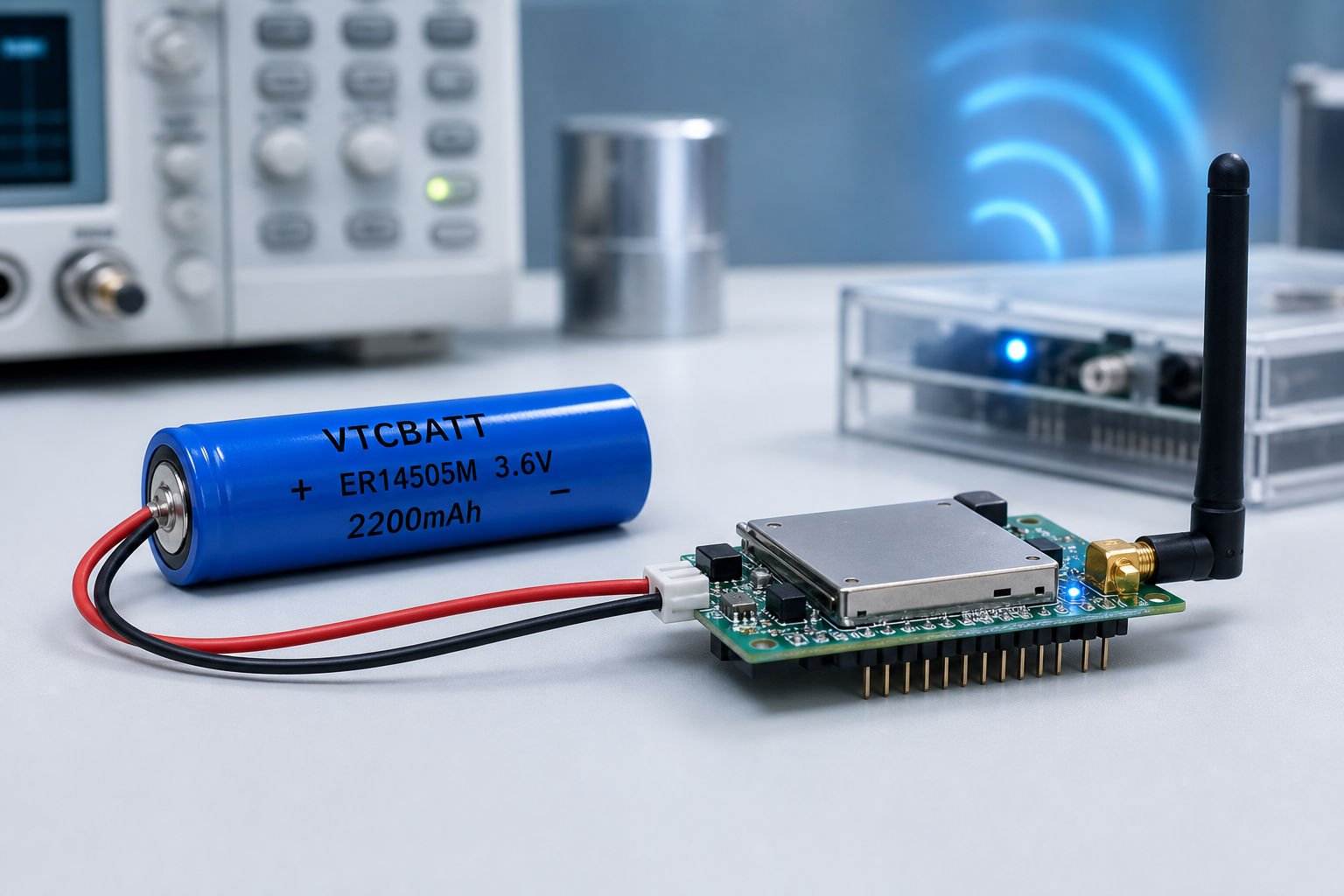

Quick discharge capability supports high-current bursts required for satellite signal acquisition during location pings.
The ER14505M is a 3.6V 2200mAh Li-SOCl2 battery designed for long-life standby and low-power industrial electronics that require stable voltage in a compact AA-size cylindrical format. According to the datasheet, the cell is rated for discharge to 2.0V at 0.8mA, supports a maximum constant discharge current of 500mA and a maximum pulse current of 1000mA, and uses a maximum cell size of φ14.5mm x H50.7mm with a maximum weight of 21g. Its ambient operating range is -55°C to +85°C, and the storage-life statement is not less than 10 years with yearly self-discharge not more than 1%. VTCBATT can support factory

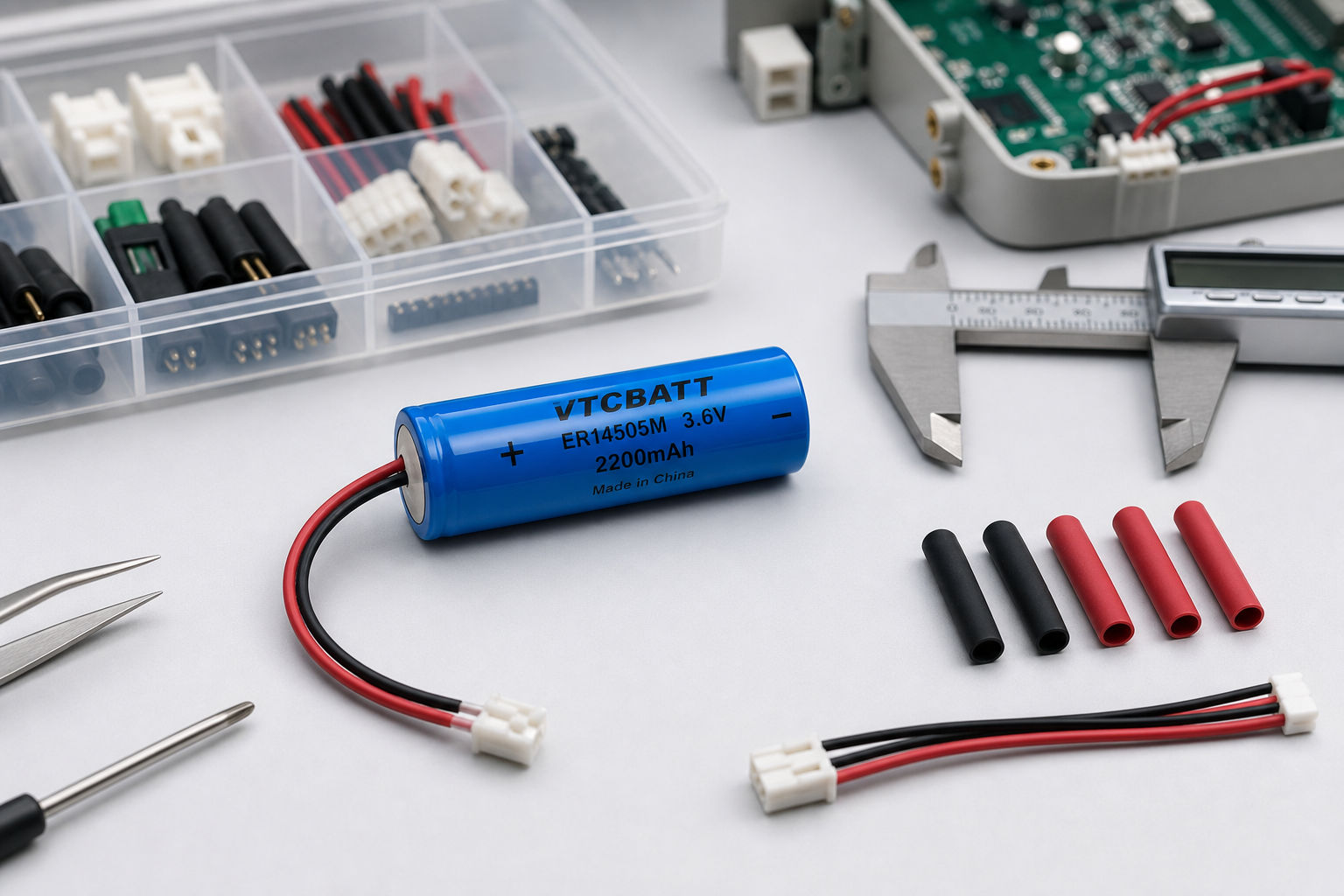

The ER14505M is a 3.6V 2200mAh Li-SOCl2 battery designed for long-life standby and low-power industrial electronics that require stable voltage in a compact AA-size cylindrical format. According to the datasheet, the cell is rated for discharge to 2.0V at 0.8mA, supports a maximum constant discharge current of 500mA and a maximum pulse current of 1000mA, and uses a maximum cell size of φ14.5mm x H50.7mm with a maximum weight of 21g. Its ambient operating range is -55°C to +85°C, and the storage-life statement is not less than 10 years with yearly self-discharge not more than 1%. VTCBATT can support factory supply, OEM/ODM battery customization, wire-lead configuration, labeling, sample development and wholesale batch production for equipment manufacturers and battery distributors.
