VTC18650-1S4P 3.6V 13.6Ah Li-ion Battery Pack for industrial control devices, portable monitoring equipment, backup power modules

Parameter	Specification
Model	VTC18650-1S4P 13.6Ah
Battery Type	Cylindrical Lithium Ion Rechargeable Battery Pack
Nominal Voltage	3.6V
Nominal Capacity	13.6Ah (0.2C discharge to 2.5V)
Minimum Capacity	12.8Ah (440mA discharge to 2.5V)
Max. Charge Voltage	4.2V
Standard Charging Current	0.2C (2.72A), CC/CV to 4.2V, cut-off 136mA
Weight	220g
Pack Dimensions	37.0 x 37.0 x 67.0mm max
Connector	JST/PHR-3P
Cycle Life	≥500 cycles

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

VTC18650-1S4P 3.6V 13.6Ah Li-ion Battery Pack for Industrial control devices, Wireless data terminals, Portable service analyzers | Battery Manufacturers in China & Battery Supply Factory

The VTC18650-1S4P 3.6V 13.6Ah Li-ion battery pack from VTCBATT is a cylindrical lithium ion rechargeable battery assembly built in a 1S4P structure with a nominal capacity of 13.6Ah, minimum capacity of 12.8Ah, 4.2V limited charge voltage, 2.5V discharge cut-off voltage, and a compact 37.0 x 37.0 x 67.0 mm pack size at approximately 220 g. The datasheet also shows PCM protection, a three-wire output with 80±5 mm lead length, JST/PHR-3P connector arrangement, and defined operating temperature windows for charging and discharging. VTCBATT supports factory supply, sample development, custom cable and connector matching, OEM/ODM battery pack production, and stable batch delivery for customers that need dependable lithium battery pack sourcing.

01

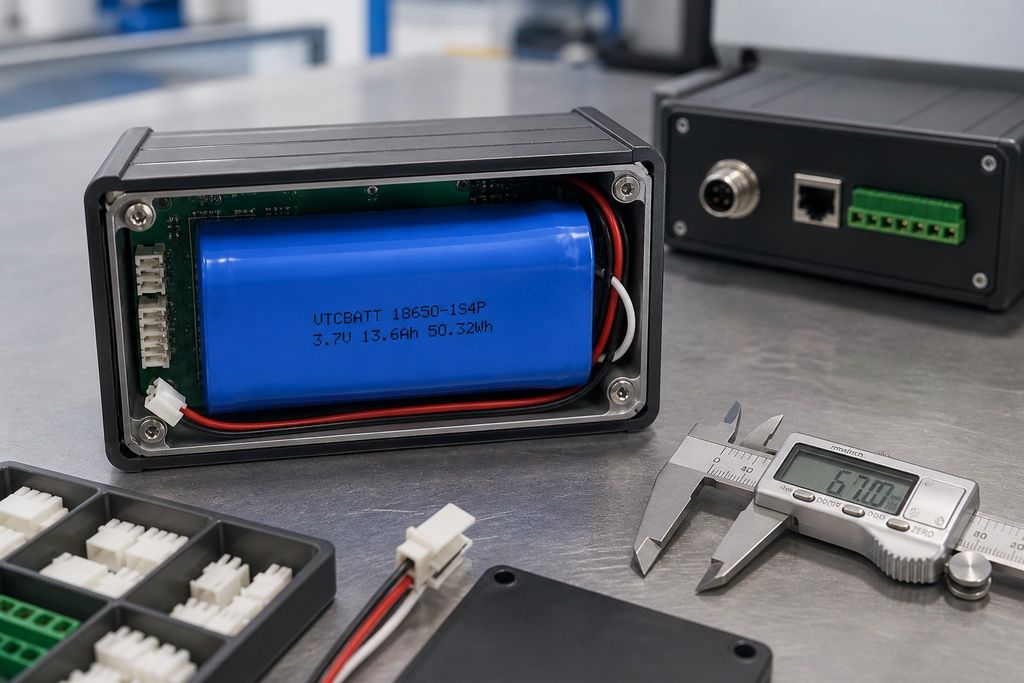

Compact Mechanical Integration

With maximum pack dimensions of 37.0 x 37.0 x 67.0 mm and weight around 220 g, this battery pack is suited to projects that need meaningful capacity in a constrained footprint. The blue PVC-wrapped pack structure, 80±5 mm lead wire, and JST/PHR-3P connector arrangement help reduce extra mechanical adaptation work during product development and small-batch manufacturing.

02

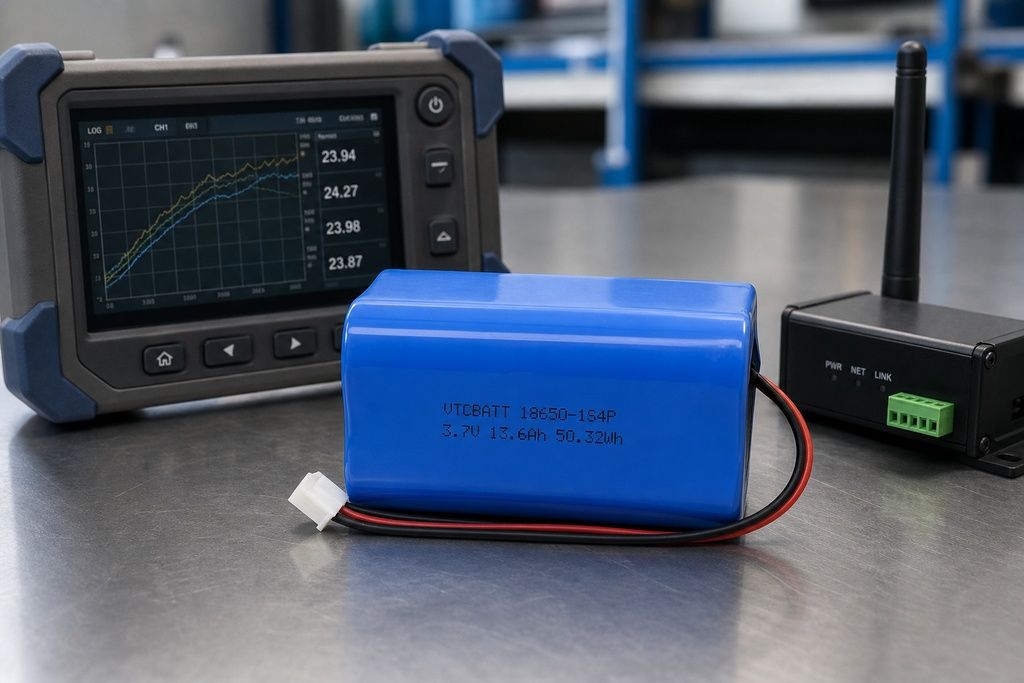

High Capacity 1S4P Runtime

The VTC18650-1S4P battery pack uses a 1S4P cylindrical Li-ion structure to deliver 13.6Ah nominal capacity in a compact body, giving OEM devices longer operating time without moving to a much larger enclosure. This makes it practical for portable monitoring equipment, communication modules, and reserve-power electronics that need stable low-voltage energy storage with moderate current output.

03

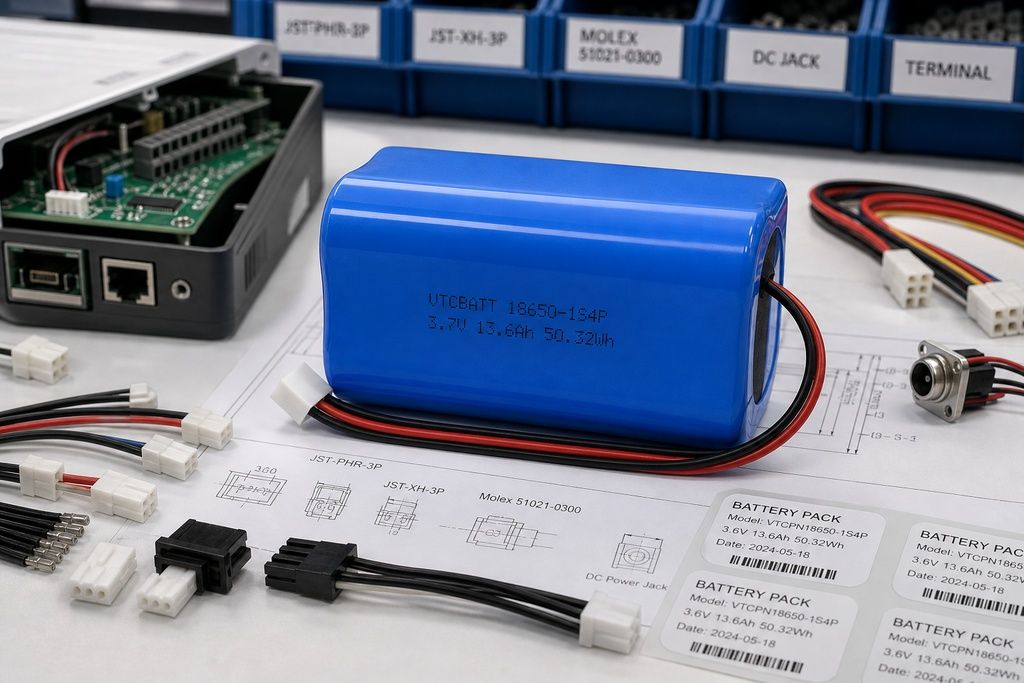

OEM Wiring and Connector Flexibility

VTCBATT can support application-oriented battery pack customization based on the source design, including connector matching, lead-wire adjustment, label updates, and project-specific pack configuration for OEM/ODM supply. This is useful for industrial device brands, system integrators, and distributors that need a factory-direct lithium battery pack with room for assembly-level adaptation.

04

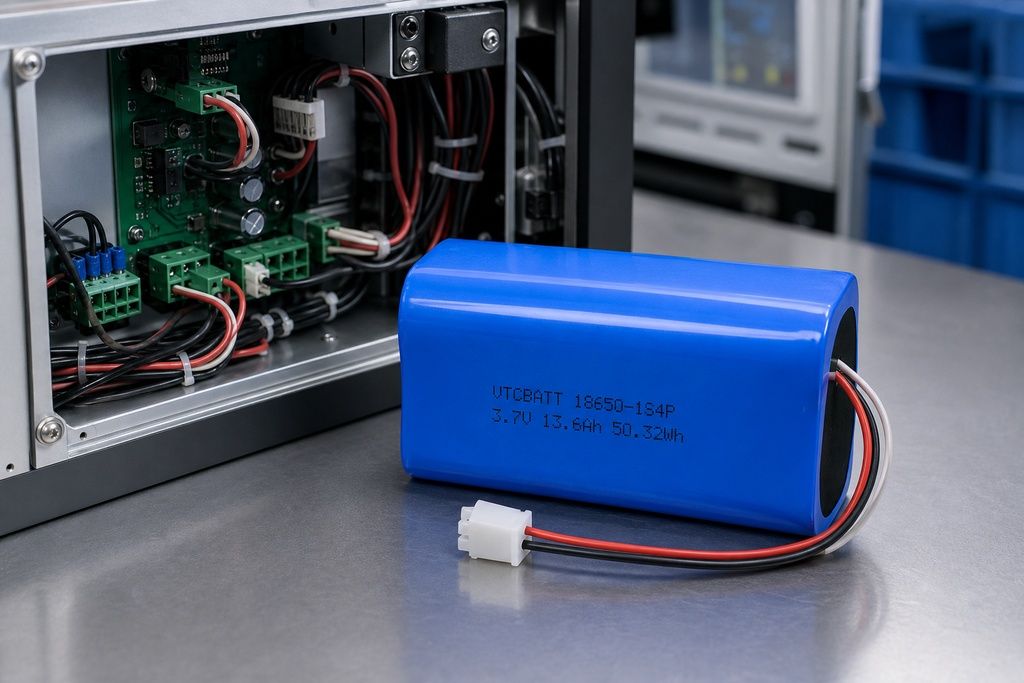

PCM Protected Pack Output

The datasheet includes PCM protection characteristics covering over-charge, over-discharge, short-circuit, and over-current control, helping equipment builders integrate a more controlled battery pack into low-voltage systems. The pack also uses a three-wire output layout with red, black, and white leads for power and temperature-related integration, which supports cleaner assembly into finished devices.

Technical insight

Product and application details

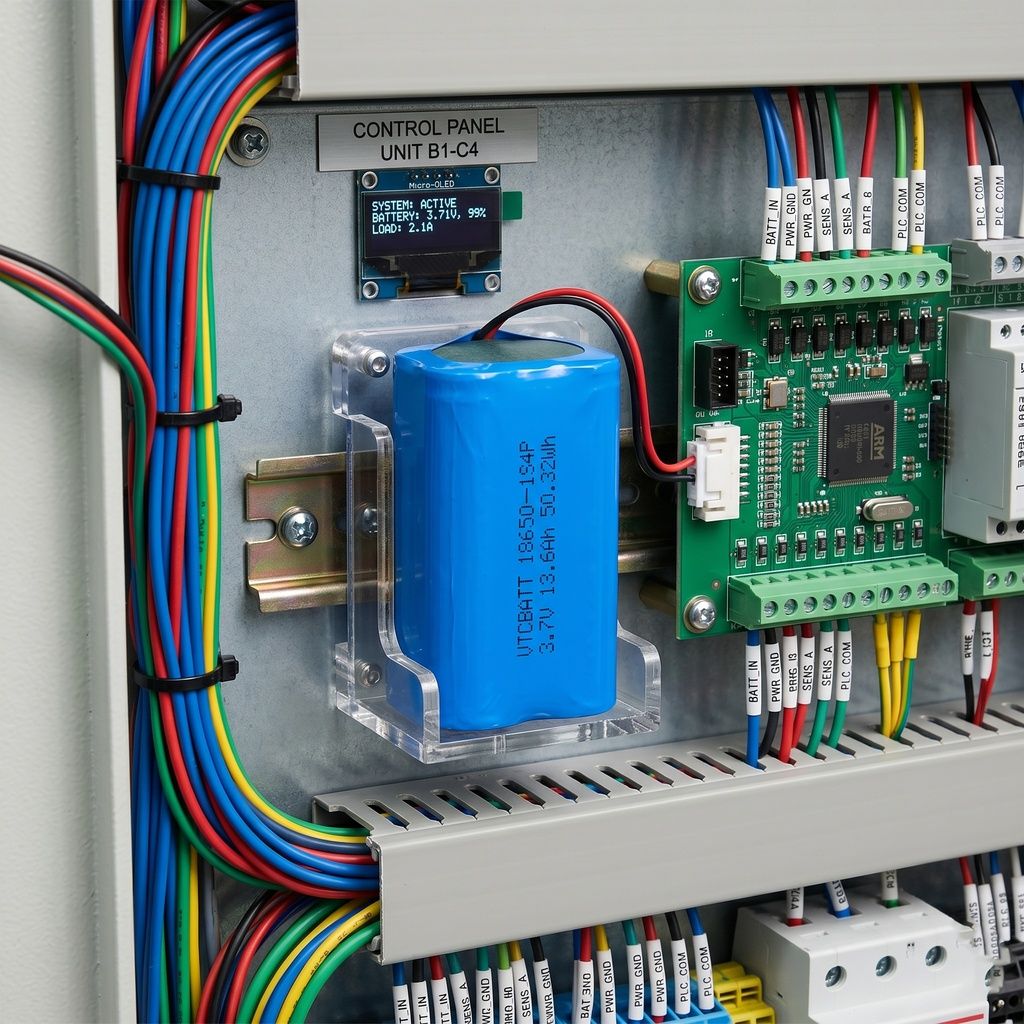

control panel assemblies

Its 37x37x67mm profile fits tightly into compact embedded electronics for reliable data retention during power loss.

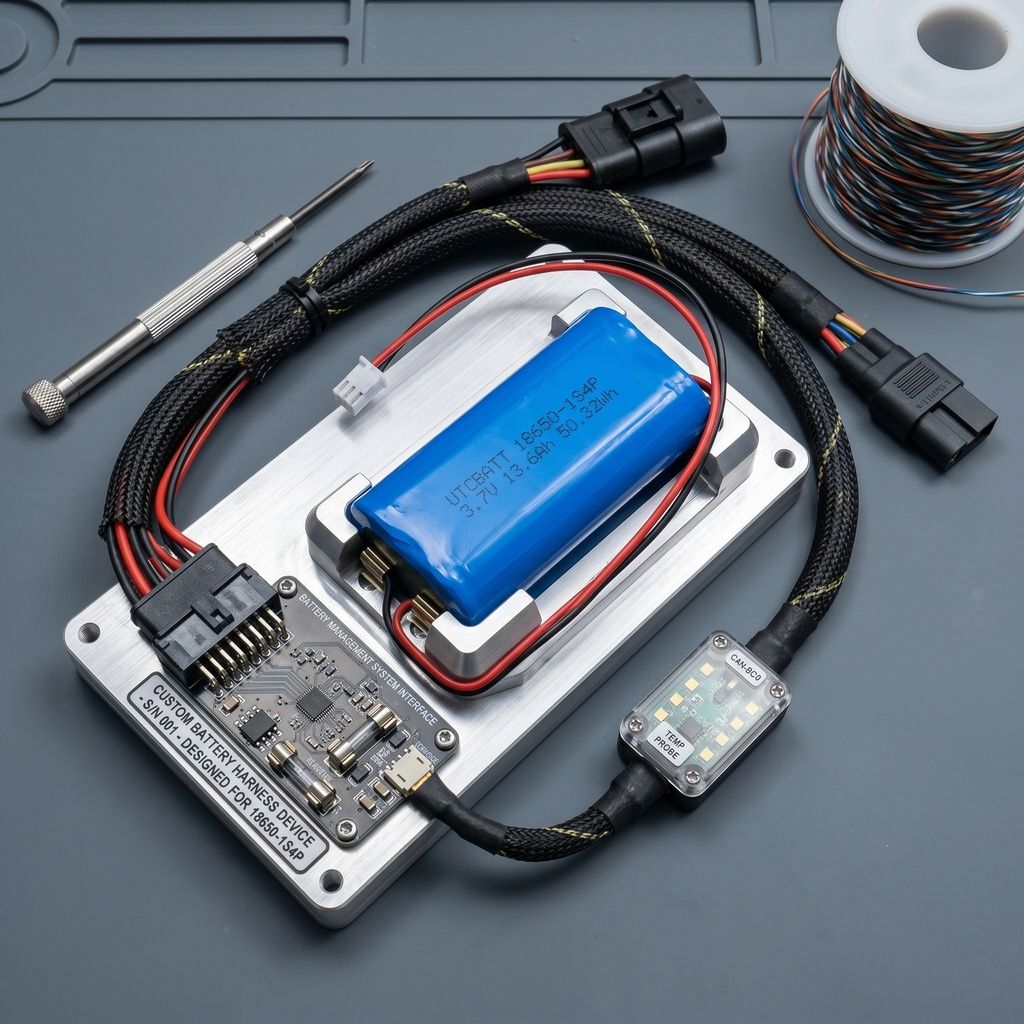

custom cable harness devices

The integrated JST/PHR-3P connector simplifies wiring integration for custom harnesses requiring secure, low-profile power connections.

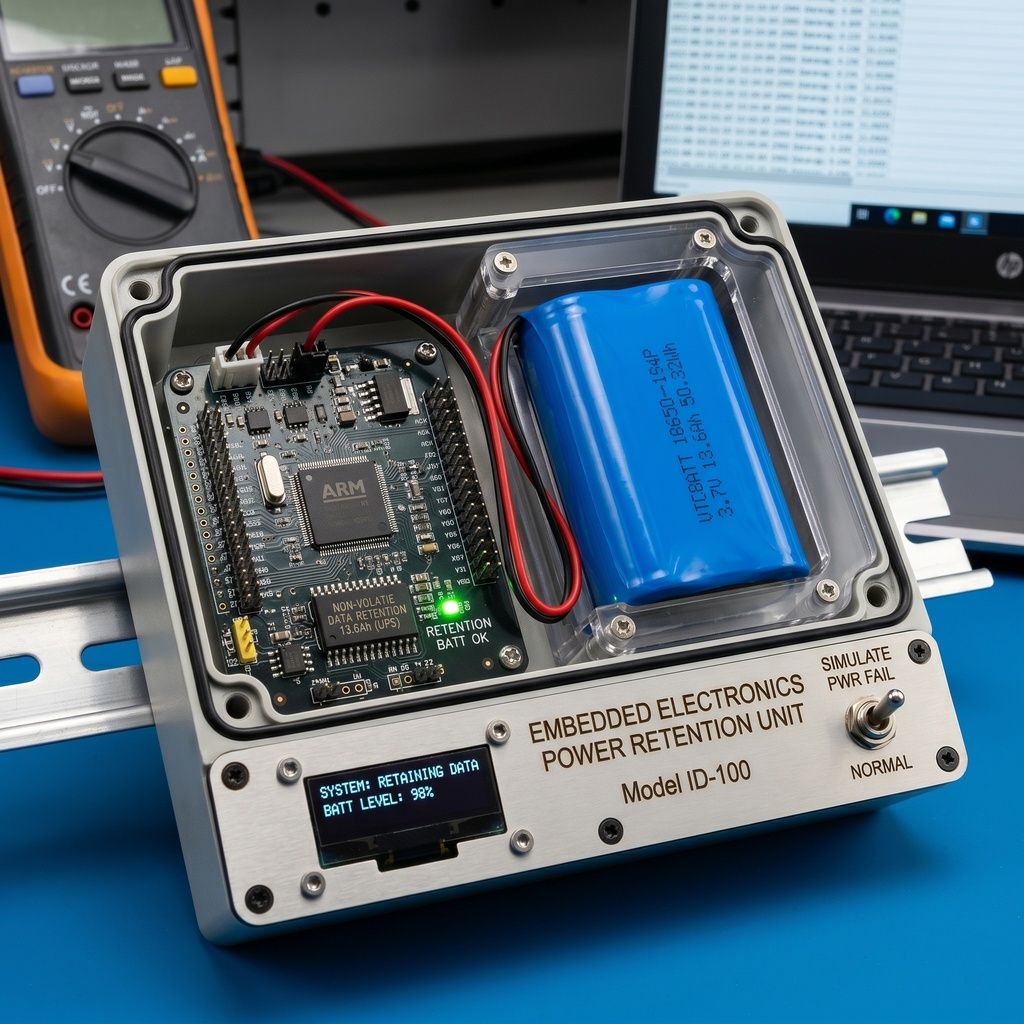

embedded electronics power retention

This 13.6Ah capacity ensures sufficient energy backup for embedded systems to safely save critical state data.

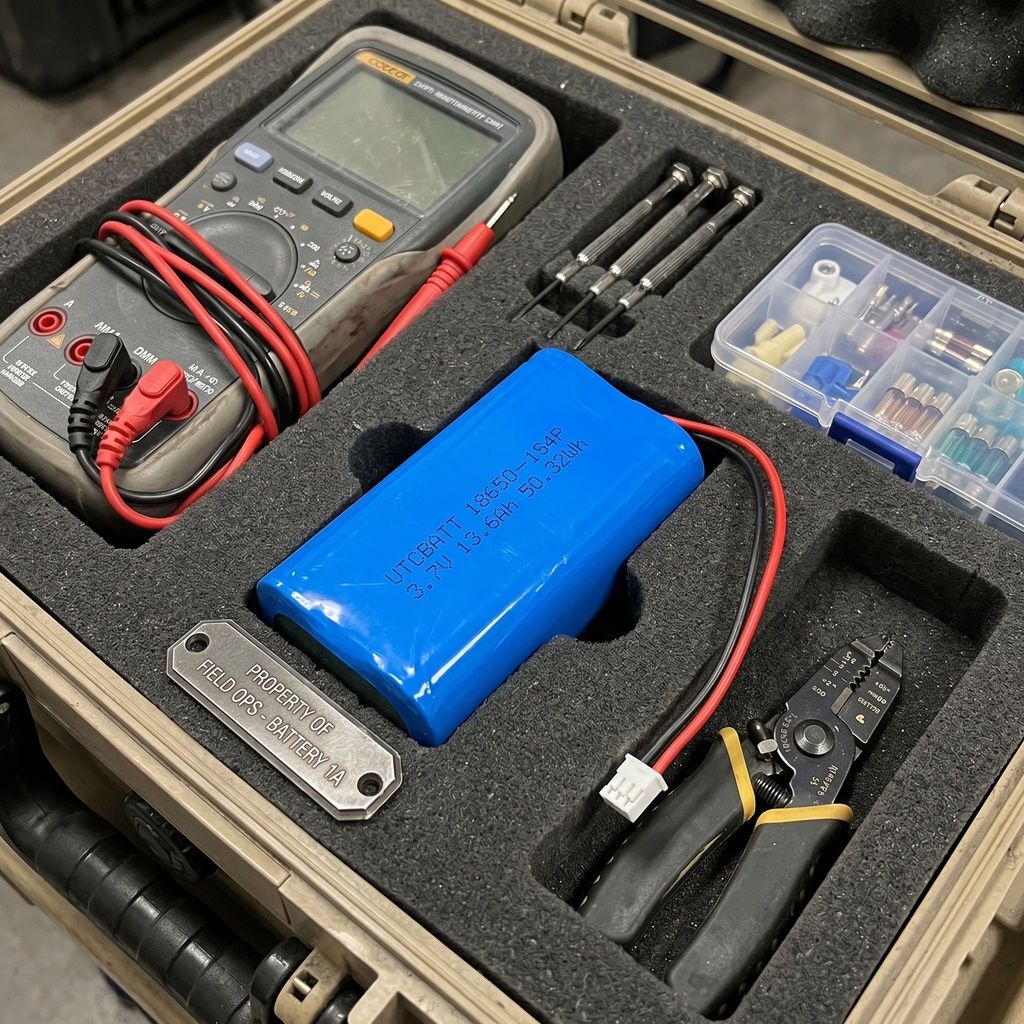

field maintenance instruments

At only 220g, this lightweight pack reduces operator fatigue during extended use of handheld field instruments.

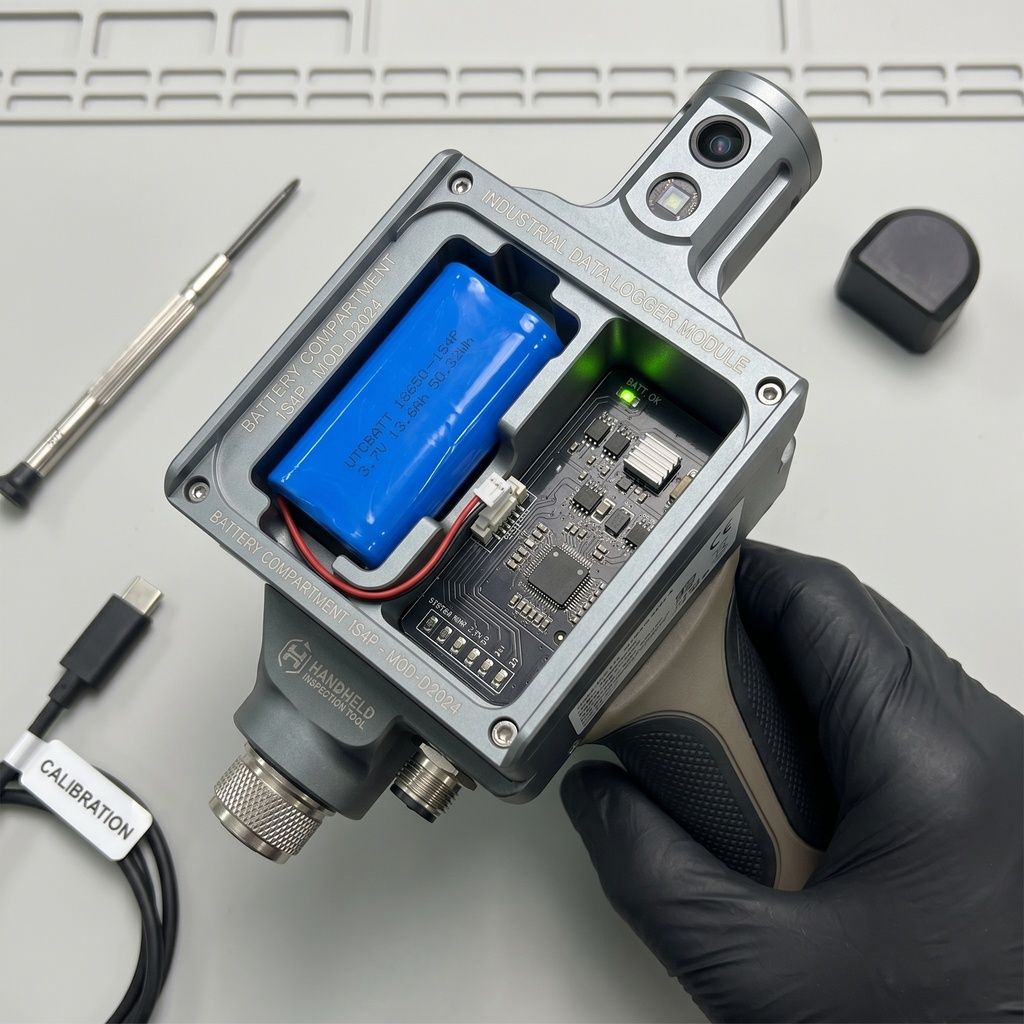

handheld inspection tools

The 3.6V nominal voltage provides stable power delivery for sensitive sensors in portable inspection tools.

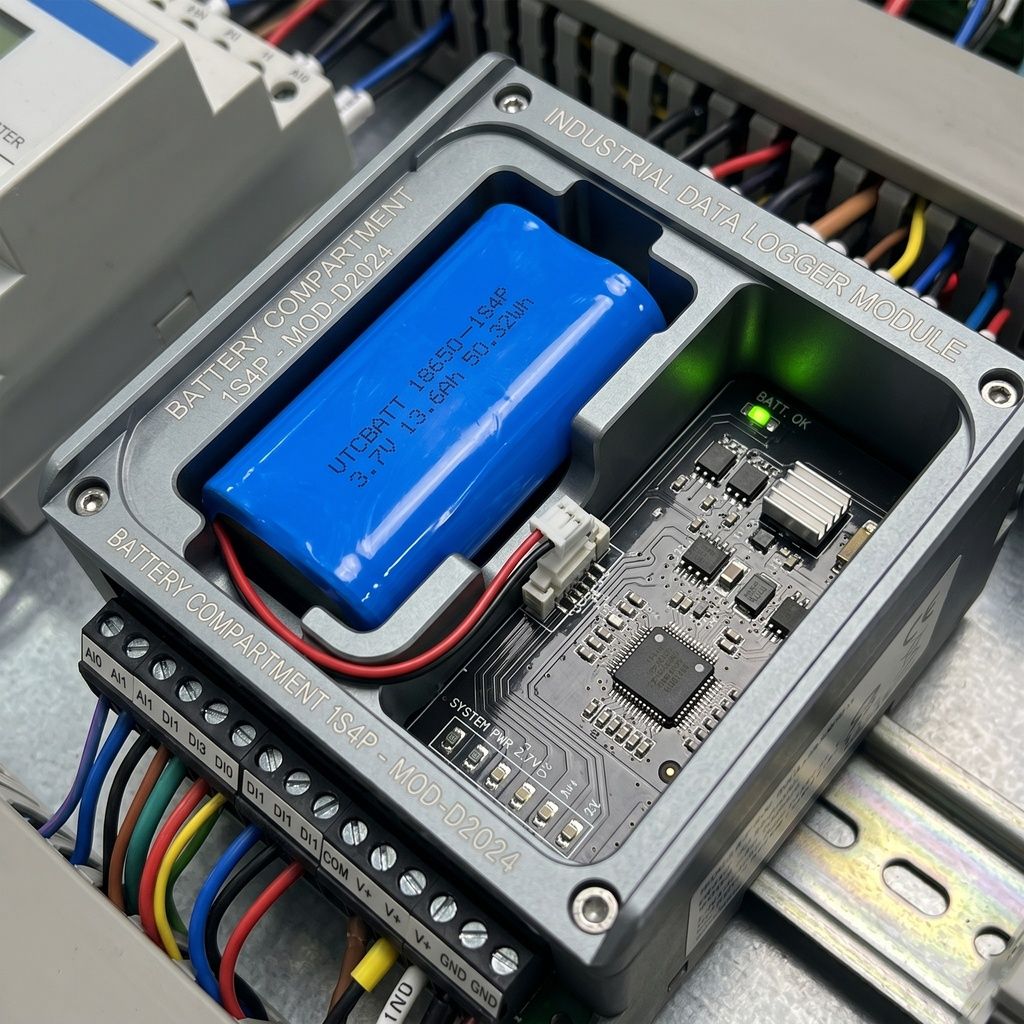

Industrial control devices

With over 500 cycles, this pack withstands frequent charging demands in demanding industrial control environments.

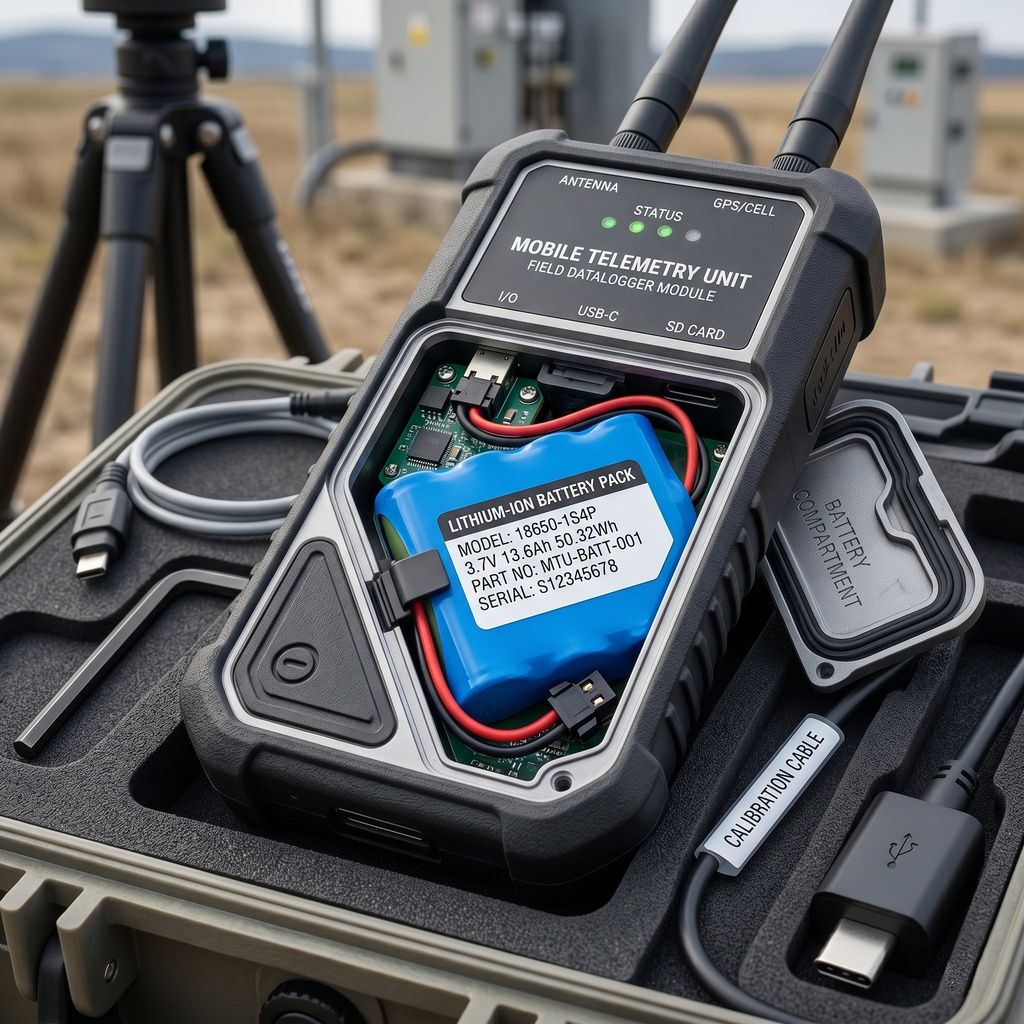

mobile telemetry devices

The 440mA minimum capacity discharge rating supports consistent data transmission for remote mobile telemetry units.

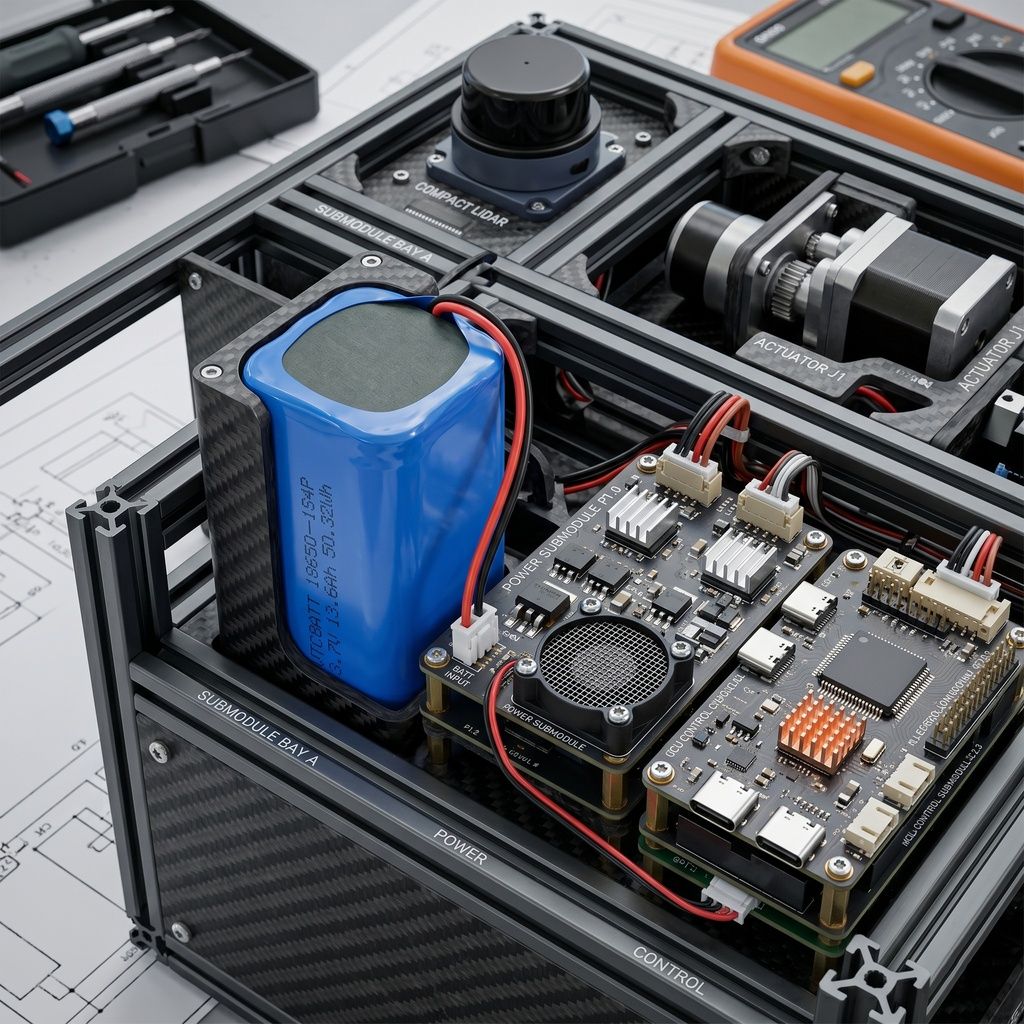

Robotics submodules

Its cylindrical 18650 configuration allows flexible stacking within tight robotic submodules requiring high volumetric efficiency.

The VTC18650-1S4P 3.6V 13.6Ah Li-ion battery pack from VTCBATT is a cylindrical lithium ion rechargeable battery assembly built in a 1S4P structure with a nominal capacity of 13.6Ah, minimum capacity of 12.8Ah, 4.2V limited charge voltage, 2.5V discharge cut-off voltage, and a compact 37.0 x 37.0 x 67.0 mm pack size at approximately 220 g. The datasheet also shows PCM protection, a three-wire output with 80±5 mm lead length, JST/PHR-3P connector arrangement, and defined operating temperature windows for charging and discharging. VTCBATT supports factory supply, sample development, custom cable and connector matching, OEM/ODM battery pack production, and stable batch delivery

The VTC18650-1S4P 3.6V 13.6Ah Li-ion battery pack from VTCBATT is a cylindrical lithium ion rechargeable battery assembly built in a 1S4P structure with a nominal capacity of 13.6Ah, minimum capacity of 12.8Ah, 4.2V limited charge voltage, 2.5V discharge cut-off voltage, and a compact 37.0 x 37.0 x 67.0 mm pack size at approximately 220 g. The datasheet also shows PCM protection, a three-wire output with 80±5 mm lead length, JST/PHR-3P connector arrangement, and defined operating temperature windows for charging and discharging. VTCBATT supports factory supply, sample development, custom cable and connector matching, OEM/ODM battery pack production, and stable batch delivery for customers that need dependable lithium battery pack sourcing.
