Usable energy
Capacity and cut-off strategy are sized around real daily depth of discharge and reserve requirements.
Long-cycle energy for daily work
LiFePO4 battery systems designed around usable energy, cycle depth, charge source, peak current, installation environment, communications, and service life.

Solution overview
Cell cycle data alone does not define field life. Depth of discharge, charge voltage, current, temperature, balancing, vibration, enclosure, and standby load all affect the result.
VTCBATT coordinates cells, BMS, busbars, thermal layout, enclosure, communications, charger compatibility, and production controls.
Performance priorities
The target is translated into measurable electrical, thermal, mechanical, safety, and production requirements.
Capacity and cut-off strategy are sized around real daily depth of discharge and reserve requirements.
Cell window, temperature, charge profile, balancing, and current are managed to support long service.
Cells, busbars, BMS, terminals, cables, and thermal paths are rated as one system.
Bluetooth, CAN, RS485, display, heating, fuse, contactor, and charger coordination can be specified.
Integrated engineering
Cells are only one part of the solution. The complete current path, structure, electronics, test plan, and manufacturing controls are developed together.
Calculate daily energy, autonomy, reserve, depth of discharge, charge time, and seasonal conditions.
Define series/parallel structure, BMS, fuse, current paths, terminals, and communications.
Develop enclosure, mounting, ingress protection, vibration support, service access, and labels.
Test capacity, cycle, current, thermal behavior, protection, charger compatibility, and equipment operation.
Technical framework
| Typical chemistry | LiFePO4 prismatic, cylindrical, or pouch platform |
|---|---|

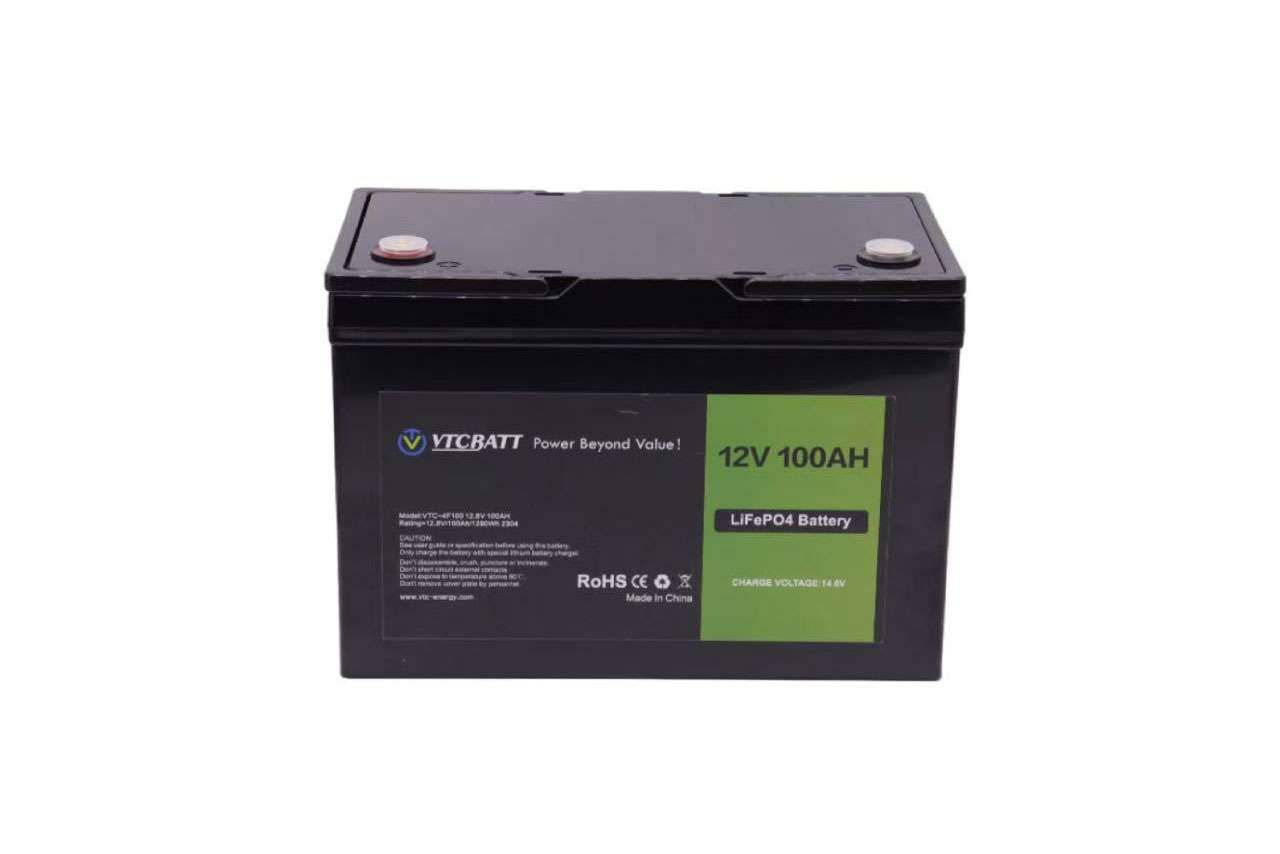

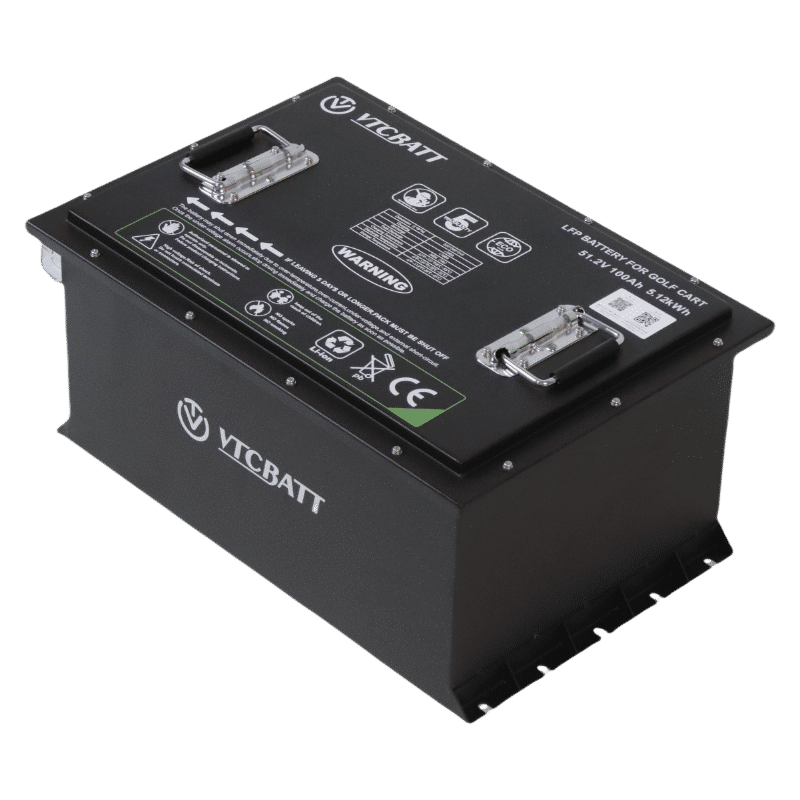

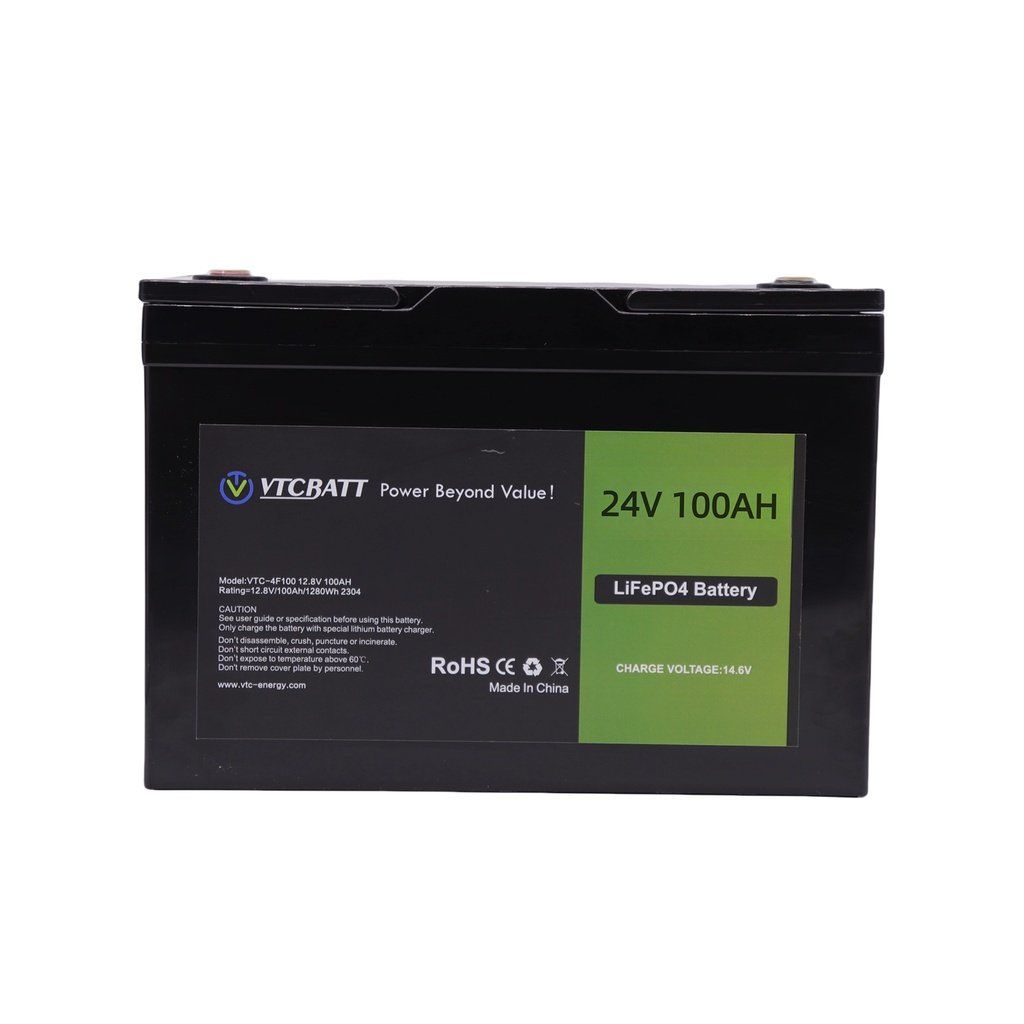

| Common voltages | 12.8V, 25.6V, 38.4V, 51.2V, 72V / 76.8V |
| Capacity range | Application-specific small packs through large energy systems |
| BMS options | Balancing, Bluetooth, CAN, RS485, heating, contactor, display, and event logging |
| Validation focus | Capacity, cycle, current, thermal rise, vibration, protection, charger, and system integration |
Application fit
Battery architecture is matched to the device load, environment, enclosure, charging, and service-life target.
Battery architecture is matched to the device load, environment, enclosure, charging, and service-life target.
Battery architecture is matched to the device load, environment, enclosure, charging, and service-life target.
Battery architecture is matched to the device load, environment, enclosure, charging, and service-life target.
Factory and validation
VTCBATT supports cell matching, incoming inspection, pack assembly, electrical testing, temperature testing, vibration, impact, protection verification, application-load testing, and certification planning.
Engineering, assembly, inspection, and production support within one supply chain.
Custom electrical, mechanical, labeling, packaging, and documentation options.
Controlled sourcing, revision management, cell matching, and repeat-order standards.
Project planning for UN38.3, IEC 62133, UL, CE, RoHS, MSDS, and market requirements.
FAQ
Provide nominal voltage, target capacity or runtime, continuous and peak current, maximum dimensions, temperature range, charging method, annual quantity, and certification requirements.
Yes. Cell arrangement, dimensions, BMS or PCM, connector, wire length, NTC, communication, label, enclosure, mounting, and packaging can be developed around the product.
Yes. Prototype packs can be produced for installation, load, runtime, charging, thermal, protection, and device-level validation before the BOM is released.
VTCBATT uses controlled cell sourcing, matching criteria, documented BOMs, process inspection, electrical tests, and outgoing inspection to support stable production.
Depending on chemistry and target market, support may include UN38.3, IEC 62133, UL, CE, RoHS, MSDS, transport documents, and project-specific tests.
Many properly configured deep-cycle LiFePO4 batteries target 3,000 or more cycles, but the result depends on depth of discharge, charge voltage, current, temperature, balancing, and the specified end-of-life capacity. Gentler operating conditions can support a longer service life.
A LiFePO4 cell has a typical nominal voltage of 3.2V. Common series platforms include 12.8V for 4S, 25.6V for 8S, and 51.2V for 16S battery systems.
LiFePO4 can often replace lead-acid after charger voltage, low-temperature charging, peak current, enclosure size, terminals, BMS limits, and series or parallel requirements are verified. It should be engineered as a system replacement rather than selected by nominal voltage alone.
Options can include cell balancing, Bluetooth, CAN, RS485, heating control, contactor control, SOC display, event logging, programmable protection thresholds, and charger or equipment communication.
Start a solution project
Share the device, voltage, runtime, current, dimensions, environment, quantity, and certification targets for an engineering review.
