High discharge
Cell chemistry and electrode platform are selected for the required current, pulse duration, and cycle target.
Power delivery without avoidable voltage collapse
High Power Battery Solutions
High-discharge battery systems designed as a complete current path: cells, tabs, welds, busbars, BMS, wiring, connector, thermal structure, and application load.
High C-rateCell platform selected around continuous and peak current
Low resistanceCurrent path engineered to reduce voltage drop and heat
Multi-seriesCustom voltage architecture for motors and high-power electronics
Load testedPack verification under representative device duty cycles
Solution overview
High power is more than a C-rate printed on a cell.
Actual output depends on internal resistance across the complete pack, temperature rise, voltage sag, connector capability, cooling, peak duration, and state of charge.
VTCBATT sizes the electrical and mechanical system around continuous current, transient current, duty cycle, recharge time, weight, and operating environment.
- Continuous and peak current definition
- Cell, tab, weld, busbar, cable, and connector resistance review
- Thermal rise and voltage-sag validation
- BMS, fuse, balancing, charger, and communication integration
Performance priorities
What the battery system must solve.
The target is translated into measurable electrical, thermal, mechanical, safety, and production requirements.
Low voltage sag
Series resistance is controlled across cells, interconnects, protection devices, wiring, and connector.
Thermal control
Pack geometry, heat paths, spacing, sensors, and enclosure ventilation manage temperature rise.
Fast turnaround
Prototype packs can be evaluated under representative motor, tool, robotics, or pulse loads.
Integrated engineering
From one performance requirement to a production-ready pack.
Cells are only one part of the solution. The complete current path, structure, electronics, test plan, and manufacturing controls are developed together.
Load definition
Capture continuous current, peak current, pulse time, duty cycle, voltage floor, and operating temperature.
Current path
Rate cells, tabs, welds, busbars, BMS, fuse, cable, connector, and terminal interfaces.
Thermal design
Model and test heat generation, sensor placement, cooling, enclosure, and shutdown thresholds.
Dynamic validation
Test voltage sag, power, temperature, runtime, cycle, protection, recharge, and real equipment behavior.
Technical framework
Define the operating target before selecting a battery.
| Typical chemistry | High-rate LiPo, Li-ion, or LiFePO4 |
|---|---|
| Configuration | Single-cell through high-voltage series/parallel custom packs |
| Current definition | Continuous, peak, pulse duration, duty cycle, and minimum voltage |
| Pack options | High-current BMS, fuse, contactor, balancing, telemetry, heavy-gauge cable, and custom connector |
| Validation focus | Voltage sag, temperature rise, power, efficiency, protection response, cycle, and application load |
Application fit
Products that benefit from this solution.
Professional drones
Battery architecture is matched to the device load, environment, enclosure, charging, and service-life target.
Cordless power tools
Battery architecture is matched to the device load, environment, enclosure, charging, and service-life target.
RC and robotics
Battery architecture is matched to the device load, environment, enclosure, charging, and service-life target.
Industrial pulse loads
Battery architecture is matched to the device load, environment, enclosure, charging, and service-life target.

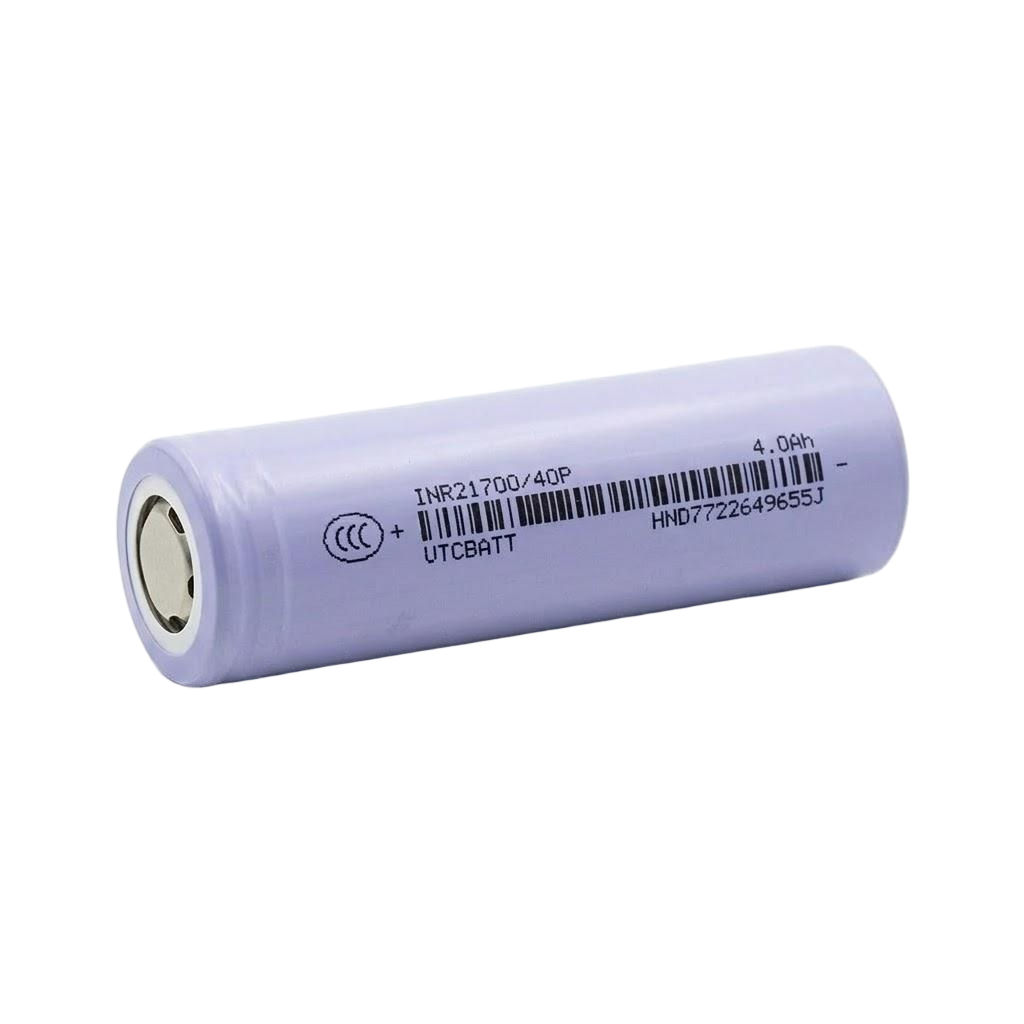

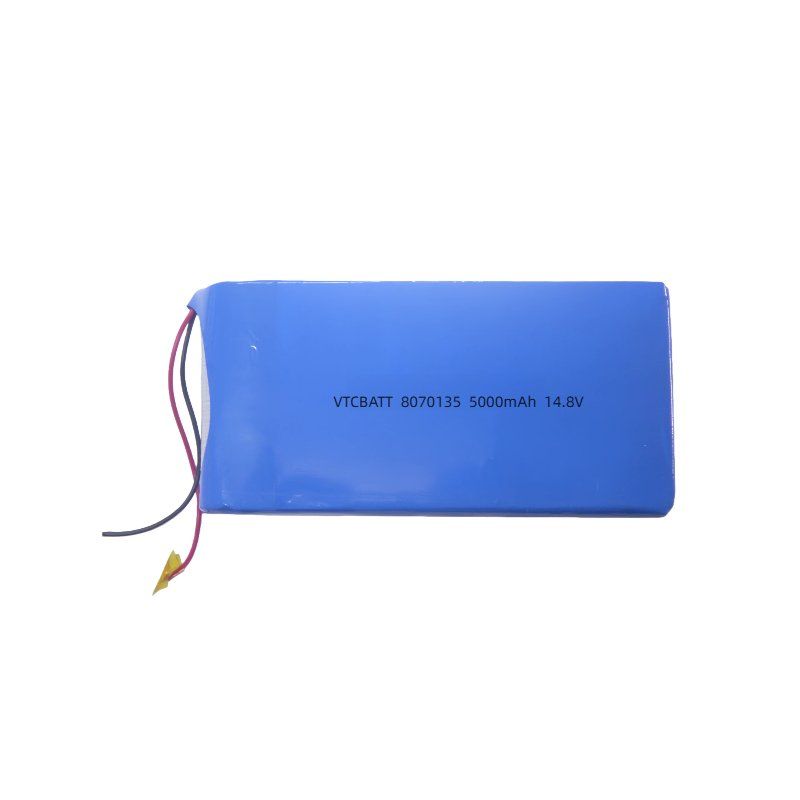

Related battery platforms
Starting points for engineering evaluation.
Final battery selection and specifications should be confirmed against the complete application requirement.
Factory and validation
Engineering decisions supported by controlled manufacturing.
VTCBATT supports cell matching, incoming inspection, pack assembly, electrical testing, temperature testing, vibration, impact, protection verification, application-load testing, and certification planning.
Factory-direct
Engineering, assembly, inspection, and production support within one supply chain.
OEM & ODM
Custom electrical, mechanical, labeling, packaging, and documentation options.
Stable BOM
Controlled sourcing, revision management, cell matching, and repeat-order standards.
Compliance support
Project planning for UN38.3, IEC 62133, UL, CE, RoHS, MSDS, and market requirements.
FAQ
Common high power battery questions.
What information is required to evaluate this battery solution?
Provide nominal voltage, target capacity or runtime, continuous and peak current, maximum dimensions, temperature range, charging method, annual quantity, and certification requirements.
Can VTCBATT customize the pack dimensions and electronics?
Yes. Cell arrangement, dimensions, BMS or PCM, connector, wire length, NTC, communication, label, enclosure, mounting, and packaging can be developed around the product.
Can prototype samples be built before production?
Yes. Prototype packs can be produced for installation, load, runtime, charging, thermal, protection, and device-level validation before the BOM is released.
How is repeat-order quality controlled?
VTCBATT uses controlled cell sourcing, matching criteria, documented BOMs, process inspection, electrical tests, and outgoing inspection to support stable production.
Which certifications can be supported?
Depending on chemistry and target market, support may include UN38.3, IEC 62133, UL, CE, RoHS, MSDS, transport documents, and project-specific tests.
What C-rate is required for a high-power battery?
C-rate equals current divided by capacity, so a 50A load from a 5Ah pack is 10C. Battery selection must also account for continuous versus pulse duration, duty cycle, temperature, minimum voltage, cycle life, and the resistance of the complete pack.
What causes voltage sag in a high-discharge battery pack?
Voltage sag is created by cell DC resistance, state of charge, temperature, tabs, welds, busbars, BMS devices, cables, connectors, and load transients. High-power battery engineering controls the entire current path rather than only the cell rating.
Should a high-power project use LiPo or cylindrical Li-ion cells?
High-rate LiPo supports custom shapes, low weight, and high discharge platforms, while cylindrical Li-ion offers standardized formats, robust production, and predictable thermal paths. The choice depends on power, energy, space, cooling, cycle life, and production volume.
How are high-power battery packs validated?
Validation can include continuous and pulse-load testing, voltage sag, temperature rise, connector and cable checks, BMS trip behavior, recharge time, cycle testing, and operation under the equipment's representative duty cycle.
Start a solution project
Bring us the performance target. We will engineer the battery.
Share the device, voltage, runtime, current, dimensions, environment, quantity, and certification targets for an engineering review.
