LiPo

High Temperature 103450T 3.7V 1800mAh lipo battery

Parameter	Specification
Model	VTC-LP103450T
Voltage	3.7V
Capacity	1800mAh
Max Size (Thickness x Width x Length)	10.2X34.5X52mm
Operating Temperature	-20℃ to 80℃
Standard Charge Rate	0.5C
Standard Discharge Rate	1C
Configuration	1S1P
Weight	37g

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotationDatasheet unavailable

Product overview

103450T 3.7V 1800mAh High Temperature lithium ion polymer for GPS Tracker,POS Terminal and Portable Devices | Battery Manufacturers in China & Battery Supply Factory

The 103450T 3.7V 1800mAh high temperature LiPo Battery is a mature lithium polymer battery model designed for compact and low-power electronic applications. Even in a hot environment above 60 ℃, this LiPo battery can still offer stable output and reliable performance for wearable devices, smart sensors, medical electronics, and miniature IoT products.

As part of our small LiPo battery range from 10mAh – 5000mAh, these batteries feature low self-discharge, consistent quality, and support for custom sizes, connectors, and protection circuits. With strict quality control and bulk supply capability, they are well-suited for OEM projects and wholesale customers seeking compact, dependable power solutions.

01

Long Cycle Life

Based on 0.5C/1C cycling, the VTCBATT 103450T 3.7V 1800mAh high temperature lipo battery can maintain over 80% capacity after 500 cycles and totally reach 1000 times cycle life.

02

Temperature Performance

VTCBATT 103450T 3.7V 1800mAh High Temperature Lipo battery can be discharged from -20℃ to 80℃.This wide temperature range performance enables the battery to operate in many conditions.

03

Different Discharge Rate

VTCBATT high temperature 103450T 3.7V 1800mAh lipo battery can be discharged at different rates of 0.2C,0.5C,1C,2C,3C to meet different power consumption.

04

Product Feature

VTCBATT engineering feature

Technical insight

Product and application details

Drone

The 37g weight minimizes payload constraints, enabling longer flight times for lightweight UAV missions.

Robotics

Compact 10.2mm thickness fits tight chassis spaces while providing steady 1C discharge for motors.

Solar Sensor

Extended 80℃ operating temperature ensures stable performance in harsh outdoor environments without overheating.

UAV

1800mAh capacity supports sustained 1C discharge rates required for stable hovering and navigation systems.

Forced Discharge Test Report Project voltage/V internal resistance/mΩ Appearance of the battery after testing Sample number Before the test After testing rate of change（%） Before the test After testing rate of change（%） 16 3.33 / 55.1 / No explosions, no fires 17 3.337 / 52.3 / No explosions, no fires 18 3.312 / 54.8 / No explosions, no fires Before the test After testing Needle Puncture Test Report Project voltage/V internal resistance/mΩ Peak temperature /℃ Inspect the battery’s appearance Sample Number Before the test After testing rate of change（%） Before the test After testing rate of change（%） 22 4.181 /

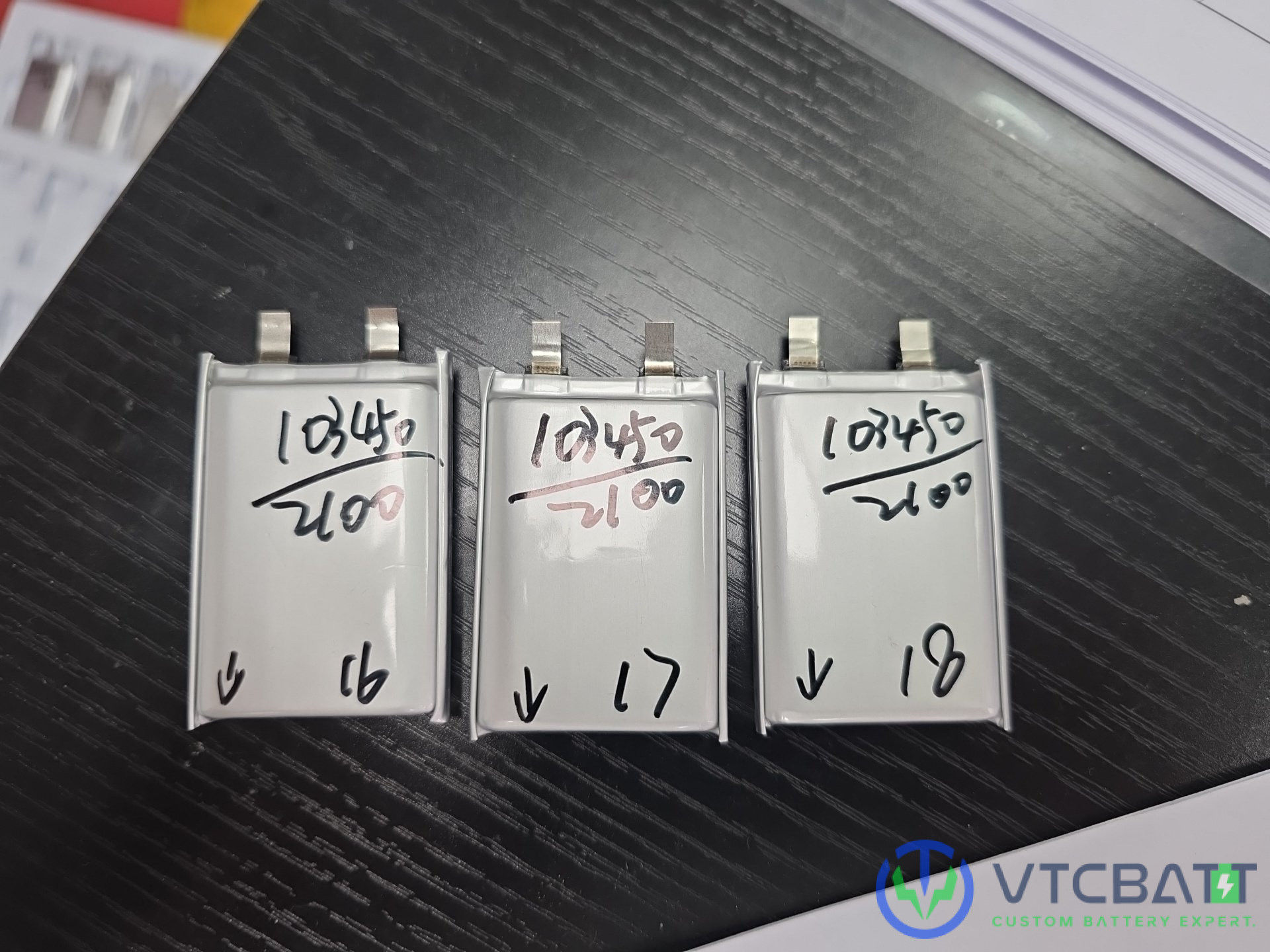

Forced Discharge Test Report

Project	voltage/V	internal resistance/mΩ	Appearance of the battery after testing
Sample number	Before the test	After testing	rate of change（%）	Before the test	After testing	rate of change（%）
16	3.33	/		55.1	/		No explosions, no fires
17	3.337	/		52.3	/		No explosions, no fires
18	3.312	/		54.8	/		No explosions, no fires

Before the test	After testing

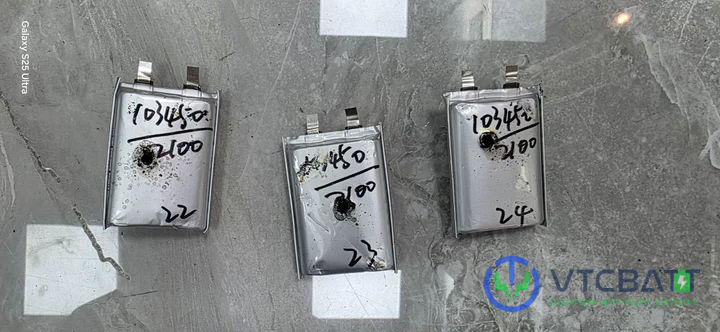

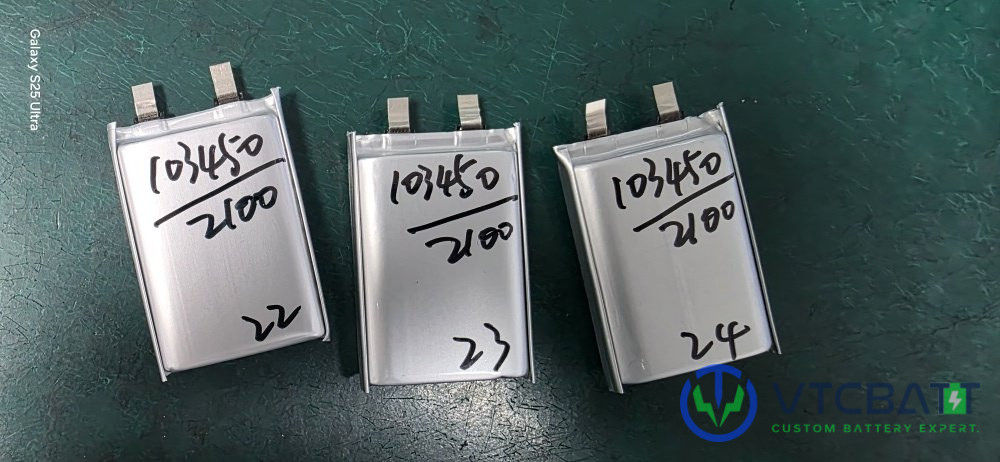

Needle Puncture Test Report

Project	voltage/V	internal resistance/mΩ	Peak temperature /℃	Inspect the battery’s appearance
Sample Number	Before the test	After testing	rate of change（%）	Before the test	After testing	rate of change（%）
22	4.181	/		45.8	/		/	The battery has swollen, but there has been no fire or explosion
23	4.182	/		48.6	/		/	The battery has swollen, but there has been no fire or explosion
24	4.183	/		49.2	/		/	The battery has swollen, but there has been no fire or explosion

Before the test	After testing
