LiPo

104567 3.7V 3500mAh Pouch Battery for high-fidelity (Hi-Fi) portable music players, wireless game controllers, video doorbells

Parameter	Specification
Model	VTC-LP104567
Nominal Voltage	3.7V
Capacity	3500mAh
Max Size	10.2X45.5X69mm
Operating Temperature	-20℃ to 60℃
Standard Charge Rate	0.5C
Standard Discharge Rate	1C
Configuration	1S1P
Weight	68.4g

Certification support for 104567 3.7V 3500mAh Pouch Battery for high-fidelity (Hi-Fi) portable music players, wireless game controllers, video doorbells

CB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotationDatasheet unavailable

Product overview

Pouch Battery 104567 3.7V 3500mAh for high-fidelity (Hi-Fi) portable music players, wireless game controllers, video doorbells | Battery Manufacturers in China & Battery Supply Factory

The 3.7V 104567 3500mAh battery is a lithium polymer battery with a nominal voltage of 3.7V and a capacity of 3500mAh. The battery meets the needs of devices such as professional wireless microphones, smart door locks, and large-screen tablets that require power stability and long-lasting battery life. Its 3500mAh capacity and compact pouch structure make it suitable for portable and smart electronic devices that require reliable and continuous power supply.

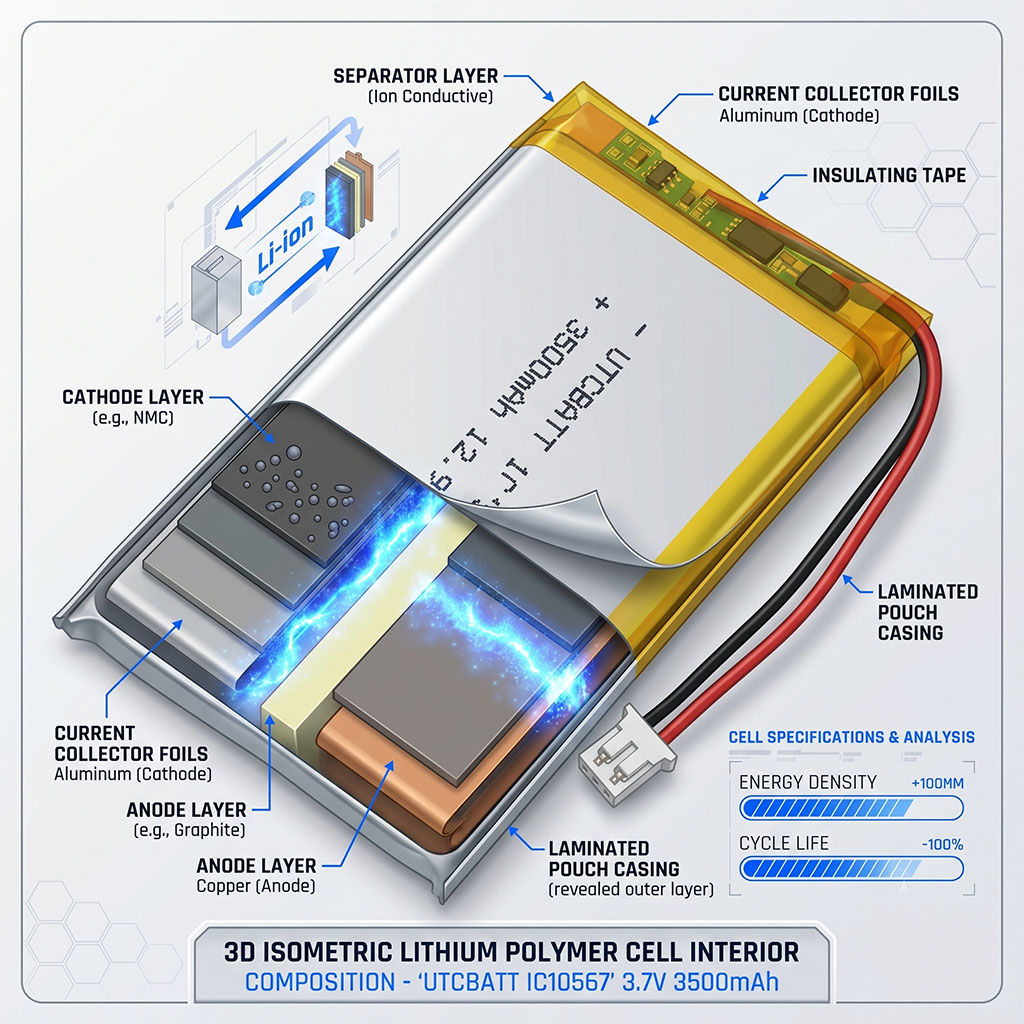

Manufactured with premium raw materials, including high-quality lithium and cobalt chemistries and flexible aluminum foil laminates, the 104567 battery is lightweight, compact, and has high energy density. With a low self-discharge rate and long cycle life, the battery provides long-lasting, stable operation for professional audio transmissions, security access control systems and multimedia tablet applications.

For ultimate safety, the integrated protection circuit board (battery PCB) provides 1-3 milliseconds of fast-response over-charge, over-discharge, over-current, over-temperature, and short-circuit protection, effectively guarding the battery and connected devices under a variety of operating conditions.

The entire lipo battery production process is accomplished in a highly automated production line and a medical-grade clean room with strictly controlled humidity environment. Combined with the advanced MES system, it ensures the traceability of the whole process, quality stability and reliable production standards.

In order to achieve seamless adaptation to different product designs, wire diameter specifications, interface type, discharge rate and temperature performance can be deeply customized to precisely fit your product design needs. The lithium ion polymer battery provides a stable output of 3.6V-3.7V, which can reliably drive a professional wireless microphone to achieve clear sound quality, provide reliable protection for smart door locks, and ensure the smooth and unhindered operation of large-screen tablets.

High energy density

Featuring high-energy density 200wh/kg-300wh/kg,the lipo battery can deliver more power than other battery chemistries and support high drain current to power the devices strongly.

PCB with NTC

VTCBATT lipo batteries are provided with NTC(Negative Temperature Coefficient), a kind of temperature sense to decrease the resistance as the temperature increases, allowing accurate temperature monitoring of the batteries. The NTC plays a critical role in improving the battery reliability and safety.

High Safety

In the safety lab,VTCBATT will stimulate all the test items of UL and IEC62133,including nail penetration test,free fall experiment,heavy object impact,extrusion experiments.

Technical insight

Product and application details

Wireless Game Controller

The 68.4g weight ensures ergonomic balance for handheld gaming without adding excessive bulk to the controller chassis.

Medical Devices

Operating reliably from -20℃ to 60℃ guarantees consistent performance for portable diagnostic tools in diverse clinical environments.

IOT Devices

A 3500mAh capacity supports extended standby times for low-power IoT sensors requiring weeks of uninterrupted operation.

Video Doorbell

The 10.2mm thin profile allows the battery to fit neatly within slim video doorbell housings.

High-Fidelity (Hi-Fi) Portable Music Player

Standard discharge rates up to 1C deliver stable voltage for high-quality audio playback without signal distortion.

high-fidelity (Hi-Fi) portable music players

The 3.7V nominal voltage directly matches the power input requirements of dedicated digital audio players.

video doorbells

Compact dimensions of 45.5x69mm maximize internal space for cameras while maintaining sufficient energy storage.

wireless game controllers

Lightweight construction at 68.4g minimizes hand fatigue during extended gaming sessions for mobile users.

VTC-LP104567 High-Performance Li-ion Polymer Rechargeable Battery Basic Performance Specifications Item Specifications Notes Rated Capacity 3500mAh 0.2C discharge Nominal Voltage 3.7 V Standard operating voltage Limited Charge Voltage 4.2 V CC/CV charging mode Cut-off Voltage 3.0 V End of discharge Standard Charging Current 700mA (0.2C) Time: 6~7 hours Rapid Charging Current 1750mA (0.5C) Time: 2.5 hours Max Discharging Current 1750mA (0.5C) Continuous discharge Peak Discharging Current 4000mA Short duration Pack Weight ≈70g Net weight Mechanical Dimensions (Battery Pack) Item Description Dimension T Battery pack Thickness max. 10.2mm W Battery pack Width max. 45.5mm H Battery pack Height max. 69.0mm L Wire

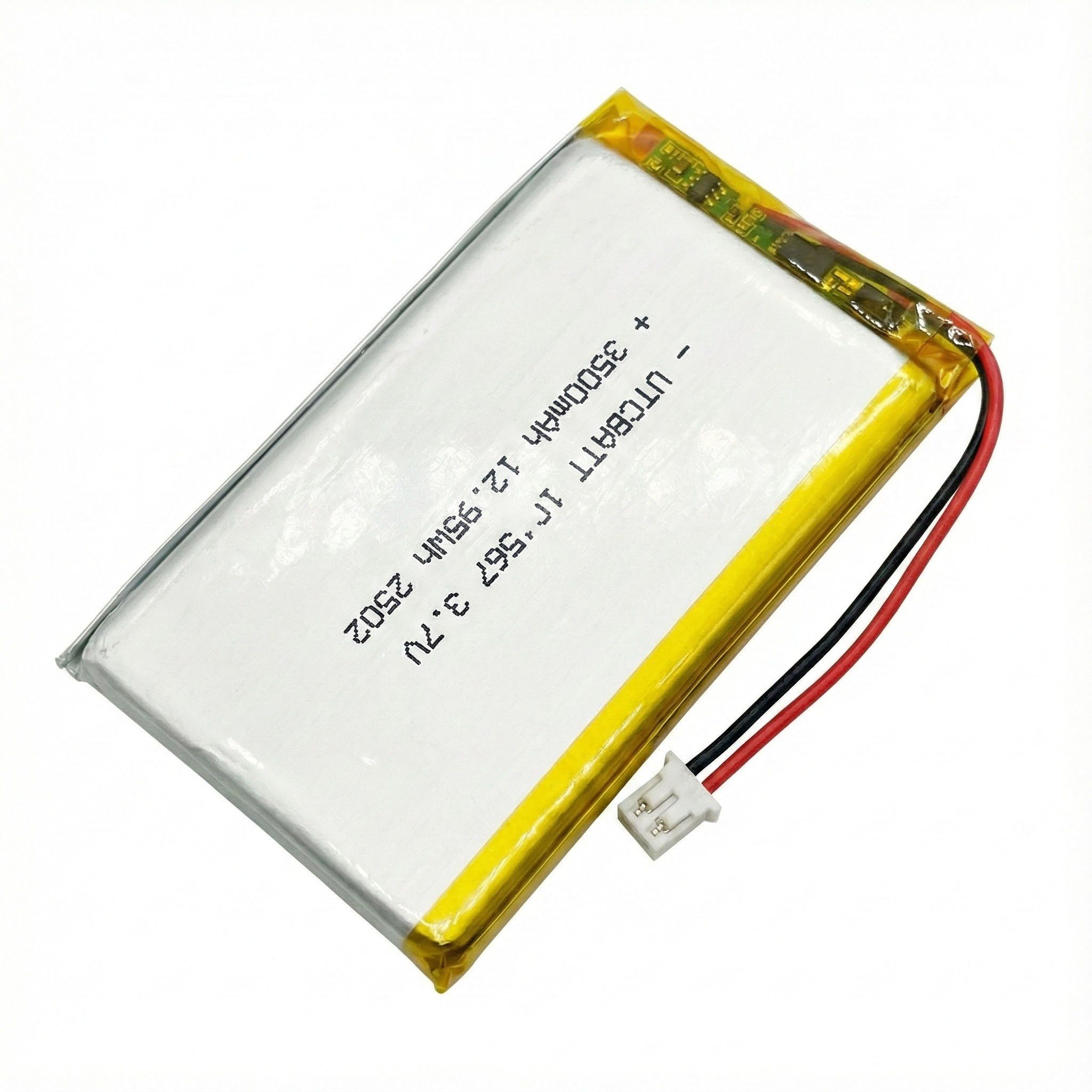

Pouch Battery 104567 3.7V 3500mAh

Basic Performance Specifications

Item	Specifications	Notes
Rated Capacity	3500mAh	0.2C discharge
Nominal Voltage	3.7 V	Standard operating voltage
Limited Charge Voltage	4.2 V	CC/CV charging mode
Cut-off Voltage	3.0 V	End of discharge
Standard Charging Current	700mA (0.2C)	Time: 6~7 hours
Rapid Charging Current	1750mA (0.5C)	Time: 2.5 hours
Max Discharging Current	1750mA (0.5C)	Continuous discharge
Peak Discharging Current	4000mA	Short duration
Pack Weight	≈70g	Net weight

Mechanical Dimensions (Battery Pack)

Item	Description	Dimension
T	Battery pack Thickness max.	10.2mm
W	Battery pack Width max.	45.5mm
H	Battery pack Height max.	69.0mm
L	Wire Length	50±3 mm

Chemical Composition / Ingredients

Chemical Name	Percent of Content	CAS No.
Lithium Cobalt Oxide (LiCoO2)	25%~35%	12190-79-3
Graphite (C)	15%~20%	7782-42-5
Aluminum (Al)	21%~23%	7429-90-5
Lithium hexafluorophosphate (LiPF6)	10%~15%	21324-40-3
Copper (Cu)	10%~11%	7440-50-8

Safety & Regulatory Information

Safety Tests

Overcharge: No explosion, No fire
Short-circuit: No explosion, No fire
Thermal: No explosion, No fire
Vibration/Shock: Passed criteria

Transport Info

UN Number: UN 3480 / 3481
Classification: Class 9
Shipping Name: Lithium Ion Batteries
Packing Instruction: 965 IB / 966 II / 967 II
