LiFePO4

Ultra long cycle life and lightweight Lifepo4 24V 10Ah battery for access control systems, 5G 4G LTE signal boosters,emergency lighting

Parameter	Specification
Nominal Voltage	25.6V
Capacity	10Ah
Energy	256Wh
Discharge Cut-off Voltage	20V
Max Charge Current	10A
Max Discharge Current	20A(≤5s)
Cycle Life	>3000
Self-discharge Rate	2%
Dimensions	181 x 77 x 167/167mm
Weight	2.8Kg
Operating Temperature	-20℃ to 60℃
Storage Temperature	0 to 25ºC
Protection	Overcharge, Overdischarge, Overcurrent / Short-Circuit, Temperature, Cell Balancing

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

Ultra long cycle life and lightweight Lifepo4 24V 10Ah battery for access control systems, 5G 4G LTE signal boosters,emergency lighting | Battery Manufacturers in China & Battery Supply Factory

VTCBATT is a professional supplier of lightweight LiFePO4 24V 10Ah batteries with ultra long cycle life, designed for access control systems, 5G/4G LTE signal boosters and emergenc

01

LiFePO4 Battery Advantage

Ultra-Long Lifecycle: Over 3,000 deep cycles, lasting 10 times longer than traditional lead-acid batteries.
Lightweight: Typically uses the standard SLA case size, but 1/3 weight of the traditional 24V 10Ah lead-acid battery.Drop-in replacement for alarm system and UPS units.
Cost Per Cycle: Lifepo4 battery is only 1/4 cost of traditional lead acid battery in long run term.
100% Usable Capacity： Supports 100% DOD, delivering 40% more usable energy than equivalent lead-acid packs
Smart BMS Protection： Integrated Smart BMS prevents overcharging and shorts, ensuring absolute safety for users.
Eco-Friendly & Compliant ： Non-toxic, sustainable, and fully certified with CE, UN38.3, and RoHS standards.

Technical insight

Product and application details

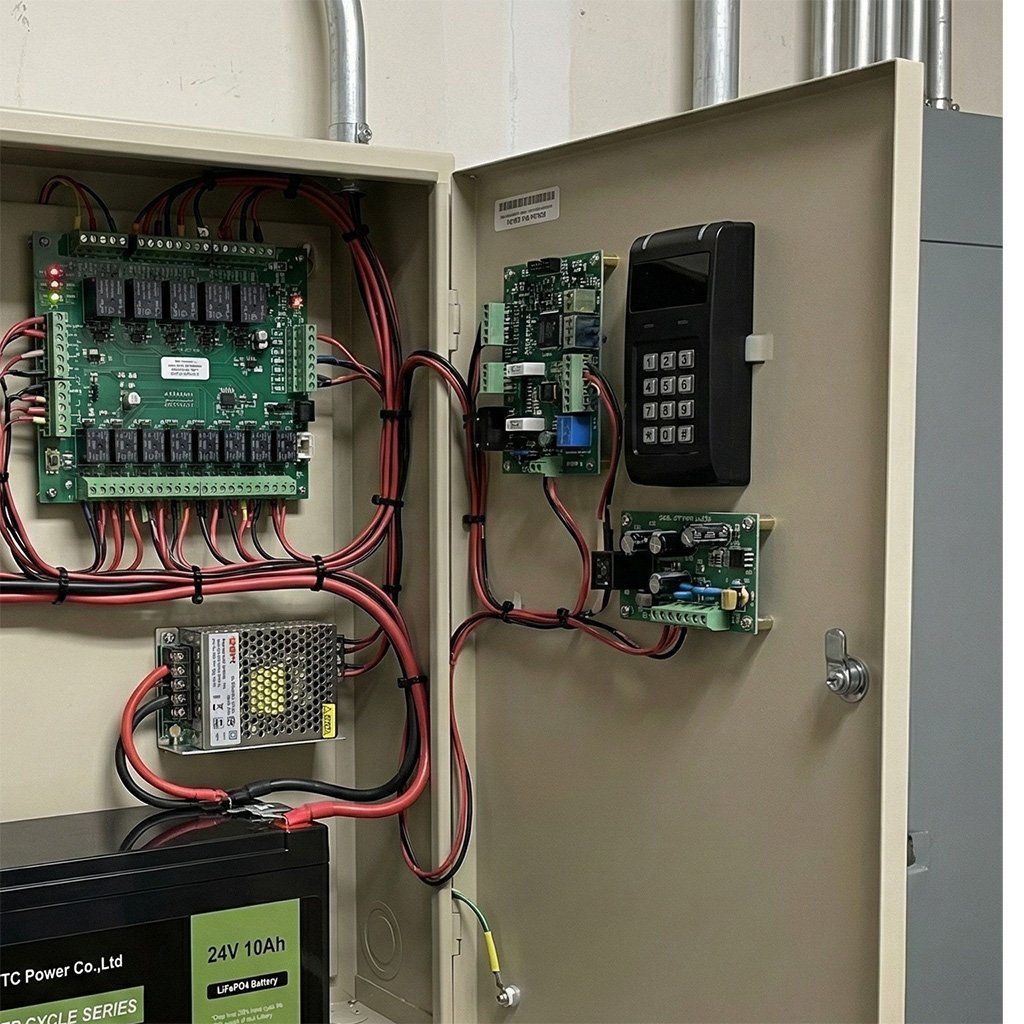

access control systems

Its long cycle life ensures reliable daily operation for access control systems without frequent replacement needs.

battery for 5G 4G LTE signal boosters

The 24V voltage matches standard telecom infrastructure, powering 5G boosters with consistent energy delivery.

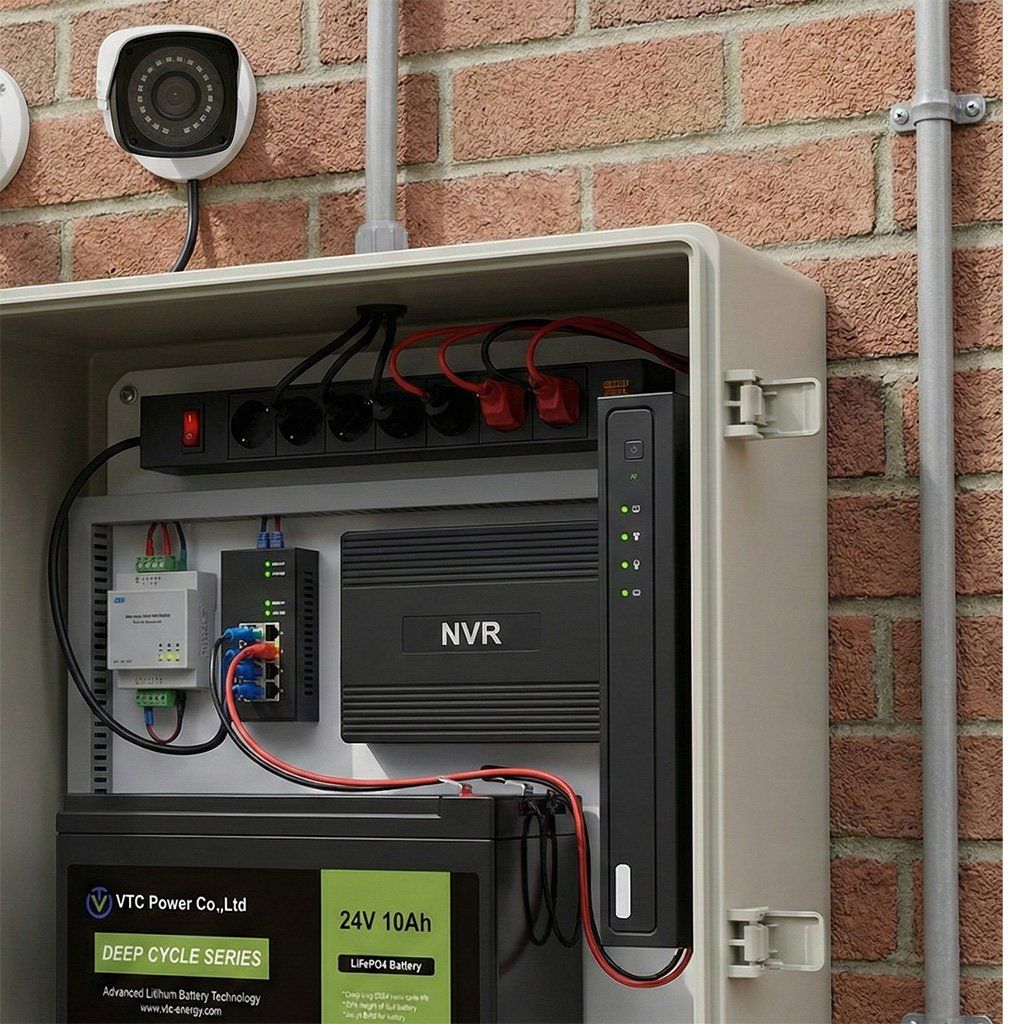

battery for CCTV & Security

Lightweight construction allows easy mounting on security poles while providing stable 24V power for continuous recording.

battery for emergency lighting

Long cycle life maintains readiness for emergency lighting, ensuring immediate illumination during unexpected power outages.

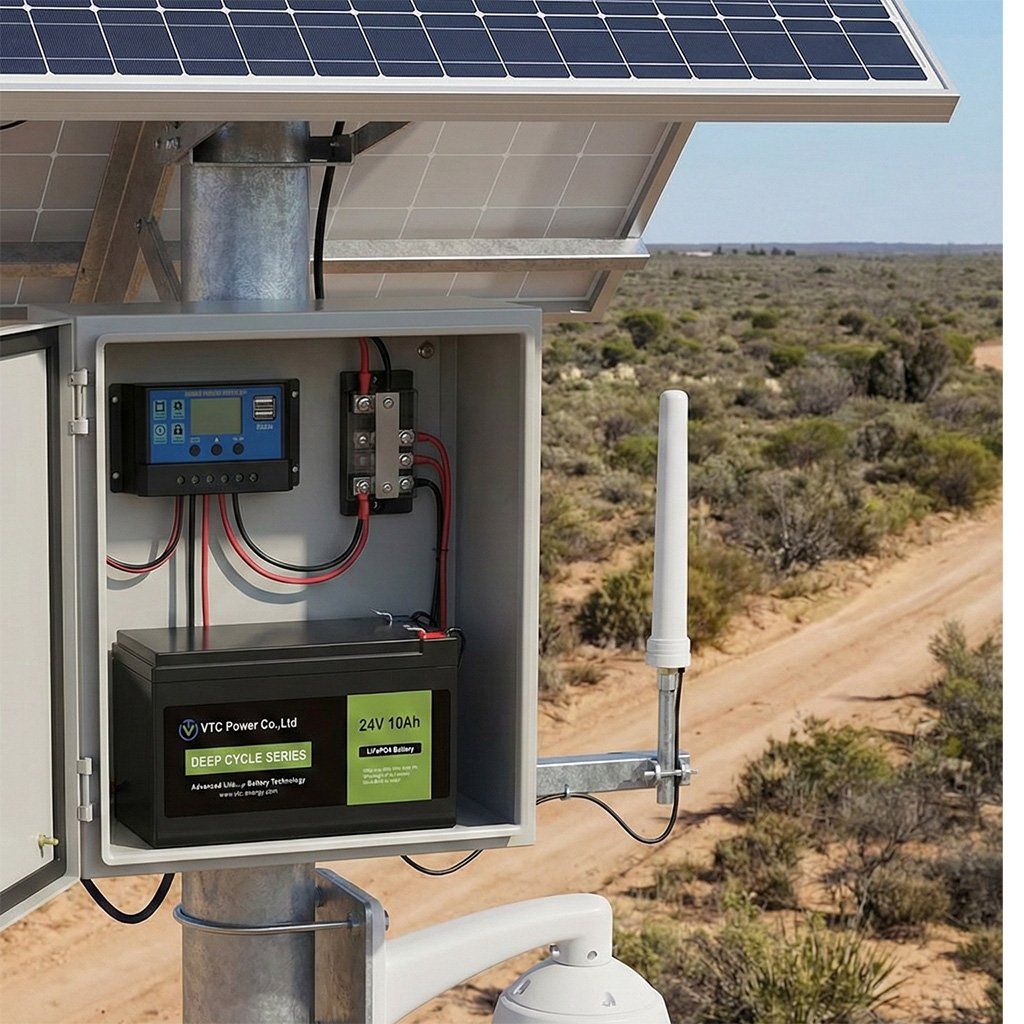

battery for Off-Grid CCTV poles

Lightweight design simplifies installation on off-grid poles, reducing structural load while delivering necessary 24V backup.

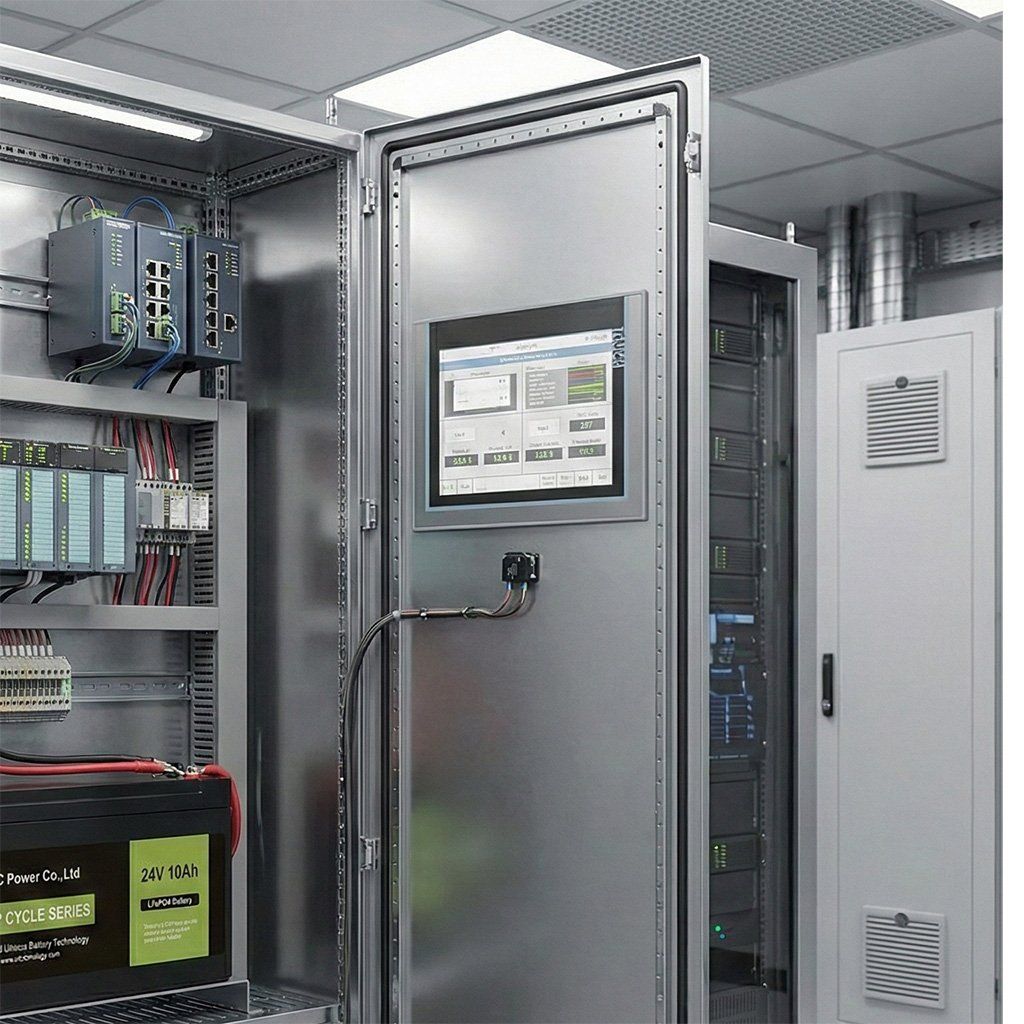

battery for SCADA systems

The 10Ah capacity provides sufficient backup energy for SCADA systems during brief grid interruptions.

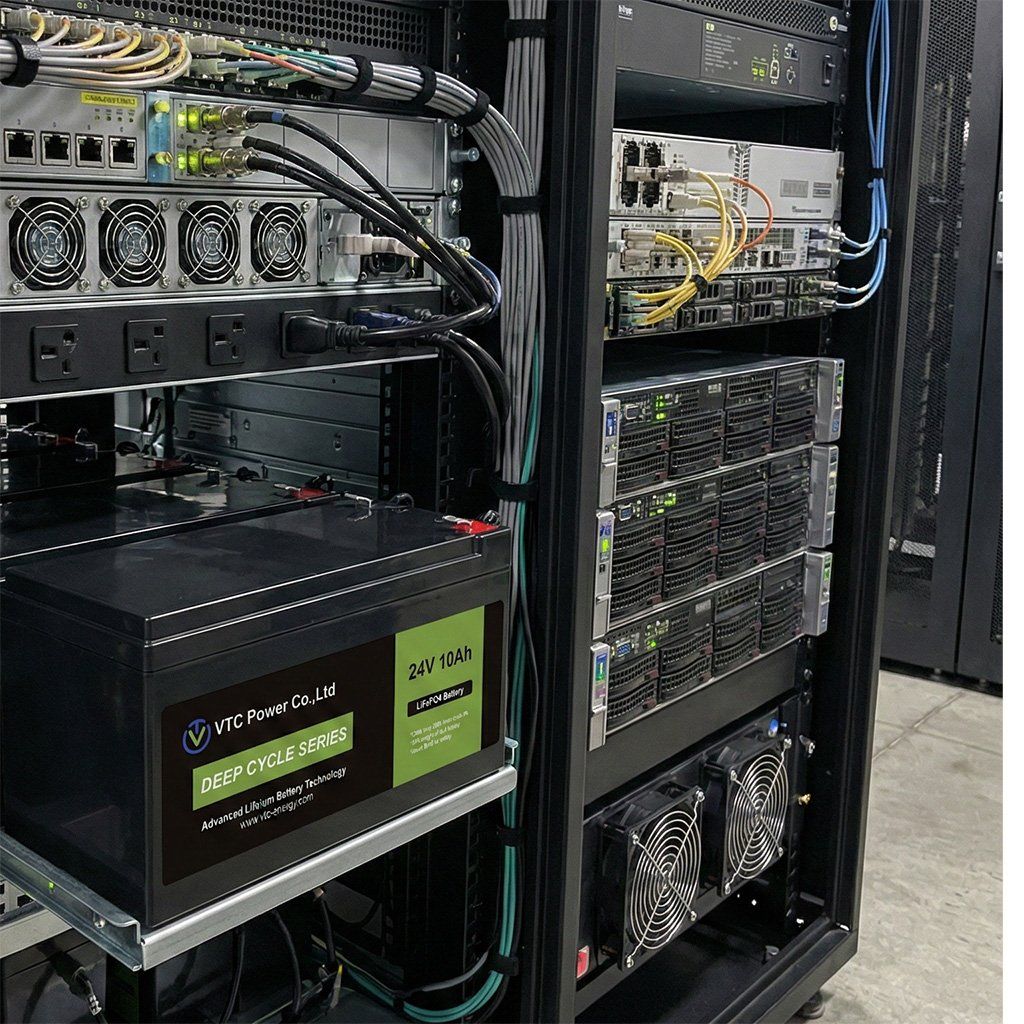

battery for Telecom & 5G Stations

24V output aligns with telecom station standards, supporting 5G infrastructure with stable, lightweight power solutions.

portable traffic signals

Lightweight form factor enables easy transport for portable traffic signals, while 24V ensures bright LED operation.
