LiFePO4

Ultra long cycle life and lightweight Lifepo4 24V 12Ah battery for mobility scooters, robotic AGVs,floor sweepers & scrubbers

Parameter	Specification
Nominal Voltage	25.6V
Capacity	12Ah
Energy	307.2Wh
Discharge Cut-off Voltage	20V
Max Charge Current	12A
Max Discharge Current	20A(≤5s)
Cycle Life	>3000
Self-discharge Rate	2%
Dimensions	181 x 77 x 167/167mm
Weight	3.0Kg
Operating Temperature	-20℃ to 60℃
Storage Temperature	0 to 25ºC
Protection	Overcharge, Overdischarge, Overcurrent / Short-Circuit, Temperature, Cell Balancing

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

Ultra long cycle life and lightweight Lifepo4 24V 12Ah battery for mobility scooters, robotic AGVs,floor sweepers & scrubbers | Battery Manufacturers in China & Battery Supply Factory

VTCBATT manufactures LiFePO4 24V 12Ah batteries featuring long cycle life and stable performance for mobility devices, AGVs and industrial floor cleaning equipment.

01

LiFePO4 Battery Advantage

Ultra-Long Lifecycle: Over 3,000 deep cycles, lasting 10 times longer than traditional lead-acid batteries.
Lightweight: Typically uses the standard SLA case size, but 1/3 weight of the traditional 24V 12Ah lead acid battery.Drop-in replacement for alarm system and UPS units.
Cost Per Cycle: Lifepo4 battery is only 1/4 cost of traditional lead acid battery in long run term.
100% Usable Capacity： Supports 100% DOD, delivering 40% more usable energy than equivalent lead-acid packs
Smart BMS Protection： Integrated Smart BMS prevents overcharging and shorts, ensuring absolute safety for users.
Eco-Friendly & Compliant ： Non-toxic, sustainable, and fully certified with CE, UN38.3, and RoHS standards.

Technical insight

Product and application details

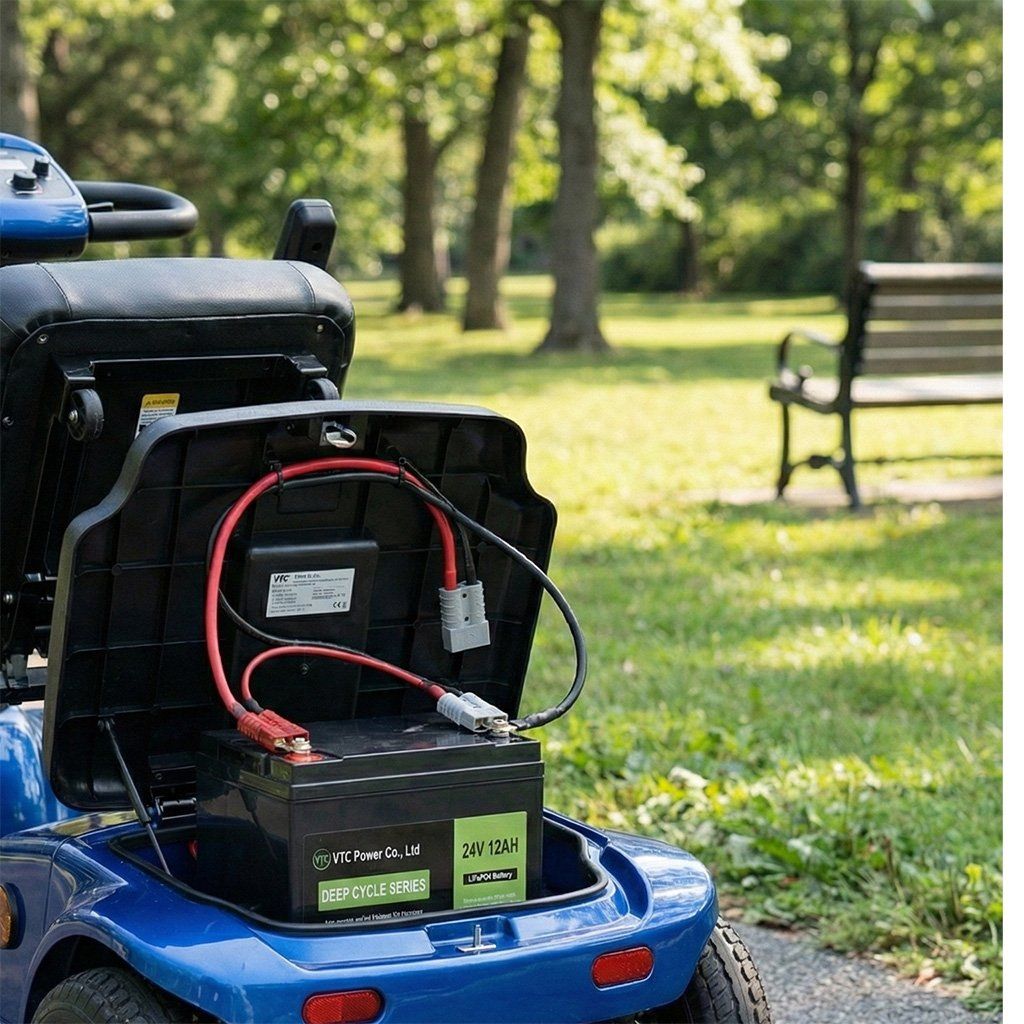

battery for mobility scooters

The lightweight design reduces overall vehicle mass, extending the range for daily commuting on mobility scooters without sacrificing the 24V power requirement.

battery for portable traffic signals

Ultra long cycle life ensures years of reliable operation for portable traffic signals, minimizing maintenance frequency in remote or high-usage outdoor locations.

electric wheelchairs

The 12Ah capacity provides sufficient energy density for electric wheelchairs, while the lightweight construction aids users in manual lifting and transport convenience.

floor sweepers scrubbers

24V configuration delivers consistent torque for floor sweepers and scrubbers, ensuring steady brush performance during continuous cleaning cycles in commercial environments.

industrial tow tractors

Lifepo4 chemistry supports the high discharge rates needed for industrial tow tractors, handling heavy loads efficiently with stable voltage under variable stress.

robotic AGVs

Lightweight construction allows robotic AGVs to maximize payload capacity, while the 24V system integrates seamlessly into existing automated navigation and drive platforms.

RV(creational vehicle)

The 12Ah capacity offers auxiliary power for RV systems, providing a compact energy source that fits within limited storage compartments without adding excess weight.

variable message boards

Ultra long cycle life reduces replacement costs for variable message boards deployed in harsh environments, maintaining brightness and readability through frequent charge cycles.

Factory capability

VTCBATT Production and Service

VTCBATT not only focuses on customized design and excellent service to meet the diverse demands of different customers, but also devotes itself to precise and standardized manufacturing in every process to ensure the highest-quality batteries. Meanwhile, VTCBATT provides comprehensive support from pre-sales to after-sales, focusing on customer feedback to establish long-term and win-win cooperation. VTCBATT professional sales and technical engineer teams will be your custom battery experts for reliable and responsive project support.

▶

Modern Manufacturing

From raw materials mixing to cell testing, VTCBATT adopts automated manufacturing processes to improve production efficiency and battery quality, safety, and reliability. The manufacturing process is monitored and tested before material moves to the next procedure.

▶

Trusted by Global Customers

Over the past 20 years, VTCBATT has built partnerships with customers in more than 50 countries. Reliable quality, responsive service, and tailored battery solutions support long-term cooperation with equipment manufacturers, distributors, and brands.
