LiFePO4

Ultra long cycle life and lightweight Lifepo4 24V 200Ah battery for electric pallet stackers, home energy storage, military field gear

Parameter	Specification
Nominal Voltage	25.6V
Capacity	200Ah
Energy	5120Wh
Discharge Cut-off Voltage	20V
Max Charge Current	100A
Max Discharge Current	200A(≤5s)
Cycle Life	>3000
Self-discharge Rate	2%
Dimensions	522x240x218/228mm
Weight	26.5Kg
Operating Temperature	-20℃ to 60℃
Storage Temperature	0 to 25ºC
Protection	Overcharge, Overdischarge, Overcurrent / Short-Circuit, Temperature, Cell Balancing

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

Ultra long cycle life and lightweight Lifepo4 24V 200Ah battery for electric pallet stackers, home energy storage, military field gear | Battery Manufacturers in China & Battery Supply Factory

VTCBATT is a professional supplier of lightweight LiFePO4 24V 200Ah batteries with ultra long cycle life, designed for electric pallet stackers, home energy storage and military fi

01

LiFePO4 Battery Advantage

Ultra-Long Lifecycle: Over 3,000 deep cycles, lasting 10 times longer than traditional lead-acid batteries.
Lightweight: Typically uses the standard SLA case size, but 1/3 weight of the traditional 24V 200Ah lead-acid battery.Drop-in replacement for alarm system and UPS units.
Cost Per Cycle: Lifepo4 battery is only 1/4 cost of traditional lead acid battery in long run term.
100% Usable Capacity： Supports 100% DOD, delivering 40% more usable energy than equivalent lead-acid packs
Smart BMS Protection： Integrated Smart BMS prevents overcharging and shorts, ensuring absolute safety for users.
Eco-Friendly & Compliant ： Non-toxic, sustainable, and fully certified with CE, UN38.3, and RoHS standards.

Technical insight

Product and application details

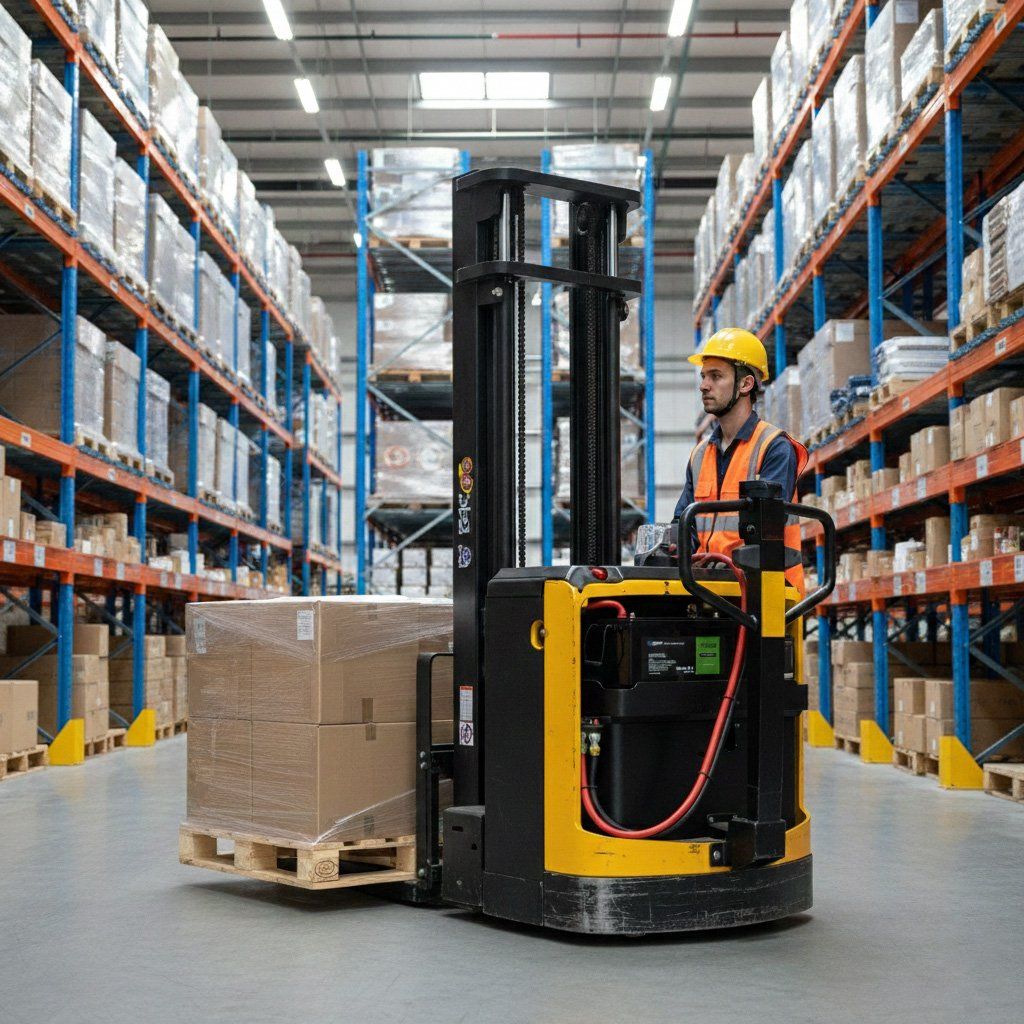

electric pallet stackers

Its lightweight design reduces overall vehicle mass, enhancing maneuverability and payload capacity for high-frequency stacking operations.

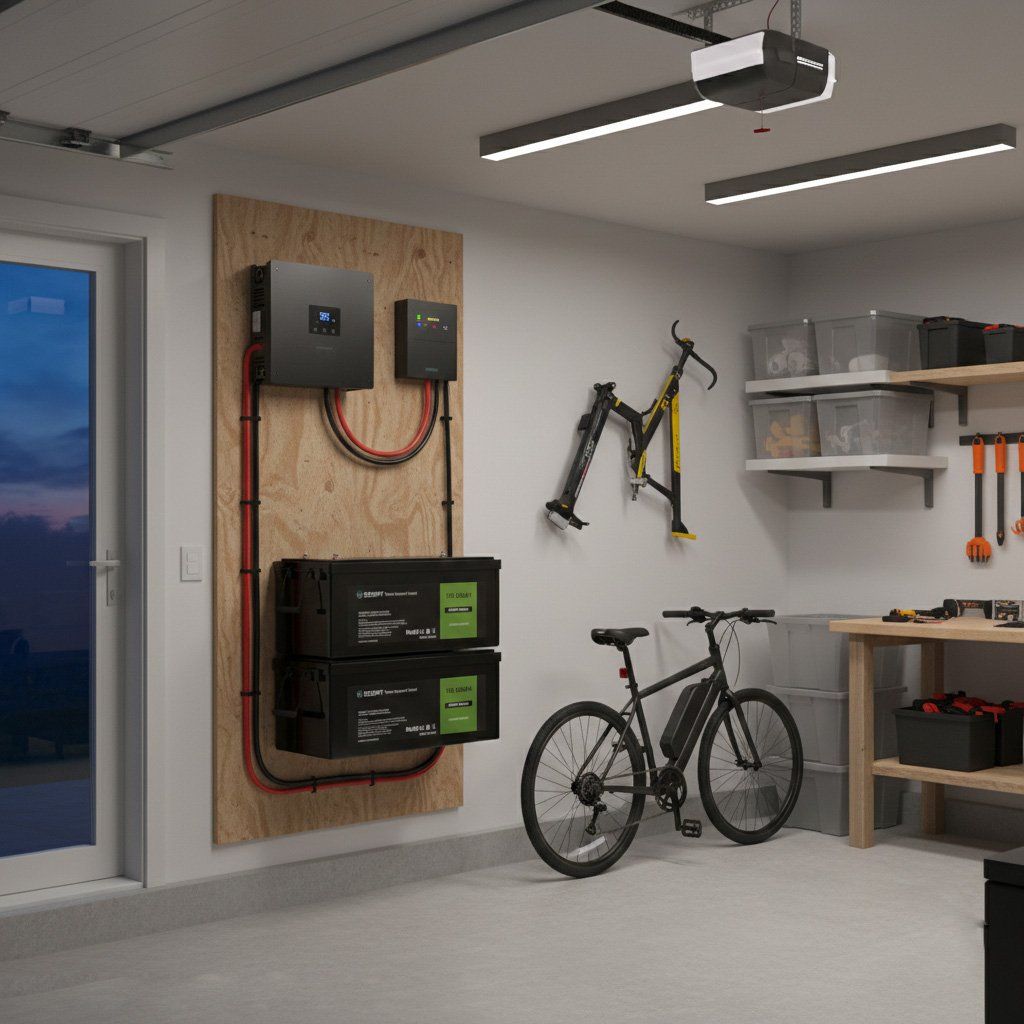

home energy storage

The ultra-long cycle life ensures years of daily charge and discharge without significant capacity degradation, securing long-term savings.

military field gear

LiFePO4 chemistry provides inherent safety and thermal stability, critical for reliable operation in harsh, uncontrolled field environments.

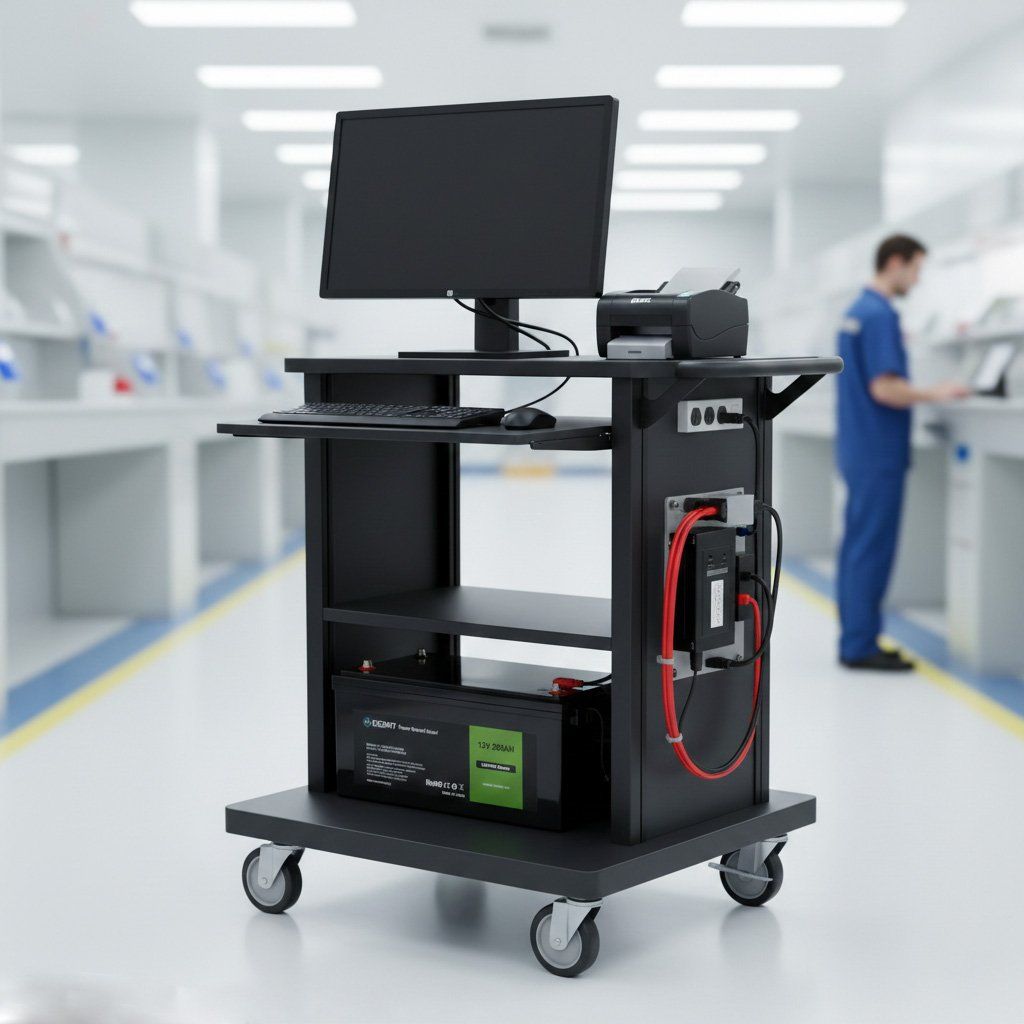

mobile workstations

The 24V voltage and 200Ah capacity deliver sustained high-current output required to power demanding mobile computing equipment.

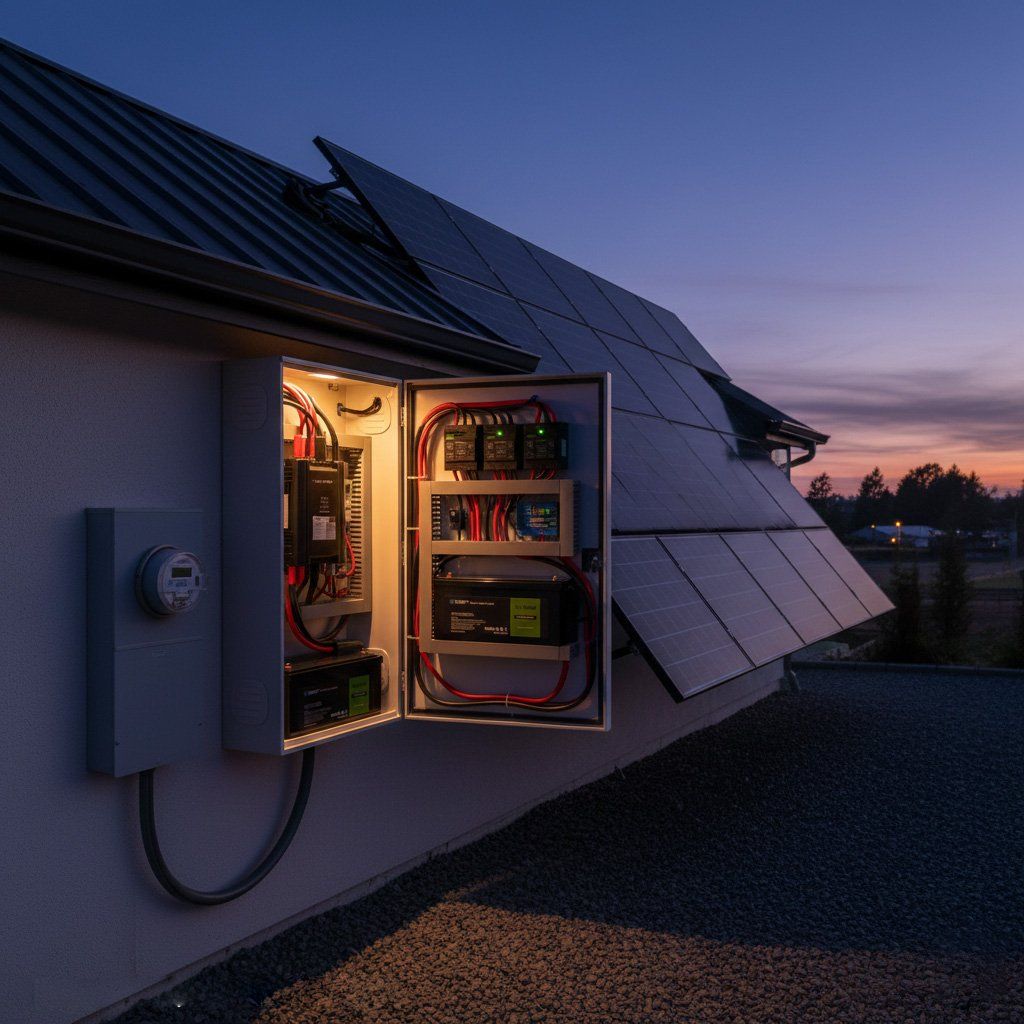

off-grid solar ESS

High cycle durability allows the battery to withstand thousands of full depth-of-discharge cycles from intermittent solar generation.

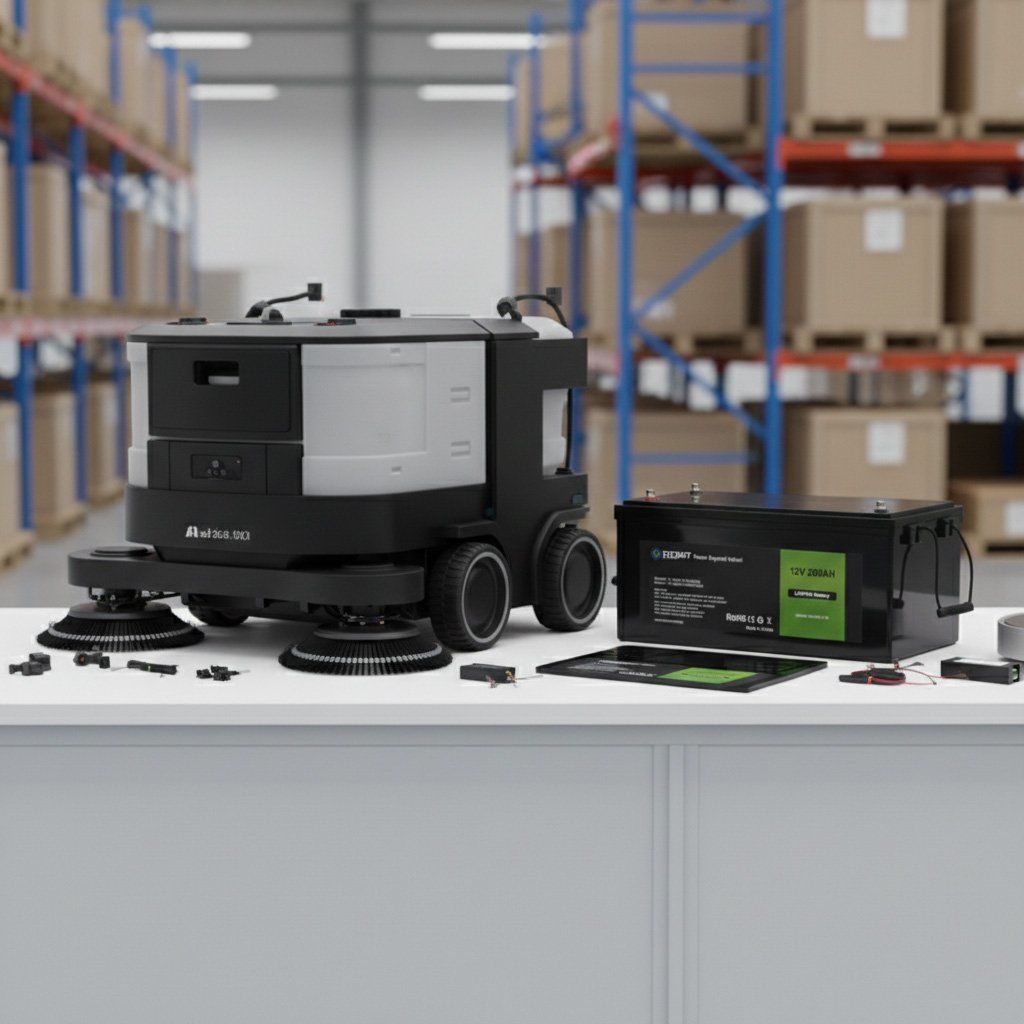

robotic vacuum systems

Lightweight construction minimizes the energy burden on the robot's drive motors, extending operational runtime between charging cycles.

signal solar towers

The robust cycle life supports infrequent but critical maintenance intervals for remote telecommunication infrastructure powered by solar energy.

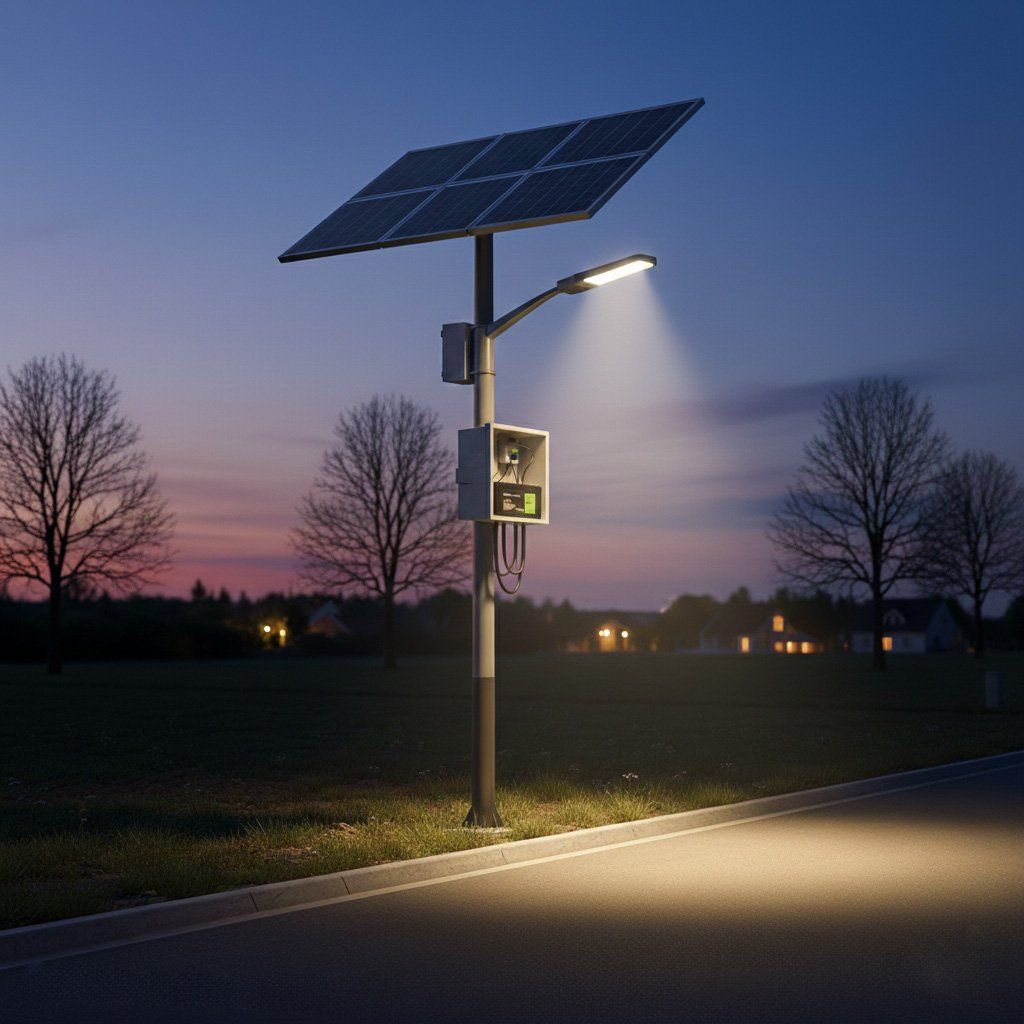

solar street lighting

Long cycle life ensures consistent nightly illumination performance over many years despite limited recharging windows during cloudy periods.
