LiFePO4

Ultra long cycle life and lightweight Lifepo4 24V 4Ah battery for trail cameras, environmental monitoring, Point-of-Sale (POS) systems & kiosks

Parameter	Specification
Nominal Voltage	25.6V
Capacity	4Ah
Energy	102.4Wh
Discharge Cut-off Voltage	16V
Max Charge Current	4A
Max Discharge Current	8A(<5s)
Cycle Life	>3000
Self-discharge Rate	<2% per Month
Dimensions	190 x 70 x 74mm
Weight	1.2Kg
Operating Temperature	-20C to 60C
Storage Temperature	0C to 25C
Protection	Overcharge, Overdischarge, Overcurrent / Short-Circuit, Temperature, Cell Balancing

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

Ultra long cycle life and lightweight Lifepo4 24V 4Ah battery for trail cameras, environmental monitoring, Point-of-Sale (POS) systems & kiosks | Battery Manufacturers in China & Battery Supply Factory

VTCBATT is a professional supplier of ultra long cycle life and lightweight LiFePO4 24V 4Ah batteries for trail cameras, environmental monitoring systems and POS terminals or kiosk

01

LiFePO4 Battery Advantage

Ultra-Long Lifecycle: Over 3,000 deep cycles, lasting 10 times longer than traditional lead-acid batteries.
Lightweight: Typically uses the standard SLA case size, but 1/3 weight of the traditional 24V 4Ah lead acid battery.Drop-in replacement for alarm system and UPS units.
Cost Per Cycle: Lifepo4 battery is only 1/4 cost of traditional lead acid battery in long run term.
100% Usable Capacity： Supports 100% DOD, delivering 40% more usable energy than equivalent lead-acid packs
Smart BMS Protection： Integrated Smart BMS prevents overcharging and shorts, ensuring absolute safety for users.
Eco-Friendly & Compliant ： Non-toxic, sustainable, and fully certified with CE, UN38.3, and RoHS standards.

Technical insight

Product and application details

environmental monitoring

The long cycle life ensures reliable operation in remote locations where frequent battery replacements are impractical.

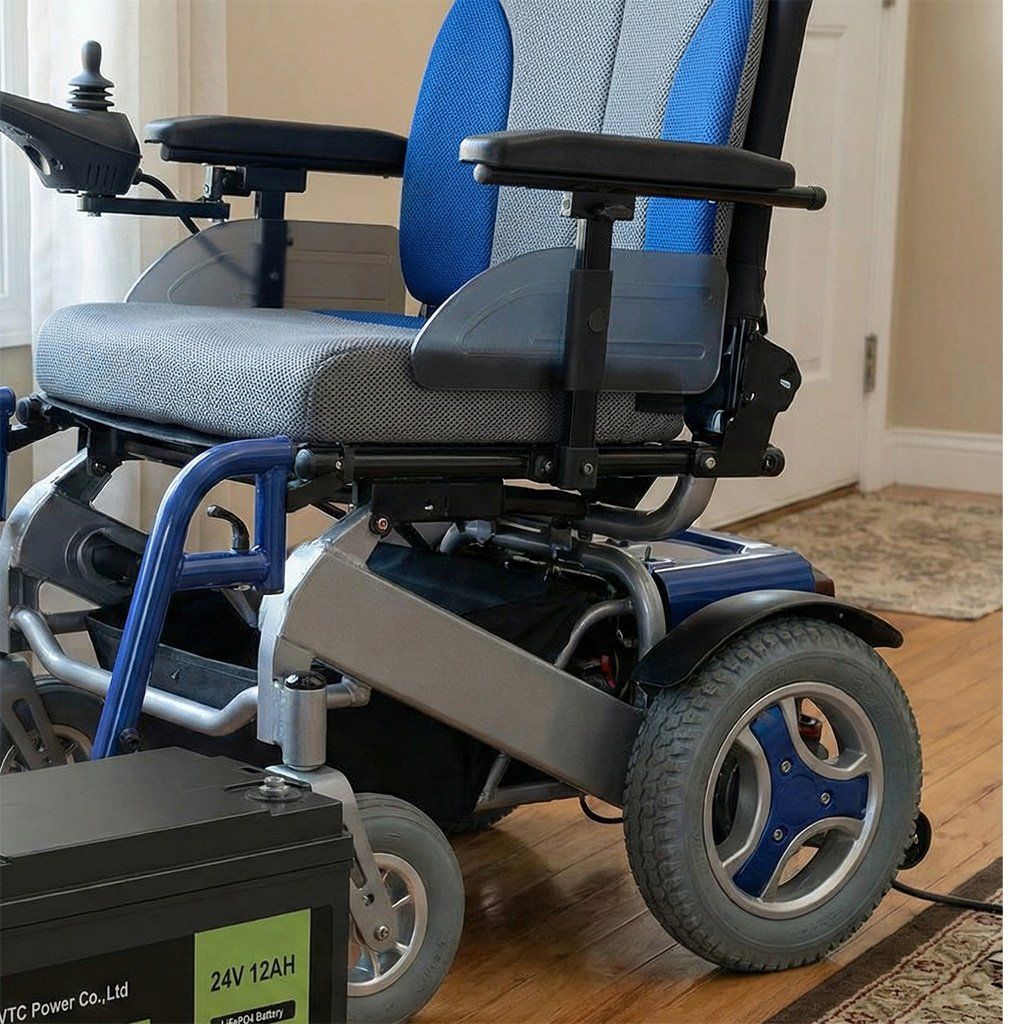

electric wheelchairs

Lightweight construction reduces overall device mass, enhancing user mobility without compromising the necessary 24V output.

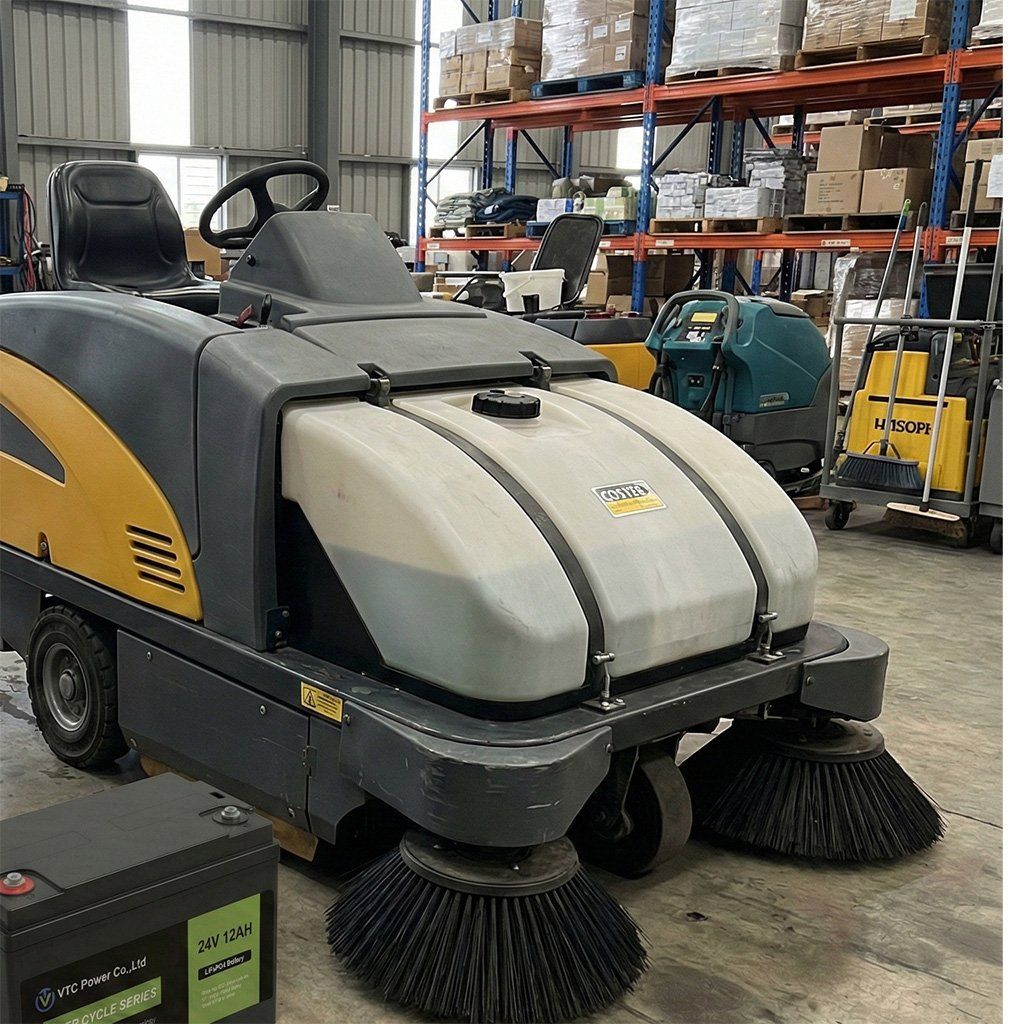

floor sweepers scrubbers

High cycle life withstands deep discharge patterns typical of continuous cleaning cycles in industrial environments.

industrial tow tractors

Robust LiFePO4 chemistry supports the high current demands required for towing heavy loads efficiently.

RV(creational vehicle)

Lightweight design minimizes payload impact while providing stable 24V power for essential onboard systems.

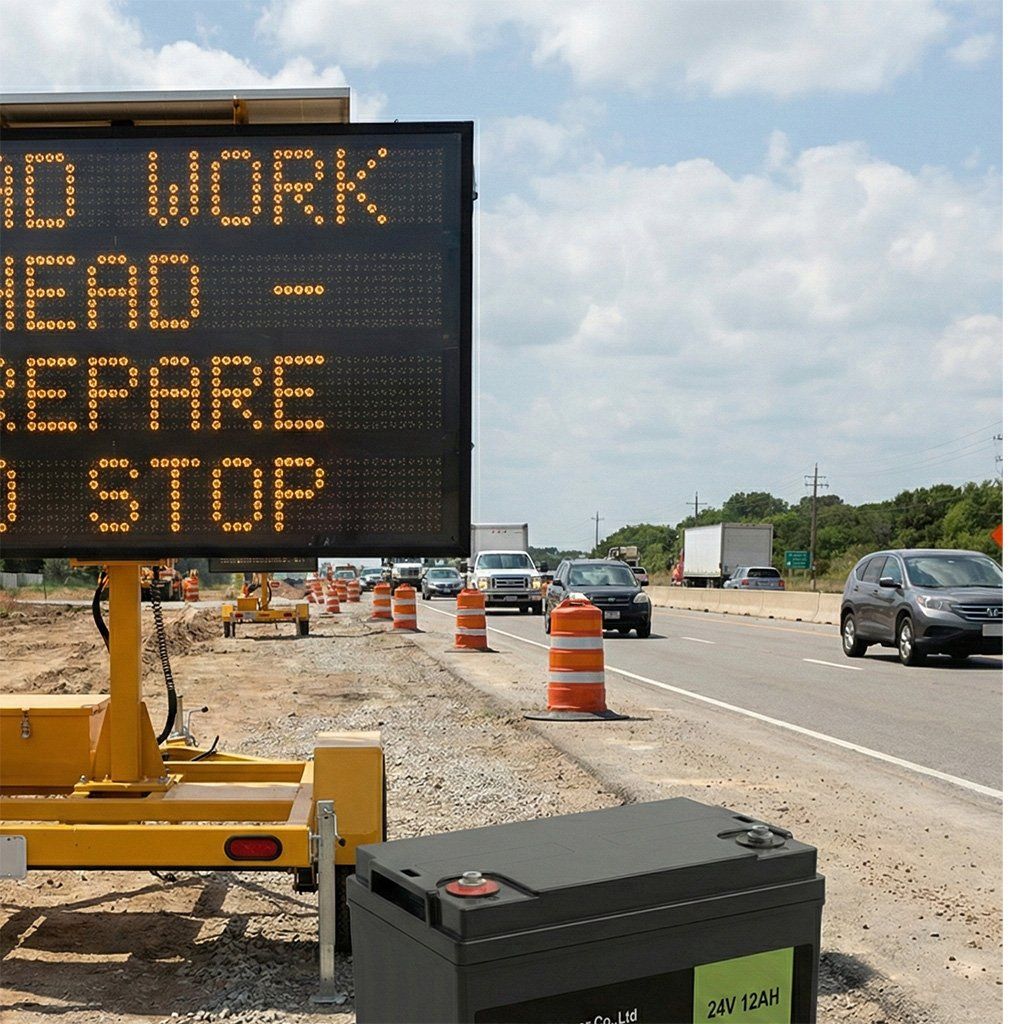

variable message boards

Long cycle life maintains consistent voltage output for reliable display operations over extended deployment periods.

Point-of-Sale (POS) systems & kiosks

Lightweight form factor allows for easy installation in space-constrained kiosk enclosures without structural reinforcement.

trail cameras

Extended cycle life reduces maintenance frequency for cameras located in inaccessible outdoor environments.

Factory capability

VTCBATT Production and Service

VTCBATT not only focuses on customized design and excellent service to meet the diverse demands of different customers, but also devotes itself to precise and standardized manufacturing in every process to ensure the highest-quality batteries. Meanwhile, VTCBATT provides comprehensive support from pre-sales to after-sales, focusing on customer feedback to establish long-term and win-win cooperation. VTCBATT professional sales and technical engineer teams will be your custom battery experts for reliable and responsive project support.

▶

Modern Manufacturing

From raw materials mixing to cell testing, VTCBATT adopts automated manufacturing processes to improve production efficiency and battery quality, safety, and reliability. The manufacturing process is monitored and tested before material moves to the next procedure.

▶

Trusted by Global Customers

Over the past 20 years, VTCBATT has built partnerships with customers in more than 50 countries. Reliable quality, responsive service, and tailored battery solutions support long-term cooperation with equipment manufacturers, distributors, and brands.
