LiPo

3.7 v 10000mah 9547160 lipo battery for portable display monitors, handheld POS terminals, portable medical analyzers

Parameter	Specification
Model	VTC-LP9547160
Voltage	3.7V
Capacity	10000mAh
Max Size (Thickness x Width x Length)	9.7mmX47.5mmX162mm
Operating Temperature	-20℃ to 60℃
Standard Charge Rate	0.5C
Standard Discharge Rate	1C
Configuration	1S1P
Weight	190g

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotationDatasheet unavailable

Product overview

3.7 v 10000mah lipo battery for RC Models, Drones, and Smart Devices | Battery Manufacturers in China & Battery Supply Factory

Featuring high-energy density and compact size, LP9547160 3.7V 10000mah lithium ion polymer battery is high-capacity, small-size and lightweight to supply long-lasting power to satisfy the runtime of different applications. The 10000mAh lithium polymer battery can support a 3C continuous discharge current as a strong power supply for Robotics, Portable Equipment, GPS trackers, Medical Devices, IOT Devices, drones, and UAVs.

01

Temperature Performance

VTCBATT 3.7 v 10000mah lipo battery can be discharged from -20℃ to 60℃.
This wide temperature range performance enables the battery to operate in many conditions.

02

Different Discharge Rate

VTCBATT 3.7 v 10000mah lipo battery can be discharged in different rates of 0.2C,0.5C,1C,2C,3C to meet different power consumption.

03

Customization

VTCBATT can support full customization of the 3.7 v 10000mah lipo batteries in different sizes, capacities, connectors, discharge rates, and cases. Just inform us of your specific requirement, and our professional engineers can provide you with the customized lipo battery proposal.

04

Strict Cell Match

Strict cell match standards in 10mV voltage tolerance, 5mAh capacity tolerance, and 1mΩ to ensure excellent performance of the total 3.7 v 10000mah lipo battery pack.Furthermore,the PCB with cell balance function can long-lasting power supply without any failure.

Technical insight

Product and application details

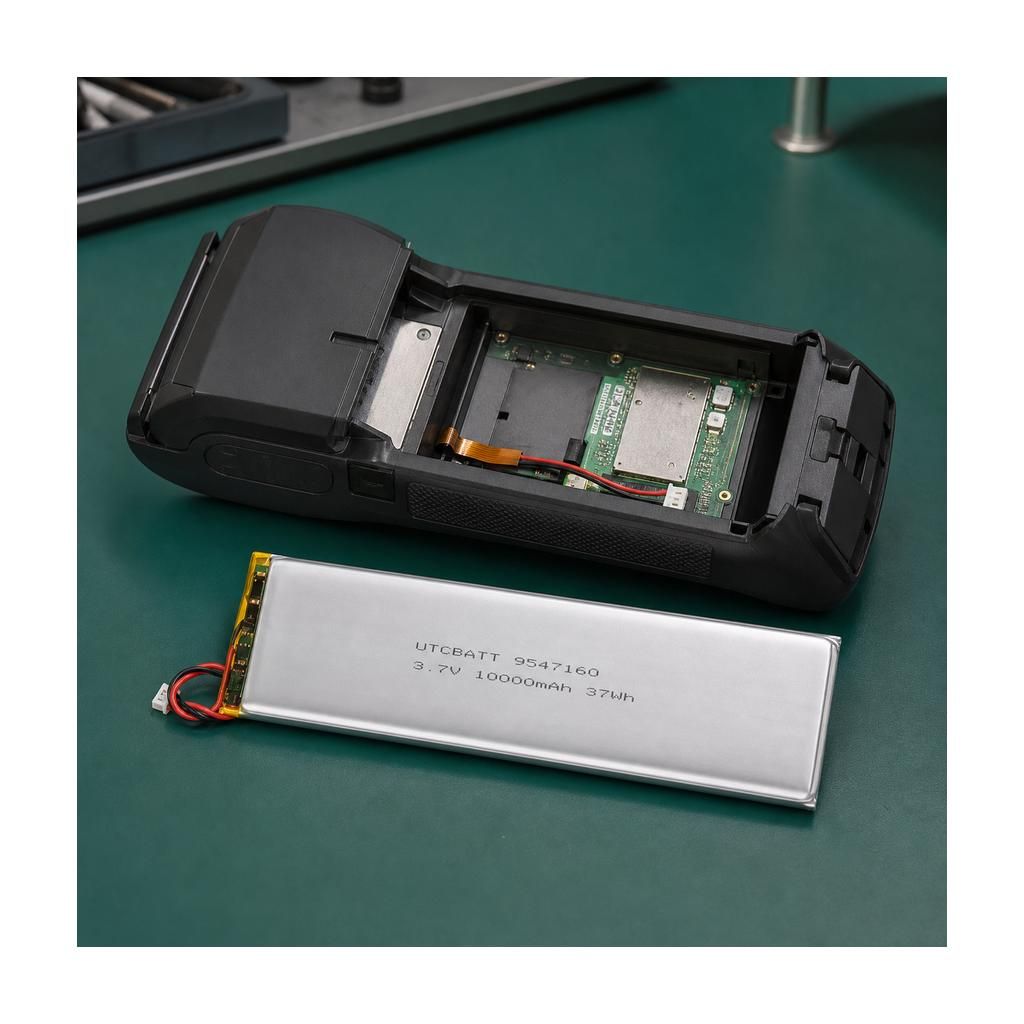

Handheld POS terminals

The 9.7mm thickness ensures the battery fits snugly within slim handheld POS terminal chassis without adding bulk.

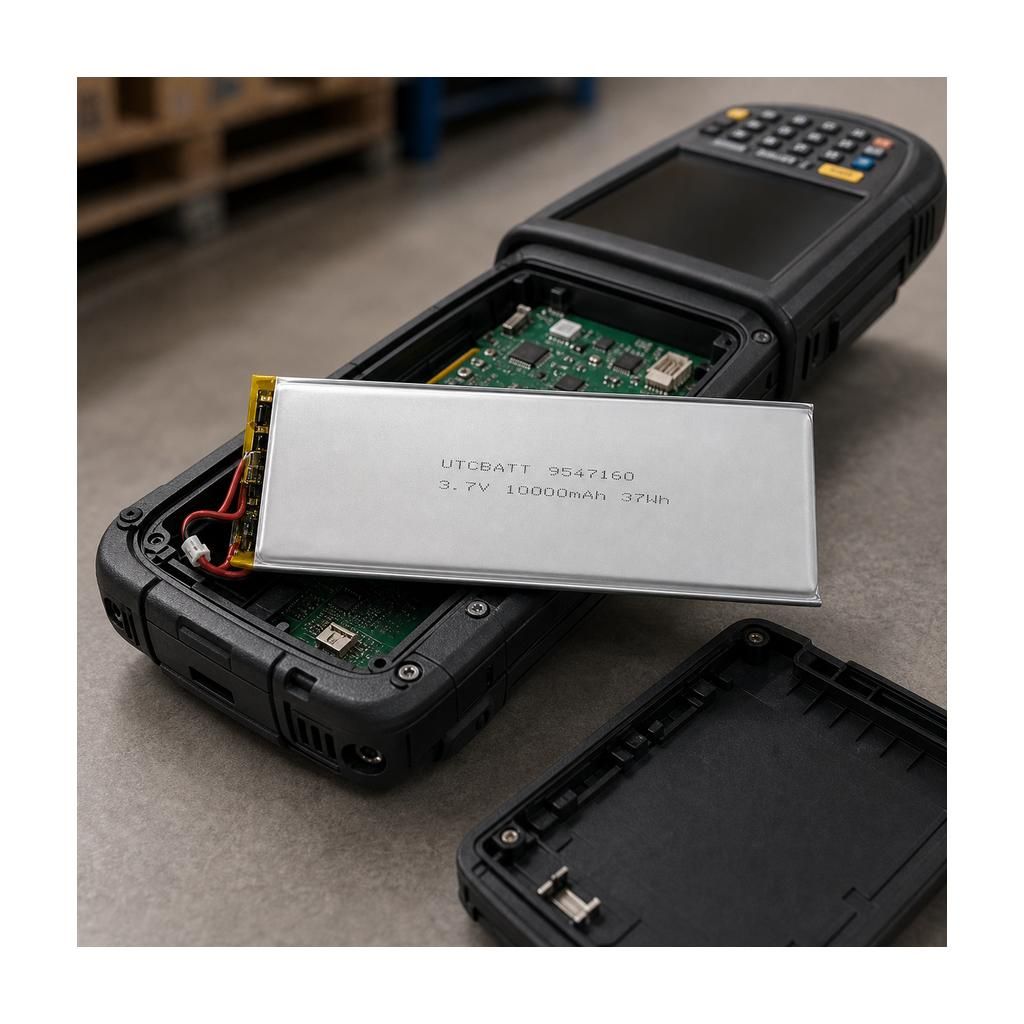

Industrial handheld terminals

Operating down to -20℃ allows industrial handheld terminals to function reliably in cold warehouse environments without performance loss.

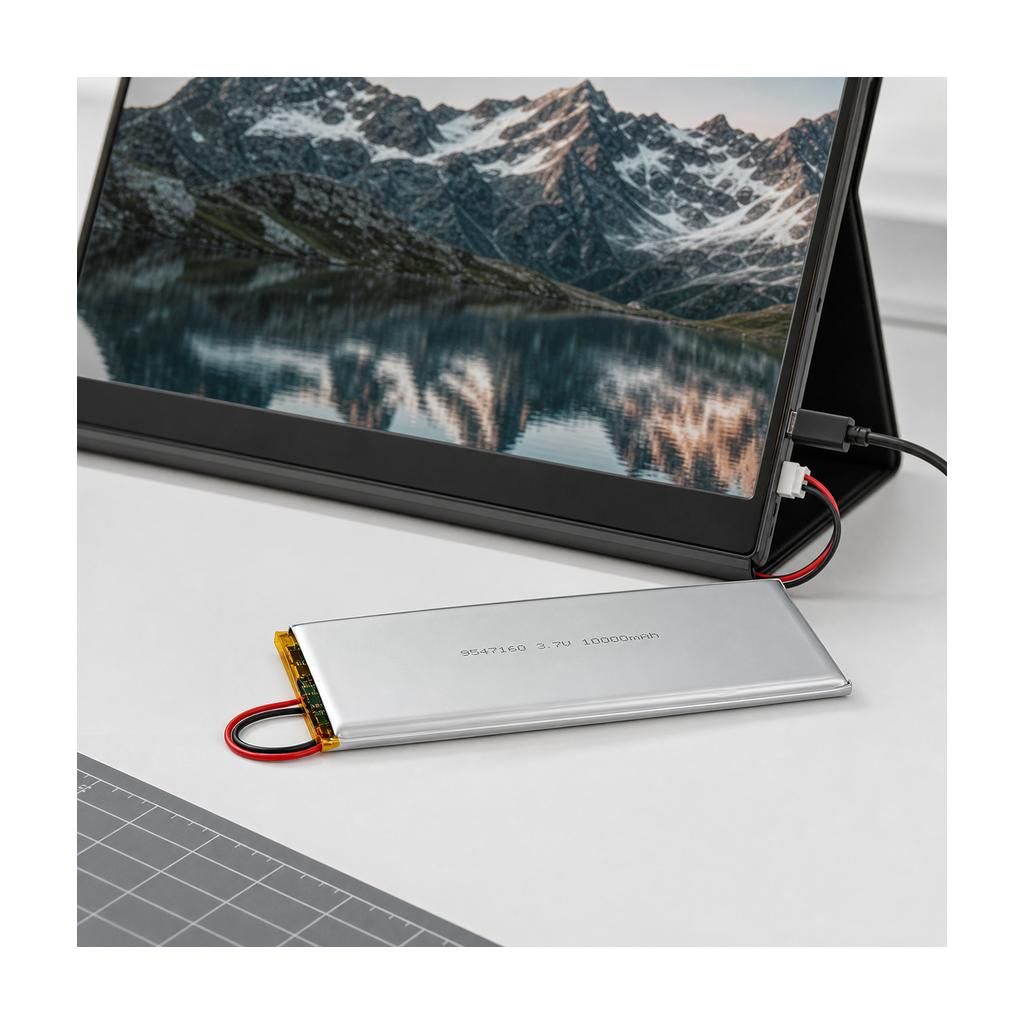

Portable display monitors

The 10000mAh capacity sustains portable display monitors through extended shifts, reducing the frequency of recharging during use.

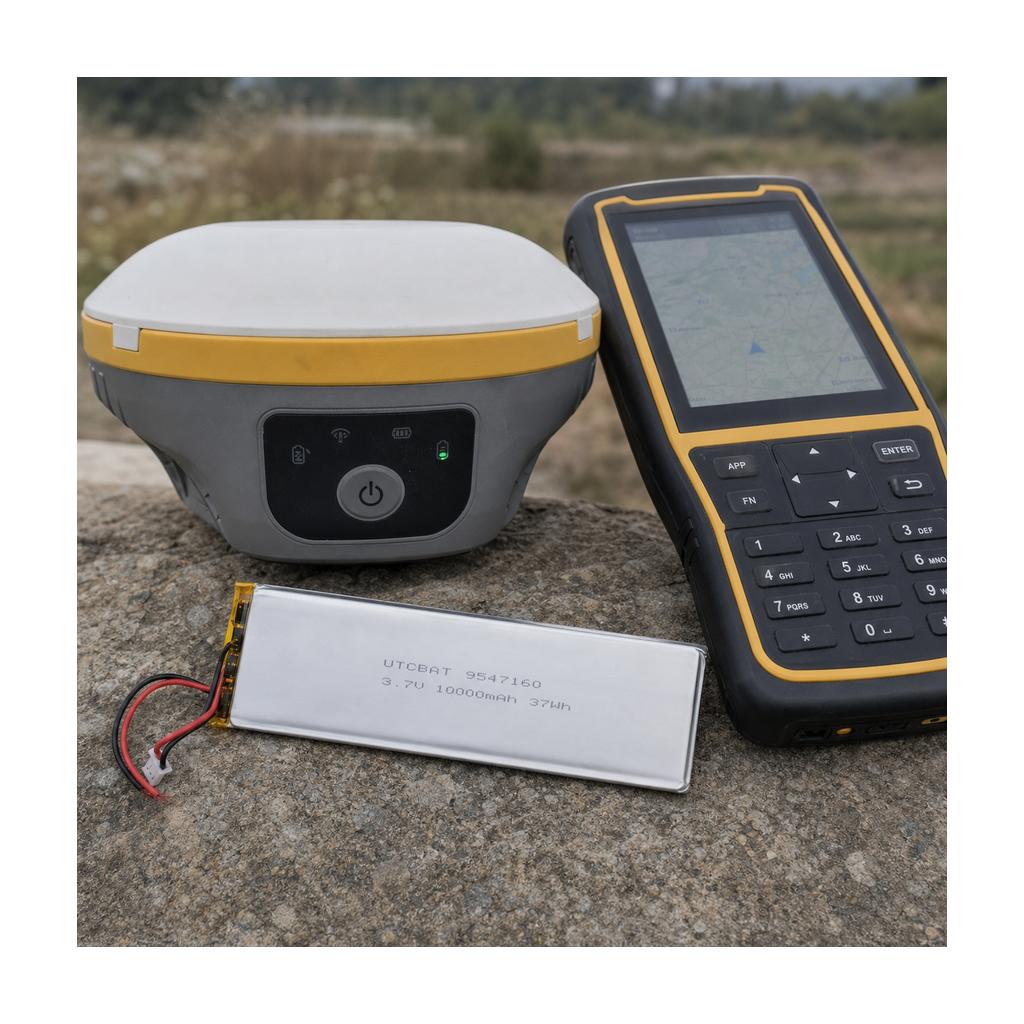

Portable GPS receivers

A 1C discharge rate supports the consistent power draw required by portable GPS receivers for accurate tracking.

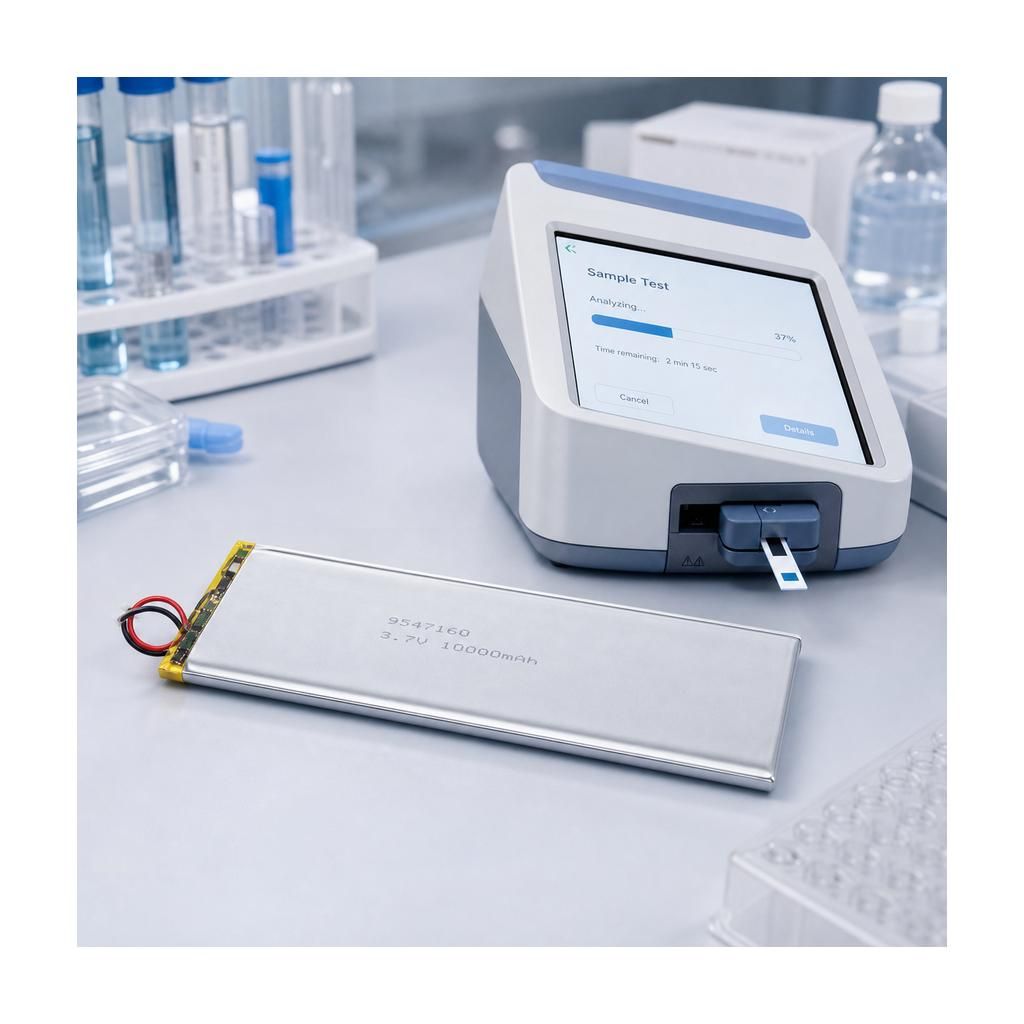

Portable medical analyzers

The 190g weight keeps portable medical analyzers lightweight, ensuring comfortable handling for healthcare professionals during patient assessments.

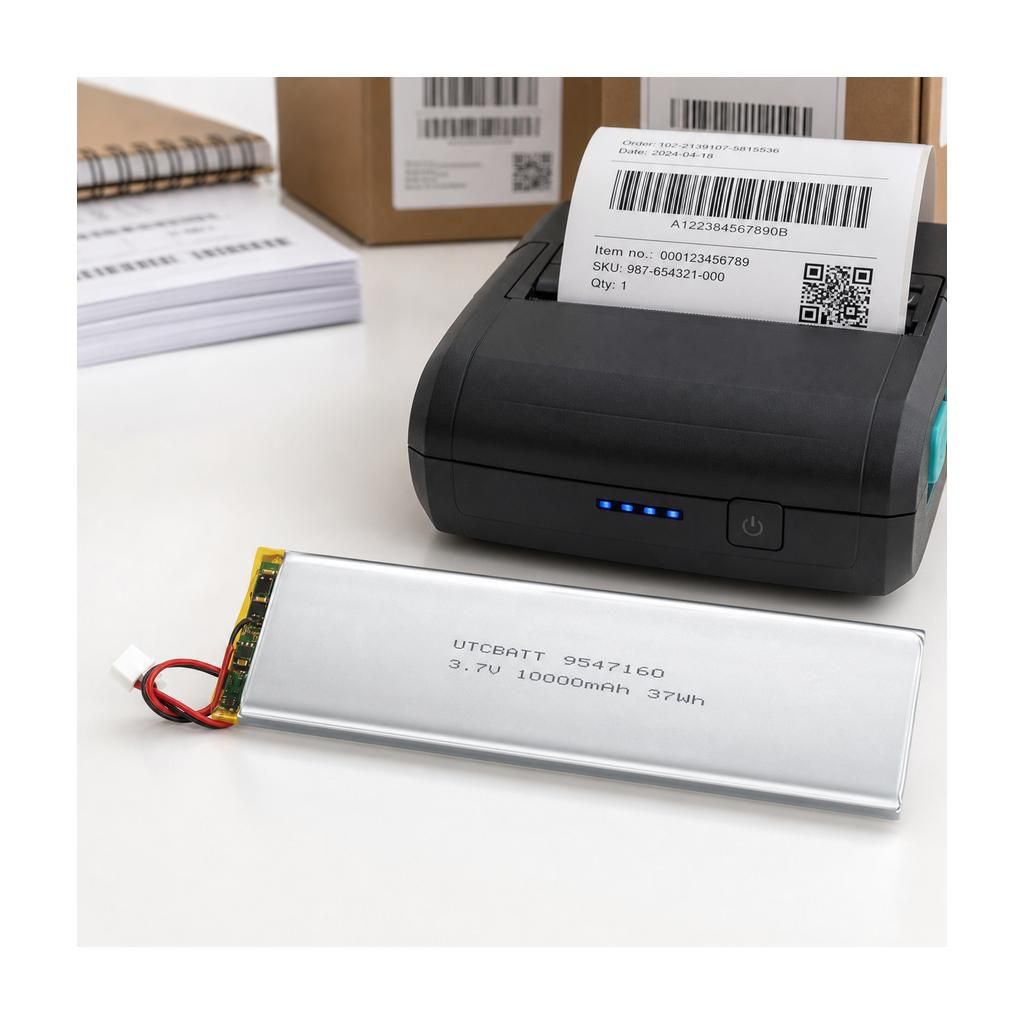

Portable printers

The 3.7V nominal voltage aligns perfectly with the power input requirements of compact portable printers.

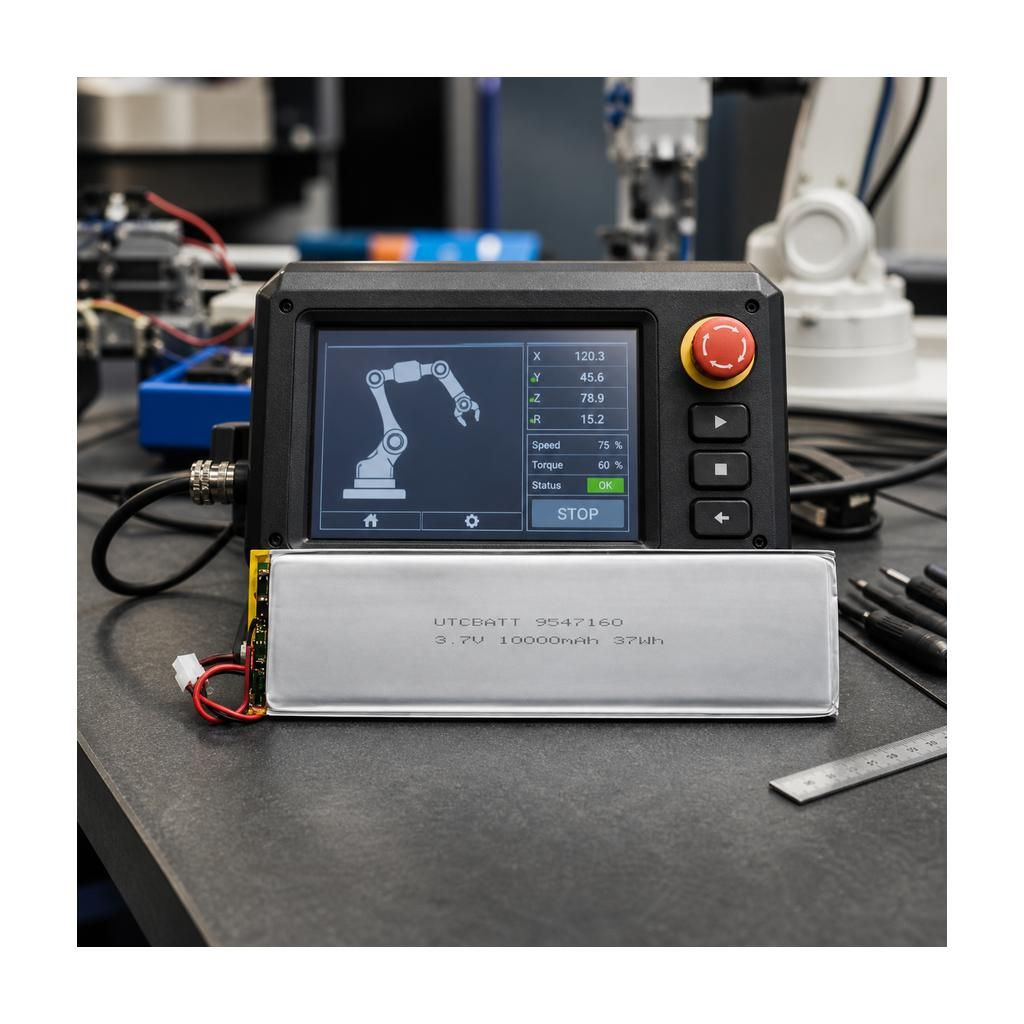

Robotics control panels

The 1S1P configuration provides stable voltage delivery essential for the sensitive logic circuits found in robotics control panels.

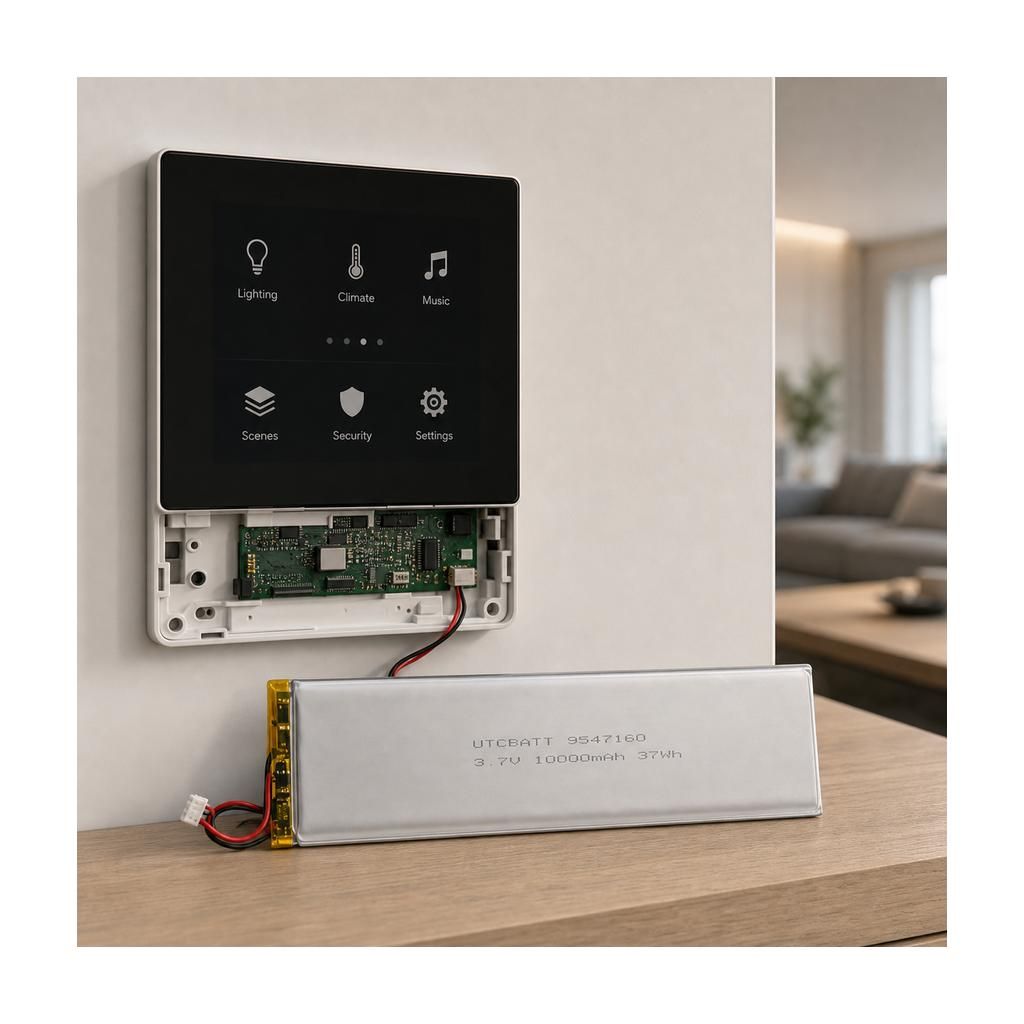

Smart home control panels

High energy density in the 47.5mm width allows smart home control panels to maintain compact form factors.

Featuring high-energy density and compact size, LP9547160 3.7V 10000mah lithium ion polymer battery is high-capacity, small-size and lightweight to supply long-lasting power to satisfy the runtime of different applications. The 10000mAh lithium polymer battery can support a 3C continuous discharge current as a strong power supply for Robotics, Portable Equipment, GPS trackers, Medical Devices, IOT Devices, drones, and UAVs.

Factory capability

VTCBATT Production and Service

VTCBATT not only focuses on customized design and excellent service to meet the diverse demands of different customers, but also devotes itself to precise and standardized manufacturing in every process to ensure the highest-quality batteries. Meanwhile, VTCBATT provides comprehensive support from pre-sales to after-sales, focusing on customer feedback to establish long-term and win-win cooperation. VTCBATT professional sales and technical engineer teams will be your custom battery experts for reliable and responsive project support.

▶

Modern Manufacturing

From raw materials mixing to cell testing, VTCBATT adopts automated manufacturing processes to improve production efficiency and battery quality, safety, and reliability. The manufacturing process is monitored and tested before material moves to the next procedure.

▶

Trusted by Global Customers

Over the past 20 years, VTCBATT has built partnerships with customers in more than 50 countries. Reliable quality, responsive service, and tailored battery solutions support long-term cooperation with equipment manufacturers, distributors, and brands.
