LiPo

3.7V 11000mAh 9553160 Li-Po Battery for Pocket-sized Emergency Power Banks,Large-screen tablets,High-fidelity (Hi-Fi) portable music players

Parameter	Specification
Model	VTC-LP9553160
Voltage	3.7V
Capacity	11000mAh
Max Size (Thickness x Width x Length)	9.7X53.5X162mm
Operating Temperature	-20℃ to 60℃
Standard Charge Rate	0.5C
Standard Discharge Rate	1C
Configuration	1S1P
Weight	195g

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotationDatasheet unavailable

Product overview

3.7V 11000mAh 9553160 lithium ion polymer for Pocket-sized Emergency Power Banks,Large-screen tablets, High-fidelity (Hi-Fi) portable music players | Battery Manufacturers in China & Battery Supply Factory

Pouch Battery 3.7V 9553160 11000mAh is a lithium polymer battery with a nominal voltage of 3.7V and a capacity of 11Ah. This high-capacity lithium polymer battery delivers long-lasting, reliable power for high-capacity portable electronic devices. The 9553160 battery is constructed from premium materials, including lithium ions and flexible aluminium foil, offering high energy density, low self-discharge, and extended cycle life. Its optimised internal structure ensures stable 3.7V voltage output over extended periods, safeguarding your device’s operational performance.

An integrated protection circuit board (Battery PCB) within the cell provides rapid response times of 1-3ms to safeguard against overcharging, over-discharging, overcurrent, overheating, and short circuits, significantly enhancing safety and reliability. VTCBATT operates highly automated production lines within medical-grade cleanrooms featuring stringent humidity control. The entire lipo battery production process occurs within these facilities, supported by a Manufacturing Execution System (MES) to ensure full traceability throughout production. Wire terminals, discharge current, and temperature performance are fully customisable to meet diverse product design requirements. Delivering stable energy output around 3.7V, this battery powers devices such as video doorbells, pocket emergency power supplies, large-screen tablets, and high-fidelity portable music players, ensuring prolonged operation.

01

Long Cycle Life

Based on 0.5C/1C cycling, the VTCBATT 3.7V 11000mAh 9553160 lipo battery can maintain over 80% capacity after 500 cycles and totally reach 1000 times cycle life.

02

Temperature Performance

VTCBATT 3.7V 11000mAh 9553160 Lipo battery can be discharged from -20℃ to 60℃.
This wide temperature range performance enables the battery to operate in many conditions.

03

Different Discharge Rate

VTCBATT 3.7V 11000mAh 9553160 lipo battery can be discharged in different rates of 0.2C,0.5C,1C,2C,3C to meet different power consumption.

Technical insight

Product and application details

video doorbells

The slim 9.7mm thickness allows integration into compact housing designs found in modern video doorbell units.

Robotics

A 1C discharge rate provides stable current delivery for the motor controllers used in small-scale robotics projects.

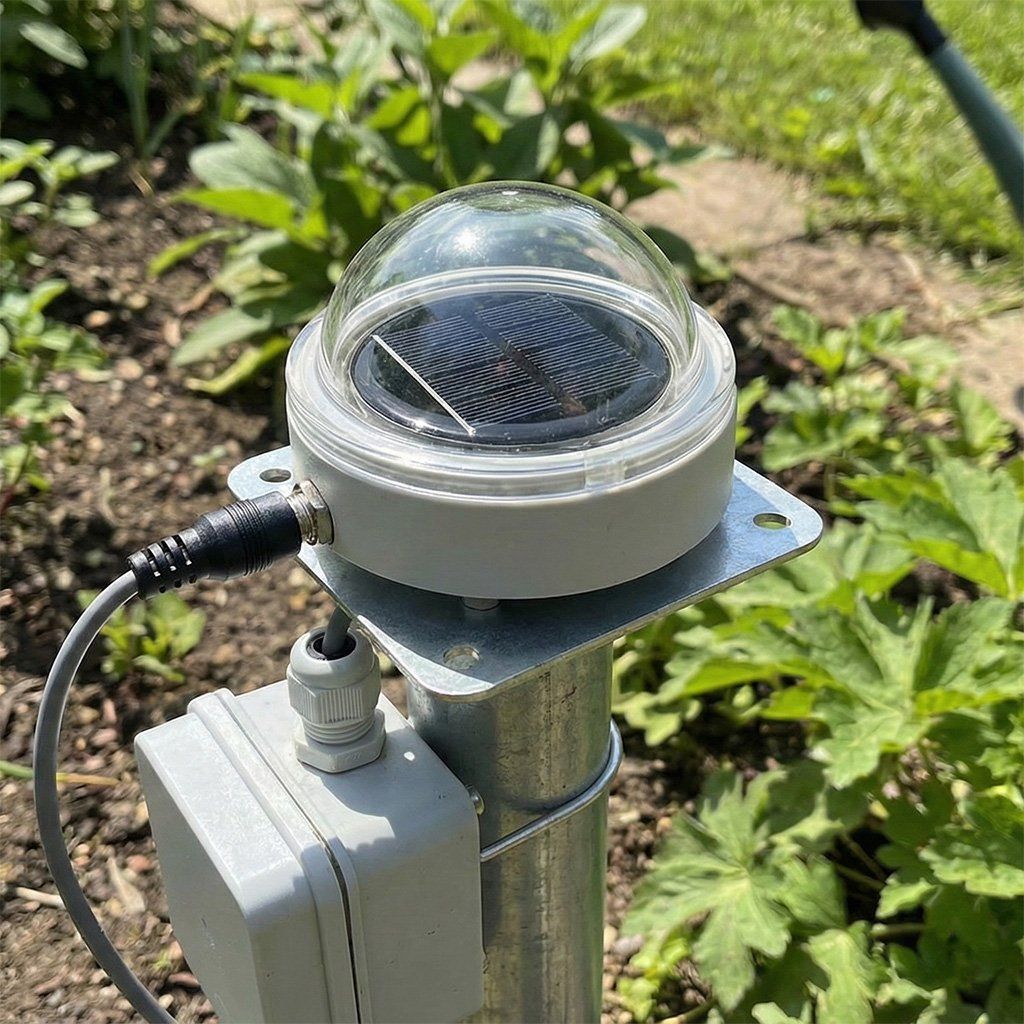

Solar Sensor

The wide -20℃ to 60℃ operating range ensures reliable performance for outdoor solar sensors exposed to temperature extremes.

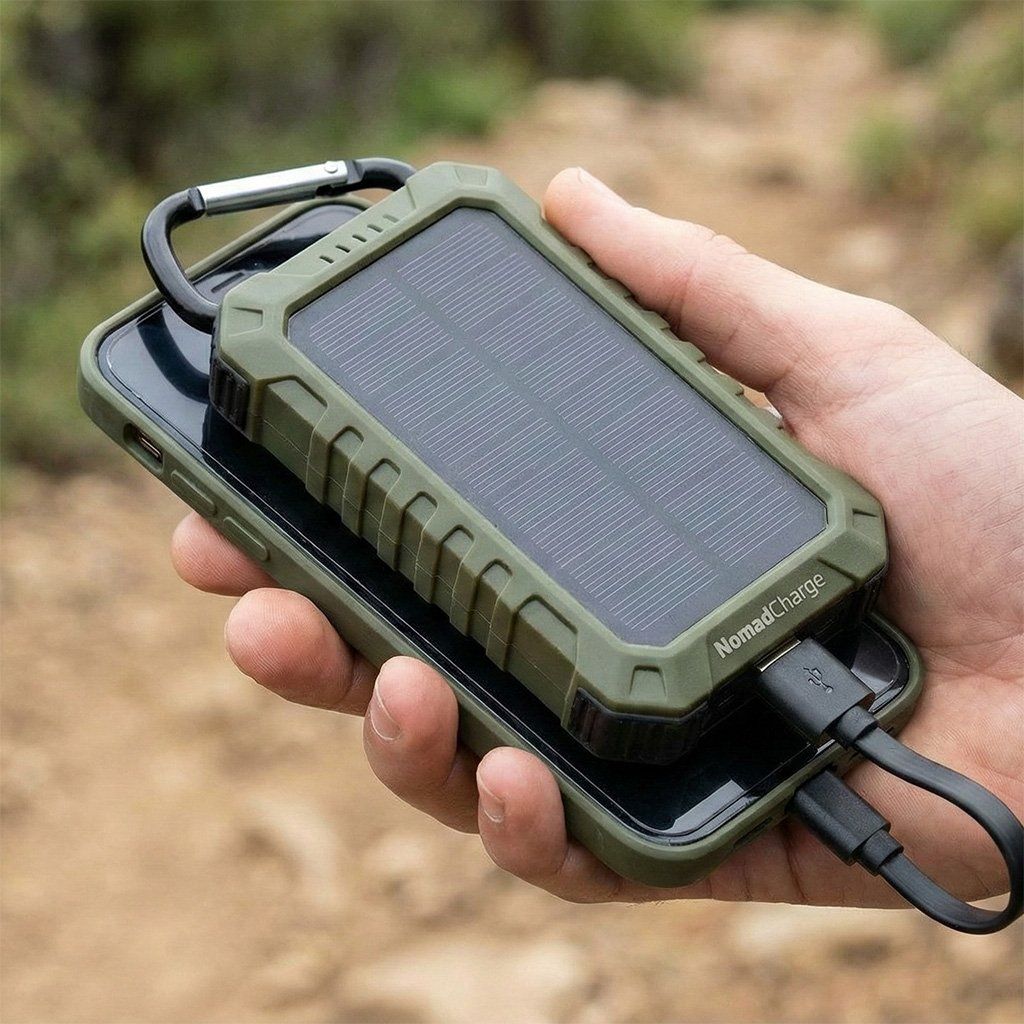

Pocket-sized Emergency Power Banks

The 11000mAh capacity fits within a 162mm length, enabling high energy density for portable emergency charging solutions.

Smart Door Locks

Its 195g weight and 3.7V nominal voltage offer a safe, low-profile power source for electronic smart locks.

Large-screen tablets

The large 11000mAh capacity supports extended usage cycles required by high-drain large-screen tablet displays.

large Bluetooth speakers

The 195g weight contributes to the stability of large Bluetooth speakers while providing ample energy storage.

High-fidelity (Hi-Fi) portable music players

The precise 3.7V voltage ensures clean signal integrity for sensitive audio circuits in high-fidelity portable players.

Pouch Battery 3.7V 9553160 11000mAh is a lithium polymer battery with a nominal voltage of 3.7V and a capacity of 11Ah. This high-capacity lithium polymer battery delivers long-lasting, reliable power for high-capacity portable electronic devices. The 9553160 battery is constructed from premium materials, including lithium ions and flexible aluminium foil, offering high energy density, low self-discharge, and extended cycle life. Its optimised internal structure ensures stable 3.7V voltage output over extended periods, safeguarding your device’s operational performance. An integrated protection circuit board (Battery PCB) within the cell provides rapid response times of 1-3ms to safeguard against overcharging, over-discharging, overcurrent, overheating,

Pouch Battery 3.7V 9553160 11000mAh is a lithium polymer battery with a nominal voltage of 3.7V and a capacity of 11Ah. This high-capacity lithium polymer battery delivers long-lasting, reliable power for high-capacity portable electronic devices. The 9553160 battery is constructed from premium materials, including lithium ions and flexible aluminium foil, offering high energy density, low self-discharge, and extended cycle life. Its optimised internal structure ensures stable 3.7V voltage output over extended periods, safeguarding your device’s operational performance.

An integrated protection circuit board (Battery PCB) within the cell provides rapid response times of 1-3ms to safeguard against overcharging, over-discharging, overcurrent, overheating, and short circuits, significantly enhancing safety and reliability. VTCBATT operates highly automated production lines within medical-grade cleanrooms featuring stringent humidity control. The entire lipo battery production process occurs within these facilities, supported by a Manufacturing Execution System (MES) to ensure full traceability throughout production. Wire terminals, discharge current, and temperature performance are fully customisable to meet diverse product design requirements. Delivering stable energy output around 3.7V, this battery powers devices such as video doorbells, pocket emergency power supplies, large-screen tablets, and high-fidelity portable music players, ensuring prolonged operation.
