VTC-LP402030 3.7V 200mAh Li-ion Polymer Battery with PCM and 10K NTC for GPS tracker, Bluetooth headset, wireless sensor, medical wearable

Parameter	Specification
Model	VTC-LP402030
Battery Type	Li-ion Polymer Rechargeable Battery Pack
Nominal Voltage	3.7V
Nominal Capacity	200mAh
Minimum Capacity	190mAh
Limited Charge Voltage	4.2V
Discharge Cut-off Voltage	3.0V
Maximum Discharging Current	200mA
Standard Charging Time	6–7 hours
Rapid Charging Time	1.5 hours
Pack Dimensions	Max. 4.2 × 20.5 × 32.5 mm
Cycle Life	≥600 cycles
Discharging Temperature	-20°C to 60°C

Certification support for VTC-LP402030 3.7V 200mAh Li-ion Polymer Battery with PCM and 10K NTC for GPS tracker, Bluetooth headset, wireless sensor, medical wearable

CB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotationDatasheet unavailable

Product overview

3.7V LP402030 200mAh Lipo Battery for GPS tracker, Bluetooth headset, wireless sensor, medical wearable | Battery Manufacturers in China & Battery Supply Factory

The VTC-LP402030 3.7V 200mAh Li-ion polymer battery is a compact rechargeable lithium polymer battery pack for small electronic devices that need a thin 402030 power source with stable factory supply. This 3.7V Li-ion polymer rechargeable battery features 200mAh nominal capacity, 210mAh rated capacity, 4.2V limited charge voltage, 3.0V discharge cut-off voltage, 40mA standard charge/discharge current, and 200mA rapid charge or maximum discharge current. The pack integrates an S8261DAA protection IC, DP8205 MOSFET, and 10K NTC thermistor, with a maximum pack size of 4.2 x 20.5 x 32.5mm and 30 +/- 3mm lead wires for compact OEM product assembly.

As a lithium polymer battery manufacturer, VTCBATT supports wholesale supply, OEM/ODM customization, connector and wire customization, protection circuit matching, sample development, and stable batch production for GPS trackers, wireless sensors, medical wearables, IoT devices, portable recorders, and handheld electronics. The datasheet also records RoHS material selection for the PCB and defined safety, electrical, storage, and shipment test requirements, helping customers prepare product documentation and battery pack qualification for their application projects.

01

High energy density

Featuring high-energy density 200wh/kg-300wh/kg,the lipo battery can deliver more power than other battery chemistries and support high drain current to power the devices strongly.

02

PCB with NTC

VTCBATT lipo batteries are provided with NTC(Negative Temperature Coefficient), a kind of temperature sense to decrease the resistance as the temperature increases, allowing accurate temperature monitoring of the batteries. The NTC plays a critical role in improving the battery reliability and safety.

03

High Safety

In the safety lab,VTCBATT will stimulate all the test items of UL and IEC62133,including nail penetration test,free fall experiment,heavy object impact,extrusion experiments.

Technical insight

Product and application details

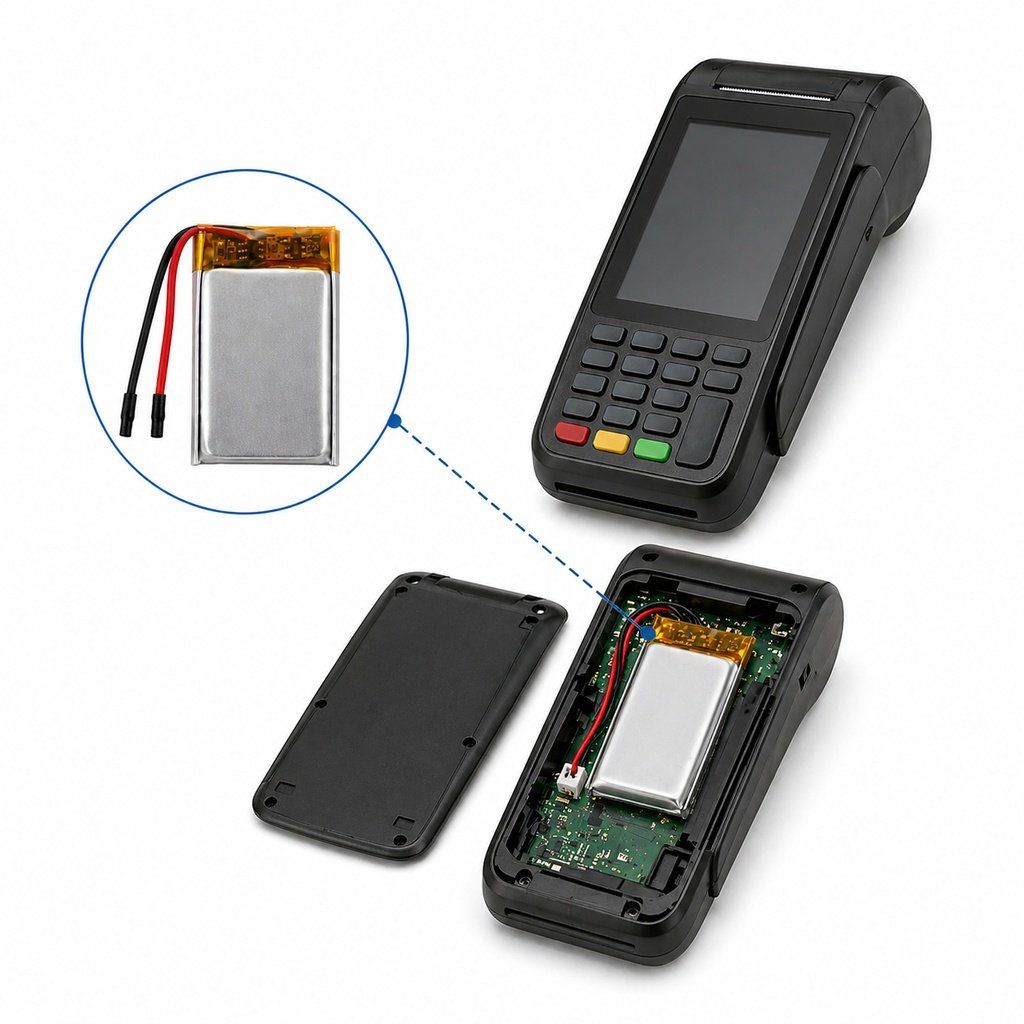

handheld POS terminal

Its 4.2mm max thickness fits slim payment devices while supporting 600 charge cycles for heavy retail use.

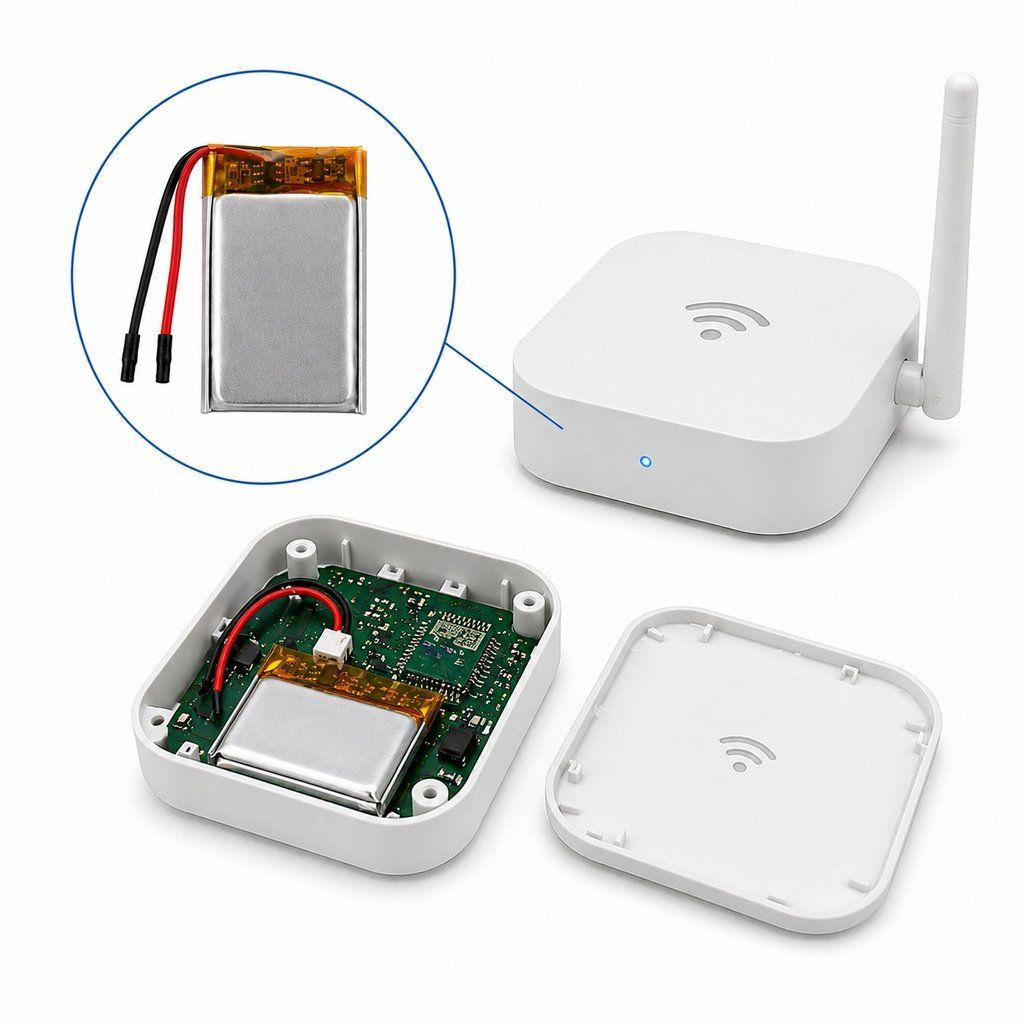

IoT device

The compact 4.2x20.5x32.5mm form factor enables integration into space-constrained sensor nodes for long-term monitoring.

medical wearable

Operating down to -20°C ensures consistent performance for health monitors used in cold environmental conditions.

portable recorder

A 200mAh capacity provides sufficient energy storage for extended audio capture sessions in compact devices.

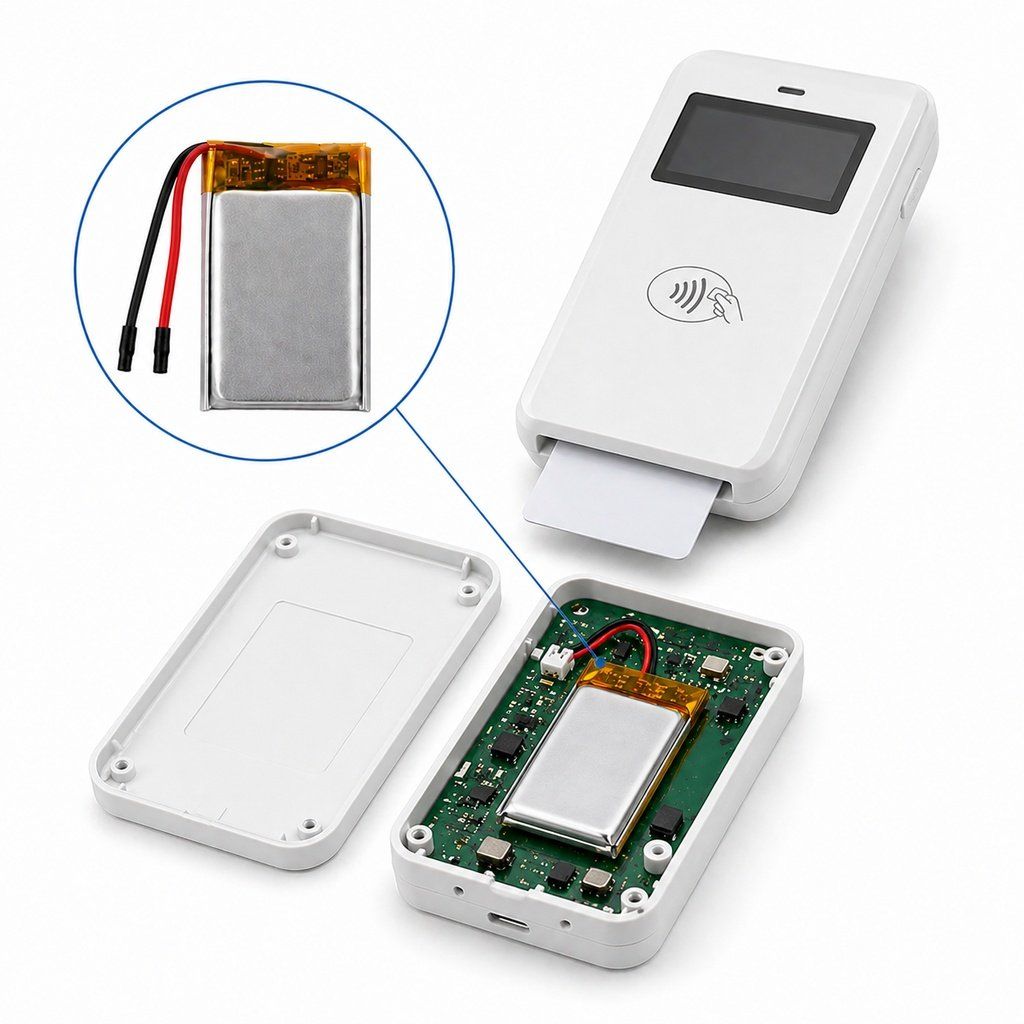

smart card reader

The 3.7V nominal voltage directly powers low-current smart card interfaces without requiring complex step-up circuits.

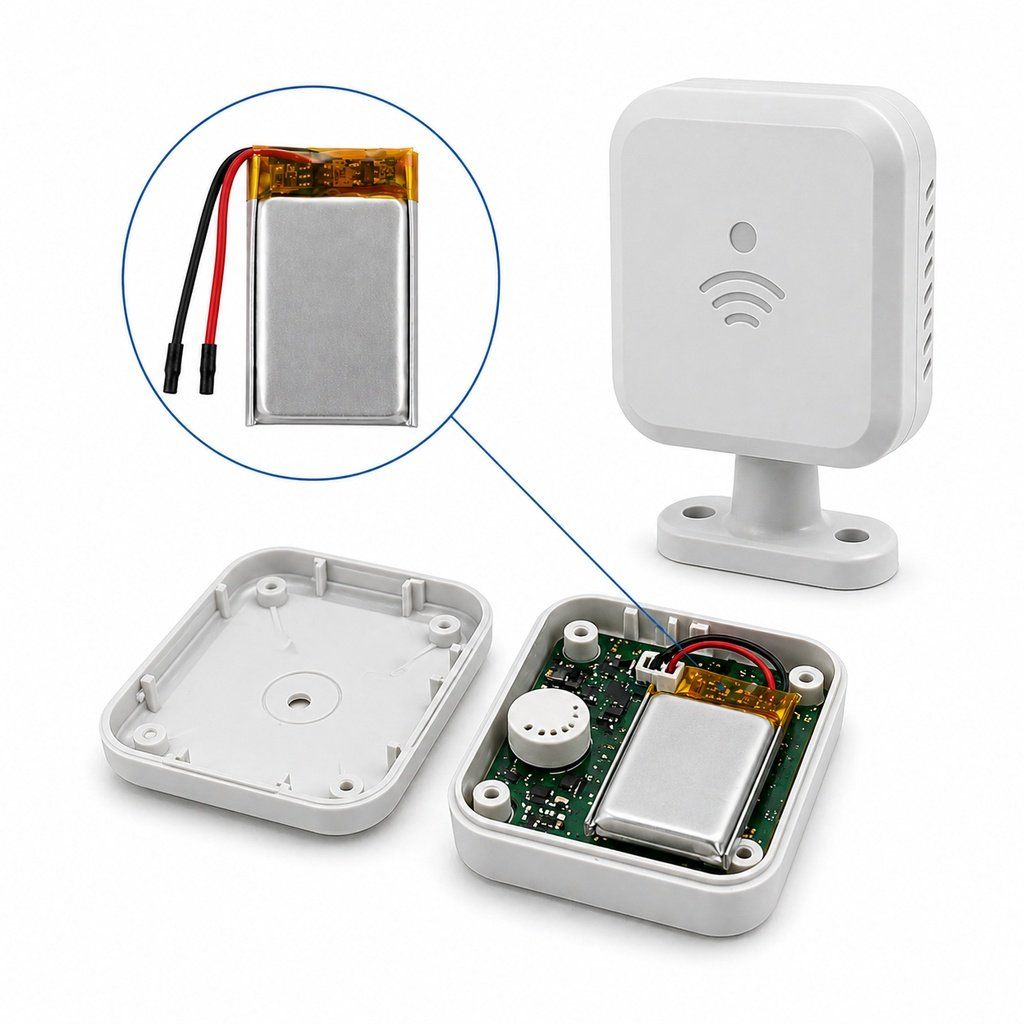

wireless sensor

Fast 1.5-hour rapid charging minimizes downtime for sensors that require frequent data transmission cycles.

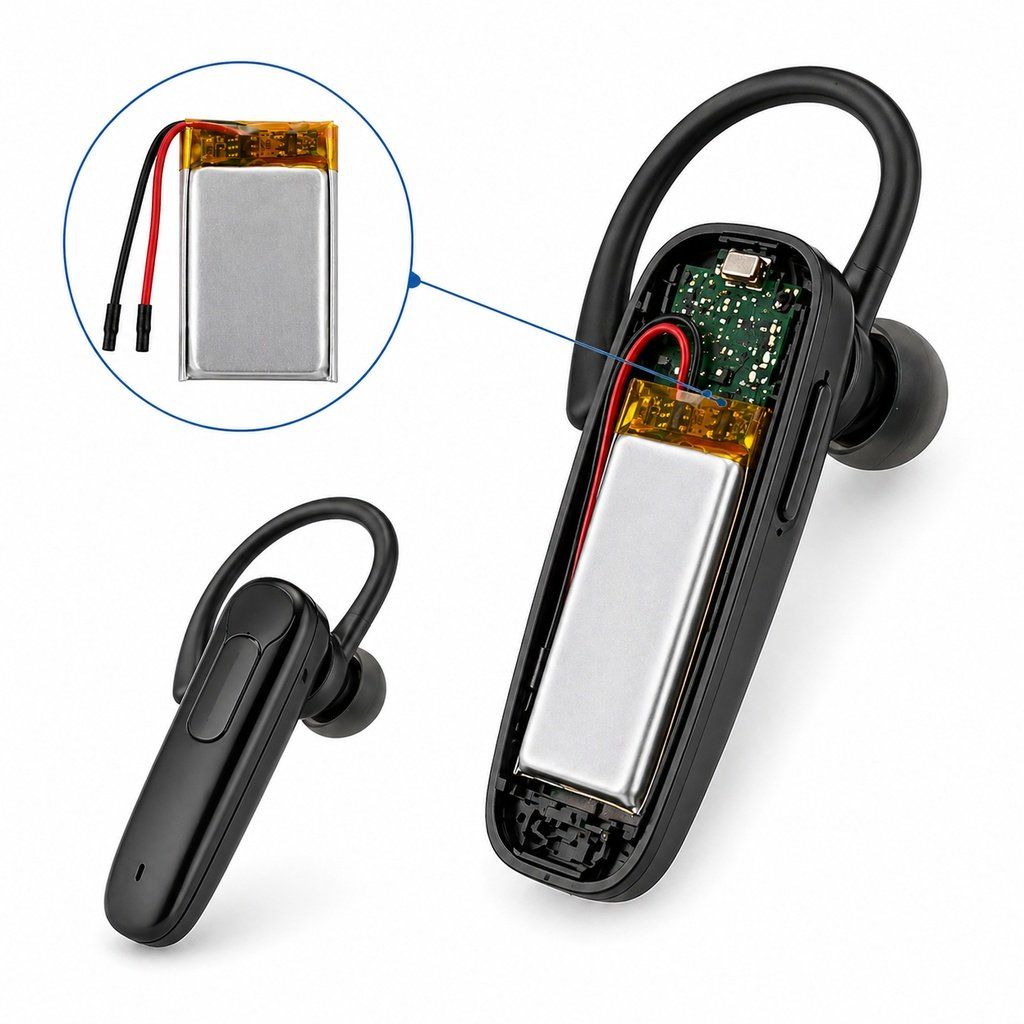

Bluetooth headset

Ultra-slim dimensions allow seamless integration into earpieces, while 200mAh supports several hours of continuous playback.

GPS tracker

High cycle life of 600+ repeats ensures longevity for trackers deployed in remote tracking scenarios.

The VTC-LP402030 3.7V 200mAh Li-ion polymer battery is a compact rechargeable lithium polymer battery pack for small electronic devices that need a thin 402030 power source with stable factory supply. This 3.7V Li-ion polymer rechargeable battery features 200mAh nominal capacity, 210mAh rated capacity, 4.2V limited charge voltage, 3.0V discharge cut-off voltage, 40mA standard charge/discharge current, and 200mA rapid charge or maximum discharge current. The pack integrates an S8261DAA protection IC, DP8205 MOSFET, and 10K NTC thermistor, with a maximum pack size of 4.2 x 20.5 x 32.5mm and 30 +/- 3mm lead wires for compact OEM product assembly. As a

The VTC-LP402030 3.7V 200mAh Li-ion polymer battery is a compact rechargeable lithium polymer battery pack for small electronic devices that need a thin 402030 power source with stable factory supply. This 3.7V Li-ion polymer rechargeable battery features 200mAh nominal capacity, 210mAh rated capacity, 4.2V limited charge voltage, 3.0V discharge cut-off voltage, 40mA standard charge/discharge current, and 200mA rapid charge or maximum discharge current. The pack integrates an S8261DAA protection IC, DP8205 MOSFET, and 10K NTC thermistor, with a maximum pack size of 4.2 x 20.5 x 32.5mm and 30 +/- 3mm lead wires for compact OEM product assembly.

As a lithium polymer battery manufacturer, VTCBATT supports wholesale supply, OEM/ODM customization, connector and wire customization, protection circuit matching, sample development, and stable batch production for GPS trackers, wireless sensors, medical wearables, IoT devices, portable recorders, and handheld electronics. The datasheet also records RoHS material selection for the PCB and defined safety, electrical, storage, and shipment test requirements, helping customers prepare product documentation and battery pack qualification for their application projects.
