LiPo

126090 3.7V 8000mAh LiPo Battery for tablet terminals, handheld POS devices, portable testing instruments

Parameter	Specification
Model	VTC-LP126090
Voltage	3.7V
Capacity	8000mAh
Max Size (Thickness x Width x Length)	12.2mmX60.5mmX92mm
Operating Temperature	-20℃ to 60℃
Standard Charge Rate	0.5C
Standard Discharge Rate	1C
Configuration	1S1P
Weight	141.5g

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotationDatasheet unavailable

Product overview

8000mah lipo battery for RC Models, Drones, and Smart Devices | Battery Manufacturers in China & Battery Supply Factory

Featuring high-energy density and compact size, 8000mah lipo battery polymer is high-capacity, small-size and lightweight to supply long-lasting power to satisfy the runtime of different applications. The 8000mah lipo battery can support a 3C continuous discharge current as a strong power supply for Robotics, Portable Equipment, GPS trackers, Medical Devices, IOT Devices, drones, and UAVs.

01

Long Cycle Life

Based on 0.5C/1C cycling, the VTCBATT 8000mah lipo battery can maintain over 80% capacity after 500 cycles and totally reach 1000 times cycle life.

02

Low Self Discharge Rate

After 30-day and 60-day storage, there is slight 1%-2% slight voltage decrease under 50% SOC at 25°C.

03

Customization

VTCBATT can support full customization of the lipo batteries in different sizes, capacities, connectors, discharge rates, and cases. Just inform us of your specific requirement, and our professional engineers can provide you with the customized lipo battery proposal.

04

High energy density

Featuring high-energy density 200wh/kg-300wh/kg,the lipo battery can deliver more power than other battery chemistries and support high drain current to power the devices strongly.

Technical insight

Product and application details

GPS Tracking Terminals

The slim 12.2mm profile fits compact tracking cases while 8000mAh capacity supports long-term location reporting.

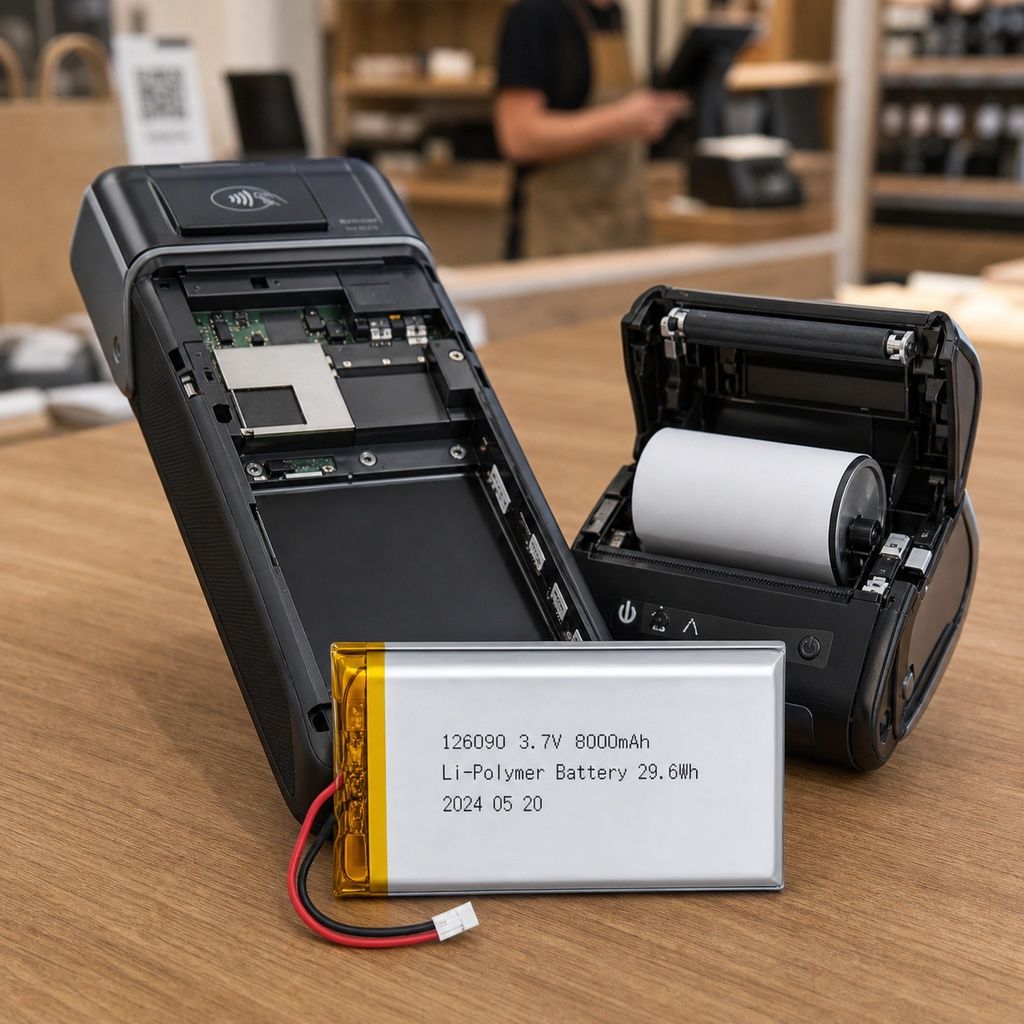

Handheld POS Devices

High capacity 8000mAh sustains all-day transaction processing, reducing downtime during busy retail shifts.

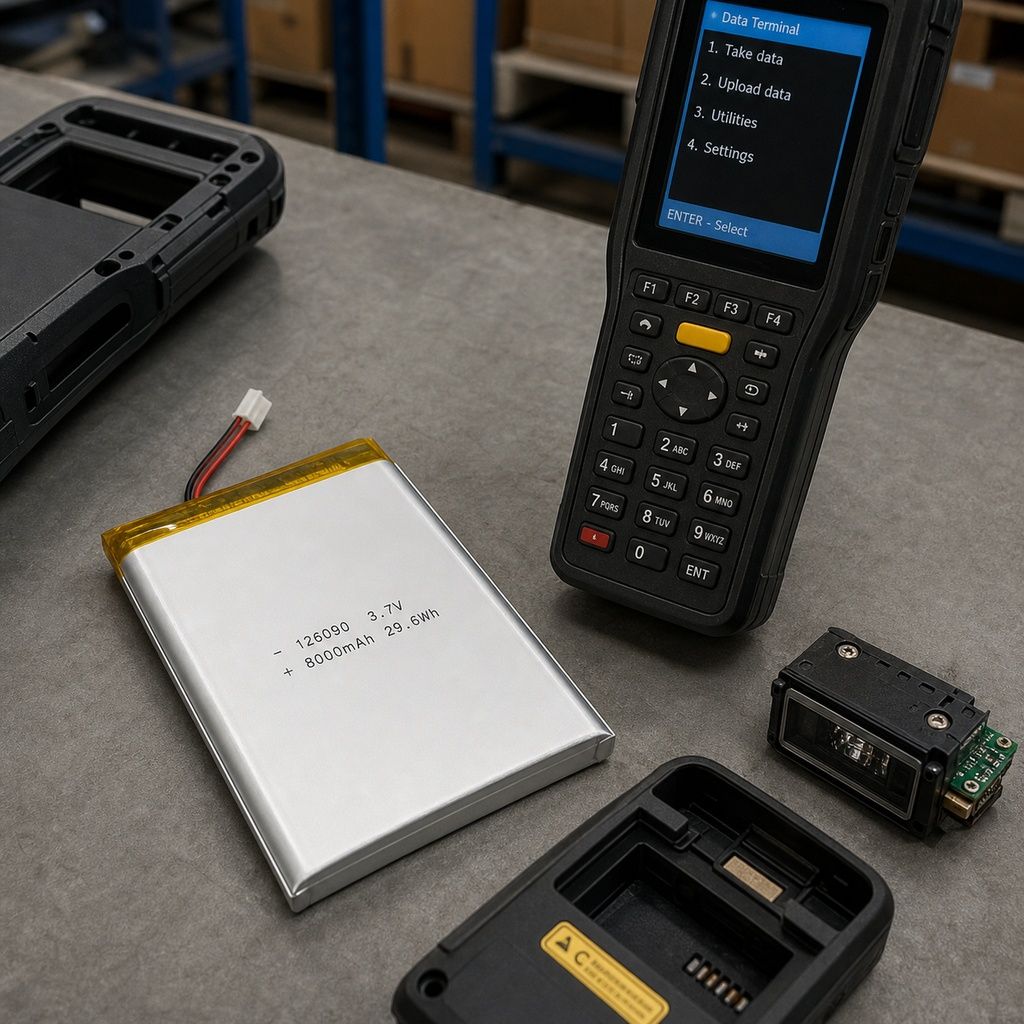

Industrial PDAs and Barcode Scanners

Robust 1C discharge rate handles frequent scanning bursts, ensuring consistent performance in demanding warehouse environments.

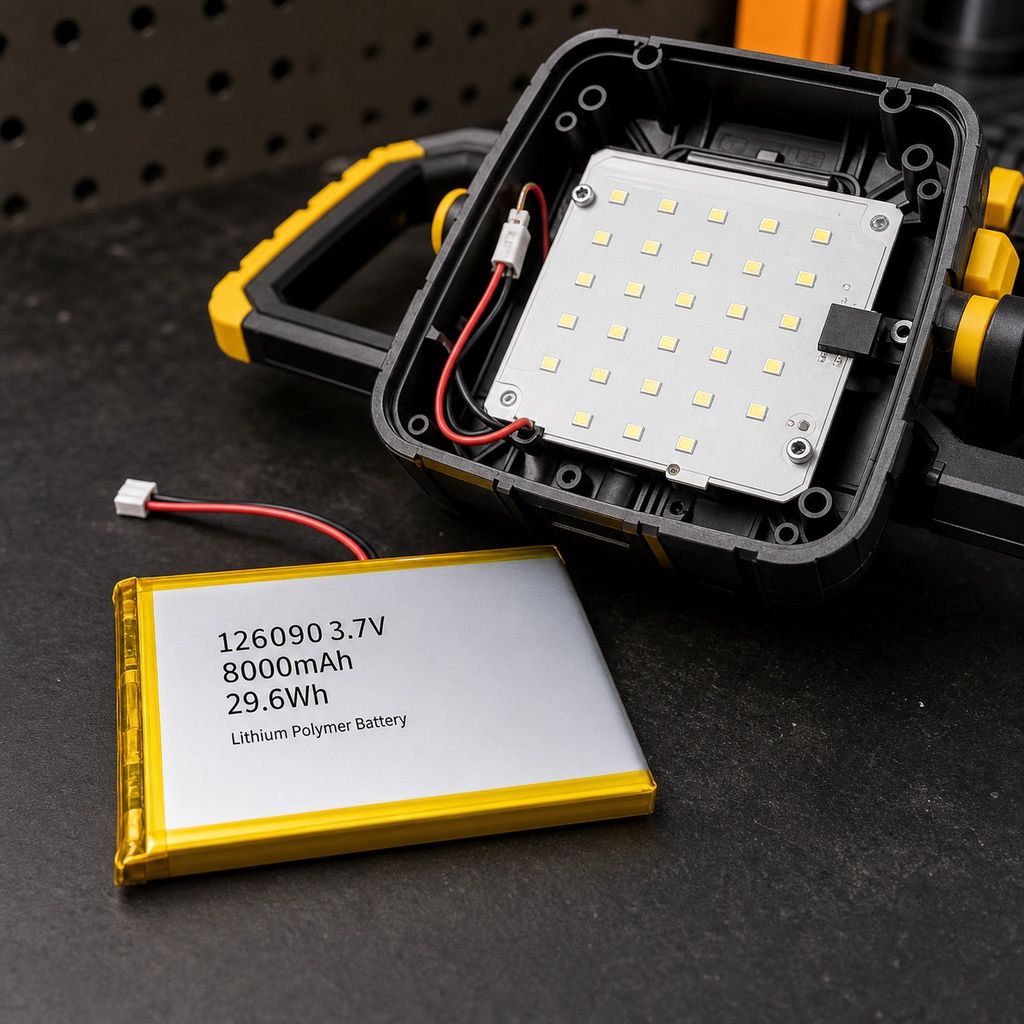

Portable LED Work Lights

Large 8000mAh capacity extends runtime for extended illumination needs in low-light industrial settings.

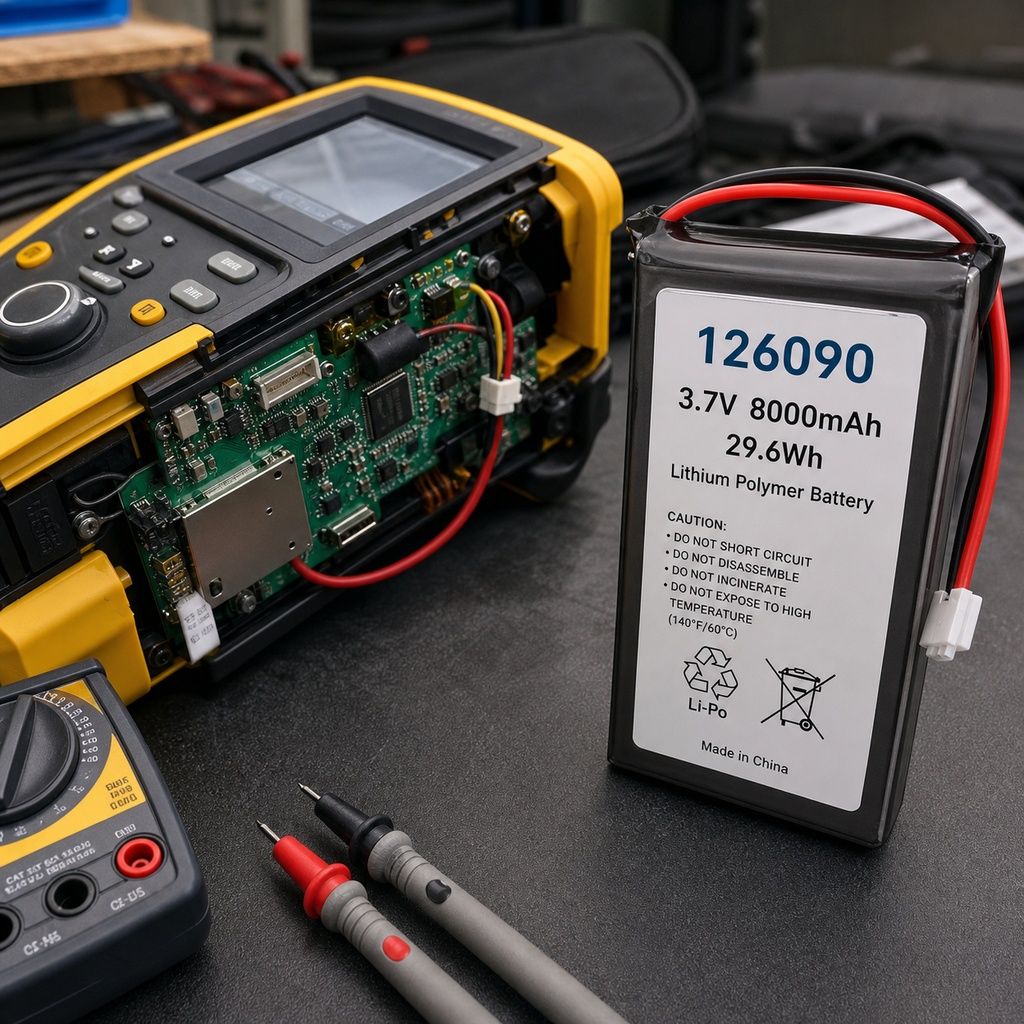

Portable Testing Instruments

Stable 3.7V output ensures accurate sensor readings, critical for precision measurements in field diagnostics.

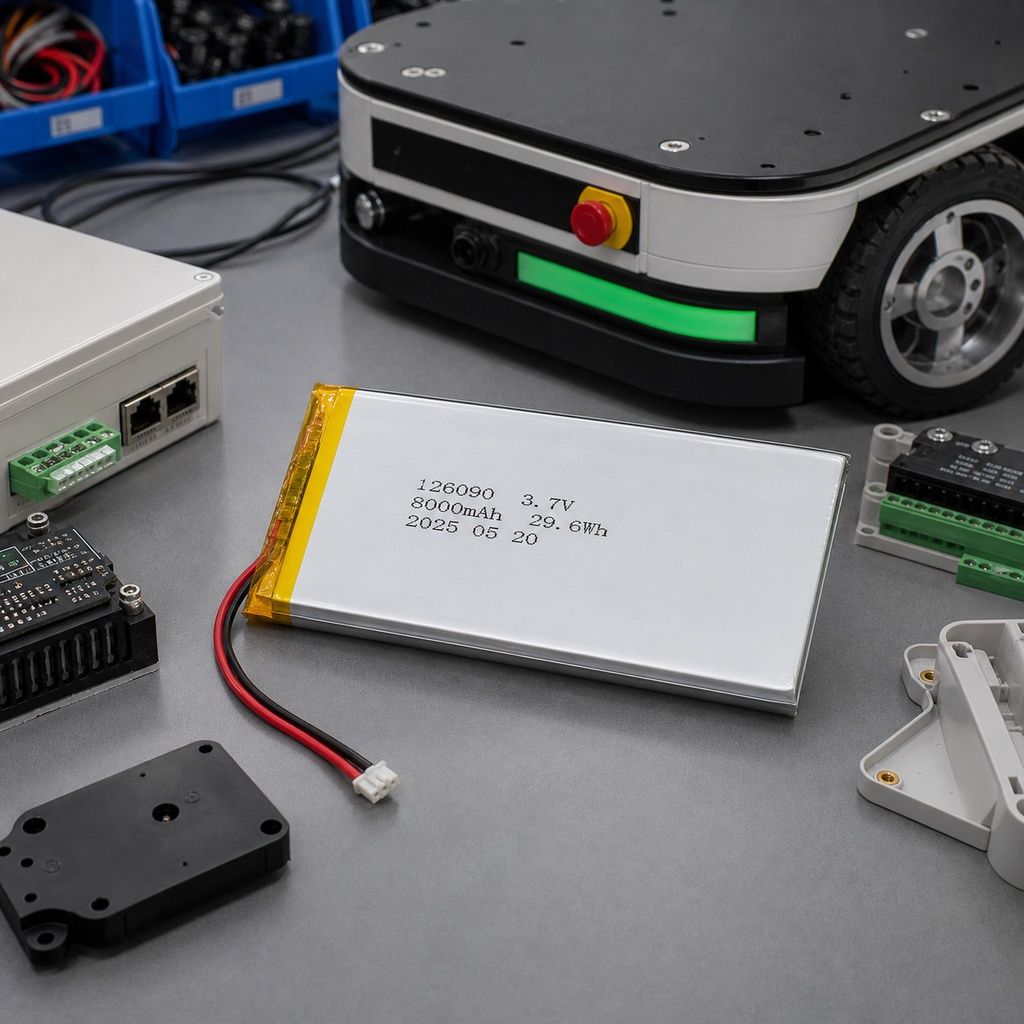

Small Robots and AGV Control Modules

Low profile 12.2mm thickness allows integration into tight chassis designs for autonomous mobile robots.

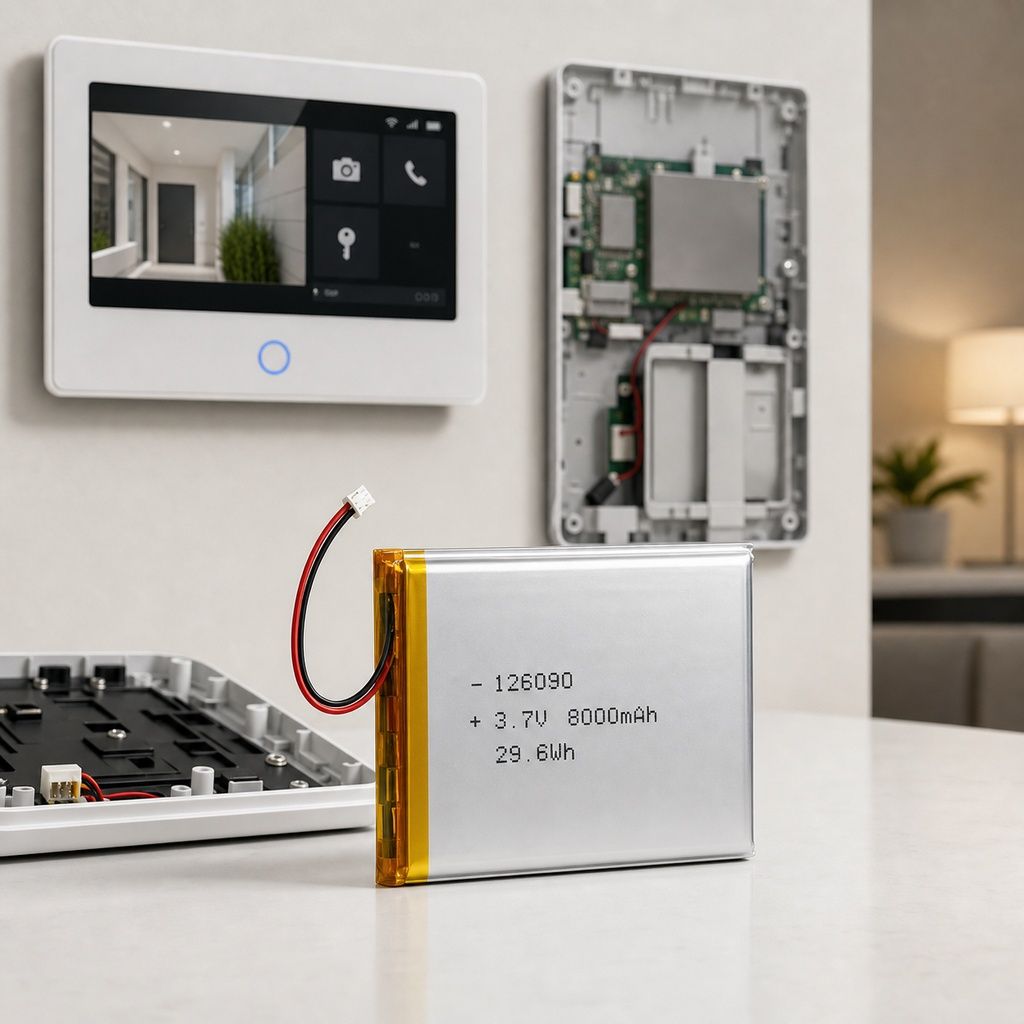

Smart Home Control Panels

Wide -20℃ to 60℃ temperature range guarantees reliable operation in uncontrolled indoor or outdoor environments.

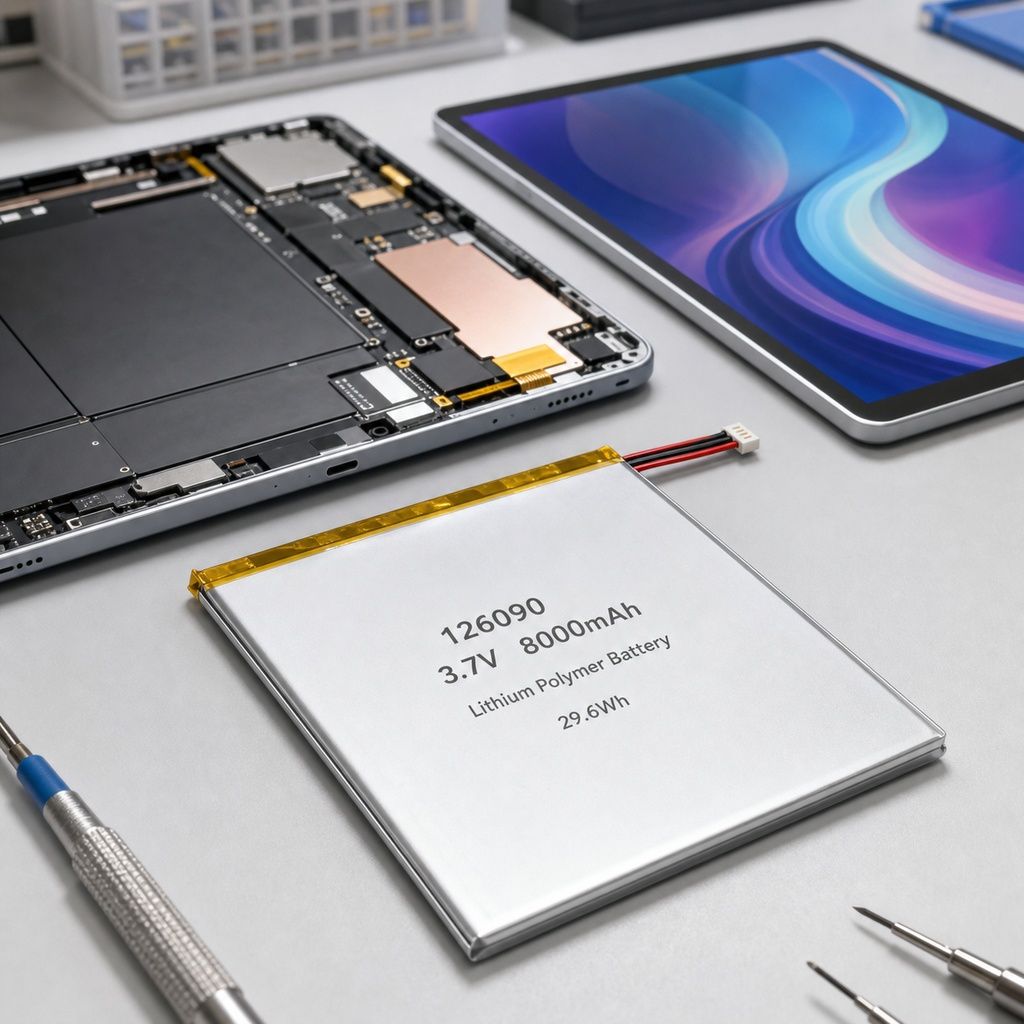

Tablet Terminals

Lightweight 141.5g design minimizes user fatigue during prolonged handheld use for mobile data entry.

Featuring high-energy density and compact size, 8000mah lipo battery polymer is high-capacity, small-size and lightweight to supply long-lasting power to satisfy the runtime of different applications. The 8000mah lipo battery can support a 3C continuous discharge current as a strong power supply for Robotics, Portable Equipment, GPS trackers, Medical Devices, IOT Devices, drones, and UAVs.
