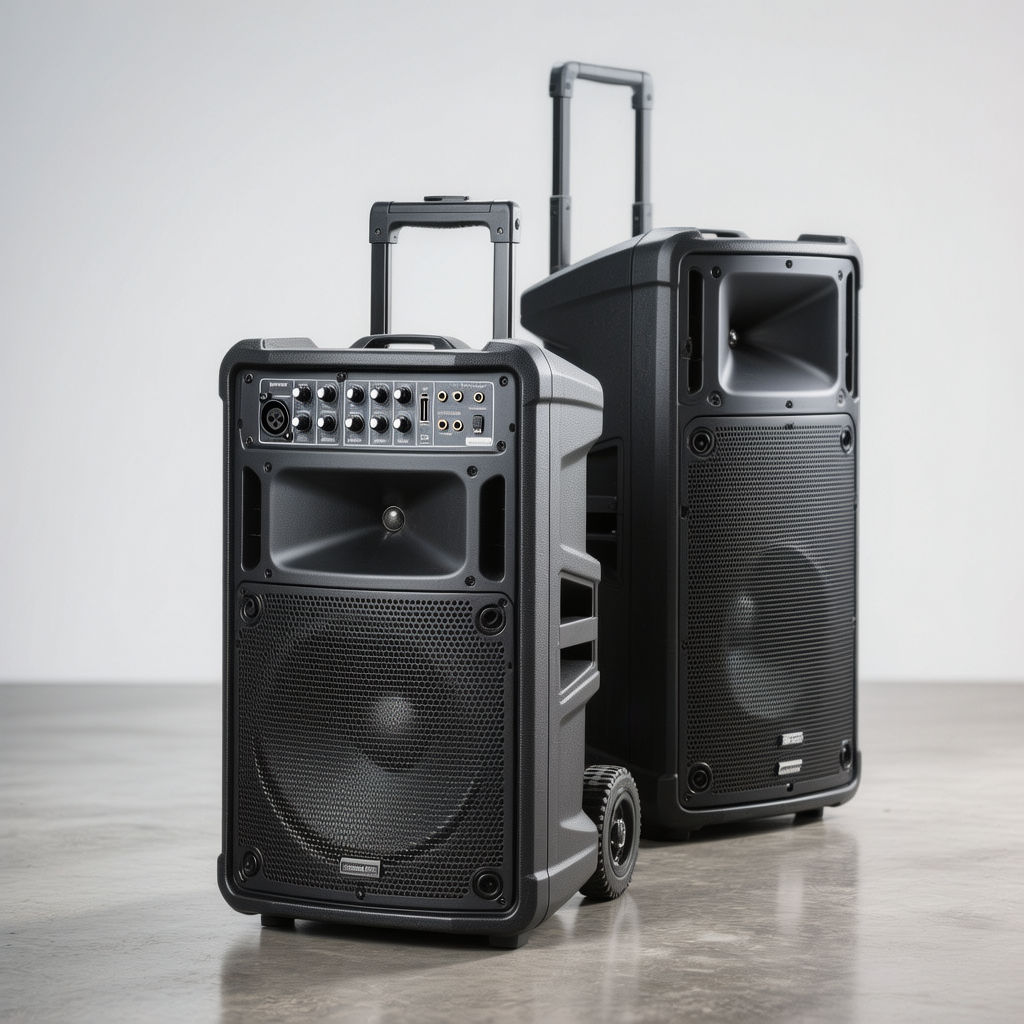

Portable PA Systems
Its lightweight design reduces physical strain on mobile audio engineers during extended outdoor performance schedules.
Energy Storage
Ultra long cycle life ensures sustained energy retention for off-grid solar setups requiring years of daily discharge.
Security Camera
Stable 12V output maintains continuous surveillance recording without voltage drops during night-time power outages.
Emergency Power Backup & UPS
Rapid discharge capabilities provide immediate current for critical systems during sudden grid failures.

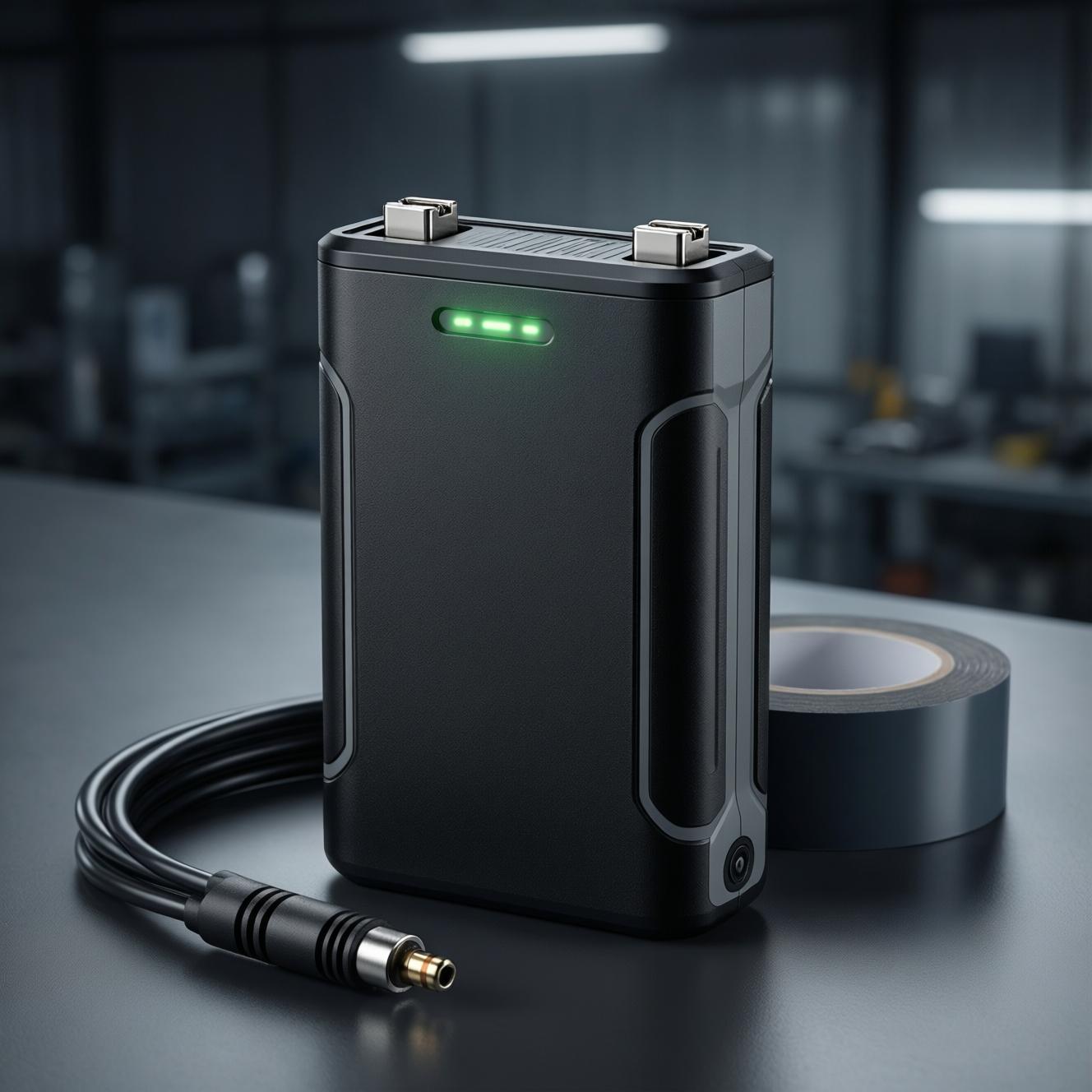

Remote Data Transmission
High cycle life supports consistent signal boosting for remote transmitters operating in isolated locations.

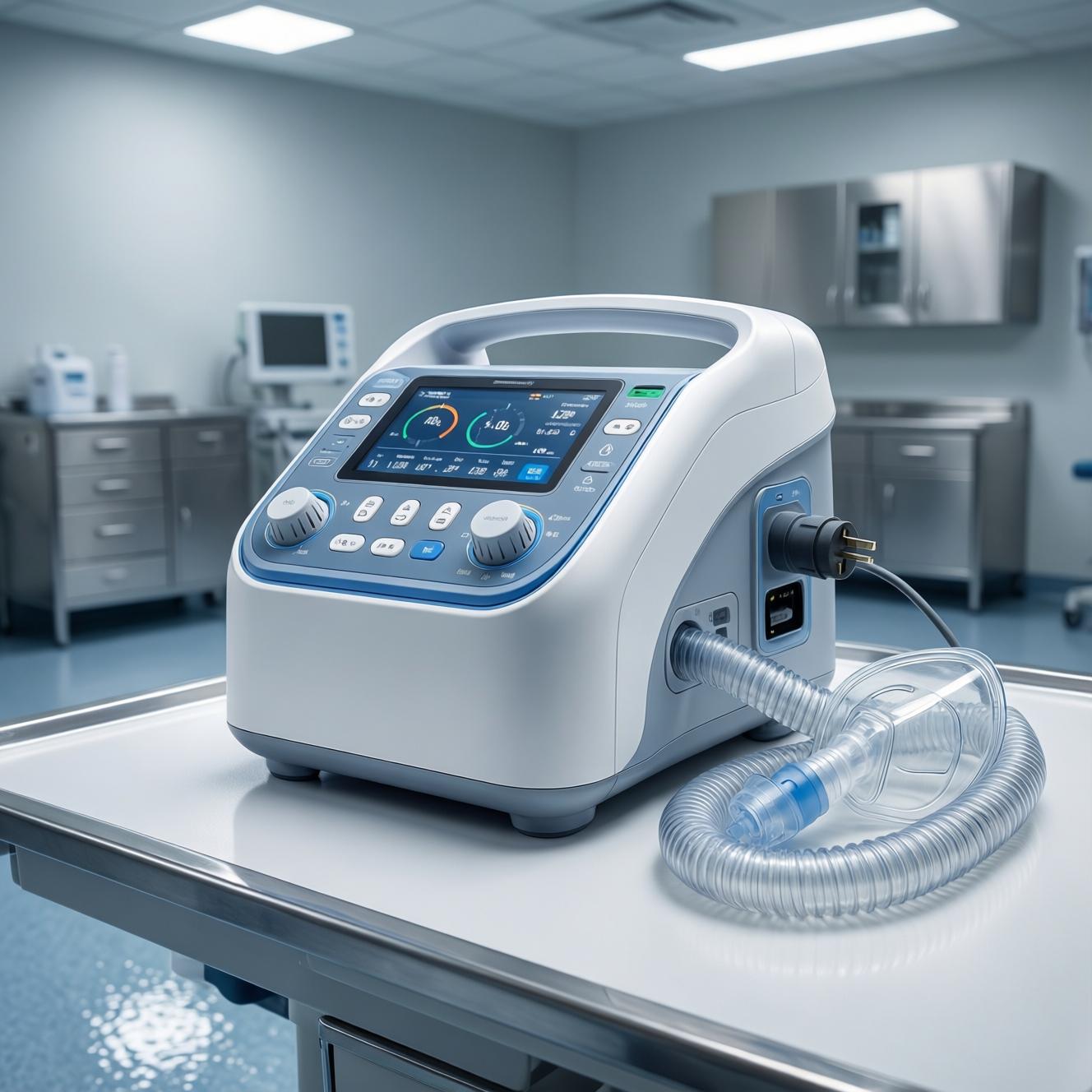

Portable Ventilators
Lightweight construction allows medical staff to easily transport life-support equipment during patient transfers.

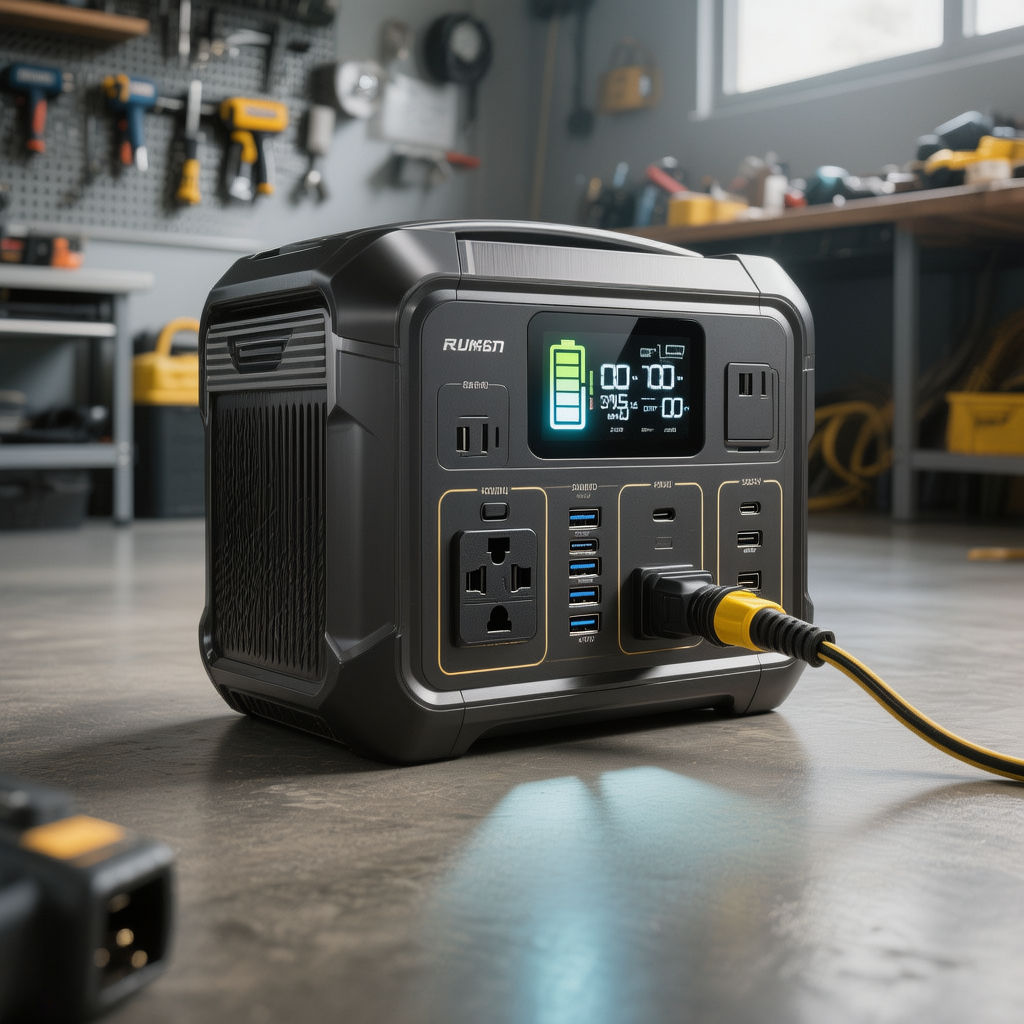

Backup Power Supply
Long cycle life minimizes replacement frequency for essential backup systems in remote infrastructure.

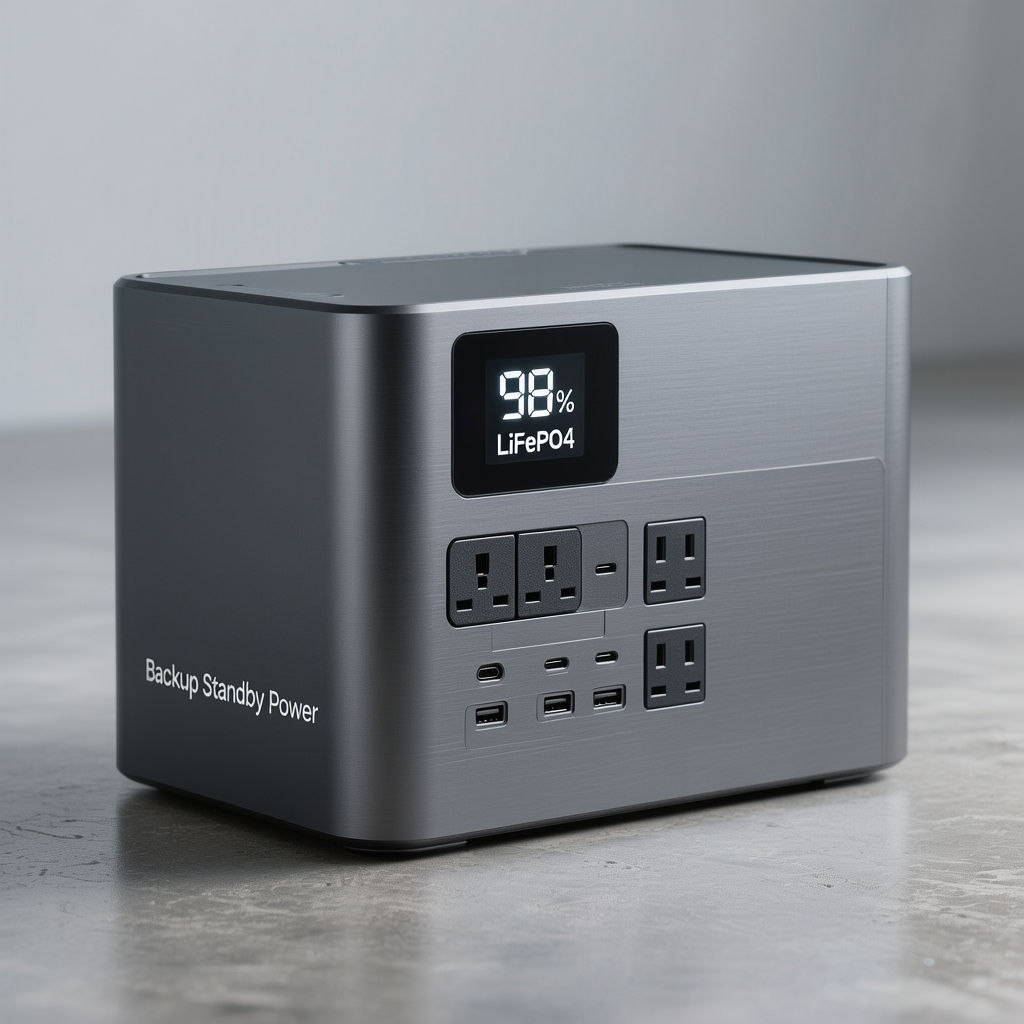

Backup Standby Power
12V nominal voltage directly interfaces with standard UPS units for seamless emergency power switching.
LiFePO4 12V 10Ah Battery Half the Weight. Twice the Power. 8x the Lifespan. Overview Built VTCBATT tough, this 12V lithium battery delivers powerful performance with advanced Lithium Iron Phosphate (LiFePO4) technology. Offering twice the power, half the weight, and 8 times the lifespan of traditional sealed lead-acid (SLA) batteries, it ensures exceptional long-term value. As a top choice for fishing electronics, outdoor equipment, this battery is a perfect match for 12-volt, 8 Amp-hour (Ah) Sealed Lead Acid (SLA) battery replacements and many others. Engineered with lithium iron phosphate technology and backed by an industry-leading warranty, it is ISO 9001:2015 certified
Overview
Built VTCBATT tough, this 12V lithium battery delivers powerful performance with advanced Lithium Iron Phosphate (LiFePO4) technology. Offering twice the power, half the weight, and 8 times the lifespan of traditional sealed lead-acid (SLA) batteries, it ensures exceptional long-term value.
As a top choice for fishing electronics, outdoor equipment, this battery is a perfect match for 12-volt, 8 Amp-hour (Ah) Sealed Lead Acid (SLA) battery replacements and many others. Engineered with lithium iron phosphate technology and backed by an industry-leading warranty, it is ISO 9001:2015 certified for quality and reliability.
Key Features and Benefits
Advanced LiFePO4 Chemistry
Utilizes high-specific energy cells, offering a superior power-to-weight ratio compared to traditional lithium-ion and lead-acid battery types.
Intelligent BMS Protection
The built-in Battery Management System ensures peak performance and extends lifespan by protecting against over-charge, over-discharge, short-circuits, and thermal overload.
Long Cycle Life
Delivers over 2,000 reliable charge and discharge cycles while retaining 80% capacity, far outperforming typical SLA batteries which offer around 500 cycles.
True 100% Depth of Discharge
Access the full capacity on every use without degrading battery health, giving you significantly more usable energy than lead-acid equivalents.
Lightweight Design
Weighing only 2.77 lbs (1.25 kg), it is 60% lighter than comparable SLA batteries for easy portability and installation.
Ready to Use
Comes pre-assembled with a versatile PP45 Anderson Power Pole connector for secure, plug-and-play compatibility.
Technical Specifications
| Specification | Details |
|---|---|
| Size | 5.94″L x 2.55″W x 3.78″H (151mm x 65mm x 96mm) — Replaces UB1280 battery |
| Weight | 2.77 lbs (1.25 kg) — 60% lighter than an SLA battery |
| Capacity | 10 Ampere hours. Consistent power output across all 10 Ah with a flat voltage curve. |
| Lifecycle | Up to 2,000 cycles at 80% capacity in recommended conditions |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C). Avoid charging below 32°F (0°C). |
| Terminals | Standard F2 terminals (6.35mm or 0.25″ wide) |
| Discharge | 20A max continuous, 50A max 300 ms pulse. 9.0V max discharge, 11.0V recommended. |
| Charge | 10A max, 14.4V recommended, 15V max. Charge between 32°F to 113°F (0°C to 45°C). |
| Recommended Charger | 12V 3A LiFePO4 compatible charger (sold separately) |
| Certifications | UN38, UL1642, IEC62133, ISO 9001:2015 |
Ideal Applications
This versatile 12V lithium battery is the perfect upgrade for a wide range of projects and devices, including:
Industrial AGV and Forklift Batteries
High-Powered RC Toys and Drones
E-Bikes and Mobility Scooters
Marine and Portable Radio Devices
Safety and Emergency Lighting
Fish Finders and Boating Electronics
Ice Fishing Equipment
Solar Lighting Systems
Hiking and Camping Gear
Remote Power Solutions
Electric Vehicle Accessory Battery
BMS Safety and Protection
The battery includes active BMS protection with a ruggedized dual-purpose circuit designed for high performance and longer lifespan. Key protections include:
- Cell Balancing: Maintains consistent voltage across all cells for optimal performance
- Low Voltage Cutoff: Prevents damage from excessive discharge
- High Voltage Cutoff: Protects against overcharging
- Short Circuit Protection: Automatically cuts off current to prevent hazards
- Temperature Protection: Safeguards against overheating; includes internal even heat technology for charging in freezing conditions
Why Choose LiFePO4?
Lithium Iron Phosphate (LiFePO4) is the safest lithium battery chemistry available. VTCBATT Lithium engineers exclusively with lithium iron phosphate technology to ensure safety at every use and every charge. The flat discharge voltage curve provides steady power output as the battery discharges, meaning the power will not dramatically drop like similar-sized SLA batteries. You get all the usable capacity down to the last drop.
With 6x the usable power per cubic inch compared to traditional AGM batteries and both deep cycle and engine starting performance, LiFePO4 offers unrivaled energy density, reliability, and versatility for demanding applications.
