LiFePO4

Ultra long cycle life and lightweight Lifepo4 12V 12Ah battery for Agricultural Pesticide Spraying Equipment , Industrial Sensors , IoT Gateways

Parameter	Specification
Nominal Voltage	12.8V
Capacity	12Ah
Energy	153.6Wh
Discharge Cut-off Voltage	8V
Max Charge Current	12A
Max Discharge Current	24A(≤5s)
Cycle Life	>3000
Self-discharge Rate	2%
Dimensions	151 x 98 x 95/101mm
Weight	1.7Kg
Operating Temperature	-20℃ to 60℃
Storage Temperature	0 to 25ºC
Protection	Overcharge, Overdischarge, Overcurrent / Short-Circuit, Temperature, Cell Balancing

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

Ultra long cycle life and lightweight Lifepo4 12V 12Ah battery for Agricultural Pesticide Spraying Equipment , Industrial Sensors , IoT Gateways | Battery Manufacturers in China & Battery Supply Factory

VTCBATT LiFePO4 12V 12Ah battery delivers stable performance with customized voltage, capacity and BMS, designed for OEM, energy storage and backup power systems.

01

LiFePO4 Battery Advantage

Ultra-Long Lifecycle: Over 3,000 deep cycles, lasting 10 times longer than traditional lead-acid batteries.
Lightweight: Typically uses the standard SLA case size, but 1/3 weight of the traditional 12V 12Ah lead-acid battery.Drop-in replacement for alarm system and UPS units.
Cost Per Cycle: Lifepo4 battery is only 1/4 cost of traditional lead acid battery in long run term.
100% Usable Capacity： Supports 100% DOD, delivering 40% more usable energy than equivalent lead-acid packs
Smart BMS Protection： Integrated Smart BMS prevents overcharging and shorts, ensuring absolute safety for users.
Eco-Friendly & Compliant ： Non-toxic, sustainable, and fully certified with CE, UN38.3, and RoHS standards.

Technical insight

Product and application details

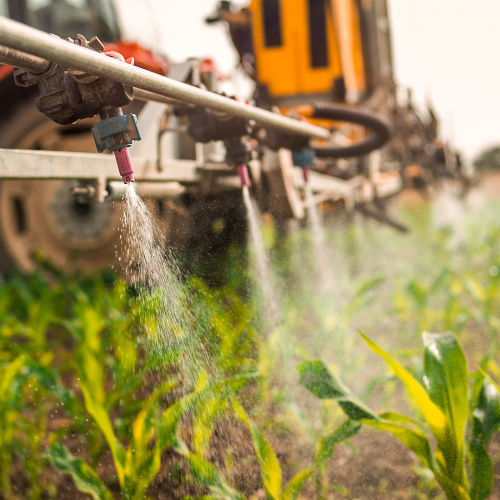

Agricultural Pesticide Spraying Equipment

Its lightweight design reduces operator fatigue during long spraying sessions while maintaining consistent 12V output for pump motors.

Industrial Sensors

The ultra-long cycle life ensures years of uninterrupted data transmission from remote sensors without frequent battery replacements.

Marine & Boating

LiFePO4 chemistry provides safe, vibration-resistant power for navigation electronics, resisting corrosion in humid marine environments effectively.

Solar System

High cycle life allows this 12Ah unit to store solar energy efficiently, supporting daily charge-discharge routines for years.

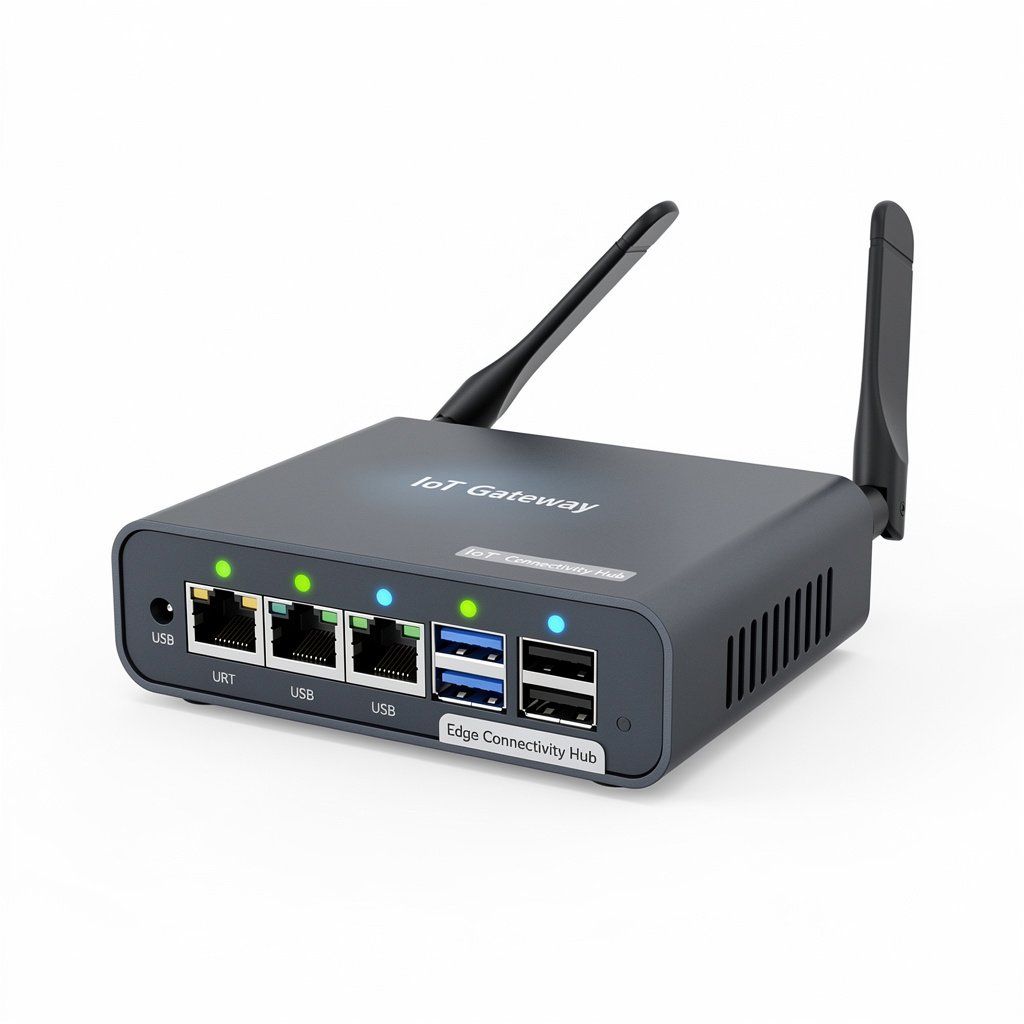

Portable IoT Gateway

Lightweight construction makes it ideal for portable gateways, while stable voltage supports continuous wireless data routing tasks.

Motorcycles

Compact 12V form factor replaces heavy lead-acid starters, offering lighter weight and faster recovery for ignition systems.

Security

Long cycle life ensures reliable backup power for alarm systems, maintaining security coverage during extended grid outages.

Emergency Power Backup & UPS

Rapid discharge capability delivers immediate 12V power to critical systems, bridging gaps until main generators activate fully.

Factory capability

VTCBATT Production and Service

VTCBATT not only focuses on customized design and excellent service to meet the diverse demands of different customers, but also devotes itself to precise and standardized manufacturing in every process to ensure the highest-quality batteries. Meanwhile, VTCBATT provides comprehensive support from pre-sales to after-sales, focusing on customer feedback to establish long-term and win-win cooperation. VTCBATT professional sales and technical engineer teams will be your custom battery experts for reliable and responsive project support.

▶

Modern Manufacturing

From raw materials mixing to cell testing, VTCBATT adopts automated manufacturing processes to improve production efficiency and battery quality, safety, and reliability. The manufacturing process is monitored and tested before material moves to the next procedure.

▶

Trusted by Global Customers

Over the past 20 years, VTCBATT has built partnerships with customers in more than 50 countries. Reliable quality, responsive service, and tailored battery solutions support long-term cooperation with equipment manufacturers, distributors, and brands.
