Home/Products/lithium ion polymer battery 3.7v 9000mah 9862113
lithium ion polymer battery 3.7v 9000mah 9862113 for Portable power stations, outdoor surveillance cameras, industrial handheld terminals

LiPo

lithium ion polymer battery 3.7v 9000mah 9862113 for Portable power stations, outdoor surveillance cameras, industrial handheld terminals

ParameterSpecification
ModelVTC-LP9862113
Voltage3.7V
Capacity9000mAh
Max Size (Thickness x Width x Length)10.0mmX62.5mmX115mm
Operating Temperature-20℃ to 60℃
Standard Charge Rate0.5C
Standard Discharge Rate1C
Configuration1S1P
Weight167.5g
Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542
Request a quotationDatasheet unavailable

Product overview

lithium ion polymer battery 3.7 v 9000mah for RC Models, Drones, and Smart Devices | Battery Manufacturers in China & Battery Supply Factory

Featuring high-energy density and compact size, 9862113 3.7V 9000mah lithium ion polymer battery is high-capacity, small-size and lightweight to supply long-lasting power to satisfy the runtime of different applications. The 9000mAh lithium polymer battery can support a 3C continuous discharge current as a strong power supply for Robotics, Portable Equipment, GPS trackers, Medical Devices, IOT Devices, drones, and UAVs.

01

Long Cycle Life

Based on 0.5C/1C cycling, the VTCBATT lithium ion polymer battery 3.7 v 9000mah can maintain over 80% capacity after 500 cycles and totally reach 1000 times cycle life.

Long Cycle Life
02

Temperature Performance

VTCBATT lithium ion polymer battery 3.7 v 9000mah can be discharged from -20℃ to 60℃.
This wide temperature range performance enables the battery to operate in many conditions.

Temperature Performance
03

Strict Cell Match

Strict cell match standards in 10mV voltage tolerance, 5mAh capacity tolerance, and 1mΩ to ensure excellent performance of the total lithium ion polymer battery 3.7 v 9000mah pack.Furthermore,the PCB with cell balance function can long-lasting power supply without any failure.

Strict Cell Match
04

PCB with NTC

VTCBATT lithium ion polymer batteries 3.7 v 9000mah are provided with NTC(Negative Temperature Coefficient), a kind of temperature sense to decrease the resistance as the temperature increases, allowing accurate temperature monitoring of the batteries. The NTC plays a critical role in improving the battery reliability and safety.

PCB with NTC

Technical insight

Product and application details

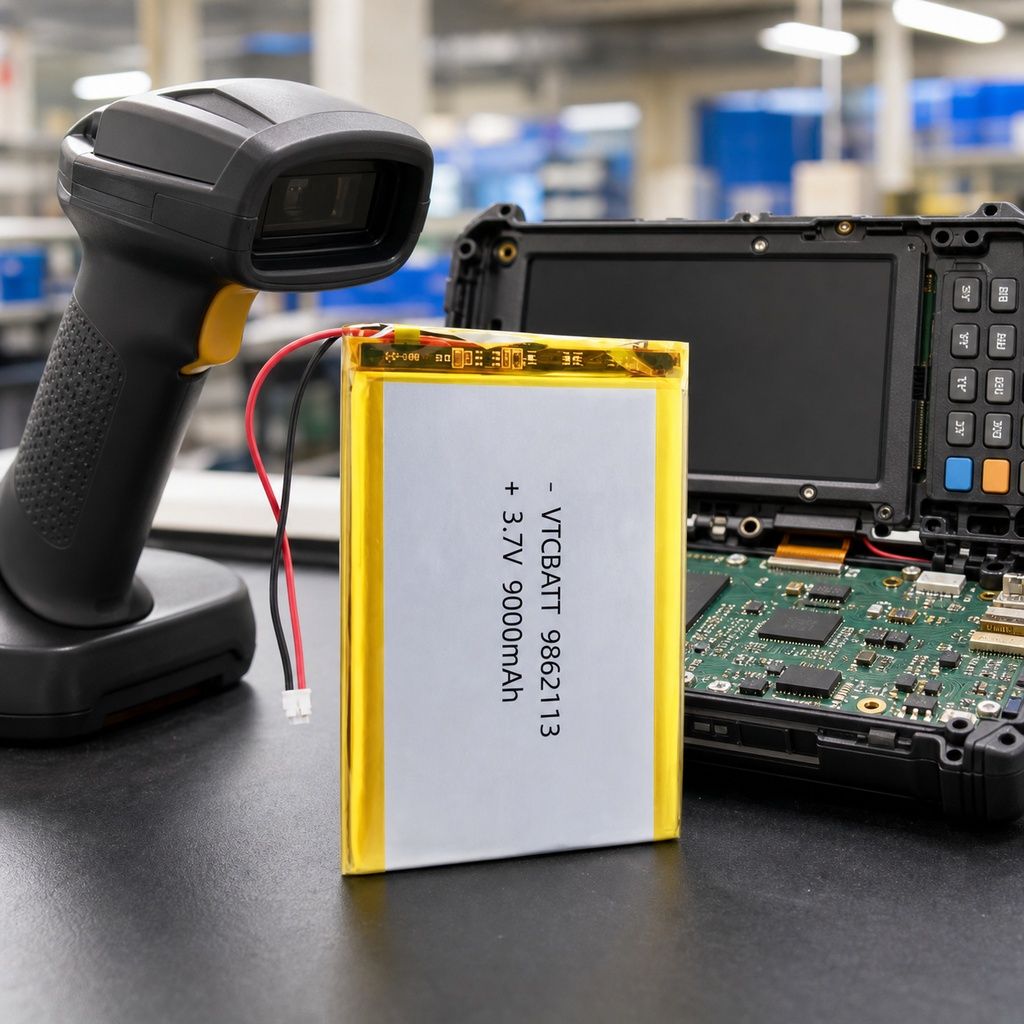

Industrial Handheld Terminals

Industrial Handheld Terminals

The 167.5g weight minimizes operator fatigue during long shifts while the 1C discharge rate supports continuous scanner usage.

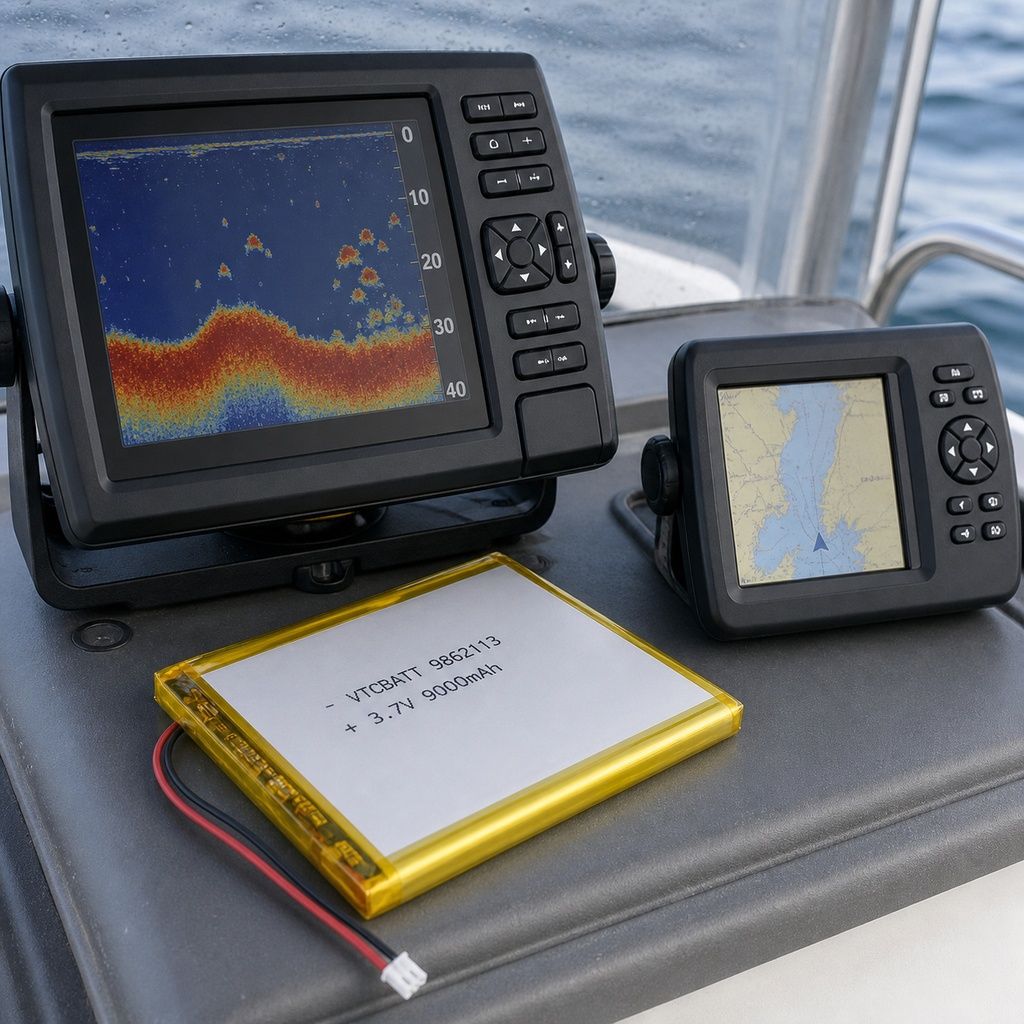

Marine Electronics

Marine Electronics

Operating down to -20°C ensures reliable startup in cold coastal environments where standard batteries often fail prematurely.

Outdoor Surveillance Cameras

Outdoor Surveillance Cameras

The compact 10mm thickness fits discreetly into weatherproof housings while the 9000mAh capacity sustains night-vision modes for weeks.

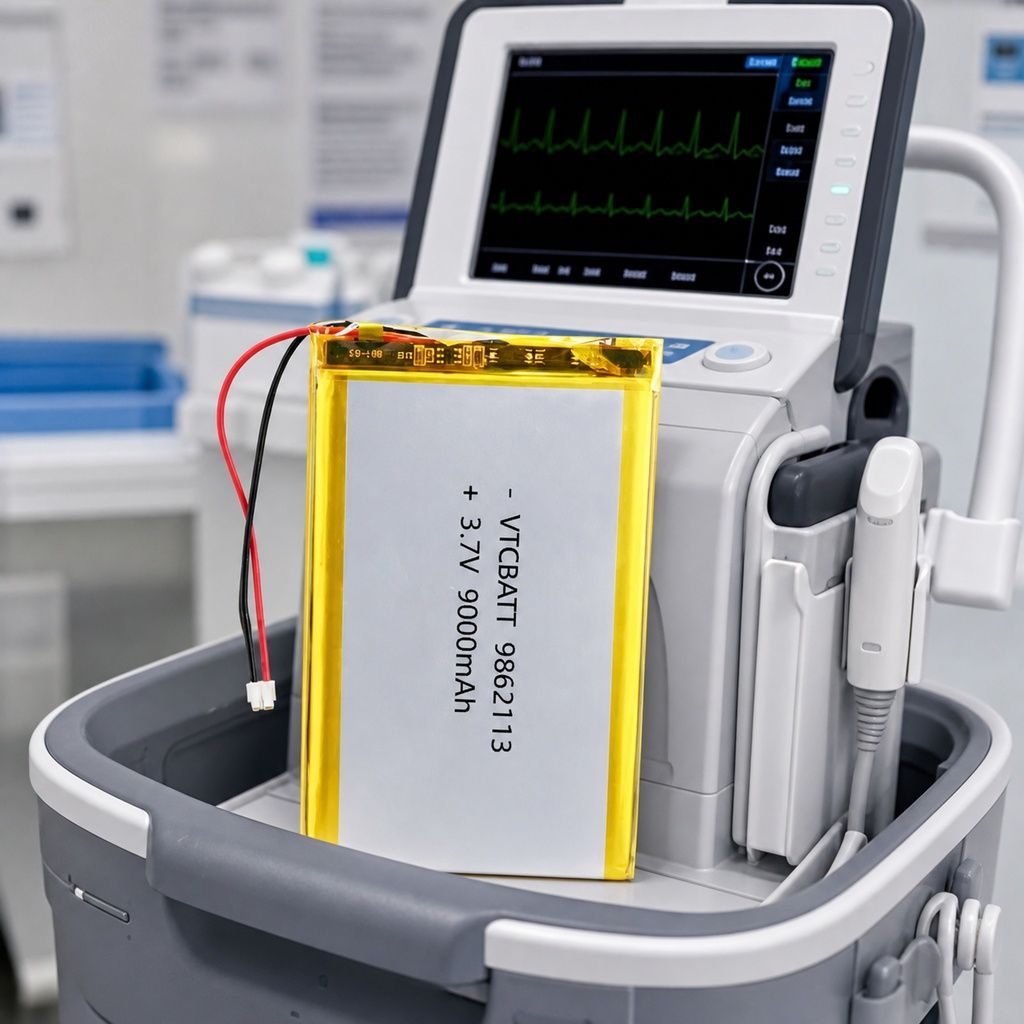

Portable Medical Carts

Portable Medical Carts

The 3.7V single-cell configuration simplifies charging circuitry for mobile diagnostic devices that require stable voltage under load.

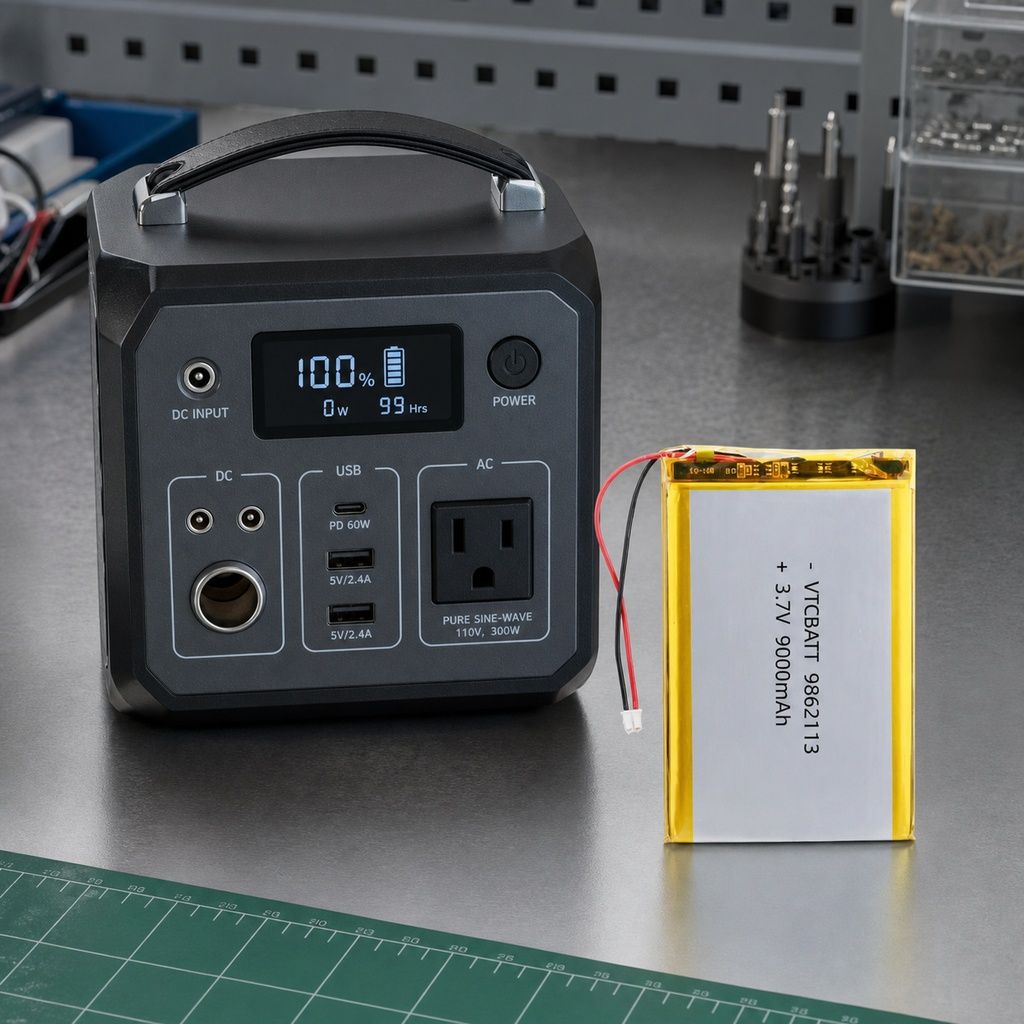

Portable Power Stations

Portable Power Stations

With 33.3Wh of stored energy, this high-density cell efficiently powers small appliances during brief outdoor power outages.

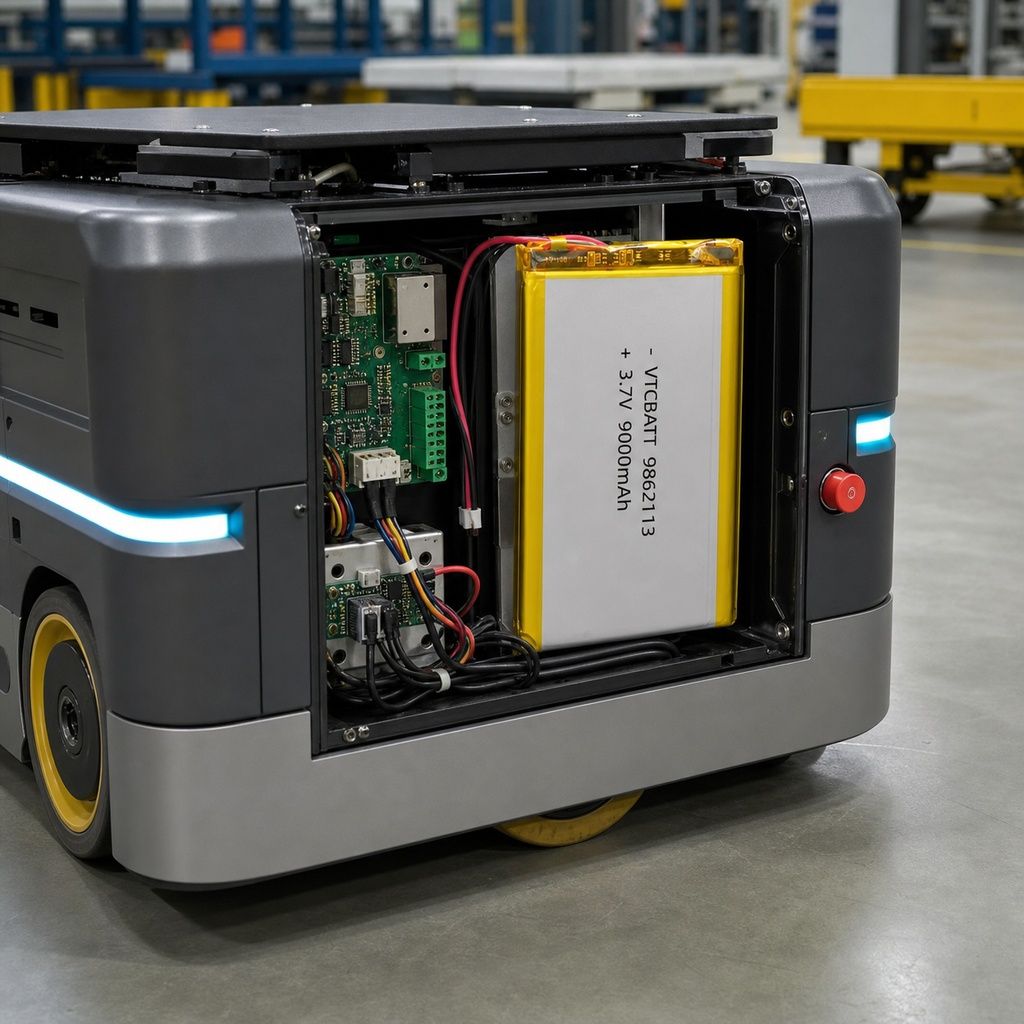

Service Robots

Service Robots

The 115mm length allows integration into slender robot arms, providing sufficient torque for navigation without adding excessive bulk.

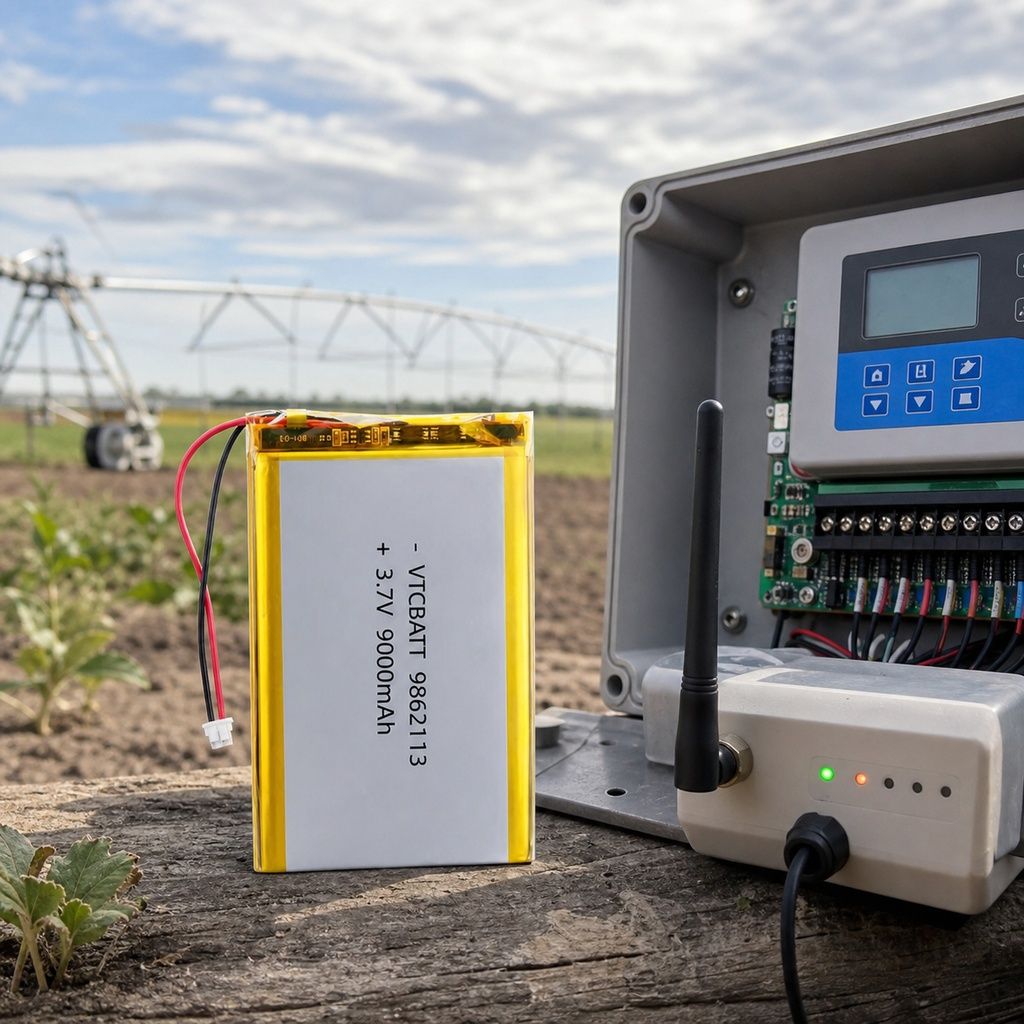

Smart Agriculture Gateways

Smart Agriculture Gateways

Wide temperature tolerance from -20°C to 60°C guarantees uninterrupted data transmission in extreme outdoor farming conditions.

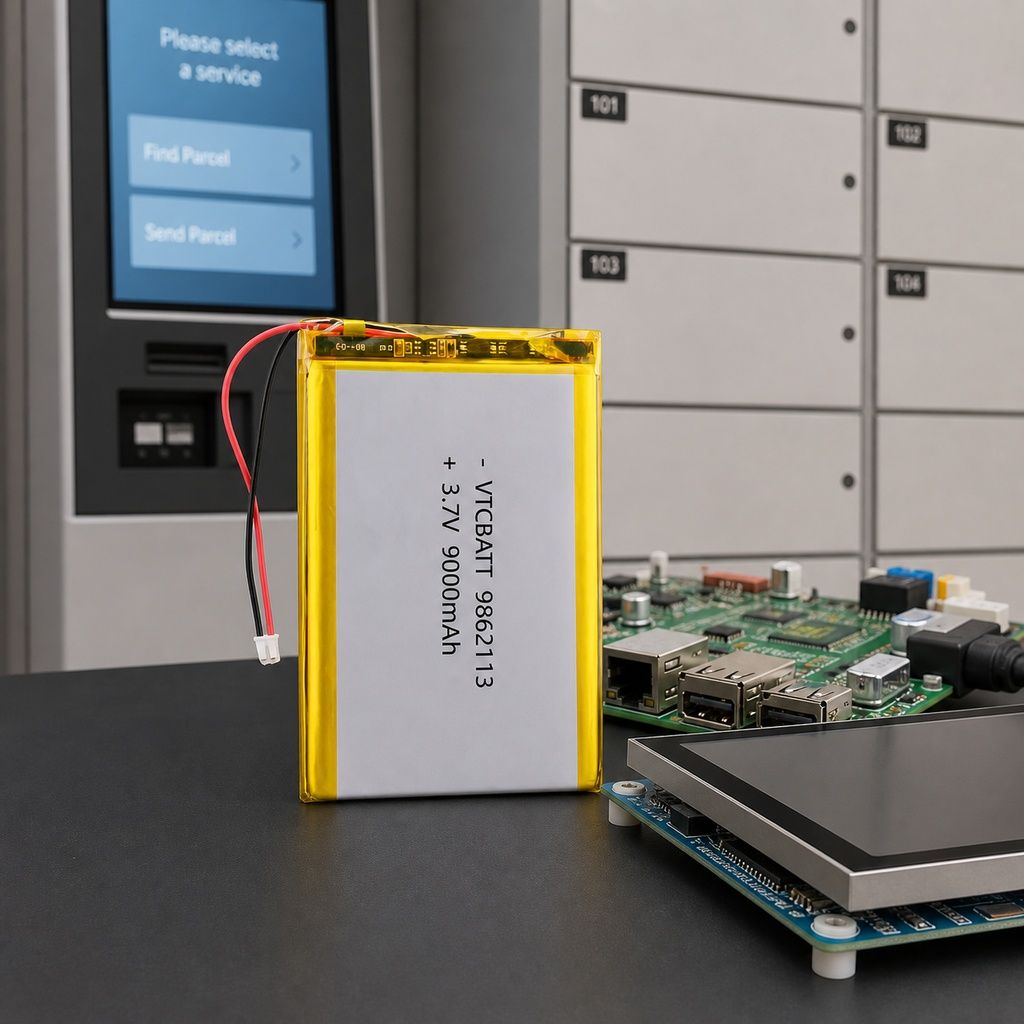

Smart Lockers and POS Terminals

Smart Lockers and POS Terminals

The 0.5C standard charge rate protects cell longevity for devices that recharge nightly in high-traffic commercial locations.

Featuring high-energy density and compact size, 9862113 3.7V 9000mah lithium ion polymer battery is high-capacity, small-size and lightweight to supply long-lasting power to satisfy the runtime of different applications. The 9000mAh lithium polymer battery can support a 3C continuous discharge current as a strong power supply for Robotics, Portable Equipment, GPS trackers, Medical Devices, IOT Devices, drones, and UAVs.

Featuring high-energy density and compact size, 9862113 3.7V 9000mah lithium ion polymer battery is high-capacity, small-size and lightweight to supply long-lasting power to satisfy the runtime of different applications. The 9000mAh lithium polymer battery can support a 3C continuous discharge current as a strong power supply for Robotics, Portable Equipment, GPS trackers, Medical Devices, IOT Devices, drones, and UAVs.
