Technical insight
Product and application details
Camera Video Light
The compact 10.2mm thickness allows integration into slim lighting rigs without adding significant bulk to the handheld setup.
Hexapod Robot
A discharge rate of 1C supports the dynamic torque demands of the hexapod's articulated legs during complex locomotion tasks.
5G Mobile Hotspot
The 2100mAh capacity ensures sustained operation for high-bandwidth 5G data transfers while maintaining a lightweight form factor.
Camera Video Light
The compact 10.2mm thickness allows integration into slim lighting rigs without adding significant bulk to the handheld setup.
Portable Ultrasound Scanner
Operating reliably from -20℃ to 60℃ guarantees consistent performance during medical examinations in varying environmental conditions.
Retro Handheld Console
Weighing only 44.5g, this battery minimizes overall device weight, enhancing comfort during extended retro gaming sessions.
Smart Video Doorbell
The 3.7V voltage aligns perfectly with standard doorbell circuits, ensuring stable power delivery for continuous video streaming.
Thermal Imaging Camera
The 52mm length provides ample internal space for the 2100mAh cell while fitting securely within the ergonomic camera housing.
Thermal Stress Test Report Project voltage/V internal resistance/mΩ Appearance of the battery after testing Sample number Before the test After testing rate of change（%） Before the test After testing rate of change（%） 4 4.191 4.167 0.00572655690765927 61.2 59.2 -0.0326797385620915 No explosions, no fires 5 4.18 4.154 0.00622009569377986 54.2 49.3 -0.0904059040590407 No explosions, no fires 6 4.179 4.153 0.00622158411103151 53.2 49.1 -0.0770676691729324 No explosions, no fires Before the test After testing High-Temperature External Short-Circuit Test Report Project voltage/V internal resistance/mΩ Peak temperature /℃ Appearance of the battery after testing Sample number Before the test After testing rate of change% Before the
| Project | voltage/V | internal resistance/mΩ | Appearance of the battery after testing | ||||
| Sample number | Before the test | After testing | rate of change（%） | Before the test | After testing | rate of change（%） | |
| 4 | 4.191 | 4.167 | 0.00572655690765927 | 61.2 | 59.2 | -0.0326797385620915 | No explosions, no fires |
| 5 | 4.18 | 4.154 | 0.00622009569377986 | 54.2 | 49.3 | -0.0904059040590407 | No explosions, no fires |
| 6 | 4.179 | 4.153 | 0.00622158411103151 | 53.2 | 49.1 | -0.0770676691729324 | No explosions, no fires |

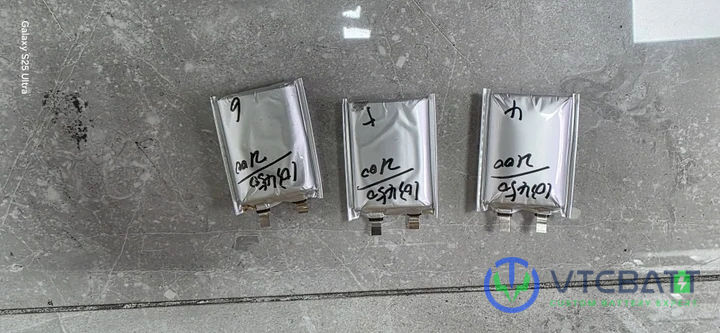

| Before the test | After testing |
 |
 |

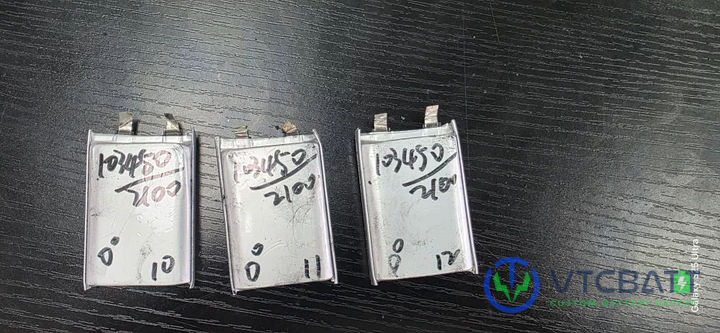

| Project | voltage/V | internal resistance/mΩ | Peak temperature /℃ |
Appearance of the battery after testing | ||||
| Sample number | Before the test | After testing | rate of change% | Before the test | After testing | rate of change（%） | ||
| 10 | 4.148 | 3.526 | 0.149951783992285 | 48.2 | / | 101 | No explosions, no fires | |
| 11 | 4.165 | 3.325 | 0.201680672268908 | 49.1 | / | 98 | No explosions, no fires | |
| 12 | 4.159 | 3.699 | 0.110603510459245 | 47.8 | / | 95 | No explosions, no fires |

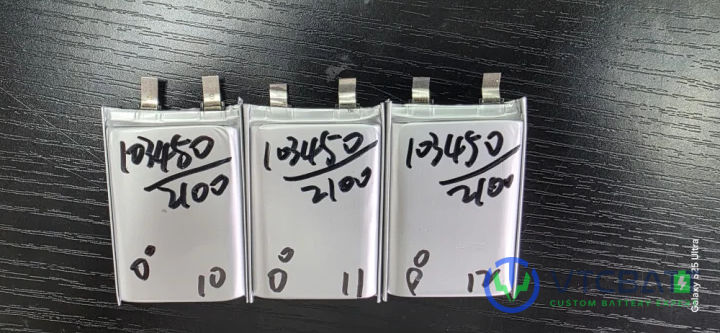

| Before the test | After testing |
 |
 |
