VTC-LP523436-2S1P 7.4V 700mAh Li-ion Polymer Battery Pack for handheld terminals, IoT sensors, access control devices

Parameter	Specification
Model	VTC-LP523436-2S1P
Battery Type	Li-ion Polymer Rechargeable Battery Pack
Configuration	2S1P
Nominal Voltage	7.4V
Nominal Capacity	700mAh at 0.2C discharge
Weight	Approx. 27g
Pack Impedance	≤220mΩ at 7.4V AC 1KHz
Standard Charging Time	6-7 hours
Rapid Charging Time	1.5 hours
Standard Discharging Current	140mA (0.2C)
Cycle Life	Not less than 600 cycles
Self-discharge	Capacity not less than 85% of initial capacity after 28 days at 20±5°C
Pack Dimensions	11.0mm max. T x 35.0mm max. W x 39.0mm max. H

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotationDatasheet unavailable

Product overview

VTC-LP523436-2S1P 7.4V 700mAh Li-ion Polymer Battery Pack for handheld terminals, IoT sensors, access control devices | Battery Manufacturers in China & Battery Supply Factory

The VTC-LP523436-2S1P is a Li-ion polymer battery pack designed for compact 7.4V rechargeable power requirements. The pack uses a 2S1P configuration with 700mAh nominal capacity, 730mAh rated capacity, 8.4V limited charge voltage, 6.0V discharge cut-off voltage, 140mA standard charge and discharge current, and up to 1400mA maximum discharging current according to the datasheet. Its pack dimensions are 11.0mm max. thickness, 35.0mm max. width, and 39.0mm max. height, with 50+/-3mm UL3302 26AWG wires and a JST/PHR-4P connector. The battery pack includes a protection circuit using S-8252AAH-M6T1U protection IC, 8205A MOSFET, NTC sensing, over-current protection, and short-circuit protection.

VTCBATT provides factory supply, OEM/ODM development, connector and wire customization, sample support, labeling options, and wholesale batch production for equipment manufacturers and battery distributors.

01

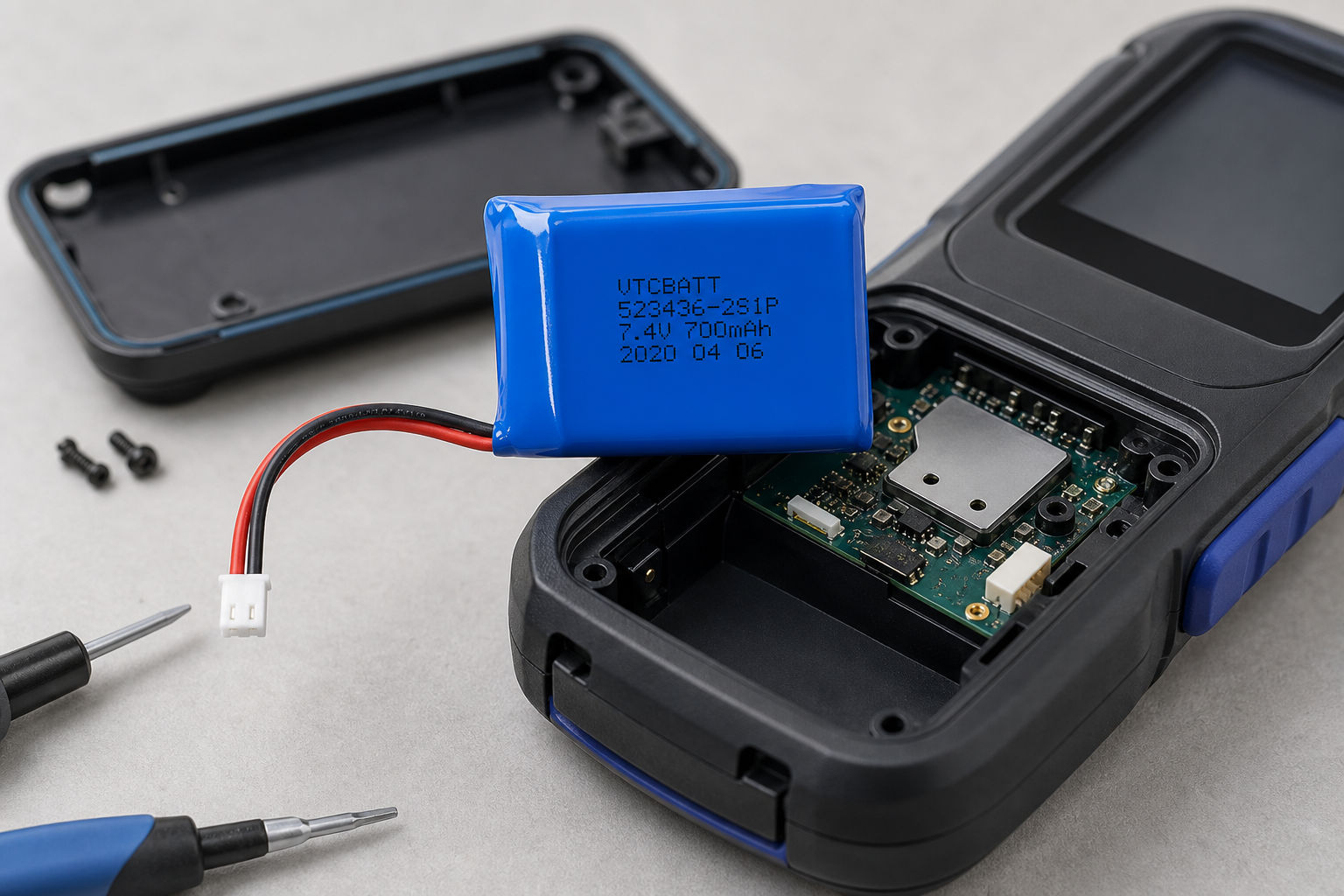

OEM Assembly Ready

The 50±3mm UL3302 26AWG leads and JST/PHR-4P connector support direct integration into compact rechargeable devices without extra harness redesign. For OEM projects, VTCBATT can match connector type, wire length, polarity layout, label content, and sample requirements so the battery pack fits the target enclosure and assembly process more efficiently.

02

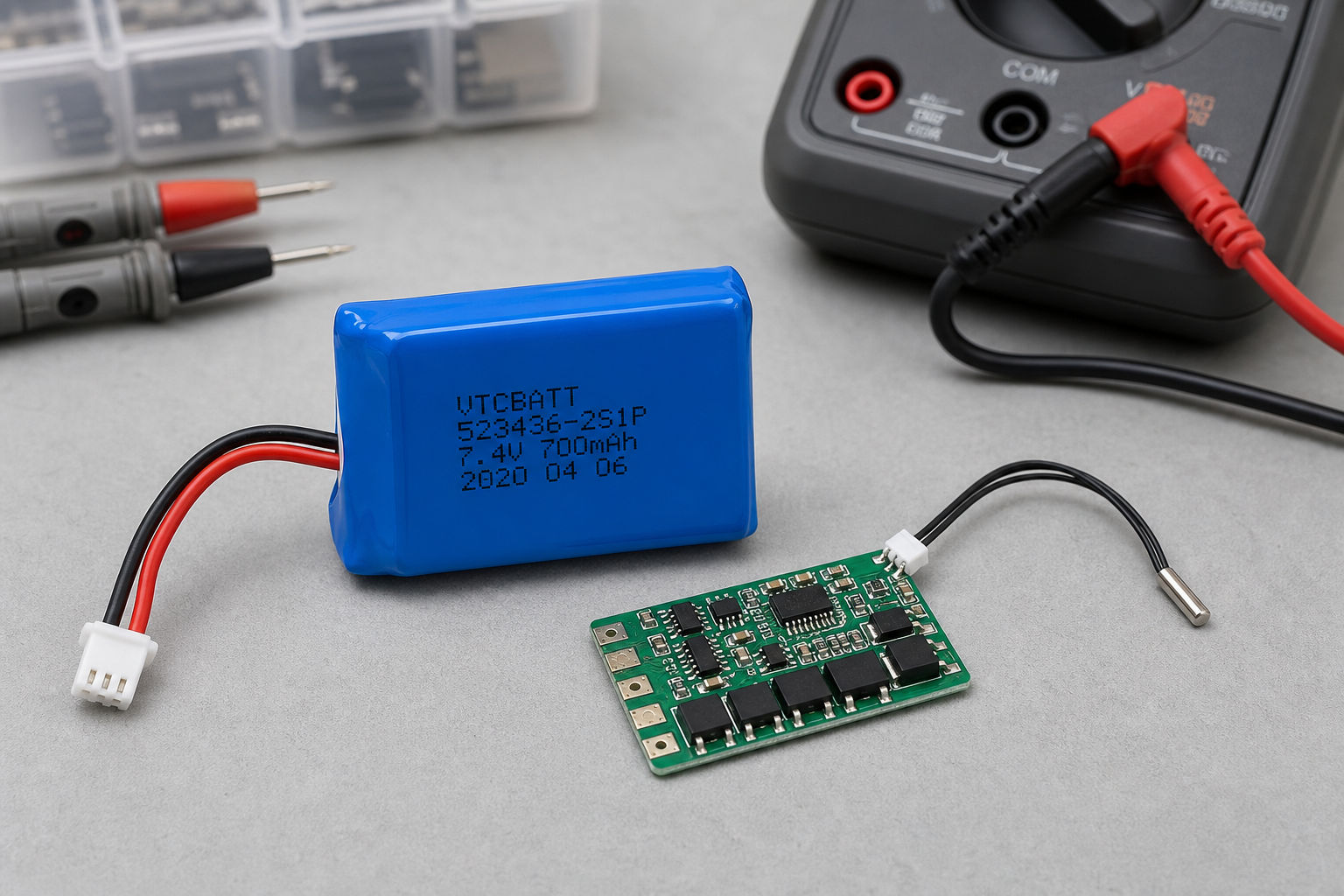

Protected Pack Design

The pack uses S-8252AAH protection IC, 8205A MOSFET, NTC, over-current protection, and short-circuit protection for controlled 2S operation. This protection design helps device manufacturers manage charging, discharging, temperature sensing, and fault response within the limits defined by the datasheet while keeping the pack ready for custom PCM layout and connector integration.

03

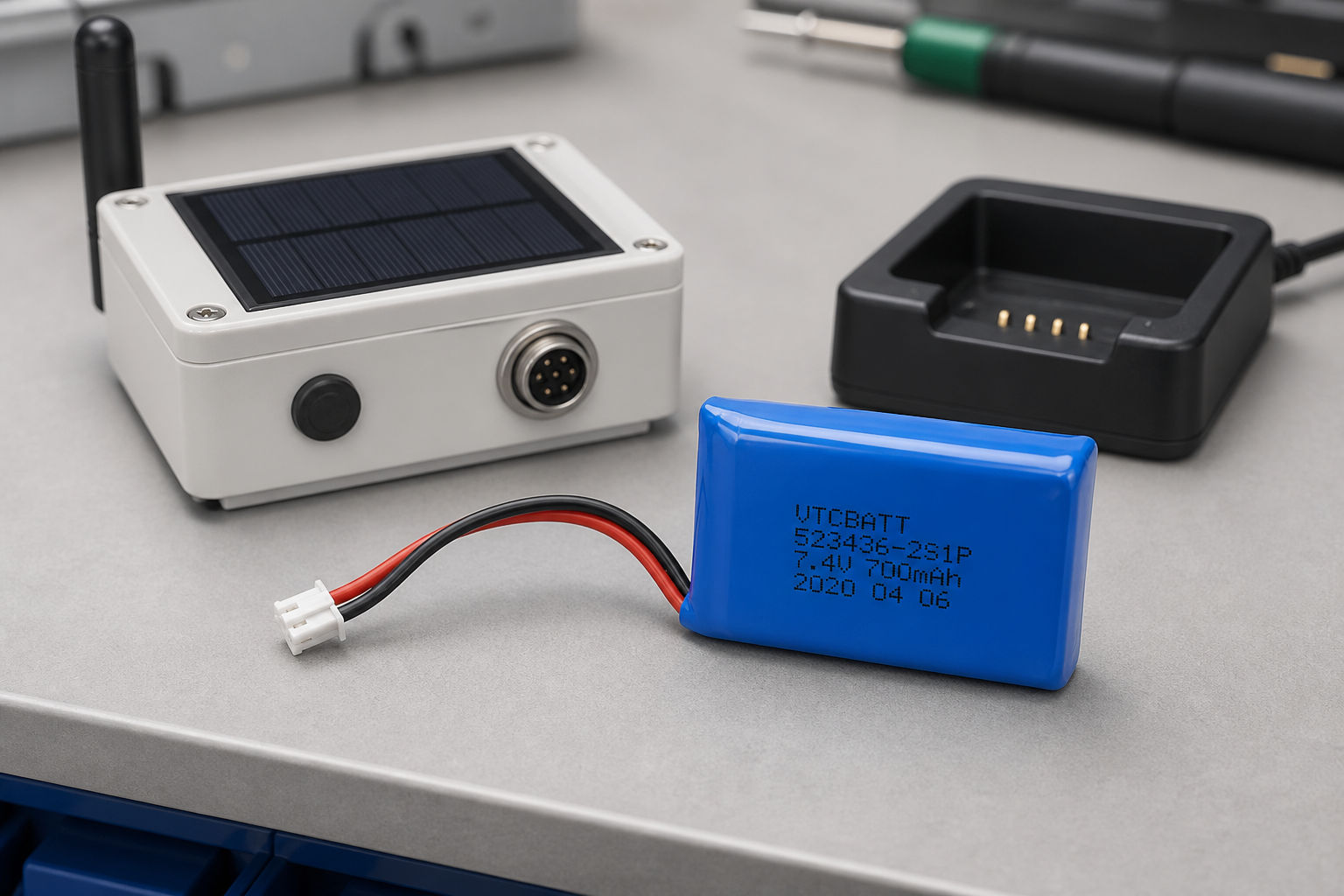

Rechargeable Field Power

Rated for at least 600 cycles under the specified 0.2C test method, this 7.4V pack supports repeat-use portable and field equipment that needs stable rechargeable power. With 700mAh nominal capacity, 8.4V limited charge voltage, 6.0V cut-off voltage, and standard 140mA charge/discharge current, it is a practical option for compact devices where predictable battery behavior and factory batch supply matter.

Technical insight

Product and application details

bluetooth sensor modules

Its compact 11.0mm thickness allows seamless integration into slim wearable electronics without adding bulk.

Electronic tags

The low self-discharge rate ensures data remains intact for weeks, ideal for passive tracking tags.

Miniature IoT data loggers

A 700mAh capacity supports continuous logging cycles while maintaining a lightweight profile for portable deployment.

OEM prototype electronics

Fast 1.5-hour rapid charging accelerates testing cycles, enabling developers to iterate hardware designs quickly.

Rechargeable LED indicator products

The 7.4V nominal voltage directly drives high-intensity LEDs without requiring complex step-up circuitry.

Remote control units

Low impedance under 220mΩ ensures stable power delivery during sudden signal transmission bursts.

Smart pen devices

Weighing only 27g, this pack keeps the writing instrument balanced and comfortable for extended use.

Wearable electronics

With over 600 charge cycles, the battery withstands frequent daily charging routines typical of wearables.

The VTC-LP523436-2S1P is a Li-ion polymer battery pack designed for compact 7.4V rechargeable power requirements. The pack uses a 2S1P configuration with 700mAh nominal capacity, 730mAh rated capacity, 8.4V limited charge voltage, 6.0V discharge cut-off voltage, 140mA standard charge and discharge current, and up to 1400mA maximum discharging current according to the datasheet. Its pack dimensions are 11.0mm max. thickness, 35.0mm max. width, and 39.0mm max. height, with 50+/-3mm UL3302 26AWG wires and a JST/PHR-4P connector. The battery pack includes a protection circuit using S-8252AAH-M6T1U protection IC, 8205A MOSFET, NTC sensing, over-current protection, and short-circuit protection. VTCBATT provides factory supply,

The VTC-LP523436-2S1P is a Li-ion polymer battery pack designed for compact 7.4V rechargeable power requirements. The pack uses a 2S1P configuration with 700mAh nominal capacity, 730mAh rated capacity, 8.4V limited charge voltage, 6.0V discharge cut-off voltage, 140mA standard charge and discharge current, and up to 1400mA maximum discharging current according to the datasheet. Its pack dimensions are 11.0mm max. thickness, 35.0mm max. width, and 39.0mm max. height, with 50+/-3mm UL3302 26AWG wires and a JST/PHR-4P connector. The battery pack includes a protection circuit using S-8252AAH-M6T1U protection IC, 8205A MOSFET, NTC sensing, over-current protection, and short-circuit protection.

VTCBATT provides factory supply, OEM/ODM development, connector and wire customization, sample support, labeling options, and wholesale batch production for equipment manufacturers and battery distributors.
