VTC-LP703048 3.7V 1000mAh Li-ion Polymer Battery Pack for GPS Trackers, IoT Sensors, Handheld Devices

Parameter	Specification
Model	VTC-LP703048
Battery Type	Li-ion Polymer Rechargeable Battery Pack
Nominal Voltage	3.7V
Nominal Capacity	1000mAh
Discharge Cut-off Voltage	3.0V
Standard Charging Current	200mA
Rapid Charging Current	1000mA
Cell Dimensions	7.0 x 30.0 x 48.0mm
Protection IC	S8261DAZ-M6T1U or S-8261ABRMD-G3RT2x
MOSFET	DP8205
NTC	10KΩ ±1%, B3435
Cycle Life	≥600 cycles to 80% of rated capacity
Discharging Temperature	-20~60°C

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotationDatasheet unavailable

Product overview

3.7V 540mAh High-Temperature LiPo Battery Pack for IoT Sensors & Smart Meters | Battery Manufacturers in China & Battery Supply Factory

VTC-LP703048 is a 3.7V 1000mAh Li-ion polymer rechargeable battery pack developed by VTCBATT for compact electronic products that need stable capacity, protected pack structure, and easy harness integration. The pack delivers 1050mAh rated capacity, 970mAh minimum capacity, 4.2V limited charge voltage, 3.0V discharge cut-off voltage, 200mA standard charge and discharge current, 1000mA rapid charge and rapid discharge current, and 2000mA peak discharge for short pulse loads. Its pack size is up to 30.5 x 50.0 x 7.2mm with 50+/-5mm wires, an S8261 series protection IC, DP8205 MOSFET, 10K NTC, and JST PHR-3P connector, making it suitable for OEM battery integration where safety monitoring and connector matching matter. VTCBATT supports sample builds, wire and connector adjustment, label customization, and batch production for customers that need a protected lithium polymer battery for portable and embedded equipment.

01

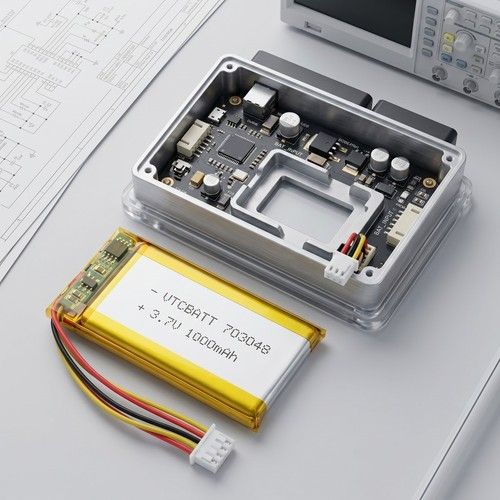

Protected Pack for Embedded Devices

This 3.7V 1000mAh pack combines a lithium polymer cell with an S8261 series protection IC, DP8205 MOSFET, and 10K NTC to support safer integration into compact electronics. It is suited to OEM products that need pack-level monitoring, stable wiring, and a ready-to-install rechargeable power source.

02

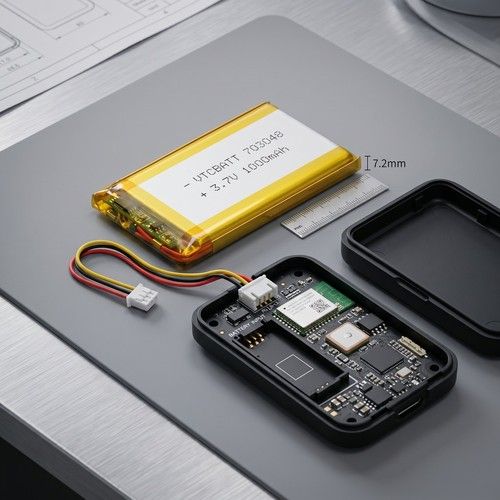

Slim Format for Compact Housing

With pack dimensions up to 30.5 x 50.0 x 7.2mm, the VTC-LP703048 is built for products that have limited internal space but still need 1000mAh class capacity. The flat pouch structure helps designers fit rechargeable power into handheld, wearable, and small enclosure layouts without moving to a bulky cylindrical cell.

03

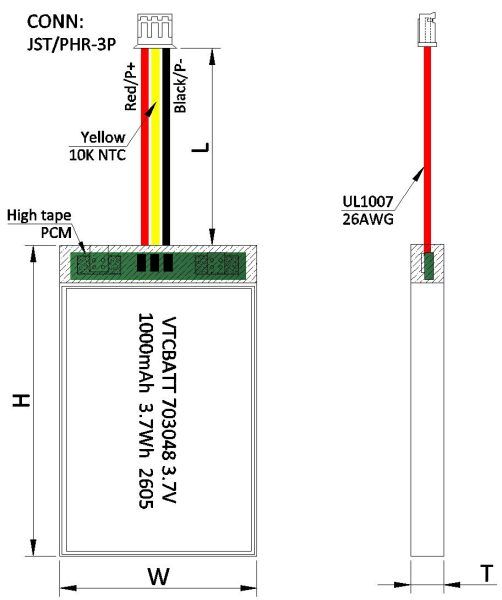

OEM Wiring and Connector Flexibility

The standard pack includes 50+/-5mm wires and a JST PHR-3P connector, giving OEM buyers a clear baseline for harnessed assembly and customization. VTCBATT can adapt wire length, connector matching, labeling, and pack finishing for different product housings and production programs while keeping the same 3.7V 1000mAh platform.

04

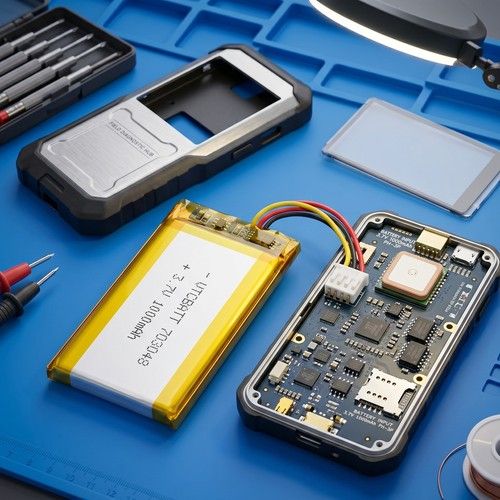

Stable Power for Portable Electronics

The pack provides 200mA standard discharge, 1000mA rapid discharge, and 2000mA peak discharge for short pulse demands, supporting portable electronics that need balanced runtime and moderate load capability. It is a practical fit for GPS trackers, wireless modules, handheld tools, and compact control devices powered by 3.7V architecture.

Technical insight

Product and application details

compact health electronics

Its ultra-thin 7mm profile enables seamless integration into slim wearable health monitors without adding bulk.

GPS asset trackers

The 1000mAh capacity ensures reliable operation for GPS trackers requiring extended standby times between charges.

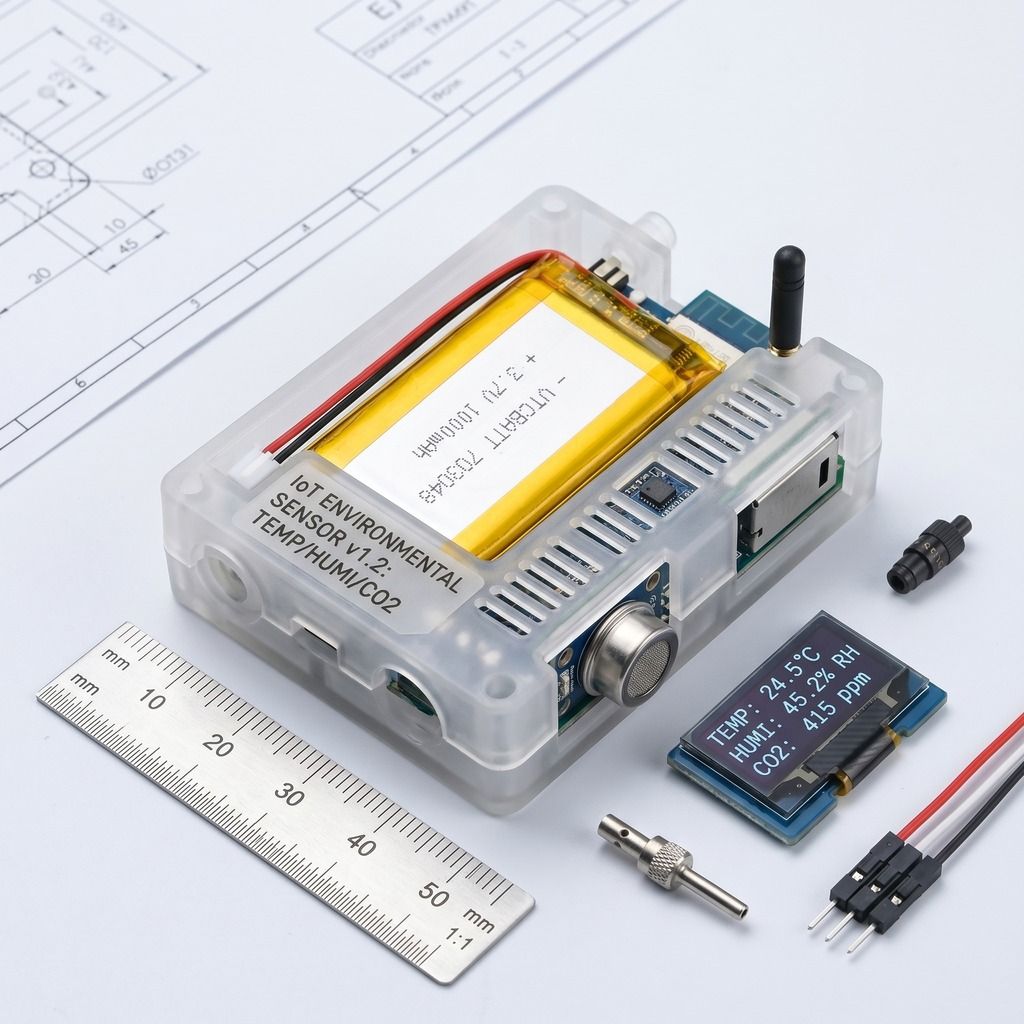

IoT environmental sensors

Operating reliably down to -20°C, this battery supports consistent data logging in harsh outdoor environments.

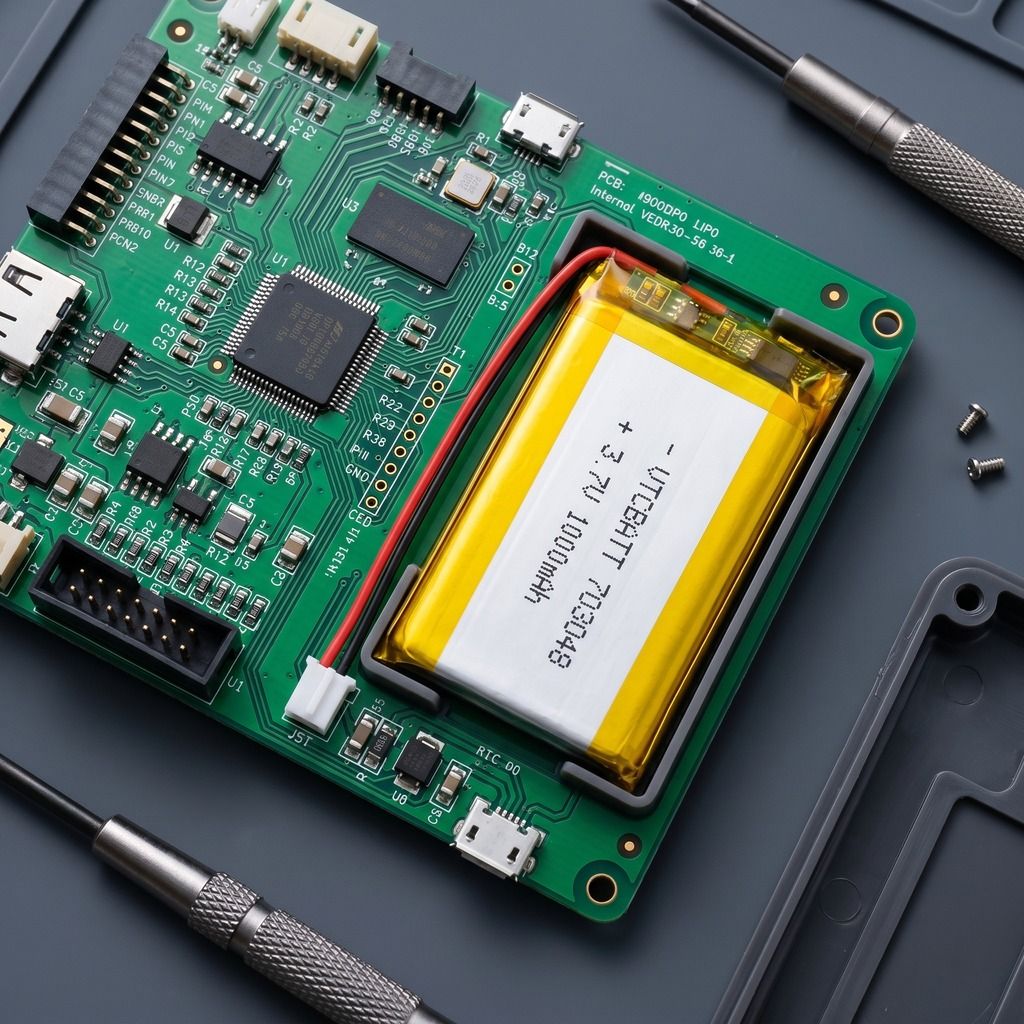

OEM embedded devices

The precise 30x48mm dimensions allow for tight packing within custom OEM embedded hardware enclosures.

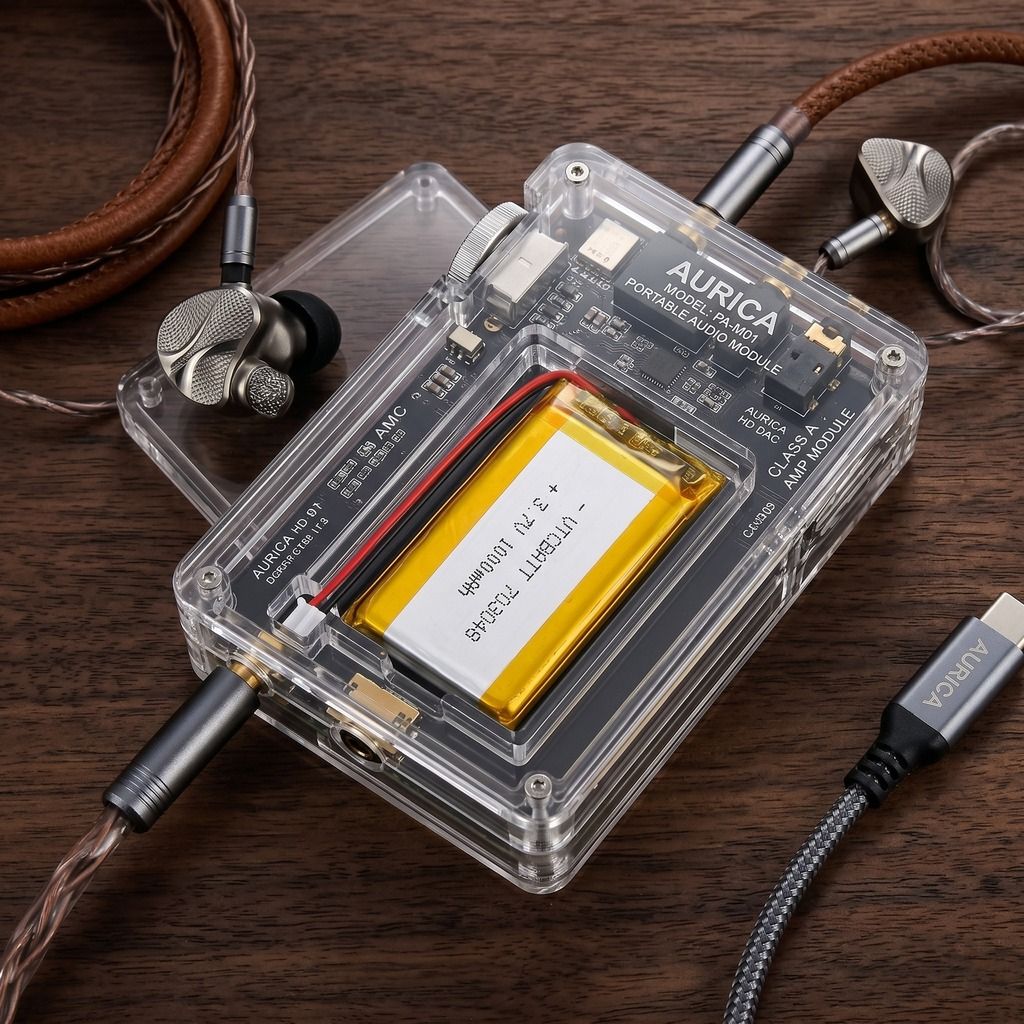

portable audio modules

Stable 3.7V nominal voltage delivers clean power for portable audio modules without signal interference.

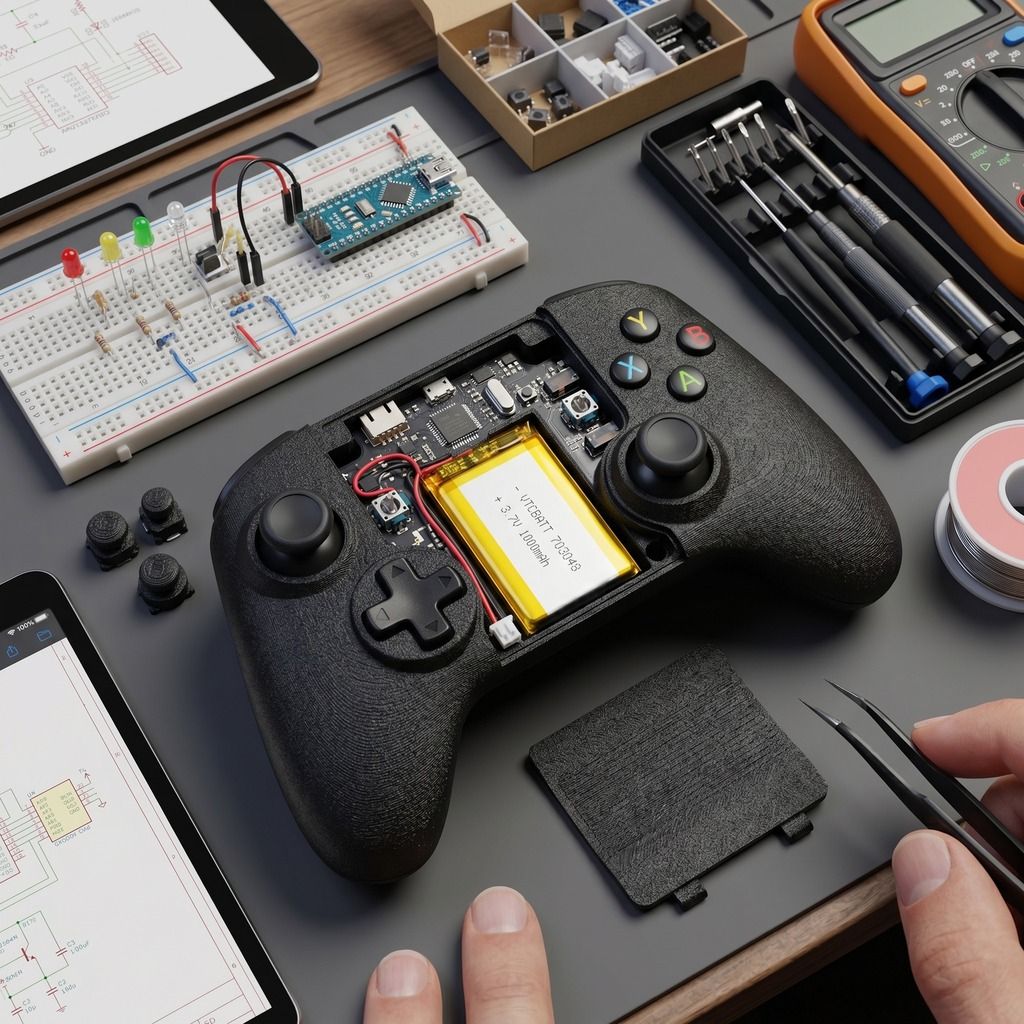

portable controllers

Rapid charging at 1000mA minimizes downtime for handheld controllers used in high-frequency gaming sessions.

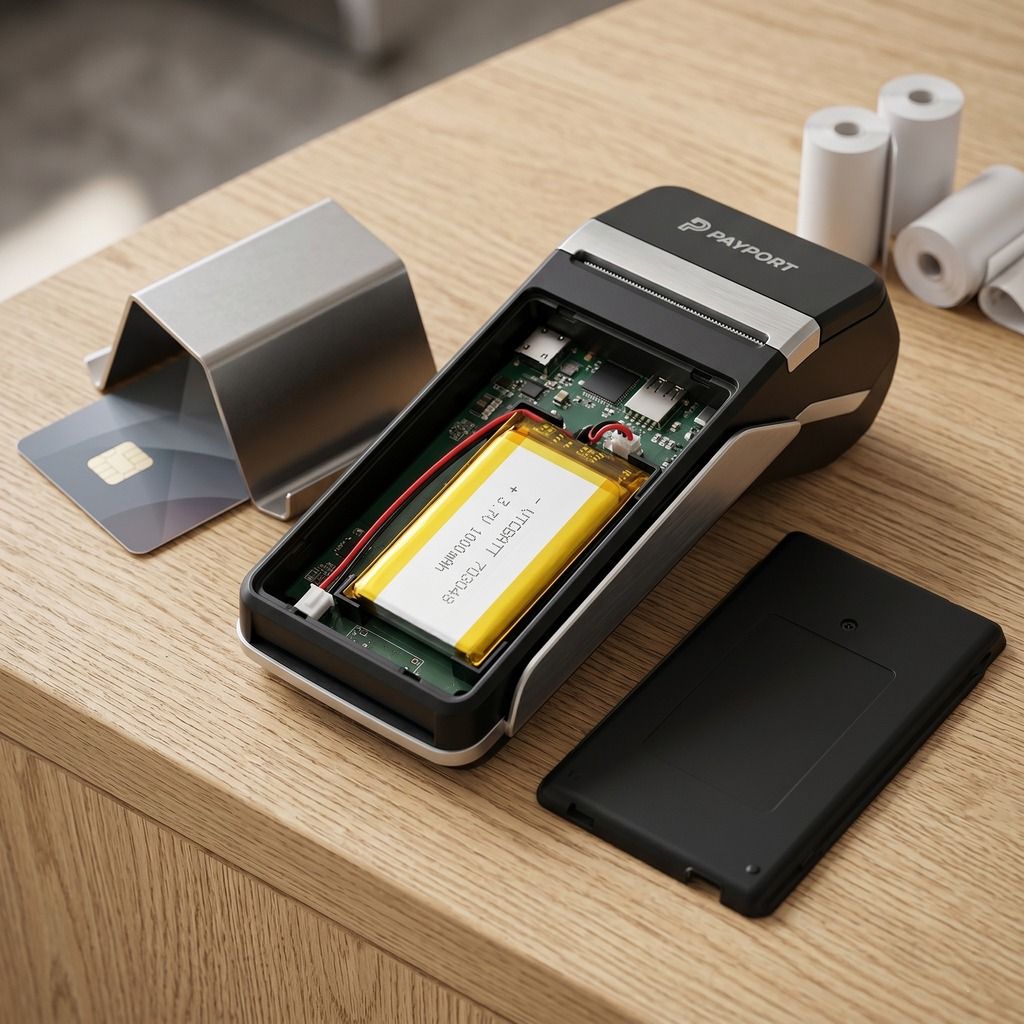

portable payment peripherals

Integrated protection ICs safeguard sensitive financial data during the high-current bursts of NFC transactions.

smart alarm accessories

Over 600 charge cycles provide long-term durability for smart alarm systems with daily usage patterns.

VTC-LP703048 is a 3.7V 1000mAh Li-ion polymer rechargeable battery pack developed by VTCBATT for compact electronic products that need stable capacity, protected pack structure, and easy harness integration. The pack delivers 1050mAh rated capacity, 970mAh minimum capacity, 4.2V limited charge voltage, 3.0V discharge cut-off voltage, 200mA standard charge and discharge current, 1000mA rapid charge and rapid discharge current, and 2000mA peak discharge for short pulse loads. Its pack size is up to 30.5 x 50.0 x 7.2mm with 50+/-5mm wires, an S8261 series protection IC, DP8205 MOSFET, 10K NTC, and JST PHR-3P connector, making it suitable for OEM battery integration

VTC-LP703048 is a 3.7V 1000mAh Li-ion polymer rechargeable battery pack developed by VTCBATT for compact electronic products that need stable capacity, protected pack structure, and easy harness integration. The pack delivers 1050mAh rated capacity, 970mAh minimum capacity, 4.2V limited charge voltage, 3.0V discharge cut-off voltage, 200mA standard charge and discharge current, 1000mA rapid charge and rapid discharge current, and 2000mA peak discharge for short pulse loads. Its pack size is up to 30.5 x 50.0 x 7.2mm with 50+/-5mm wires, an S8261 series protection IC, DP8205 MOSFET, 10K NTC, and JST PHR-3P connector, making it suitable for OEM battery integration where safety monitoring and connector matching matter. VTCBATT supports sample builds, wire and connector adjustment, label customization, and batch production for customers that need a protected lithium polymer battery for portable and embedded equipment.
