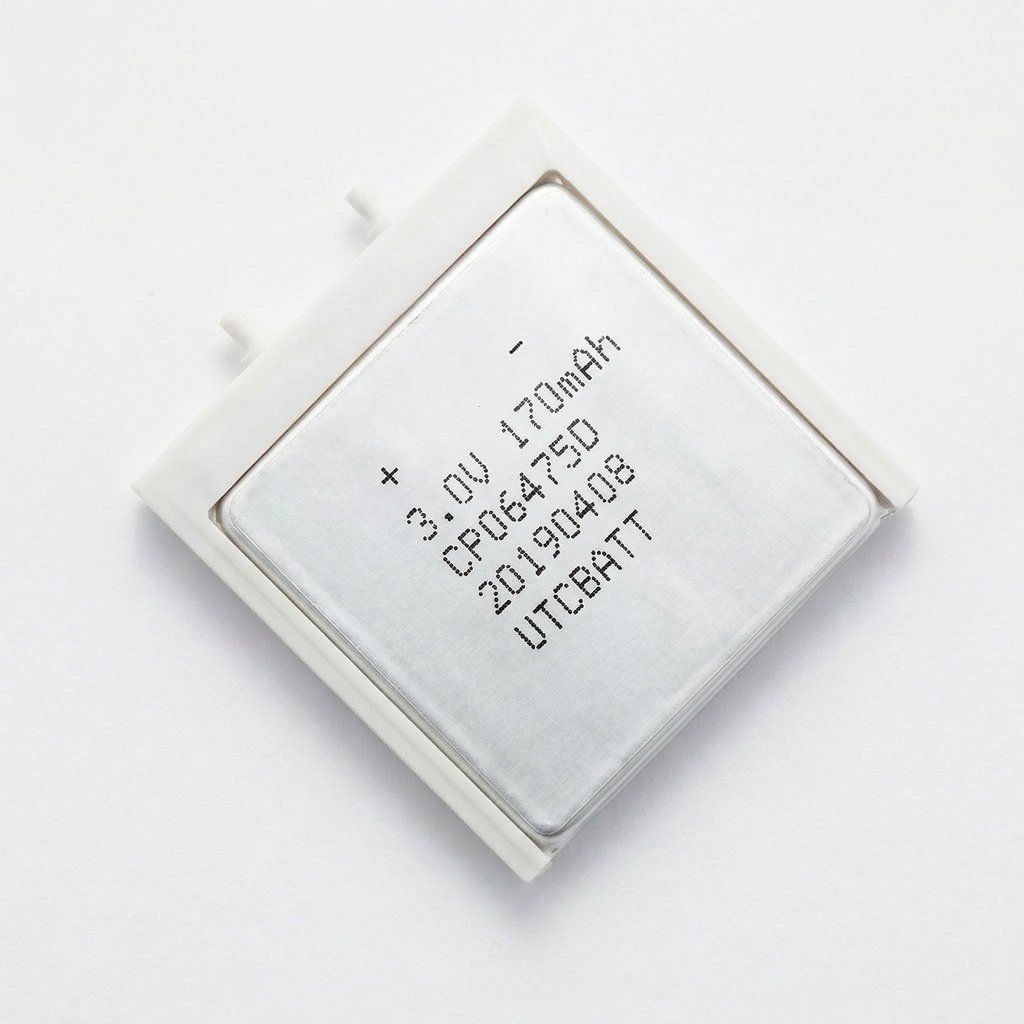

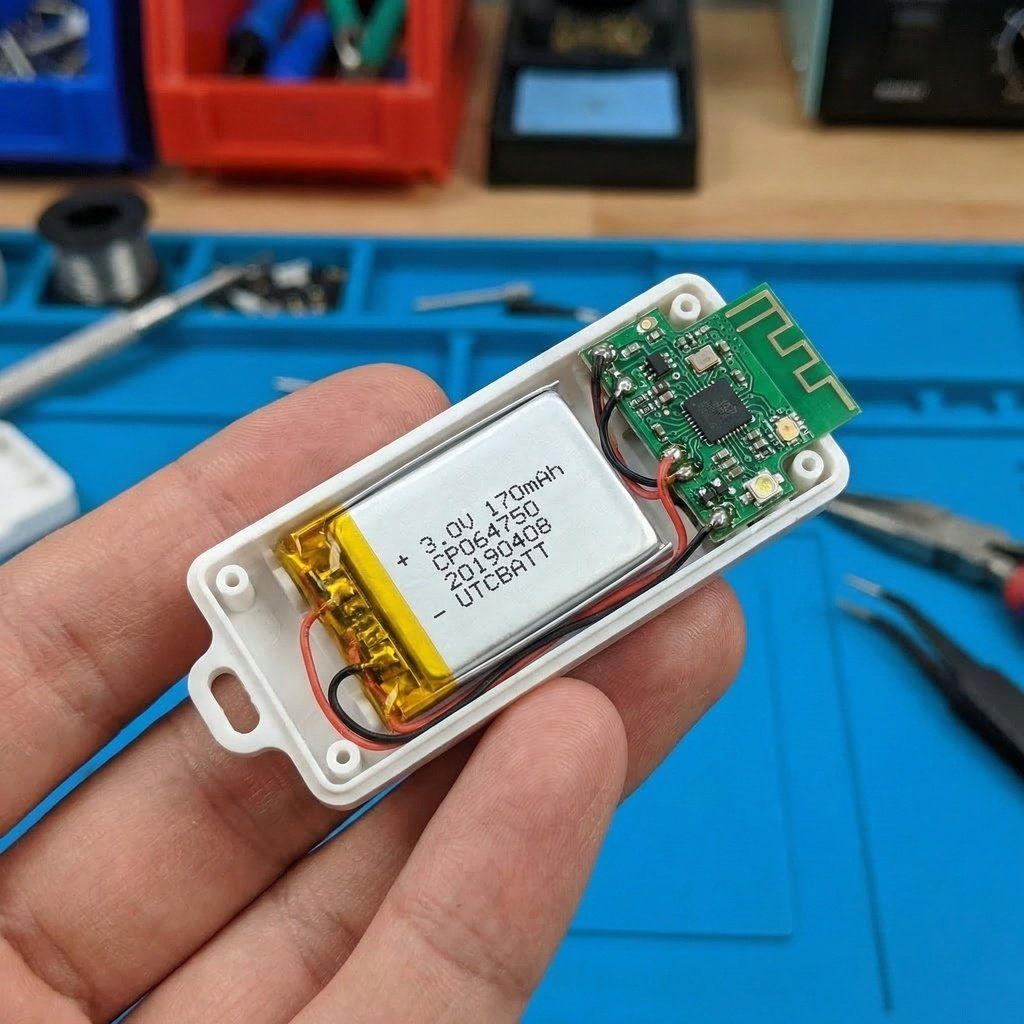

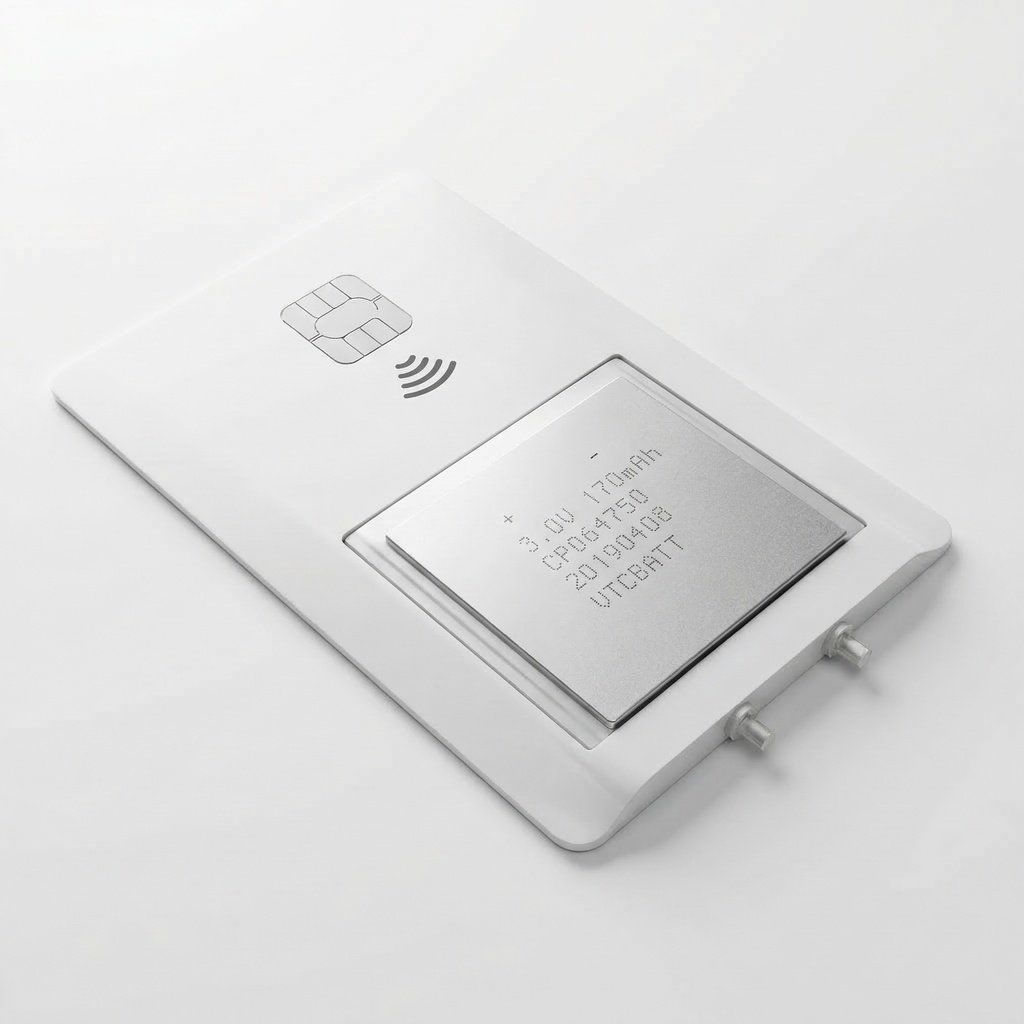

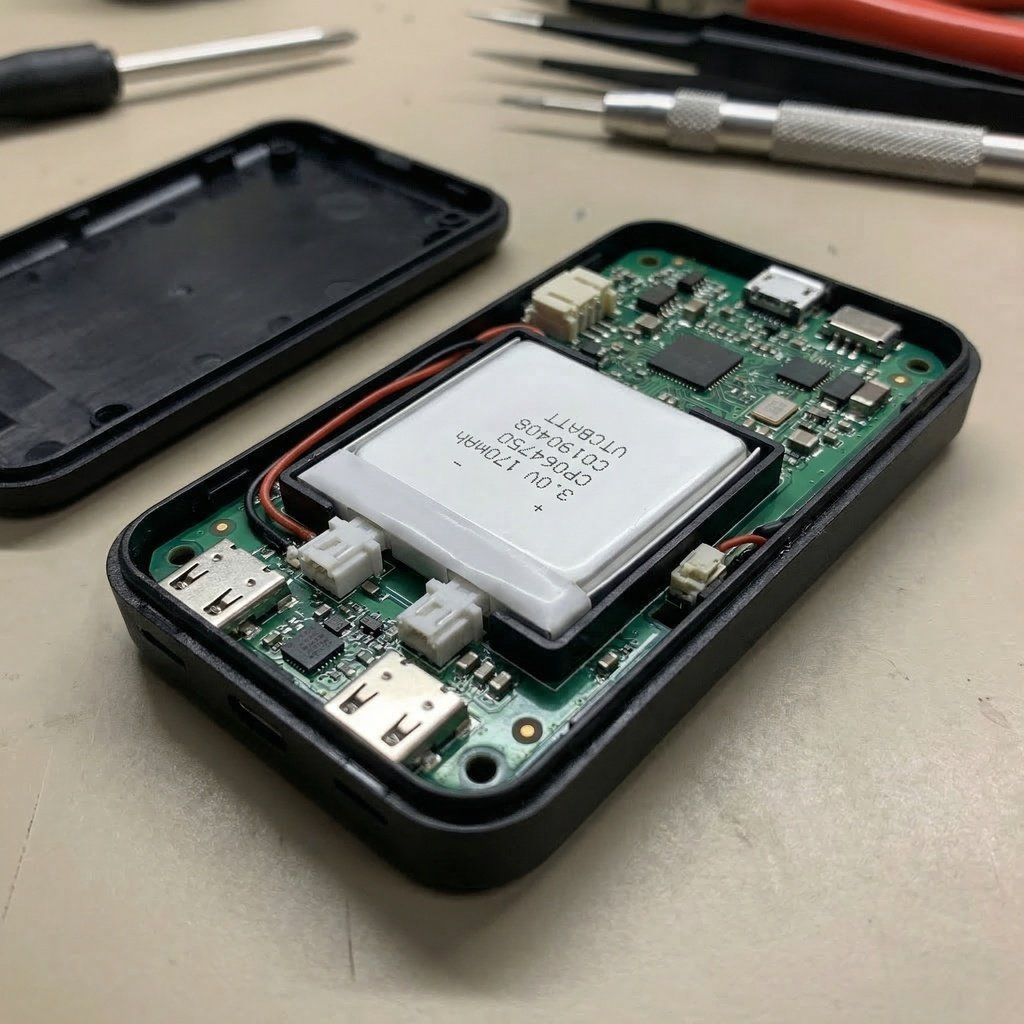

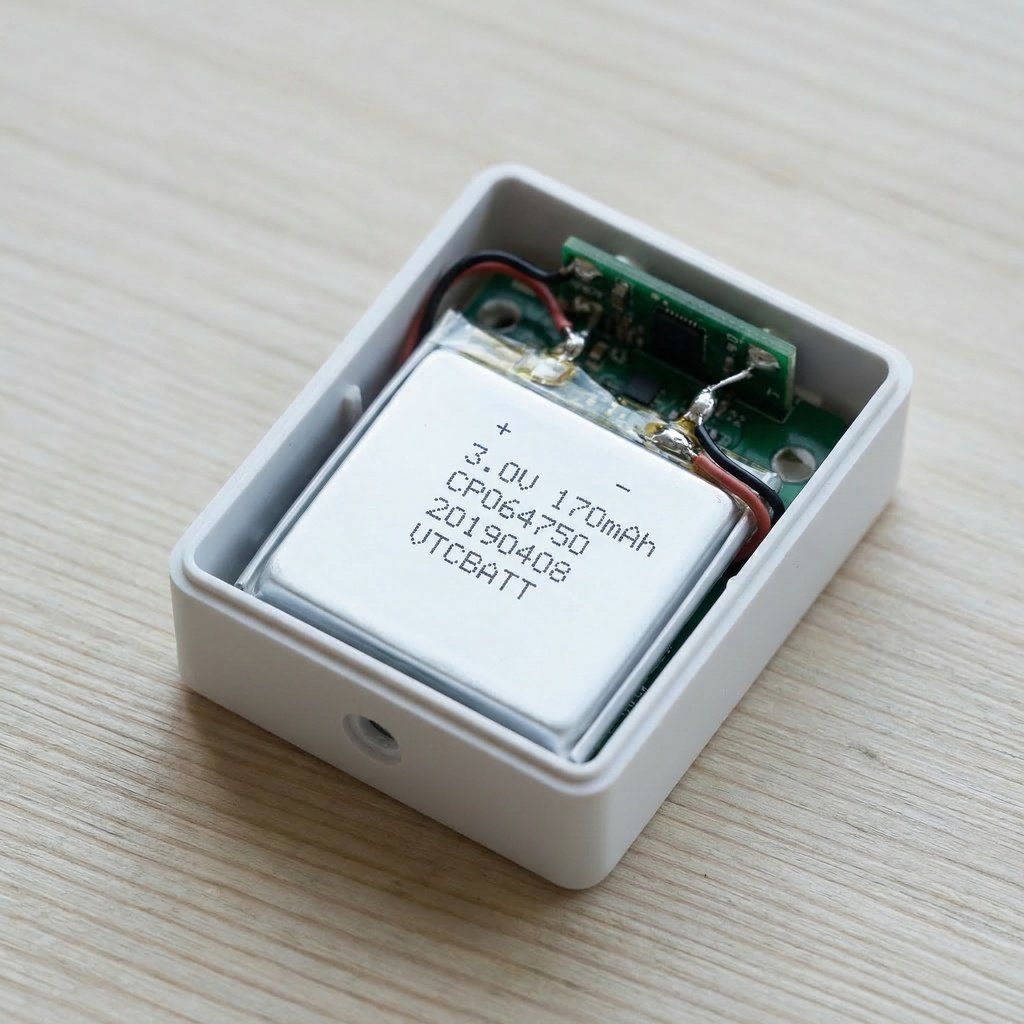

3V 170mAh CP064750 LiMnO2 Pouch Battery for RFID, Smart Cards, Automated management of logistic

In a clean, dust‑free modern workshop with controlled humidity and precision environmental systems, multiple automatic CP064750 battery production lines operate 24 hours a day to boost production capacity and energy efficiency. As a widely recognized standard size, all core materials used in the production process — including electrodes, separators, and electrolytes for 3 V LiMnO2 Pouch CP064750 battery — are mature and stable to ensure the highest levels of reliability, performance, and safety throughout the manufacturing process.

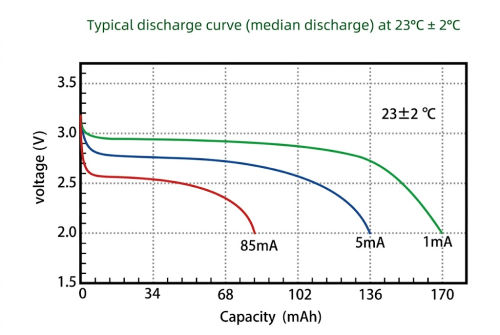

This graph illustrates the typical discharge characteristics of the CP064750 3.0V Li-MnO2 soft-pack battery at a standard room temperature of 23°C (± 2°C). It demonstrates how varying the continuous discharge current impacts both the operating voltage plateau and the total deliverable capacity:
Low Drain (1mA): Represented by the green line, the battery maintains a highly stable operating voltage near 3.0V and delivers its maximum nominal capacity (approaching 180 mAh) before the 2.0V cutoff.
Medium Drain (5mA): The blue line shows that at a 5mA load, the voltage plateau drops slightly to around 2.75V, yielding an effective capacity of approximately 140 mAh.
High Drain (85mA): The red line indicates performance under a heavy load. The operating voltage drops to roughly 2.5V, and the total delivered capacity is reduced to about 85 mAh.
