Home/Products/3V CR123A LiMnO2 Battery
3V CR123A LiMnO2 Battery for cameras, sensors, medical and security devices

Li-MnO2

3V CR123A LiMnO2 Battery for cameras, sensors, medical and security devices

ParameterSpecification
Nominal voltage3.0V

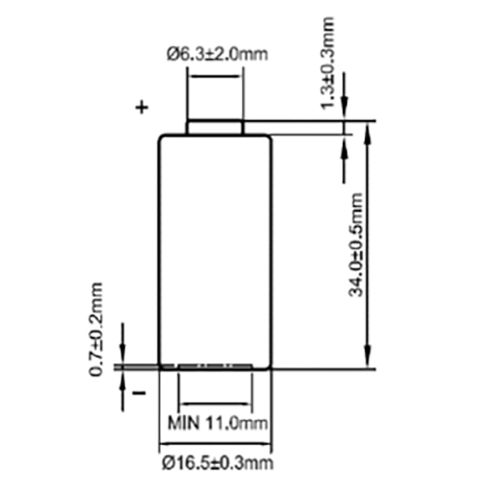

Maximum dimensionsΦ17.0mm × Height 34.5mm
Reference weight16.5g
Average rated capacity1600mAh (option 1300mAh)
Standard discharge current1mA
Termination voltage2.0V
Maximum continuous discharge current1000mA
Maximum pulse discharge current3000mA
Operating temperature-40℃~+70℃
Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Product overview

VTCBATT CR123A Discharge performance test | Battery Manufacturers in China & Battery Supply Factory

No. Temperat Charging protocol No.1 No.2 No.3 No.4 max min ave
1 Ambient 1000mA-cont to 1.5V | mAh 1268 1301 1337 1288 1337 1268 1299
2 Ambient 5mA-cont to 2.0V | mAh 1714 1748 1676 1717 1748 1676 1714
3 Ambient 10mA-cont to 2.0V | mAh 1678 1658 1632 1682 1682 1632 1663
4 Ambient 20mA-cont to 2.0V | mAh 1579 1665 1652 1646 1665 1579 1636
5 Ambient 900mA-cont 3s on/27s off pulse EPV: 1.55V | cycles 1928 1973 1940 1986 1986 1928 1957
6 Ambient 100Ω-cont to 2.0V | hours 58.22 58.05 57.52 58.68 58.68 57.52 58.12
7 Ambient 1.8A 3s on/7soff pulse to 1.8V | cycles 888 866 910 893 910 866 889
8 -20°C 20mA-cont to 2.0V | mAh 1437 1434 1378 1408 1437 1378 1414
9 -20°C 200mA-cont to 2.0V | mAh 936 933 929 854 936 854 913
10 -20°C 900mA-cont 3s on/27s off pulse EPV: 1.55V | cycles 1468 1468 1494 1422 1494 1422 1463
01

Complete Guide to CR123A Lithium Batteries

CR123A batteries are known for delivering high energy in a compact form factor, making them ideal for devices that need strong power in limited space. From digital cameras and flashlights to medical instruments, CR123A cells play a critical role across many applications. Their long shelf life means they remain ready when you need them most. With a stable 3.0V output and typical capacities 800mAh and 1600mAh , CR123A lithium manganese batteries provide dependable and consistent performance. This guide helps you choose the right CR123A battery for your device while highlighting key safety practices for storage, handling, and disposal. Use the right battery, follow proper safety steps, and get reliable power with confidence.

Complete Guide to CR123A Lithium Batteries
02

CR123A Battery Safety Tips

CR123A 3.0V lithium manganese batteries are compact and powerful, but safe handling is essential for reliable performance. Store batteries in a cool, dry place away from direct sunlight, heat sources, water, and open flames. Never attempt to recharge CR123A primary cells, as charging can cause overheating, leakage, or rupture. Prevent short circuits by keeping battery terminals away from metal objects such as keys, coins, or tools. Do not mix old and new batteries or different brands in the same device, and replace batteries as a complete set when required. Avoid crushing, puncturing, disassembling, or dropping batteries, since physical damage may trigger chemical leaks or thermal hazards. Inspect batteries regularly for swelling, corrosion, or leakage, and remove damaged cells immediately. Keep batteries out of reach of children and pets to prevent accidental swallowing. Dispose of used batteries through authorized recycling channels according to local regulations to protect people, equipment, and the environment.

CR123A Battery Safety Tips

Technical insight

Product and application details

Tactical lights

Tactical lights

The 3000mA pulse discharge current supports the high-intensity bursts required by tactical flashlights.

Flashlights

Flashlights

Maximum continuous discharge of 1000mA sustains steady illumination for general-purpose flashlight usage.

Laser sights

Laser sights

Compact dimensions of Φ17.0mm x 34.5mm ensure a secure fit in slim laser sight housings.

Medical devices

Medical devices

The -40℃ to +70℃ operating range guarantees functionality in diverse clinical and field environments.

POhoto equipment

POhoto equipment

High capacity of 1600mAh powers camera flashes through multiple rapid discharge cycles effectively.

Security cameras

Security cameras

Stable 3.0V nominal voltage maintains consistent operation for motion sensor triggers in security cameras.

Smart locks

Smart locks

Low self-discharge characteristics of LiMnO2 chemistry preserve charge during long standby periods in smart locks.

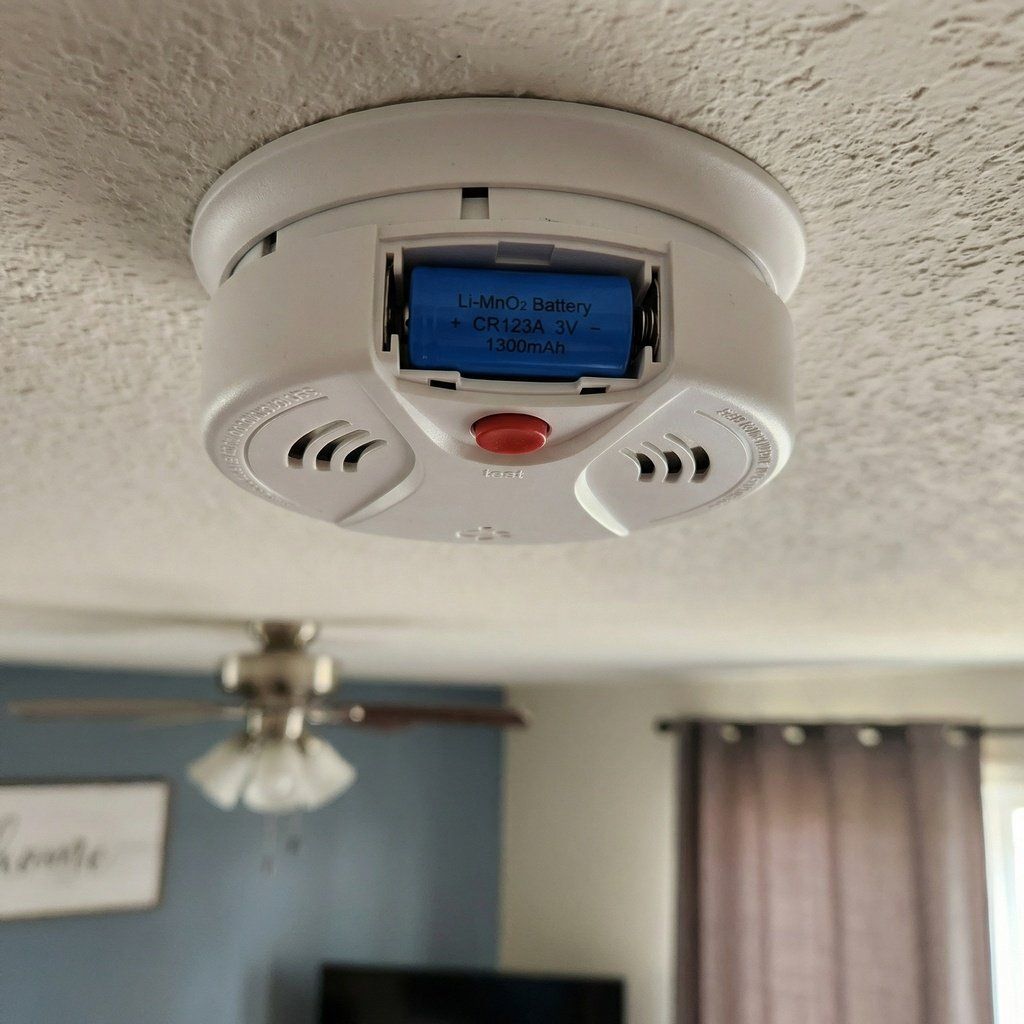

Smoke detectors

Smoke detectors

Long shelf life of the Li-MnO2 chemistry ensures readiness for critical smoke detection events.

CR123A Lithium Battery Specification General Specifications Model CR123A / CR17345 Chemistry Lithium Manganese Dioxide (Li-MnO₂) Nominal Voltage 3.0V Average Rated Capacity 1600mAh Standard Discharge Current 1mA Max Continuous Discharge Current 1000mA Max Pulse Discharge Current 3000mA Termination Voltage 2.0V Diameter 17.0mm Height 34.5mm Reference Weight 16.5g Operating Temperature Range -40°C ~ +70°C Voltage vs. Capacity at Different Discharge Currents (25°C) Discharge Curves at Different Temperatures (20mA to 2.0V) Pulse Discharge Curves at Different Temperatures (0.9A 3s on/27s off) Fresh Battery Discharge Curve (20mA to 2.0V) Safety Warning Do not charge, disassemble, heat above 100°C, or incinerate Do not mix different

CR123A Lithium Battery Specification

General Specifications

Model CR123A / CR17345
Chemistry Lithium Manganese Dioxide (Li-MnO₂)
Nominal Voltage 3.0V
Average Rated Capacity 1600mAh
Standard Discharge Current 1mA
Max Continuous Discharge Current 1000mA
Max Pulse Discharge Current 3000mA
Termination Voltage 2.0V
Diameter 17.0mm
Height 34.5mm
Reference Weight 16.5g
Operating Temperature Range -40°C ~ +70°C

Voltage vs. Capacity at Different Discharge Currents (25°C)

Discharge Curves at Different Temperatures (20mA to 2.0V)

Pulse Discharge Curves at Different Temperatures (0.9A 3s on/27s off)

Fresh Battery Discharge Curve (20mA to 2.0V)

Safety Warning

  • Do not charge, disassemble, heat above 100°C, or incinerate
  • Do not mix different types of batteries
  • Do not short-circuit the battery

The above information is provided for reference only and does not constitute any warranty or guarantee regarding battery products. Battery designs and specifications are subject to change without prior notice. For the latest information, please contact VTC POWER Co., Ltd.
Tel: 0086-0755-84534832 | Email: info@vtcbatt.com
