CP603448 3.0V 2500mAh Li-MnO2 Pouch Battery for alarm sensor, IoT device, asset tracker, utility meter

In a clean, dust‑free modern workshop with controlled humidity and precision environmental systems, multiple automatic CP603448 battery production lines operate 24 hours a day to boost production capacity and energy efficiency. As a widely recognized standard size, all core materials used in the production process — including electrodes, separators, and electrolytes for 3 V LiMnO2 Pouch CP603448 battery — are mature and stable to ensure the highest levels of reliability, performance, and safety throughout the manufacturing process.

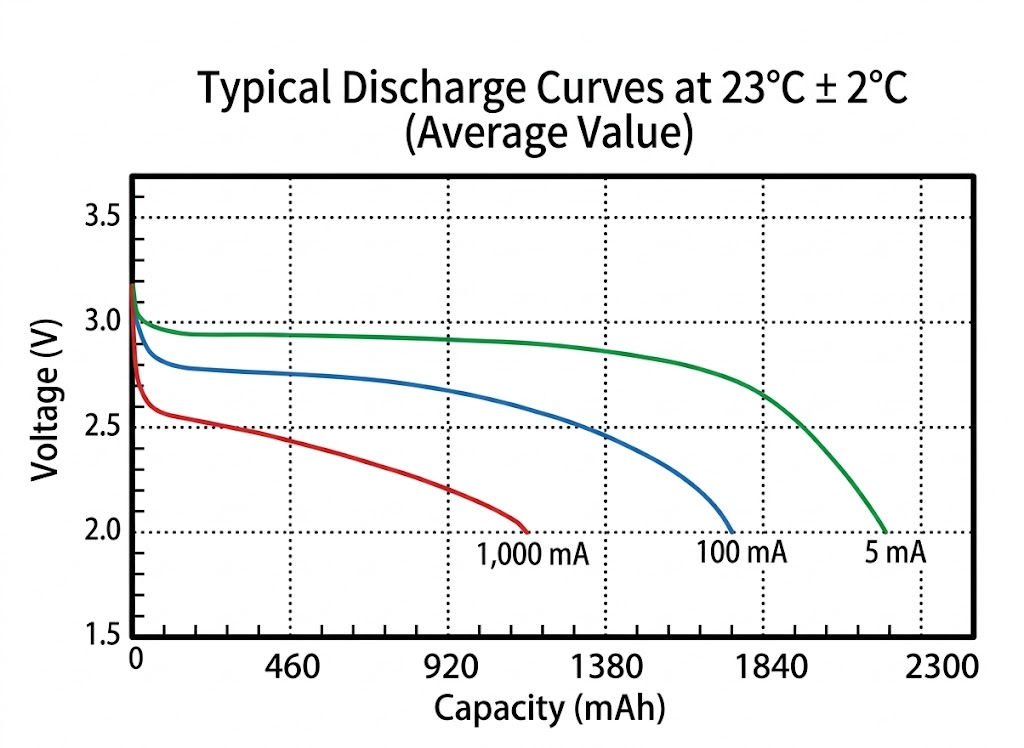

5 mA Discharge (Green Line): As the nominal testing standard, this low drain provides the highest capacity. It maintains a very steady voltage near 2.9V for most of the cycle, yielding roughly 2,150–2,200 mAh before hitting the 2.0V cut-off.
100 mA Discharge (Blue Line): Under a moderate load, the operating voltage drops slightly faster (settling around 2.75V initially) and yields a total usable capacity of approximately 1,800 mAh.
1,000 mA Discharge (Red Line): At the maximum continuous discharge current, the internal resistance causes an immediate voltage drop, reducing the total usable capacity to roughly 1,150 mAh by the time it reaches the 2.0V threshold.
