Li-MnO2

CP723334 1800mAh 3.0V Li-MnO2 pouch battery for emergency locator, security equipment, industrial monitoring device

Parameter	Specification
Item	Spec
Model	CP723334-1800mAh
Tab	Stainless steel to nickel tab transition
Max. Continuous Discharge Current	900mA
Discharge Cut-off Voltage	2.0V
Storage Temperature	-5 to +35 °C
Pack Weight	Approx. 18g

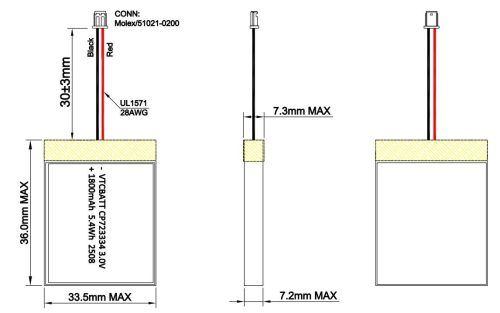

Assemblage Dimension	T7.3mm x W33.5mm x L36mm

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

CP723334 1800mAh 3.0V Li-MnO2 pouch battery for emergency locator, security equipment, industrial monitoring device | Battery Manufacturers in China & Battery Supply Factory

CP723334 3.0V 1800mAh Li-MnO2 thin pouch battery with connector from VTCBATT, offering 36 x 33.5 x 7.3 mm compact size, strong pulse output, and OEM/ODM factory supply for integrat

01

Automatic LiMnO2 Pouch Battery Production Line

In a clean, dust‑free modern workshop with controlled humidity and precision environmental systems, multiple automatic CP723334 battery production lines operate 24 hours a day to boost production capacity and energy efficiency. As a widely recognized standard size, all core materials used in the production process — including electrodes, separators, and electrolytes for 3V LiMnO2 Pouch CP723334 battery — are mature and stable to ensure the highest levels of reliability, performance, and safety throughout the manufacturing process.

02

Key feature for CP723334 Li-MnO2 Pouch Battery

High and stable operating voltage
Long shelf life Annual self-discharge rate lower than 2% at +20℃
Hermetic Sealing
Compliant with IEC86-4 safety standard

03

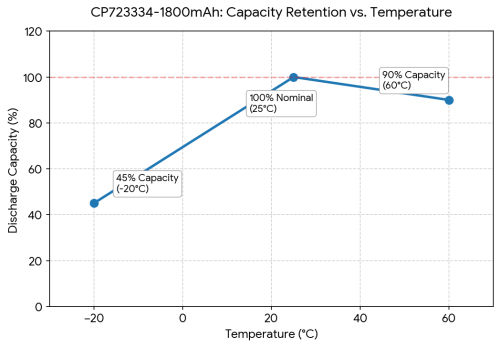

CP723334 Li-MnO2 Pouch Battery Safety & Temperature Test

No.	Item	Testing Conditions and Method	Standard
1	UN38.3/MSDS	Follows UN38.3/MSDS.	UN38.3
2	UL-1642 (Cell Level)	Follows UL1642.	UL-1642
3	High Temperature	A battery is placed in a high-temperature cabinet for 2 hours at 60°C±2°C, then discharged at 5 mA current until the voltage cut off.	Discharge 90% of the nominal capacity.
4	Low Temperature	A battery is placed in a high-temperature cabinet for 2 hours at -20°C±2°C, then discharged at 5mA current until the voltage cut off.	Discharge more than 45% of the nominal capacity.

Technical insight

Product and application details

Smart meter

Its 7.3mm thin profile fits narrow utility meters while delivering stable 3.0V for long-term remote readings.

GPS tracker

The 900mA max discharge handles GPS signal bursts while the low self-discharge ensures readiness for asset tracking.

Medical device

This Li-MnO2 chemistry provides reliable backup power in compact 33.5mm width form factors for critical health monitors.

Remote monitoring uni

Stainless steel tabs ensure secure electrical connections within industrial enclosures for continuous environmental data transmission.

Security equipment

The 1800mAh capacity supports extended standby times in motion sensors without frequent battery replacements in hard-to-reach areas.

Asset tracker

Weighing only 18g, this pouch cell minimizes added bulk for lightweight logistics tags and pallet monitoring.

IoT sensor

A 2.0V cut-off voltage ensures full utilization of the 1800mAh capacity for low-power wireless node operations.

Medical device backup

The 3.0V nominal voltage maintains compatibility with existing circuit designs requiring precise potential for patient safety systems.
