Li-MnO2

CP723634 2000mAh 3.0V Li-MnO2 Pouch Battery for wireless sensor, emergency locator, security equipment, industrial monitoring device

Parameter	Specification
Item	Spec
Model	CP723634-2000mAh
Tab	Stainless steel to nickel tab transition
Max. Continuous Discharge Current	1000mA
Discharge Cut-off Voltage	2.0V
Storage Temperature	-5 to +35 °C
Pack Weight	Approx. 19g

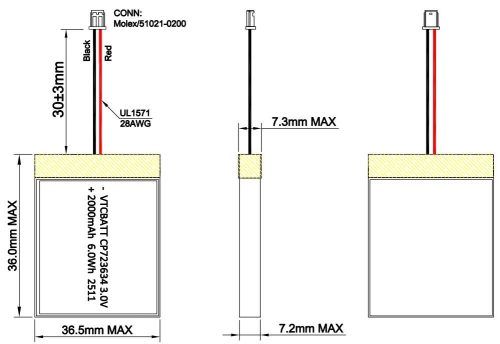

Assemblage Dimension	T7.3mm x W36.5mm x L36mm

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

CP723634 2000mAh 3.0V Li-MnO2 Pouch Battery for wireless sensor, emergency locator, security equipment, industrial monitoring device | Battery Manufacturers in China & Battery Supply Factory

CP723634 3.0V 2000mAh Li-MnO2 thin pouch battery with connector from VTCBATT, offering 36 x 36.5 x 7.3 mm compact size, strong pulse output, and OEM/ODM factory supply for integrat

01

Automatic LiMnO2 Pouch Battery Production Line

In a clean, dust‑free modern workshop with controlled humidity and precision environmental systems, multiple automatic CP723634 battery production lines operate 24 hours a day to boost production capacity and energy efficiency. As a widely recognized standard size, all core materials used in the production process — including electrodes, separators, and electrolytes for 3V LiMnO2 Pouch CP723634 battery — are mature and stable to ensure the highest levels of reliability, performance, and safety throughout the manufacturing process.

02

Key feature for CP723634 Li-MnO2 Pouch Battery

High and stable operating voltage
Long shelf life Annual self-discharge rate lower than 2% at +20℃
Hermetic Sealing
Compliant with IEC86-4 safety standard

03

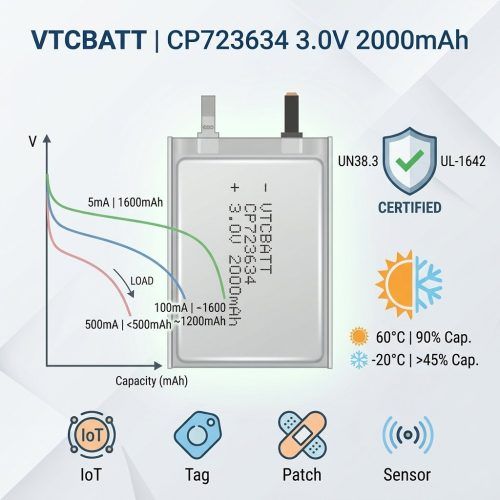

CP723634 Li-MnO2 Pouch Battery Safety & Temperature Test

No.	Item	Testing Conditions and Method	Standard
1	UN38.3/MSDS	Follows UN38.3/MSDS.	UN38.3
2	UL-1642 (Cell Level)	Follows UL1642.	UL-1642
3	High Temperature	A battery is placed in a high-temperature cabinet for 2 hours at 60°C±2°C, then discharged at 5 mA current until the voltage cut off.	Discharge 90% of the nominal capacity.
4	Low Temperature	A battery is placed in a high-temperature cabinet for 2 hours at -20°C±2°C, then discharged at 5mA current until the voltage cut off.	Discharge more than 45% of the nominal capacity.

Technical insight

Product and application details

Industrial monitoring device

Its 7.3mm thin profile allows installation in confined spaces within complex machinery without adding bulk.

Security equipment

The 1000mA discharge rate supports sudden high-current demands from motion sensors triggering immediate alerts.

Tmergency locator

Li-MnO2 chemistry ensures long-term shelf stability for critical safety devices stored for extended periods.

Wireless sensor

At just 19 grams, the lightweight pouch design minimizes overall weight for portable sensor nodes.

Alarm system

The 3.0V nominal voltage provides stable operation for low-power circuitry typical in home security panels.

Smart meter

Stainless steel tabs offer robust mechanical connections to withstand vibration in outdoor utility installations.

GPS tracker scence

Compact 36x36mm dimensions enable discreet integration into small, wearable tracking devices for personal safety.

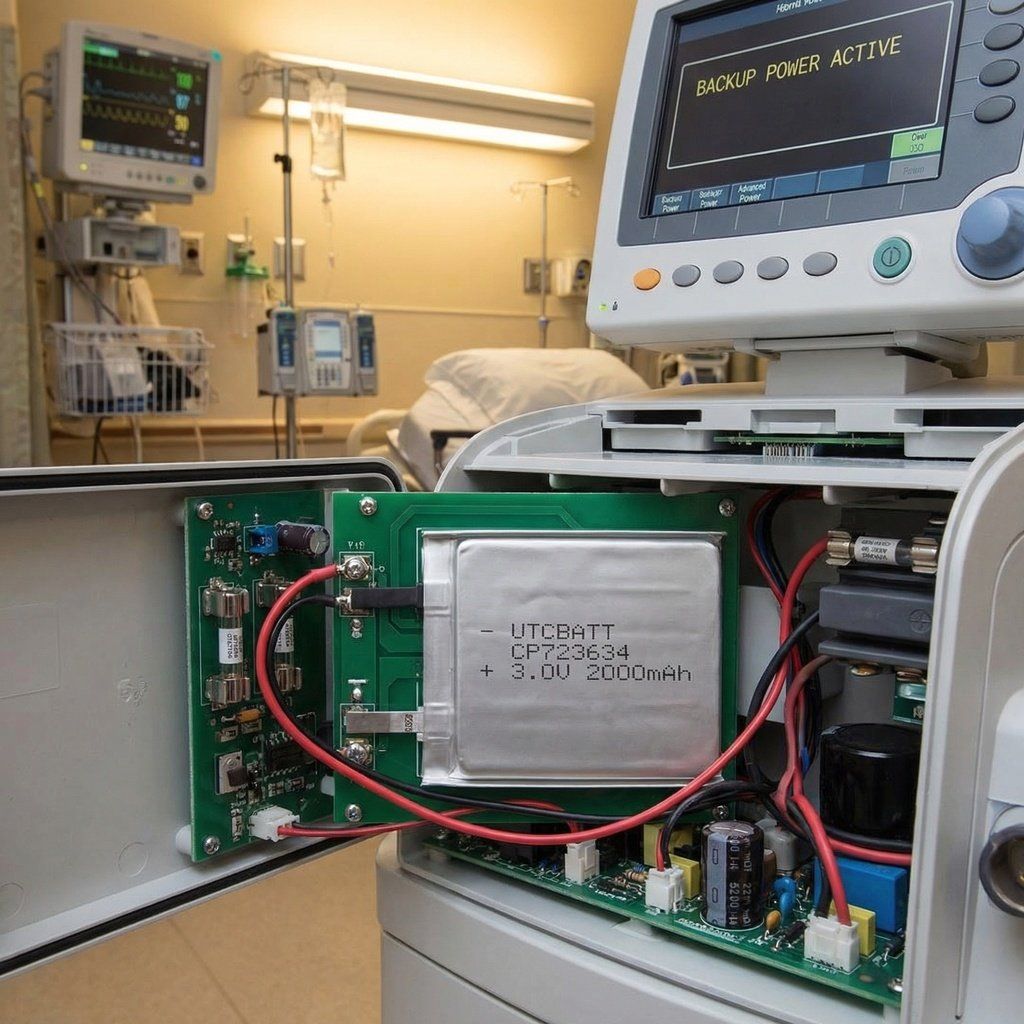

Medical device backup

Discharge down to 2.0V ensures maximum usable capacity is extracted before device shutdown occurs.
