Li-MnO2

CP753550 3300mAh 3.0V Li-MnO2 Pouch Battery for glass break detector, cold chain data logger, industrial PLC memory module

Parameter	Specification
Item	Spec
Model	CP753550 3300mAh
Nominal Voltage	3.0V
Tab	Stainless steel to nickel tab transition
Nominal Capacity	3300mAh
Max. Continuous Discharge Current	1000mA
Max. Pulse Discharge Current	2000mA
Discharge Cut-off Voltage	2.0V

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

CP753550 3300mAh 3.0V Li-MnO2 Pouch Battery for glass break detector, cold chain data logger, industrial PLC memory module | Battery Manufacturers in China & Battery Supply Factory

VTCBATT supplies CP753550 3.0V 3300mAh Li-MnO2 thin batteries with connector wire for industrial and OEM applications, offering stable capacity, compact assembly size, and direct m

01

Automatic LiMnO2 Pouch Battery Production Line

In a clean, dust‑free modern workshop with controlled humidity and precision environmental systems, multiple automatic CP753550 battery production lines operate 24 hours a day to boost production capacity and energy efficiency. As a widely recognized standard size, all core materials used in the production process — including electrodes, separators, and electrolytes for 3V LiMnO2 Pouch CP753550 battery — are mature and stable to ensure the highest levels of reliability, performance, and safety throughout the manufacturing process.

02

Key feature for CP753550 Li-MnO2 Pouch Battery

High and stable operating voltage
Long shelf life Annual self-discharge rate lower than 2% at +20℃
Hermetic Sealing
Compliant with IEC86-4 safety standard

03

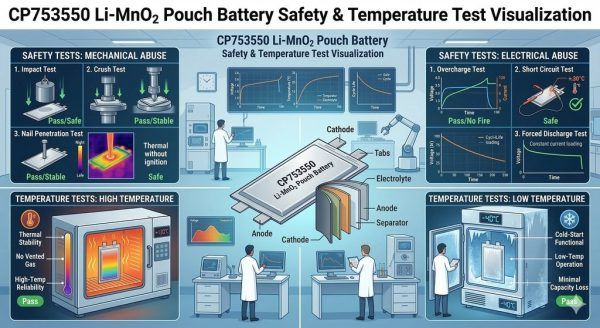

CP753550 Li-MnO2 Pouch Battery Safety & Temperature Test

No.	Item	Testing Conditions and Method	Standard
1	UN38.3/MSDS	Follows UN38.3/MSDS.	UN38.3
2	UL-1642 (Cell Level)	Follows UL1642.	UL-1642
3	High Temperature	A battery is placed in a high-temperature cabinet for 2 hours at 60°C±2°C, then discharged at 5 mA current until the voltage cut off.	Discharge 90% of the nominal capacity.
4	Low Temperature	A battery is placed in a high-temperature cabinet for 2 hours at -20°C±2°C, then discharged at 5mA current until the voltage cut off.	Discharge more than 45% of the nominal capacity.

Technical insight

Product and application details

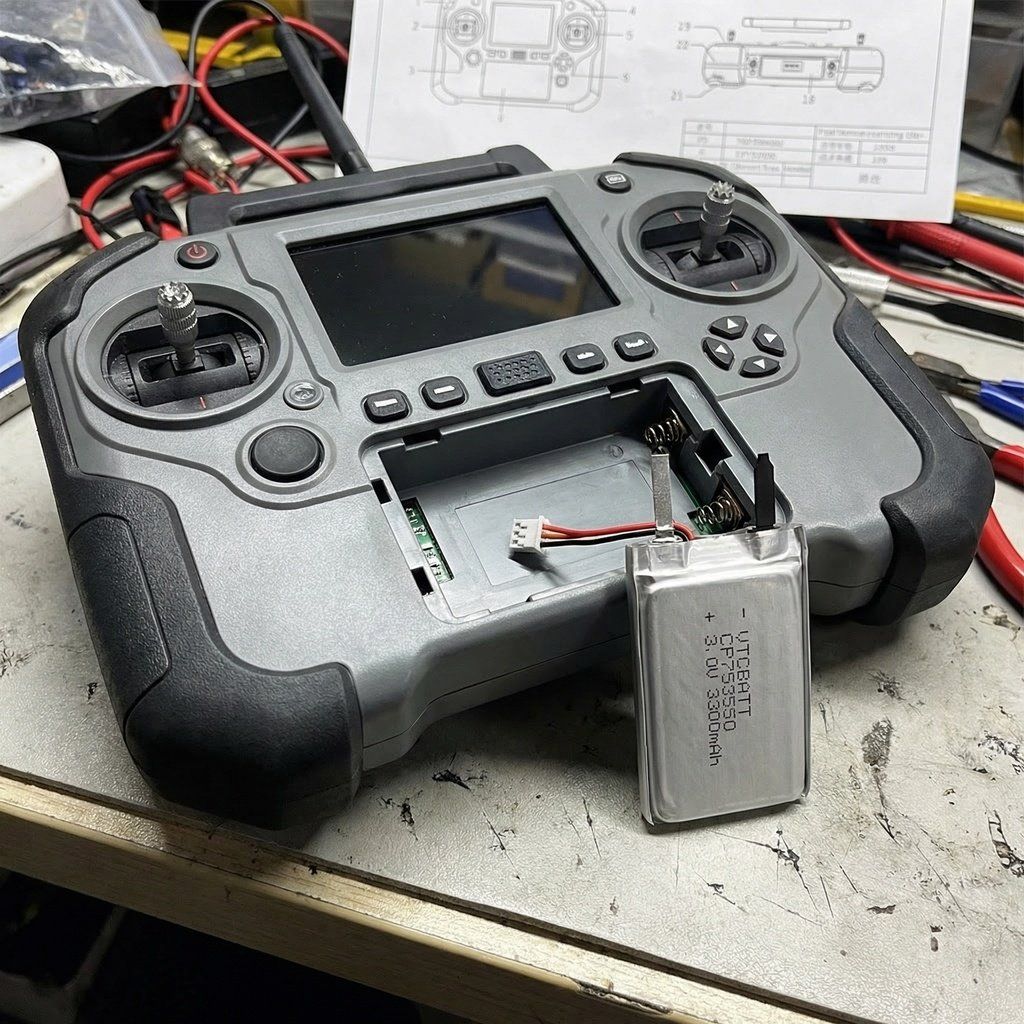

Industrial remote controller

The 1000mA continuous discharge current supports the high burst power needed for reliable signal transmission in industrial environments.

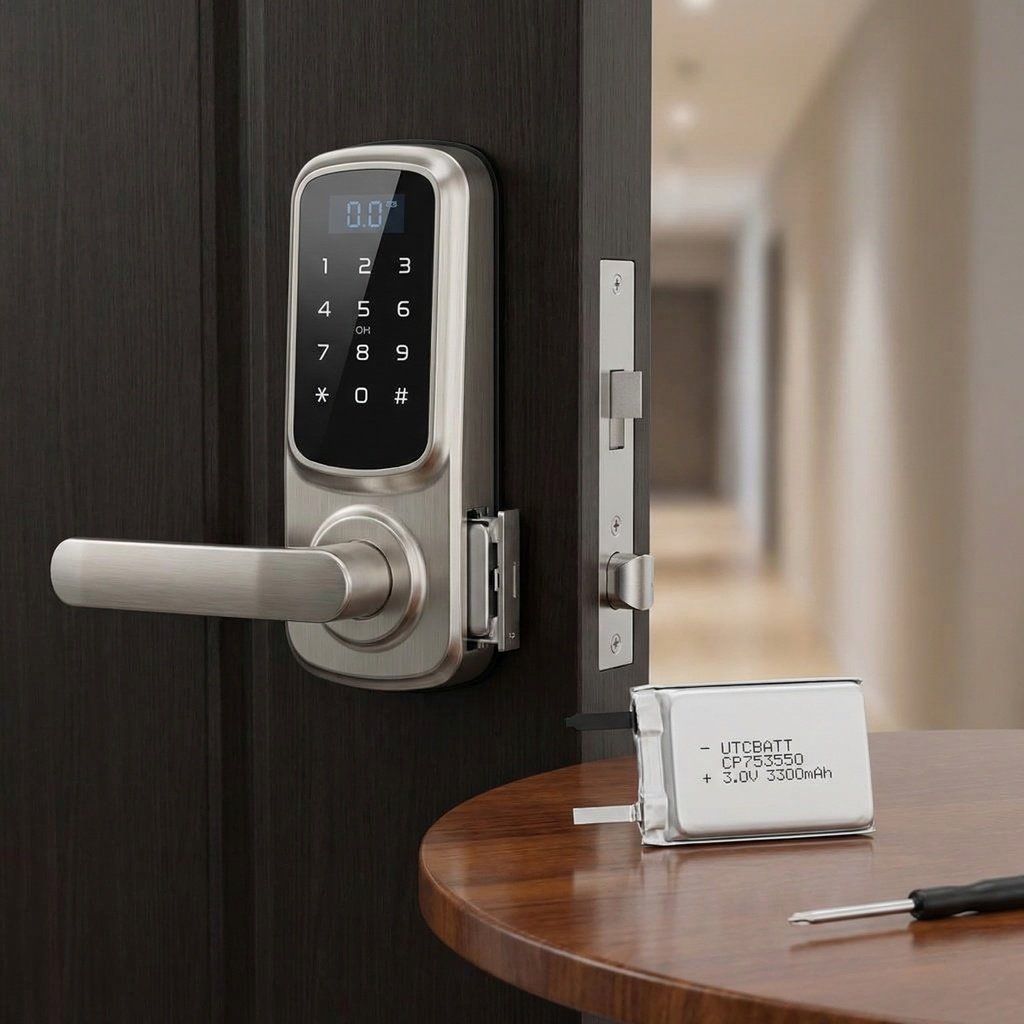

Smart electronic door lock

A 3300mAh capacity ensures long-term operation for electronic locks that require infrequent battery replacements in secure access points.

Industrial pressure transmitter

The 3.0V nominal voltage provides stable energy for continuous data acquisition in harsh industrial pressure monitoring applications.

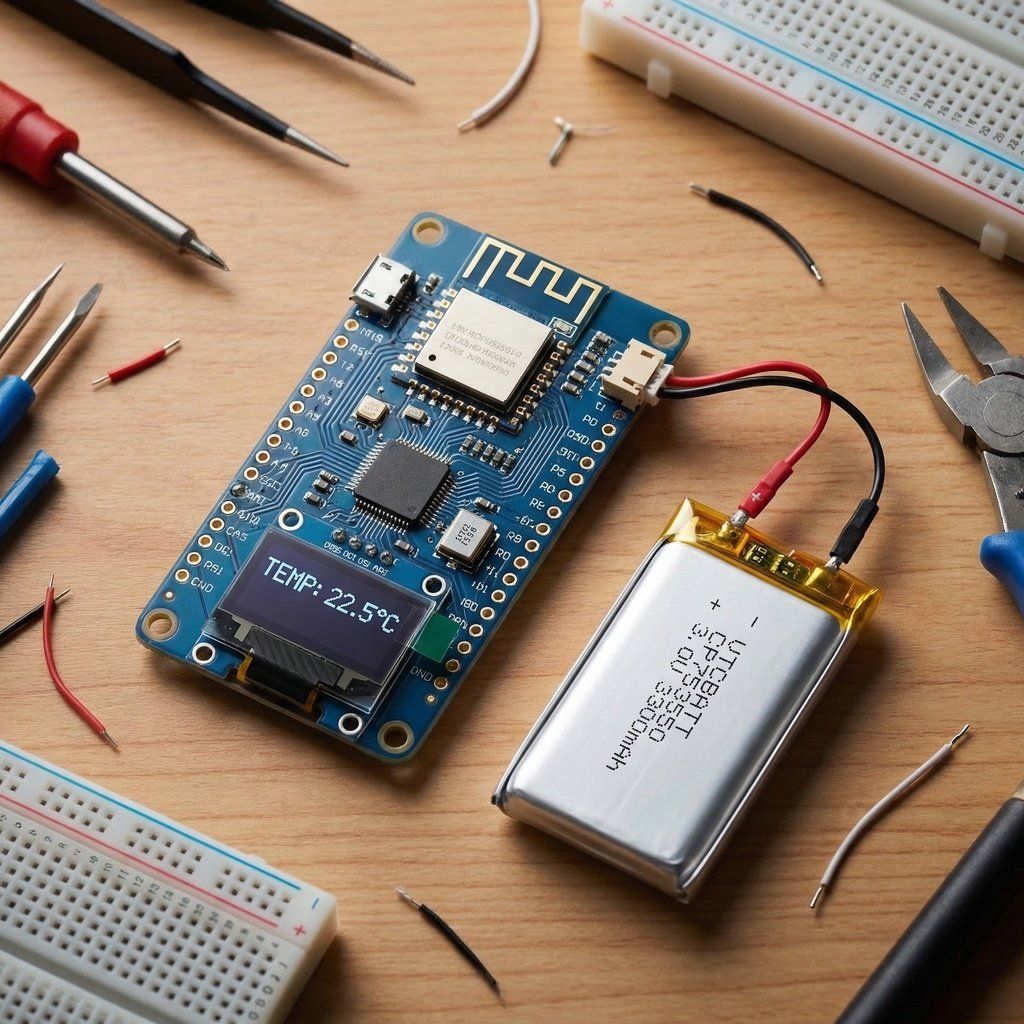

Wireless temperature sensor

Stainless steel tabs facilitate secure welding to circuit boards, ensuring structural integrity for wireless temperature sensors in harsh environments.

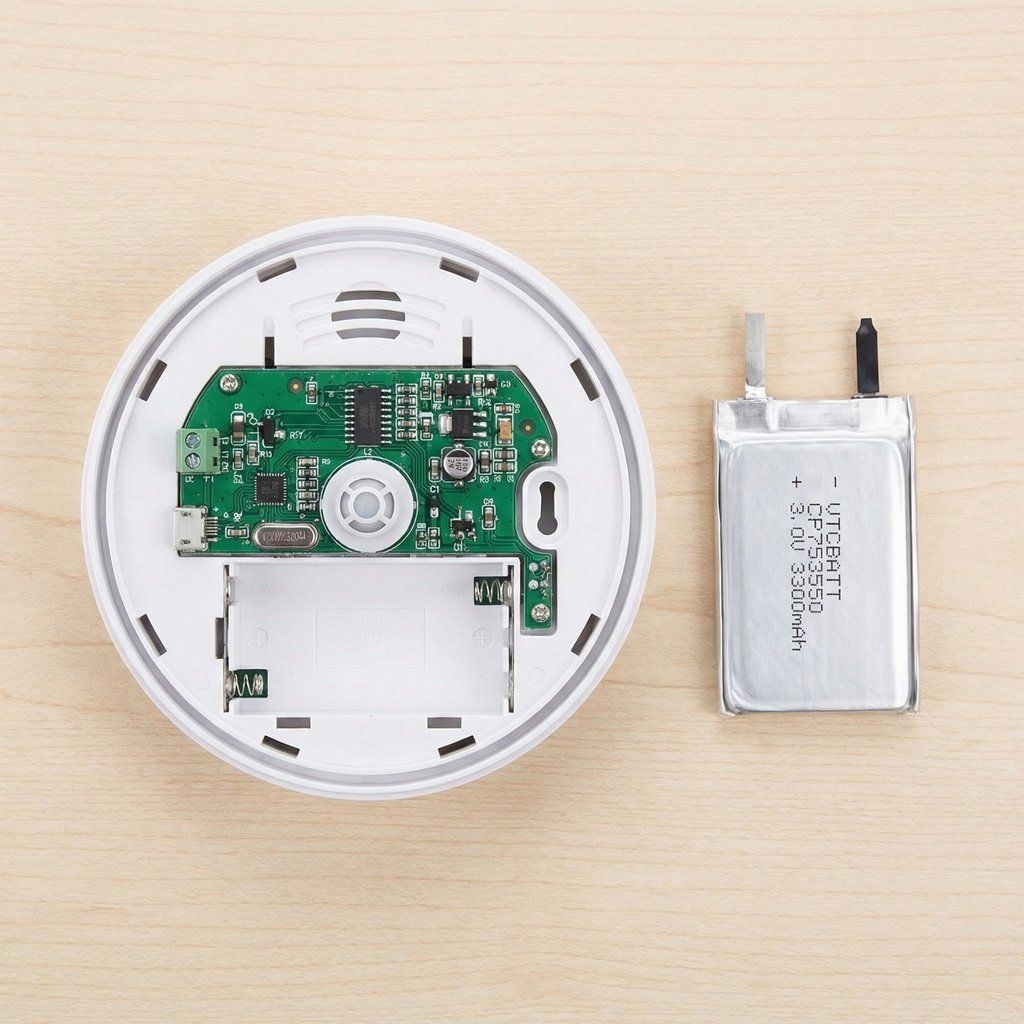

Smoke detector

The 2.0V discharge cut-off voltage guarantees safe power depletion, preventing leakage risks in critical smoke detection safety systems.

Vehicle GPS tracker

High pulse current capability handles sudden location updates, maintaining accurate tracking for vehicle GPS systems during rapid data bursts.

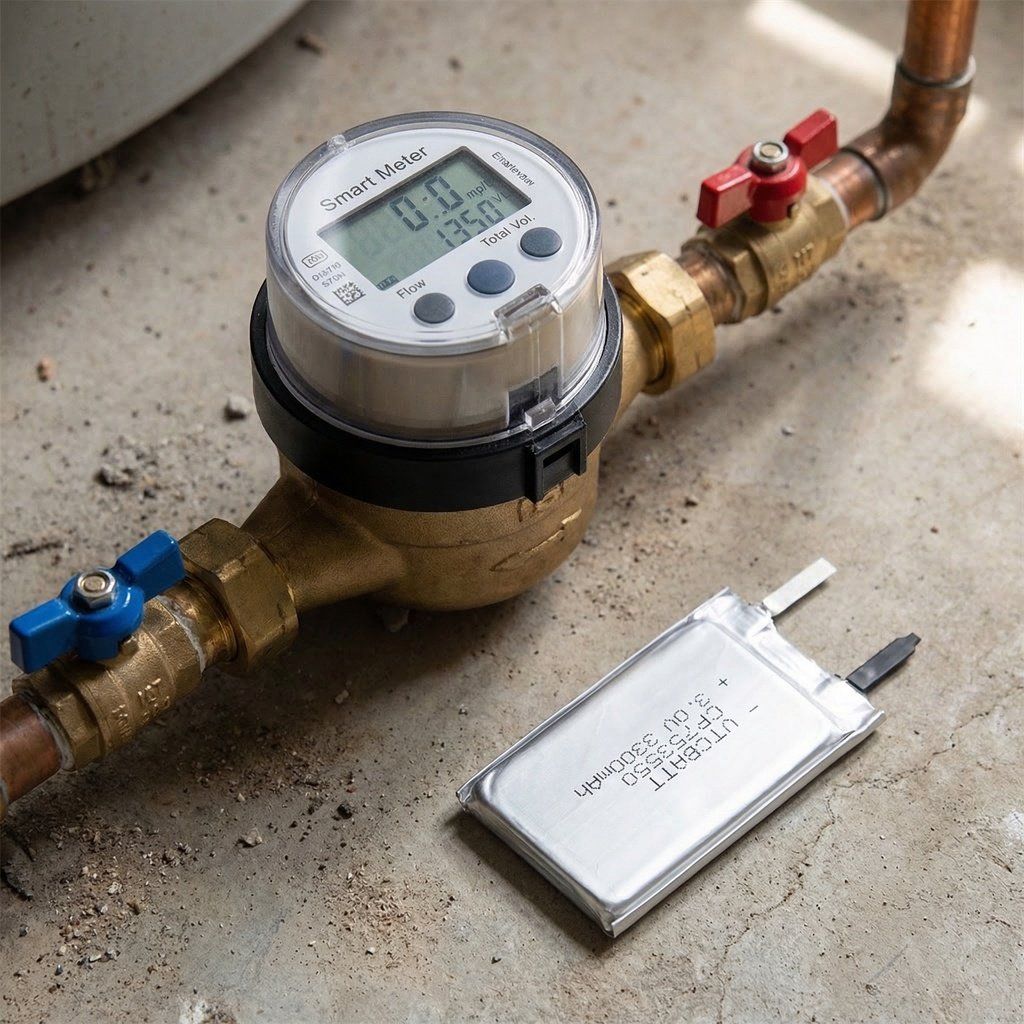

Smart water meter

Li-MnO2 chemistry offers a long shelf life, supporting decades of passive operation for smart water metering infrastructure.

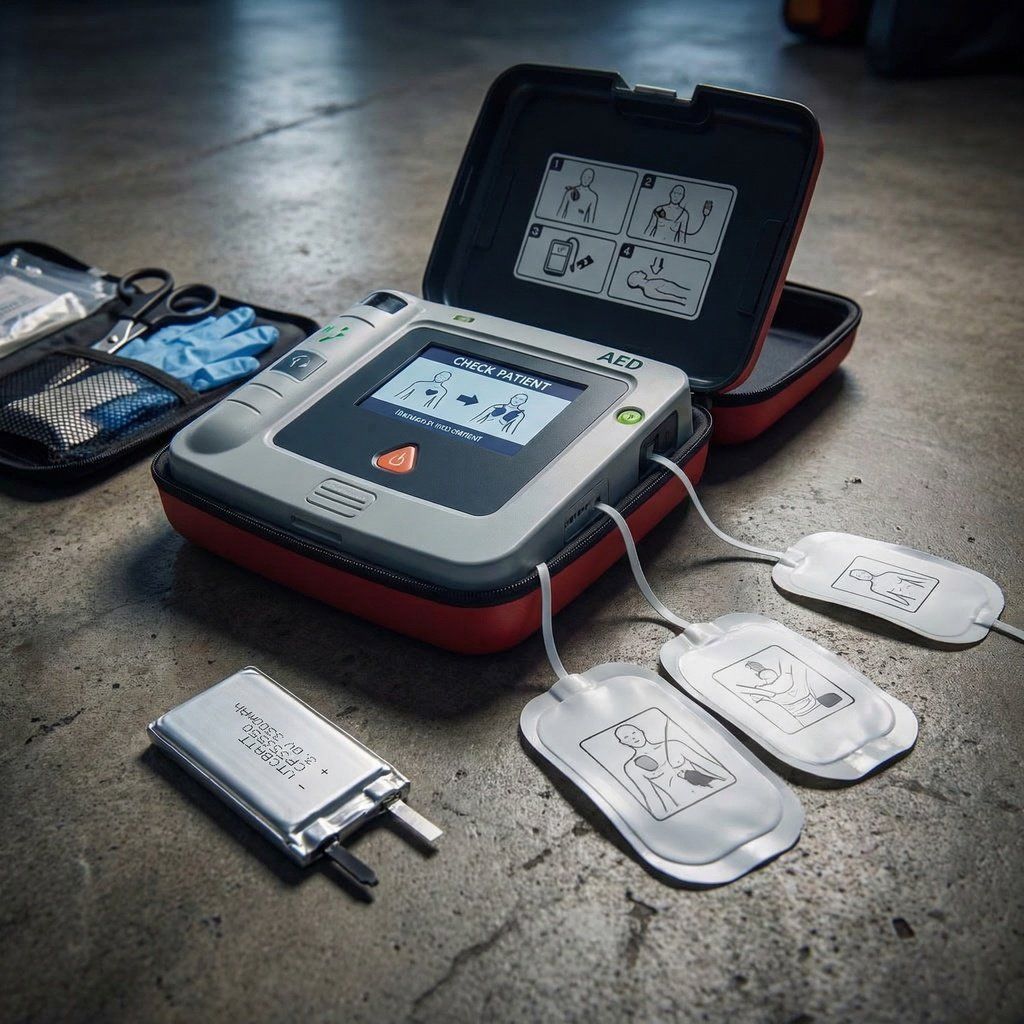

Automated External Defibrillator (AED)

The 2000mA max pulse discharge current delivers the immediate high-energy surge required for life-saving defibrillation treatments.
