Home/Products/CP755060-6500mAh 3.0V Li-MnO2 Thin Cell Battery
CP755060-6500mAh 3.0V Li-MnO2 Thin Cell Battery for portable medical defibrillators, AED backup power modules, medical monitoring devices

Li-MnO2

CP755060-6500mAh 3.0V Li-MnO2 Thin Cell Battery for portable medical defibrillators, AED backup power modules, medical monitoring devices

ParameterSpecification
ModelCP755060-6500mAh
Battery TypeLi-MnO2 thin cell
Nominal Voltage3.0V
Nominal Capacity6500mAh at 10mA load to 2.0V cut-off at 23°C
TabStainless steel terminal
Maximum Continuous Discharge Current2000mA
Operating Temperature-20°C to +65°C
Storage Temperature-5°C to +35°C
Pack WeightApprox. 42g
Self-Discharge Rate≤2% after 1 year of storage at 25°C

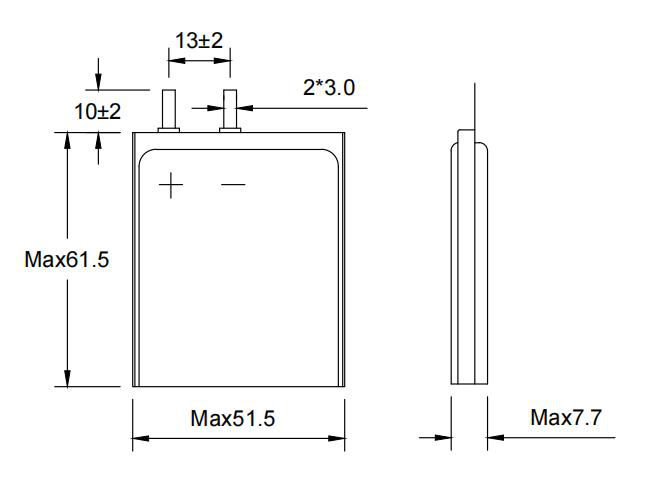

Assemblage Dimension61.5 mm x 51.5 mm x 7.7 mm
Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542
Request a quotationDatasheet unavailable

Product overview

CP755060-6500mAh 3.0V Li-MnO2 Thin Cell Battery for portable medical defibrillators, AED backup power modules, medical monitoring devices | Battery Manufacturers in China & Battery Supply Factory

VTCBATT CP755060-6500mAh 3.0V Li-MnO2 thin cell battery with stainless steel terminals, 61.5 x 51.5 x 7.7 mm max dimensions, factory customization, OEM/ODM support, and wholesale s

01

Automatic LiMnO2 Pouch Battery Production Line

In a clean, dust‑free modern workshop with controlled humidity and precision environmental systems, multiple automatic CP755060 battery production lines operate 24 hours a day to boost production capacity and energy efficiency. As a widely recognized standard size, all core materials used in the production process — including electrodes, separators, and electrolytes for CP755060 3.0V 6500mAh Li-MnO2 Thin Cell  battery — are mature and stable to ensure the highest levels of reliability, performance, and safety throughout the manufacturing process.

Automatic LiMnO2 Pouch Battery Production Line
02

CP755060 Li-MnO2 Pouch Battery

  • High and stable operating voltage
  • Long shelf life Annual self-discharge rate lower than 2% at +20℃
  • Hermetic Sealing
  • Compliant with IEC86-4 safety standard
CP755060 Li-MnO2 Pouch Battery
03

Stable 3.0V Output for Long Runtime Devices

The discharge curve at 23±2°C shows a stable voltage platform under 100mA and 200mA loads, supporting devices that require steady primary lithium power over extended operating cycles.

Stable 3.0V Output for Long Runtime Devices

Technical insight

Product and application details

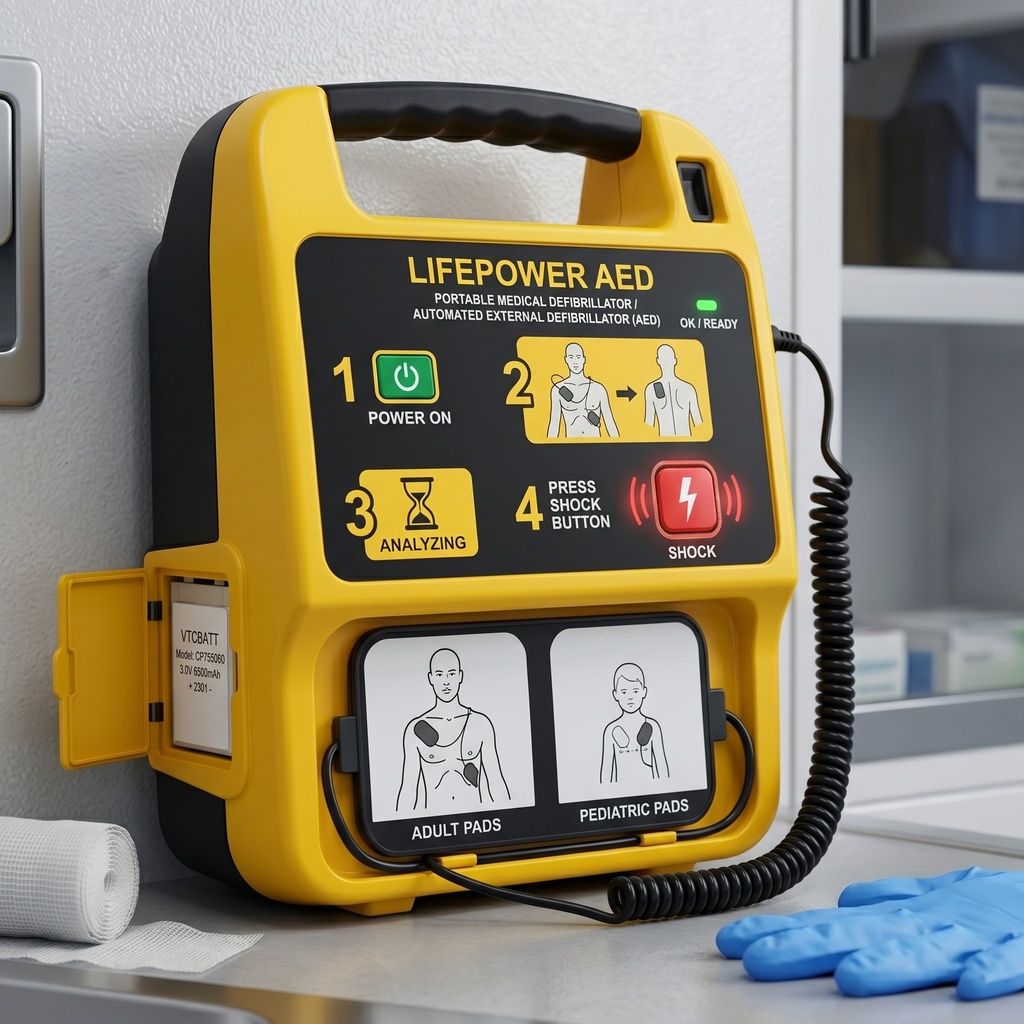

battery for portable medical defibrillator

battery for portable medical defibrillator

The 7.7mm thin profile allows integration into compact defibrillators while the 2000mA pulse current supports high-energy shock delivery.

battery for portable medical defibrillator

battery for portable medical defibrillator

The 7.7mm thin profile allows integration into compact defibrillators while the 2000mA pulse current supports high-energy shock delivery.

battery for portable medical defibrillator

battery for portable medical defibrillator

The 7.7mm thin profile allows integration into compact defibrillators while the 2000mA pulse current supports high-energy shock delivery.

battery for portable medical defibrillator

battery for portable medical defibrillator

The 7.7mm thin profile allows integration into compact defibrillators while the 2000mA pulse current supports high-energy shock delivery.

battery for portable medical defibrillator

battery for portable medical defibrillator

The 7.7mm thin profile allows integration into compact defibrillators while the 2000mA pulse current supports high-energy shock delivery.

battery for portable medical defibrillator

battery for portable medical defibrillator

The 7.7mm thin profile allows integration into compact defibrillators while the 2000mA pulse current supports high-energy shock delivery.

battery for portable medical defibrillator

battery for portable medical defibrillator

The 7.7mm thin profile allows integration into compact defibrillators while the 2000mA pulse current supports high-energy shock delivery.

battery for portable medical defibrillator

battery for portable medical defibrillator

The 7.7mm thin profile allows integration into compact defibrillators while the 2000mA pulse current supports high-energy shock delivery.
