Li-MnO2

CP783668 4600mAh 3.0V Li-MnO2 Pouch Battery for medical device backup, GPS tracker, smart meter, alarm system,

Parameter	Specification
Item	Spec
Model	CP783668
Nominal Voltage	3.0V
Tab	Stainless steel to nickel tab transition
Nominal Capacity	4600mAh
Max. Continuous Discharge Current	1000mA
Max. Pulse Discharge Current	2000mA
Discharge Cut-off Voltage	2.0V

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotation View More Datasheet

Product overview

CP783668 4600mAh 3.0V Li-MnO2 Pouch Battery for medical device backup, GPS tracker, smart meter, alarm system, | Battery Manufacturers in China & Battery Supply Factory

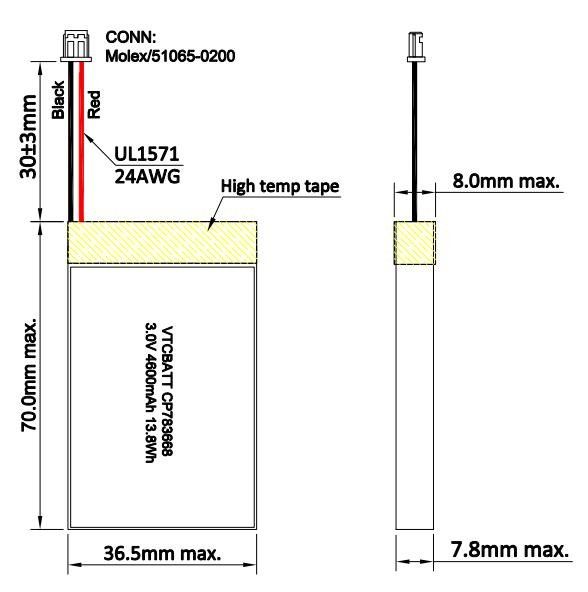

CP783668 3.0V 4600mAh Li-MnO2 thin pouch battery with connector from VTCBATT, featuring 70.0 x 36.5 x 8.0 mm size, high capacity output, and OEM/ODM factory supply for integrated e

01

Automatic LiMnO2 Pouch Battery Production Line

In a clean, dust‑free modern workshop with controlled humidity and precision environmental systems, multiple automatic CP783668 battery production lines operate 24 hours a day to boost production capacity and energy efficiency. As a widely recognized standard size, all core materials used in the production process — including electrodes, separators, and electrolytes for 3V LiMnO2 Pouch CP783668 battery — are mature and stable to ensure the highest levels of reliability, performance, and safety throughout the manufacturing process.

02

Key feature for CP783668 Li-MnO2 Pouch Battery

High and stable operating voltage
Long shelf life Annual self-discharge rate lower than 2% at +20℃
Hermetic Sealing
Compliant with IEC86-4 safety standard

03

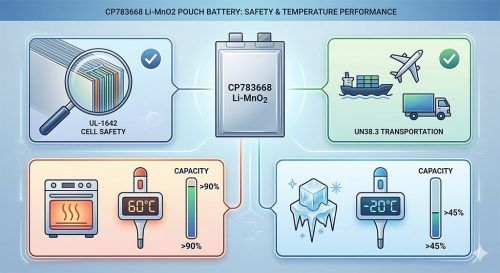

CP783668 Li-MnO2 Pouch Battery Safety & Temperature Test

No.	Item	Testing Conditions and Method	Standard
1	UN38.3/MSDS	Follows UN38.3/MSDS.	UN38.3
2	UL-1642 (Cell Level)	Follows UL1642.	UL-1642
3	High Temperature	A battery is placed in a high-temperature cabinet for 2 hours at 60°C±2°C, then discharged at 5 mA current until the voltage cut off.	Discharge 90% of the nominal capacity.
4	Low Temperature	A battery is placed in a high-temperature cabinet for 2 hours at -20°C±2°C, then discharged at 5mA current until the voltage cut off.	Discharge more than 45% of the nominal capacity.

Technical insight

Product and application details

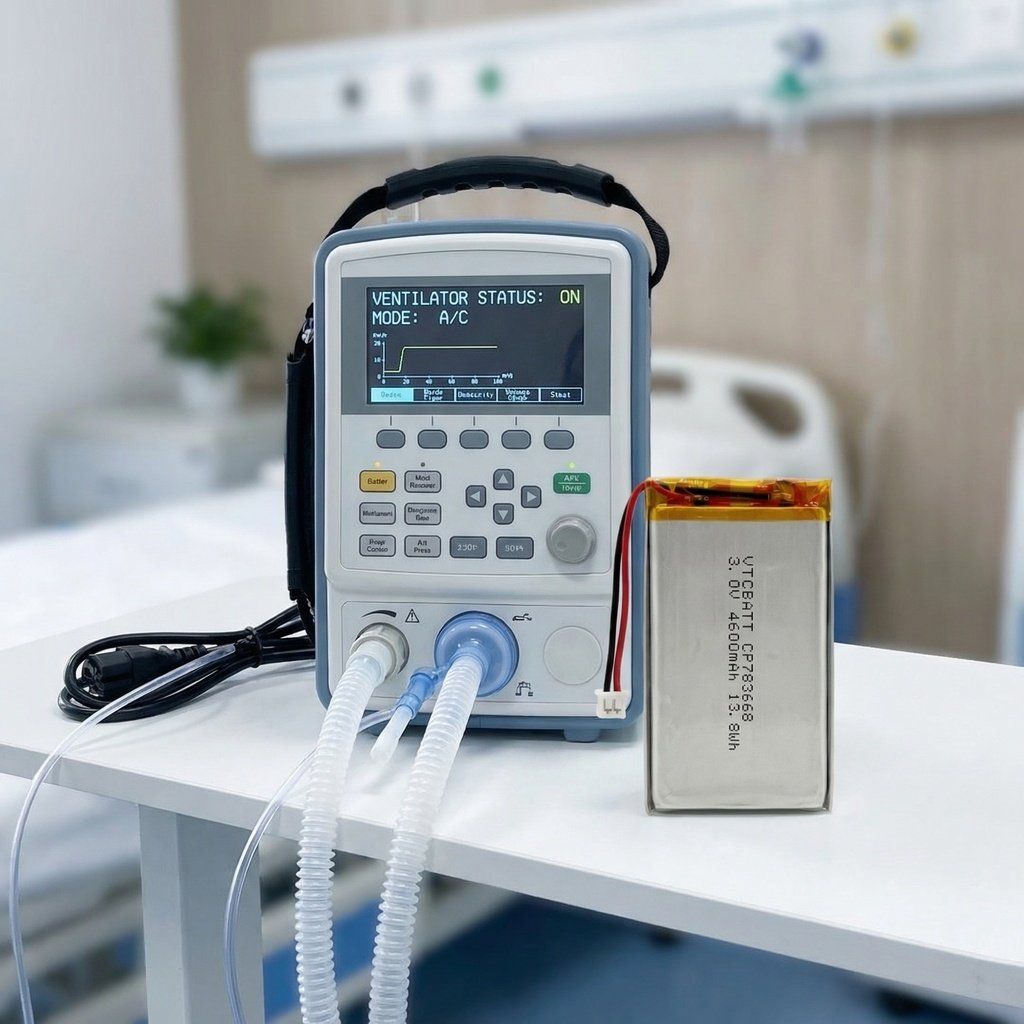

Portable ventilator

The 4600mAh capacity ensures extended backup power for critical life support during unexpected grid outages.

Emergency Position Indicating Radio Beacon

High pulse current capability supports sudden transmission bursts required for distress signaling in emergency scenarios.

Water quality data acquisition buoy

Stable 3.0V output maintains consistent sensor operation for long-term environmental monitoring in marine environments.

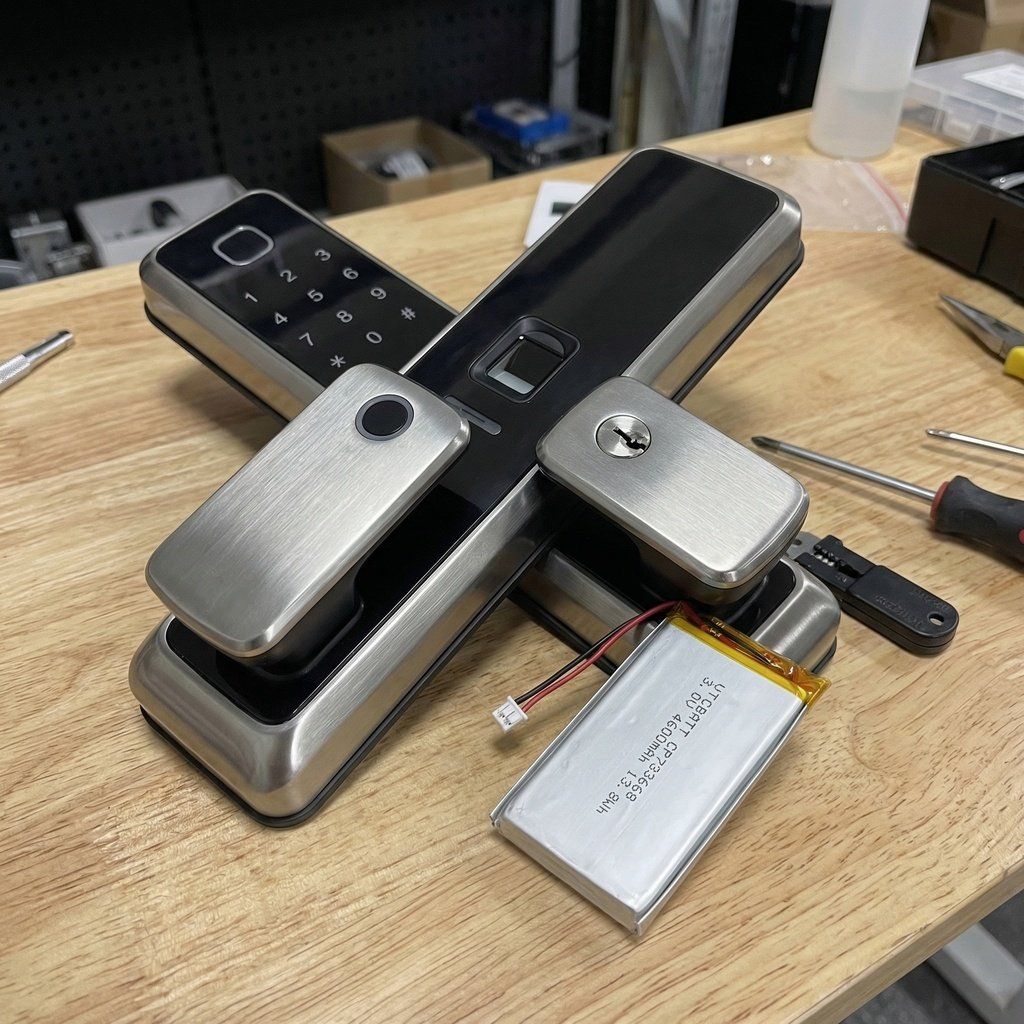

Smart electronic door lock

Low self-discharge characteristics preserve charge for years, ensuring readiness for infrequent access events.

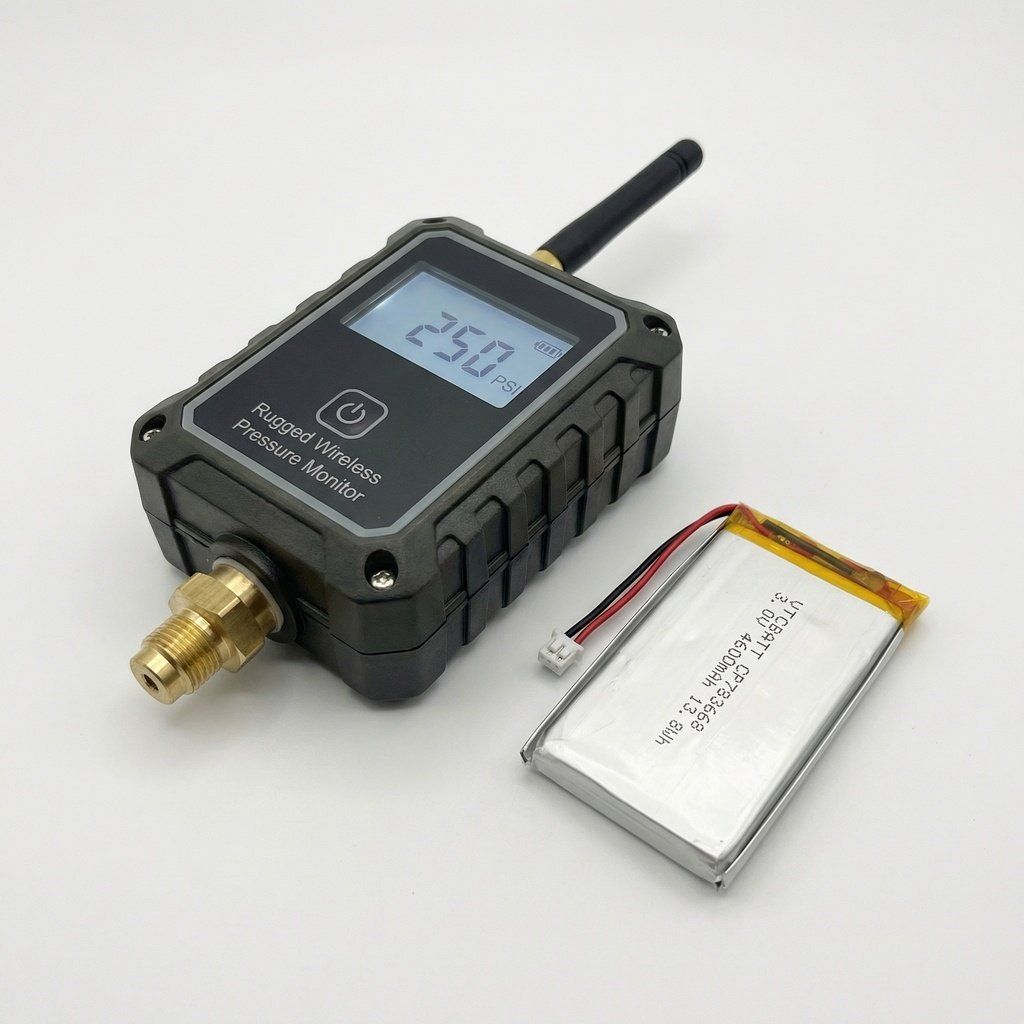

Wireless pipe pressure monitor

Compact pouch form factor allows integration into tight spaces within industrial piping systems.

Standalone smoke alarm

Long shelf life guarantees operational readiness for safety devices that rarely require maintenance.

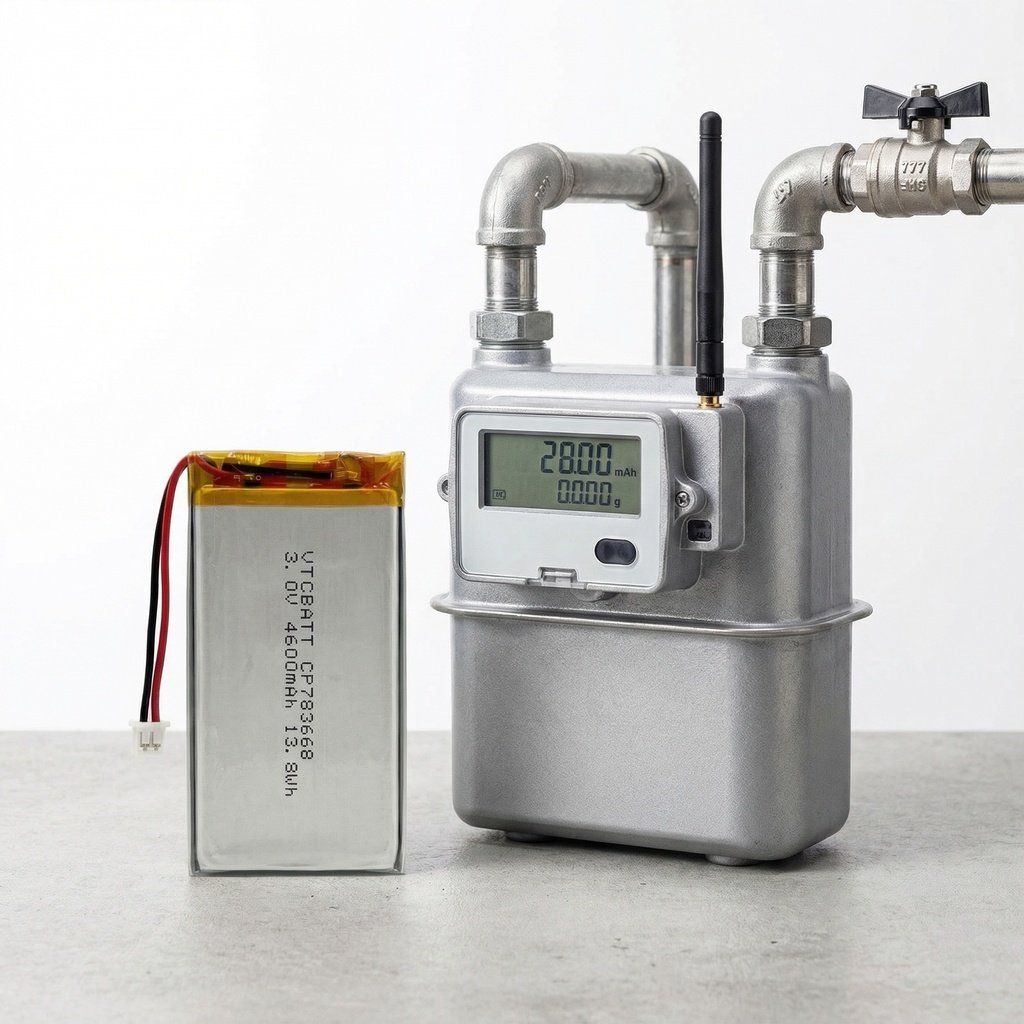

Smart gas meter

Continuous discharge capability supports regular data transmission cycles without frequent battery replacements.

Vehicle anti-theft tracker

Rugged design withstands vibration while providing reliable power for location tracking in mobile assets.
